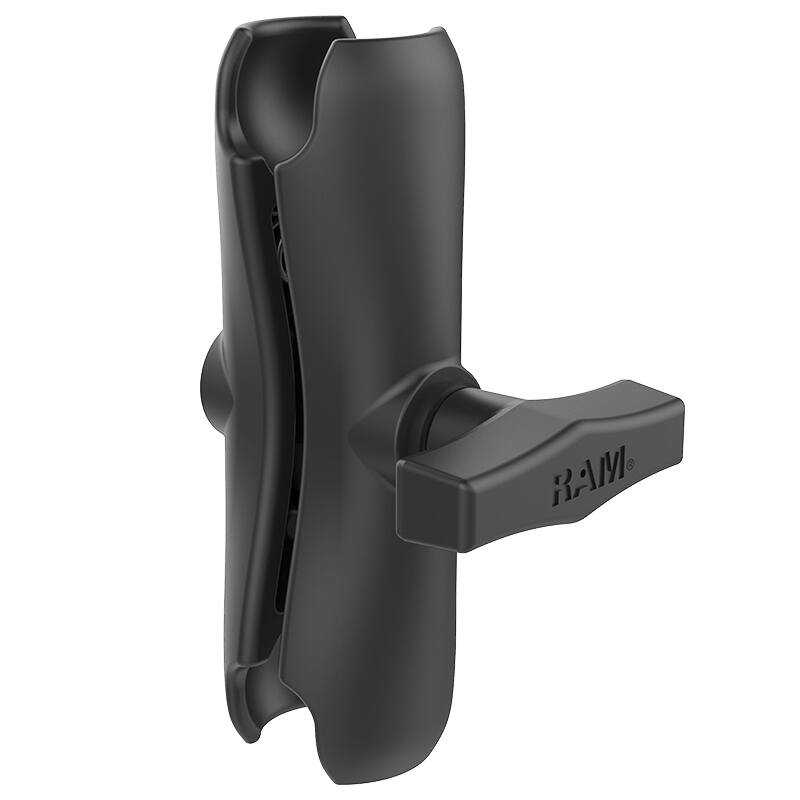

RAM-201U - Medium Arm - C Series (1.5" Ball)

RAM-201U RAM® Double Socket Arm – C Size Medium

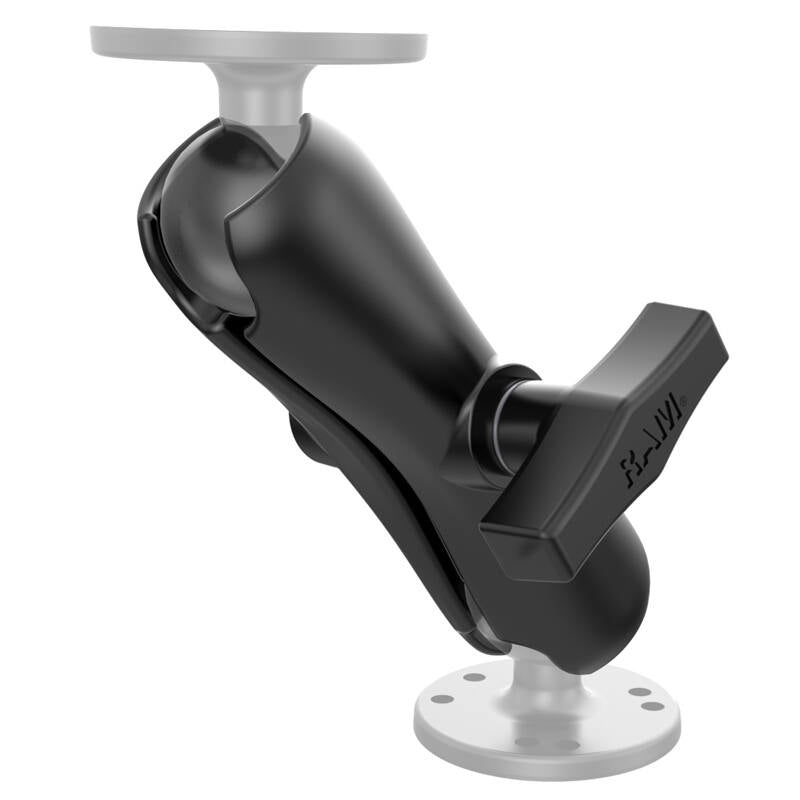

The RAM-201U is RAM's standard C Series double socket arm, connecting two 1.5" C Size RAM® ball components with near-infinite adjustability for the perfect viewing angle.

Key Features

• Medium-length double socket arm
• Attaches to any C Size RAM® ball component, including mounting bases and device holders

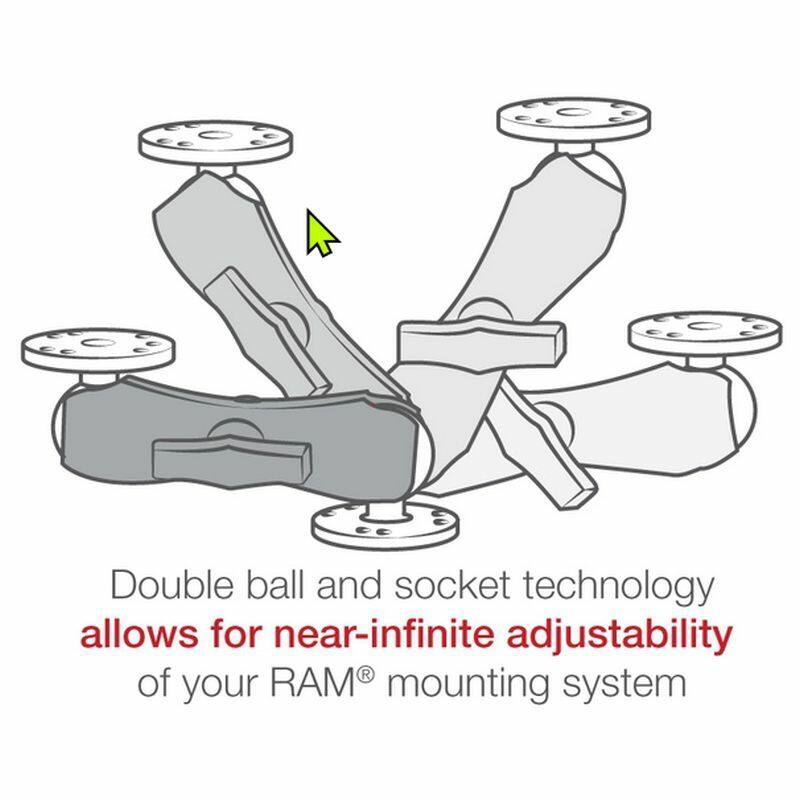

• Double ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

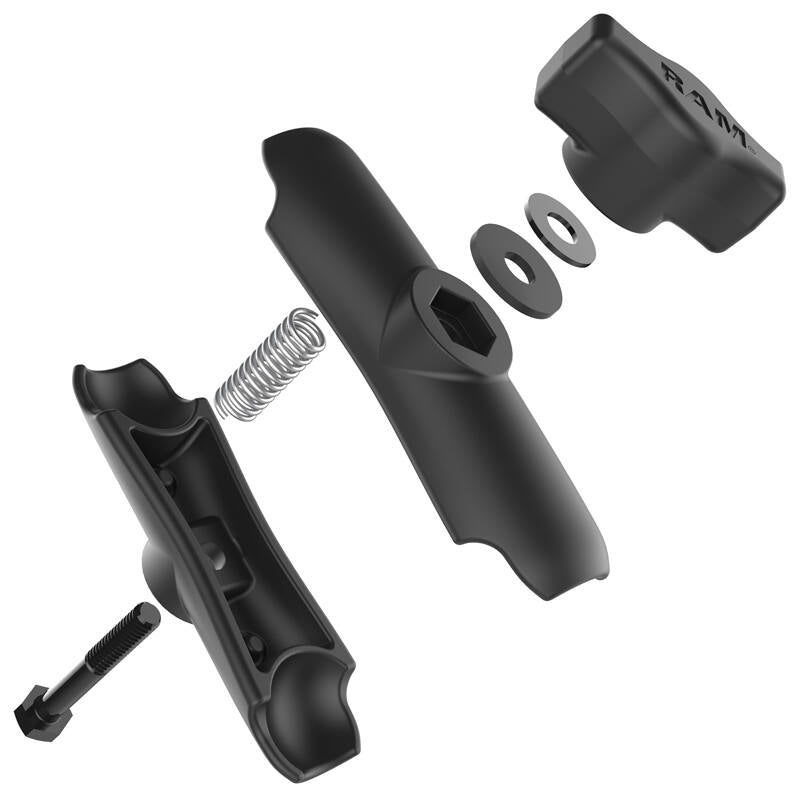

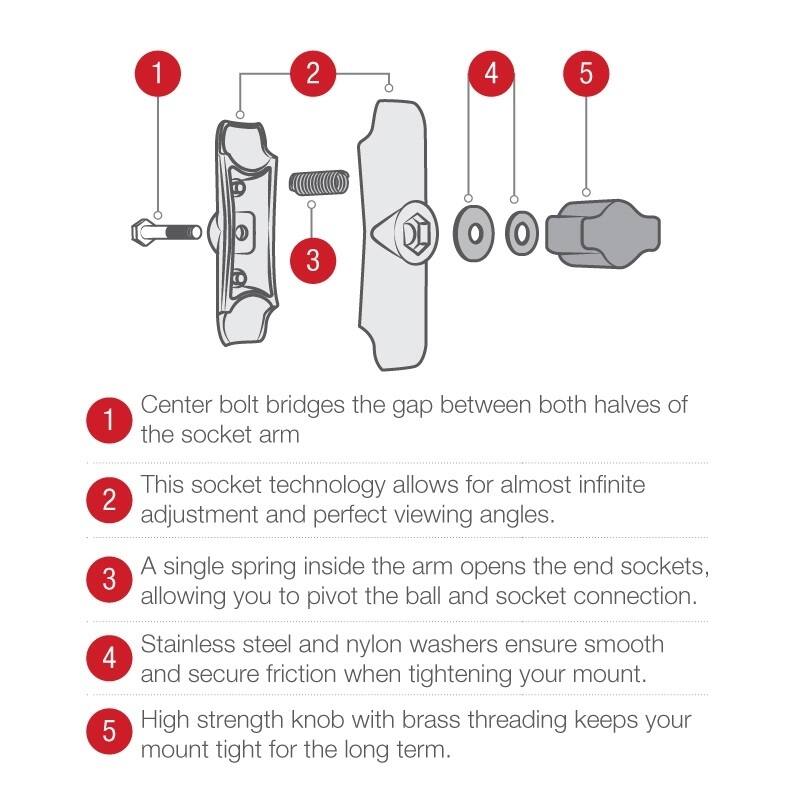

A single spring inside the arm opens the end sockets, allowing you to pivot the ball-and-socket connection for almost infinite adjustment and perfect viewing angles.

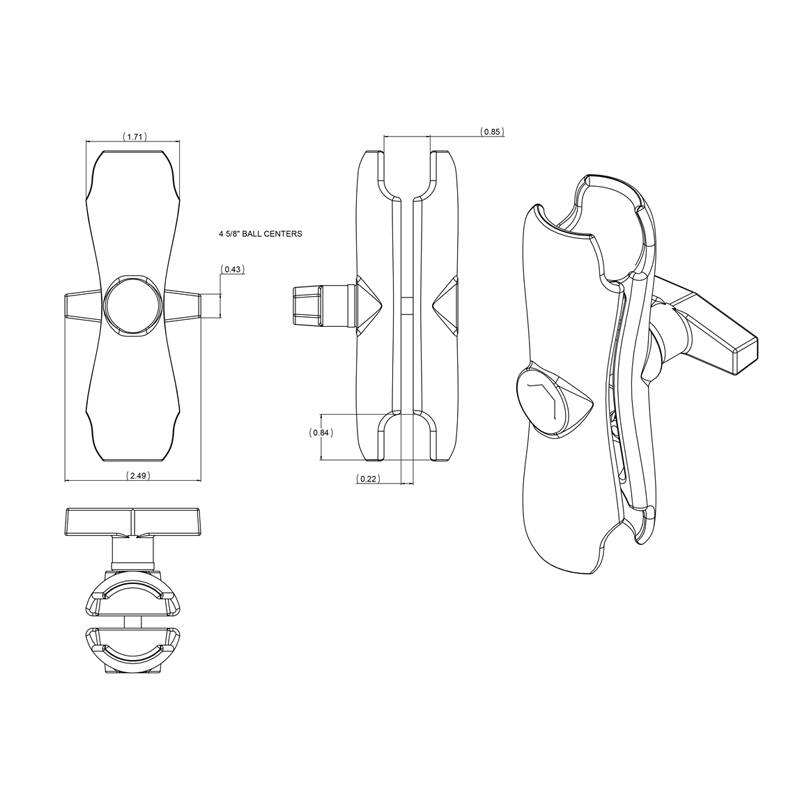

Dimensions & Specifications

• Overall length: 144.5mm (5.69")
• Socket-to-socket length: 118.4mm (4.66")
• Material: Powder-coated marine-grade aluminium
• Ball size: 1.5" rubber ball
• Weight: 322g (0.71 lbs)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

Also Available In

This arm comes in three C Series lengths: short (RAM-201U-B, 90mm), medium (this one, 144.5mm) and long (RAM-201U-D, 232mm).
