RAP-201U-B - Short Arm - C Series (1.5" Ball) - Composite

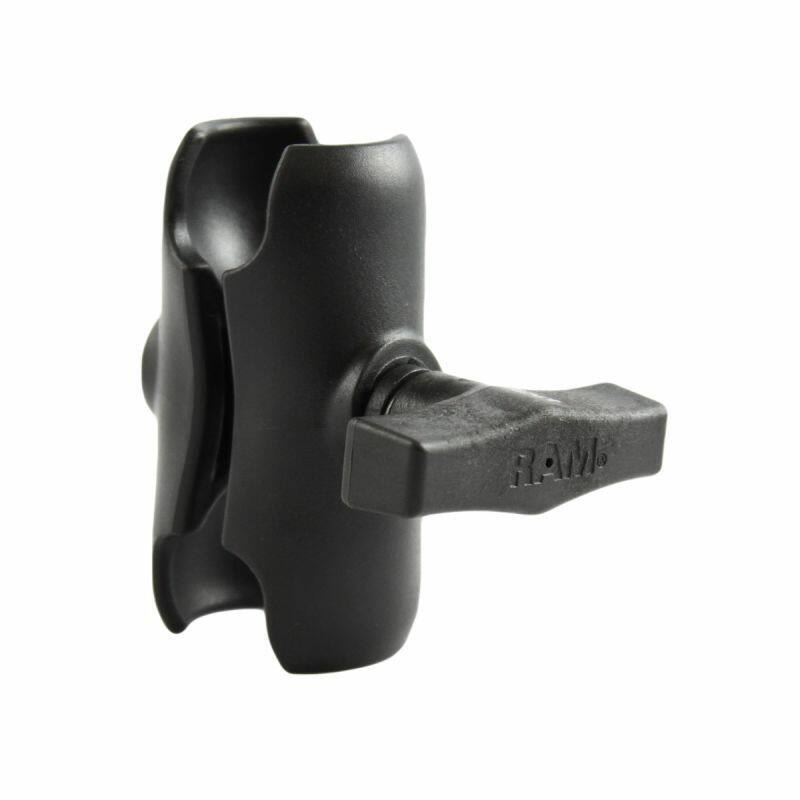

RAP-201U-B RAM® Composite Short Double Socket Arm – C Size

The RAP-201U-B is RAM's short, low-profile composite double socket arm, connecting two 1.5" C Size RAM® ball components — bases, device holders, and adapters — with near-infinite adjustability.

Key Features

• Low-profile design: 90.4mm overall length, 63.5mm socket-to-socket
• Attaches to any C Size RAM® ball component, including mounting bases and device holders

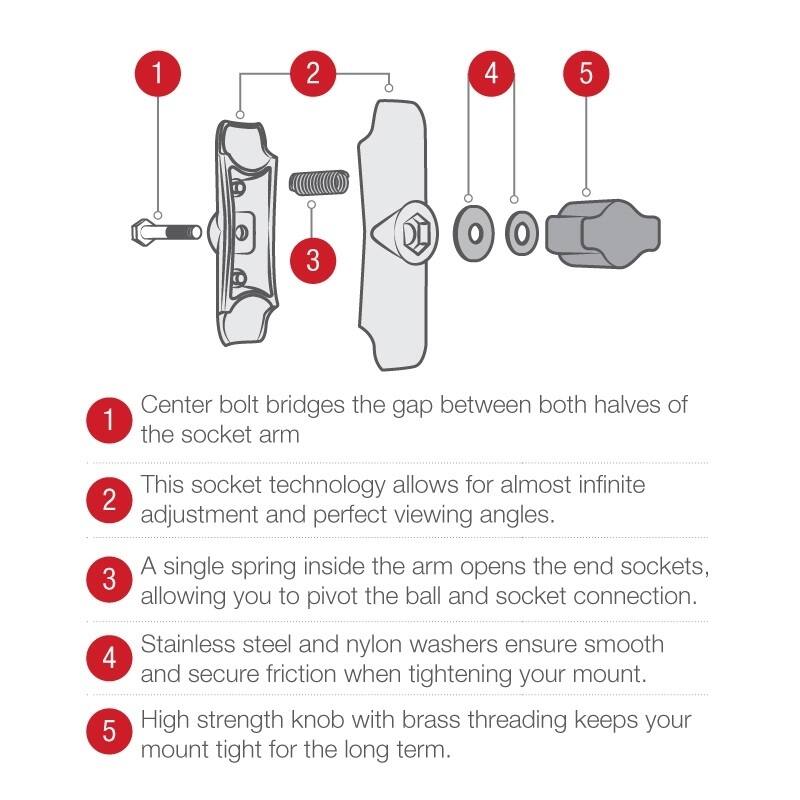

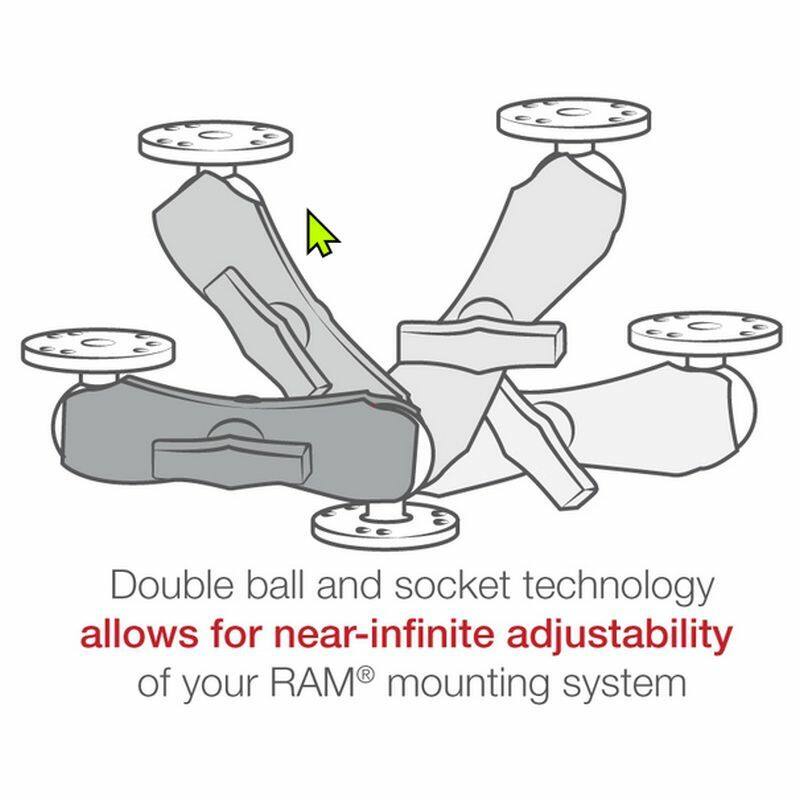

• Double ball-and-socket technology allows near-infinite adjustability
• High-strength composite construction
• Backed by RAM Mounts' lifetime warranty

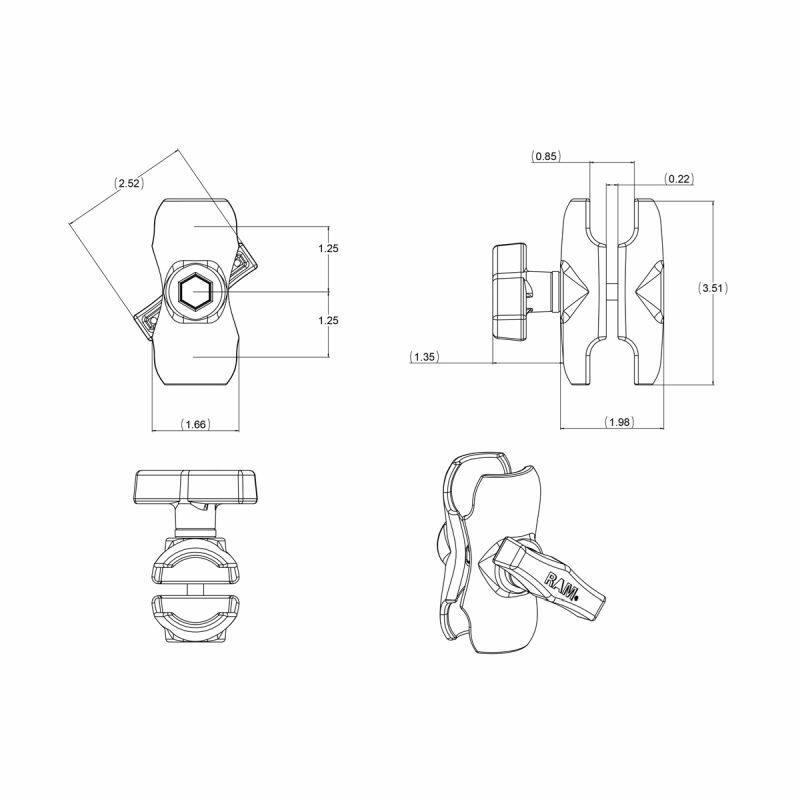

Dimensions & Specifications

• Overall length: 90.4mm (3.56")
• Socket-to-socket length: 63.5mm (2.5")
• Material: High-strength composite
• Ball size: 1.5" rubber ball, C Size
• Weight capacity: 1.81kg standard use, 1.36kg heavy-duty use

Looking for a different arm? RAP-201U is the standard-length composite C Series arm; RAM-201U-B is the short alloy version; RAM-B-201U-A is the short alloy version in B Series.
