RAM-D-201U-C - Short Arm - D Series (2.25" Ball)

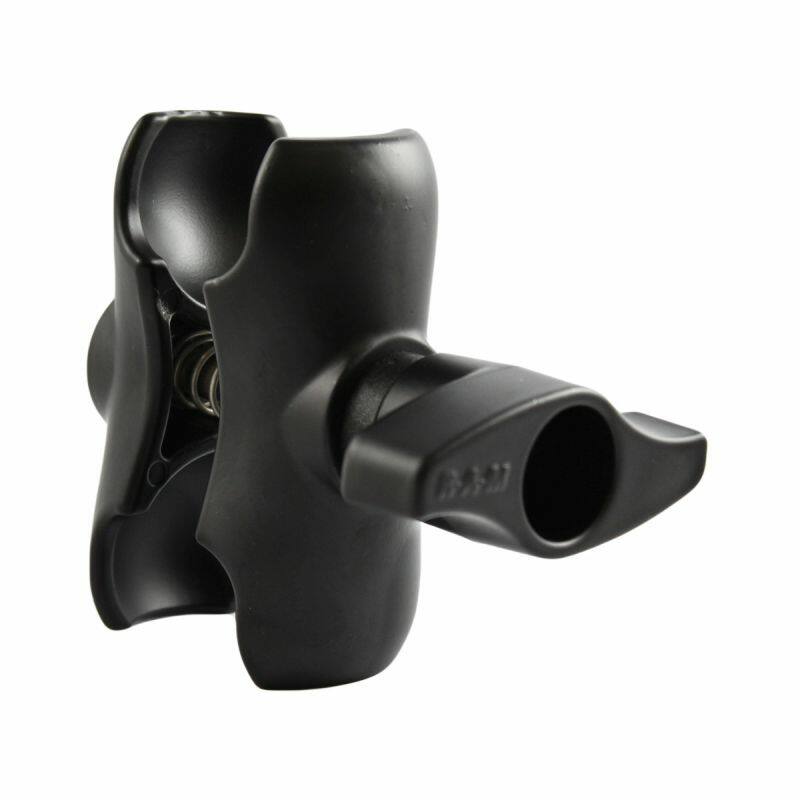

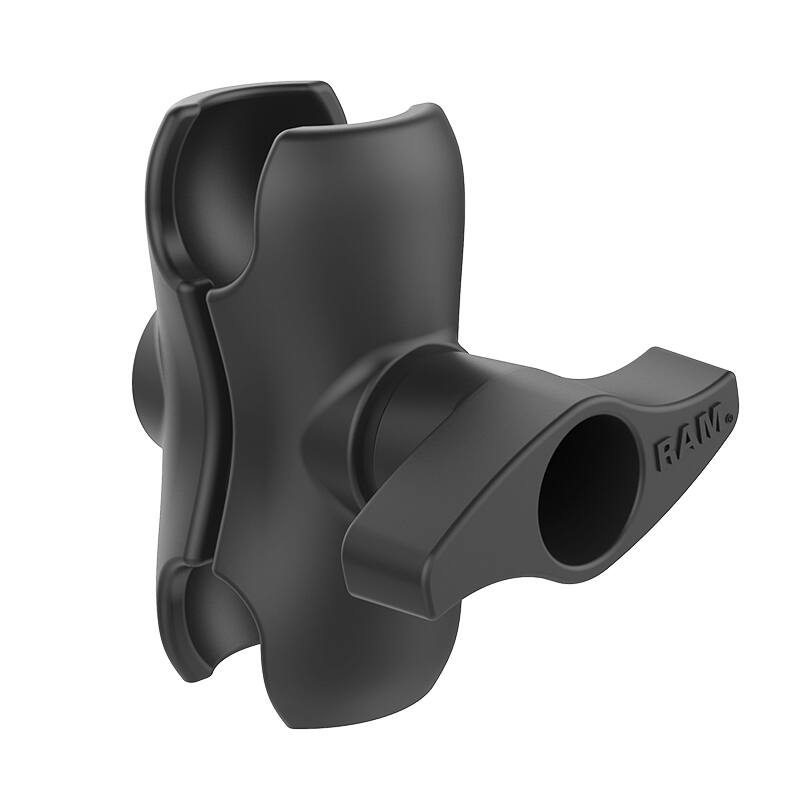

RAM-D-201U-C RAM® Double Socket Arm – D Size Short

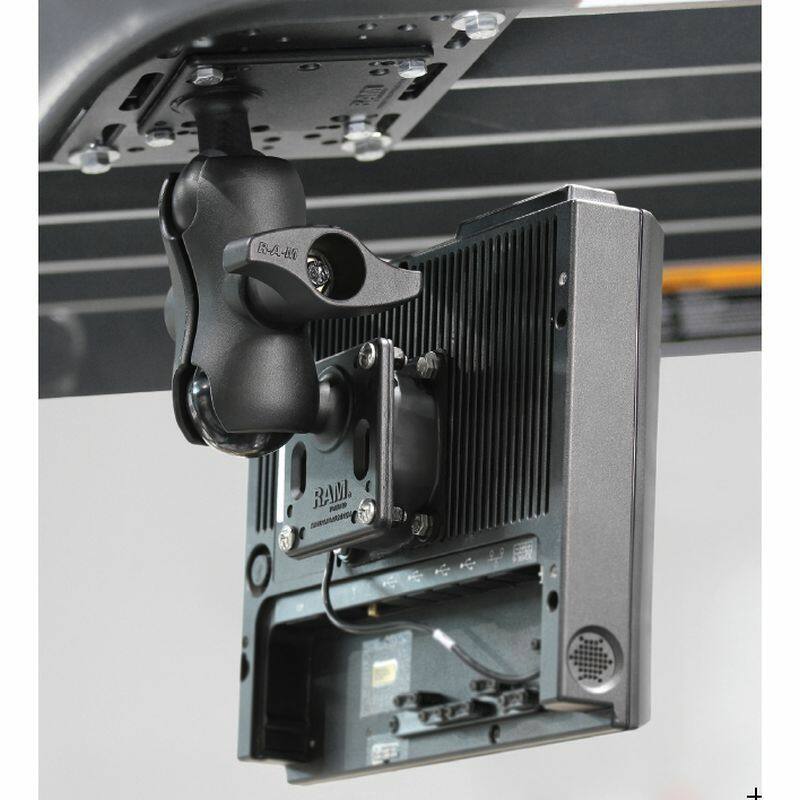

The RAM-D-201U-C is the short arm in RAM's D Series (2.25") double socket range, connecting two 2.25" D Size RAM® ball components in a low-profile 129mm length. It is the shortest D Series arm, ideal for heavy-duty setups where you want the device held in close with minimal overhang.

Key Features

• Short, low-profile double socket arm (129mm overall)
• Attaches to any D Size RAM® ball component, including mounting bases and device holders
• Double ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Made in the USA and backed by RAM Mounts' lifetime warranty

A single spring inside the arm opens the end sockets, letting you pivot each ball-and-socket connection for almost infinite adjustment and the perfect viewing angle.

Dimensions & Specifications

• Overall length: 128.6mm (5.06")
• Socket-to-socket length: 87mm (3.19")
• Material: powder-coated marine-grade aluminium
• Ball size: 2.25" (57mm) D Series rubber ball
• Weight: 753g (1.66 lbs)
• Weight capacity: 2.72kg (6 lbs) standard use, 2.27kg (5 lbs) heavy-duty use

Also Available In

This arm comes in three D Series lengths: short (this one, 129mm), medium (RAM-D-201U, 214mm) and long (RAM-D-201U-E, 327mm).

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.

Does it include hardware to bolt it to a flat surface?
No. Because these arms get mounted to such a wide range of surfaces, the fixing hardware is not included. Your local hardware store, or the vehicle/equipment manufacturer, is usually the best source for the right fasteners.
