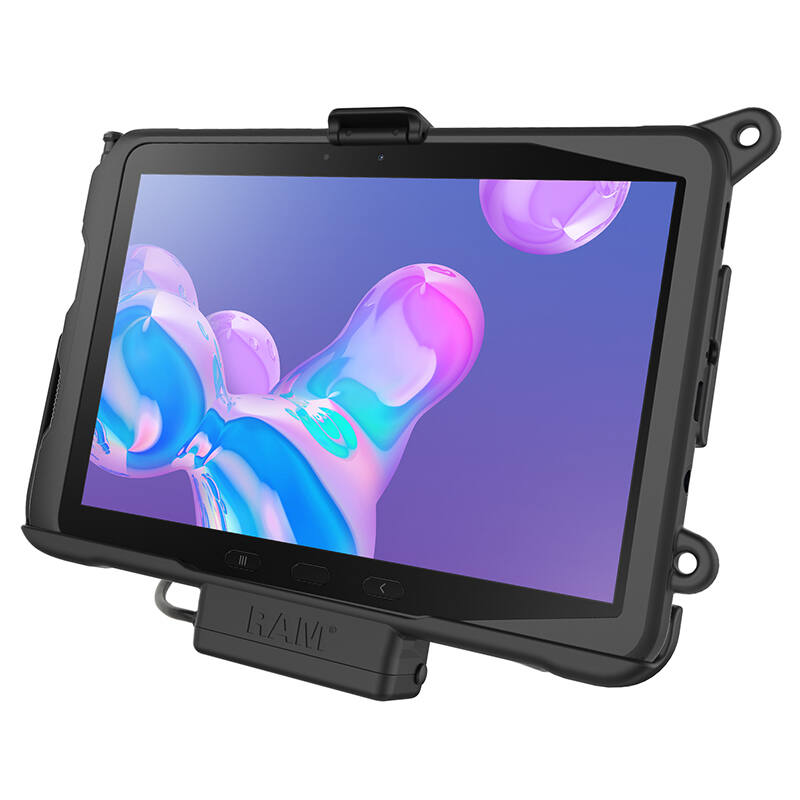

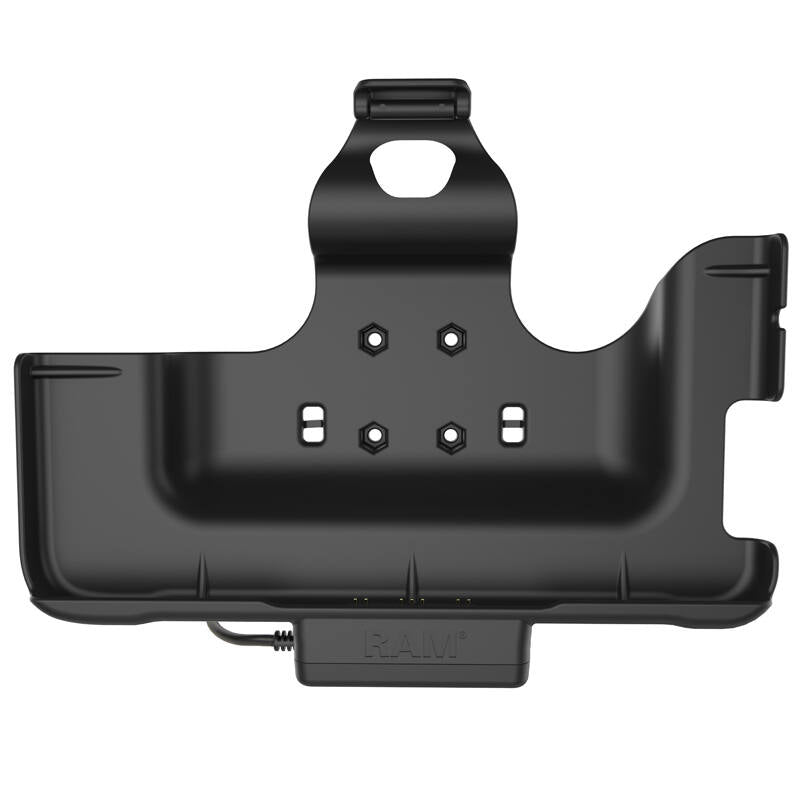

RAM-HOL-SAM52PU RAM® EZ-Roll'r™ Powerered Cradle for Samsung Galaxy Tab Active Pro
FEATURES
* Powered cradle provides charging capability for Samsung Tab Active Pro through integrated pogo pin connector; can be used in portrait or landscape mode
* Access to speakers, mics, headphone jack, and NFC reader remain while device is docked
* Easily insert and remove the Tab Active Pro with one hand
* Compatible with factory skin and RAM® Skin™
* Backed by a 3-year warranty

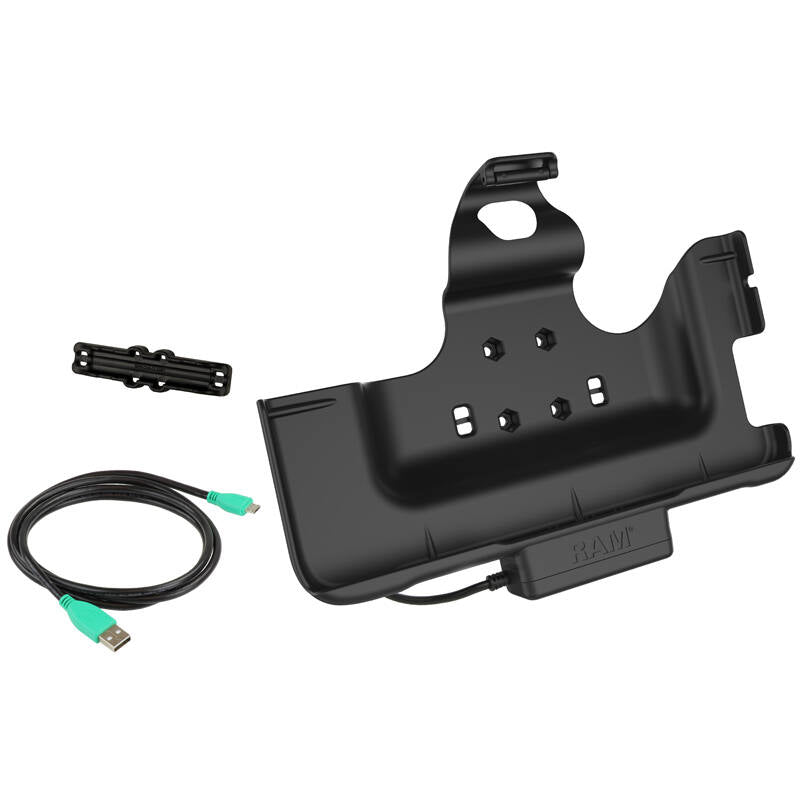

The RAM® EZ-Roll’r™ powered cradle for the Samsung Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin™ for the Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a mUSB female pigtail for power, as well as a mUSB male to Type-A male cable and cable clamp.
COMPATIBLE DEVICES
Samsung Galaxy Tab Active Pro
HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
HOLE PATTERN
4-Hole AMPS:
1.181" x 1.496"
Weight
340 grams (0.75 lb)
MATERIALS
High strength composite
For the power & Data version see part RAM-HOL-SAM52PDU
Q & A
Q: how many amps/watts of charging does this unit support?
A: The RAM-HOL-SAM52PU cradle is capable of passing up to 3A through the POGO pins, but due to the specific design of the Tab Active Pro, the limit is 1.67A irrespective of the power supply output that the dock is connected to.
