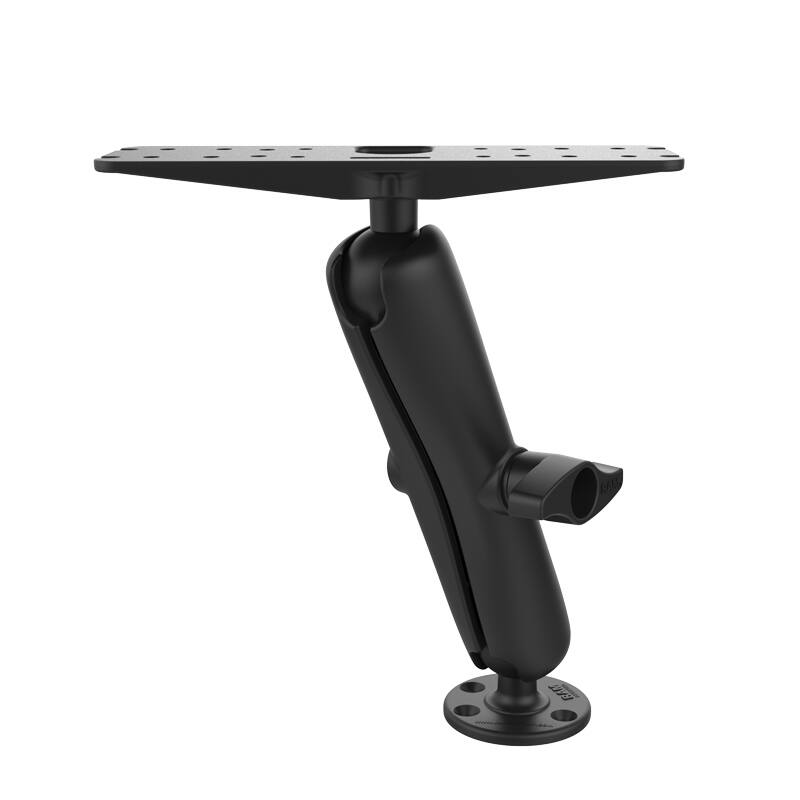

RAM-D-111U-E RAM® Large Marine Electronics Mount
FEATURES
* Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 407mm
* RAM® Mounts ball and socket technology allows for near-infinite adjust-ability
* Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty
The RAM-D-111U-E consists of a 93.5mm diameter round base, LONG length double socket arm and 279.4 mm x 76.2mm rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.
The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Compatible Devices
Garmin
ECHOMAP Ultra 122sv
ECHOMAP Ultra 126sv
GPSMAP 1222/xsv Touch
GPSMAP 1242xsv/Touch
Fishfinders and GPS Chartplotters
Lowrance
HDS Carbon 9
HDS Carbon 12
Elite-9 CHIRP
Elite-9 Ti
Elite-9 Ti²
Elite-12 Ti
Elite-12 Ti²
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
The arm has the following dimensions:
PRODUCT DIMENSIONS
Overall Height:
407mm (16.03")
SOCKET-TO-SOCKET LENGTH
290mm (11.41")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
D Size 2.25" Rubber Ball
Weight Capacity:
Up to 2.72kg (6 lbs)
Note: The 279.4 mm x 76.2mm / 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Weight:
2.49kg (5.5 lbs.)
Components:

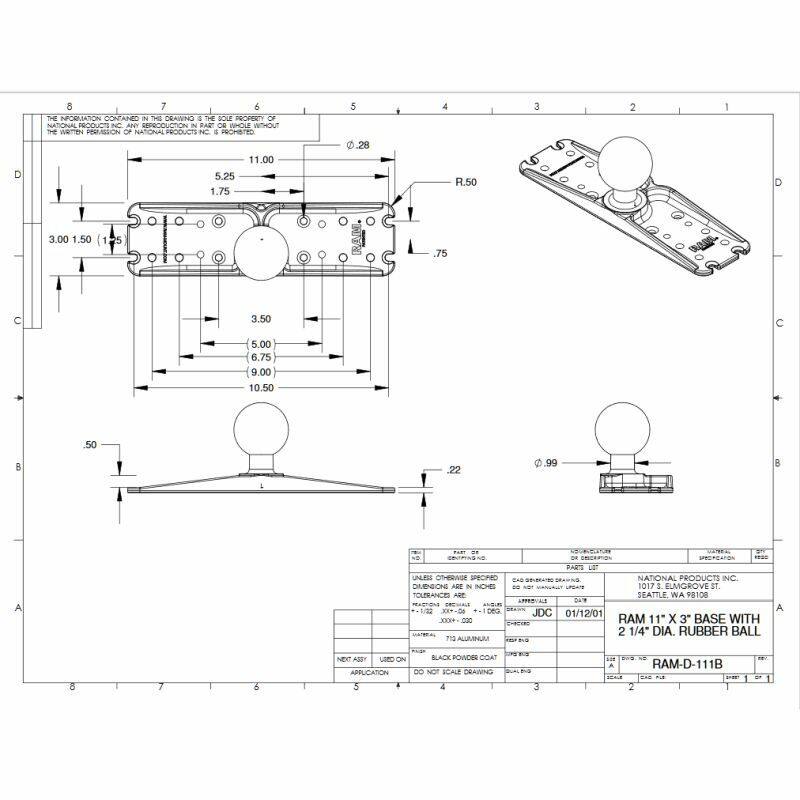

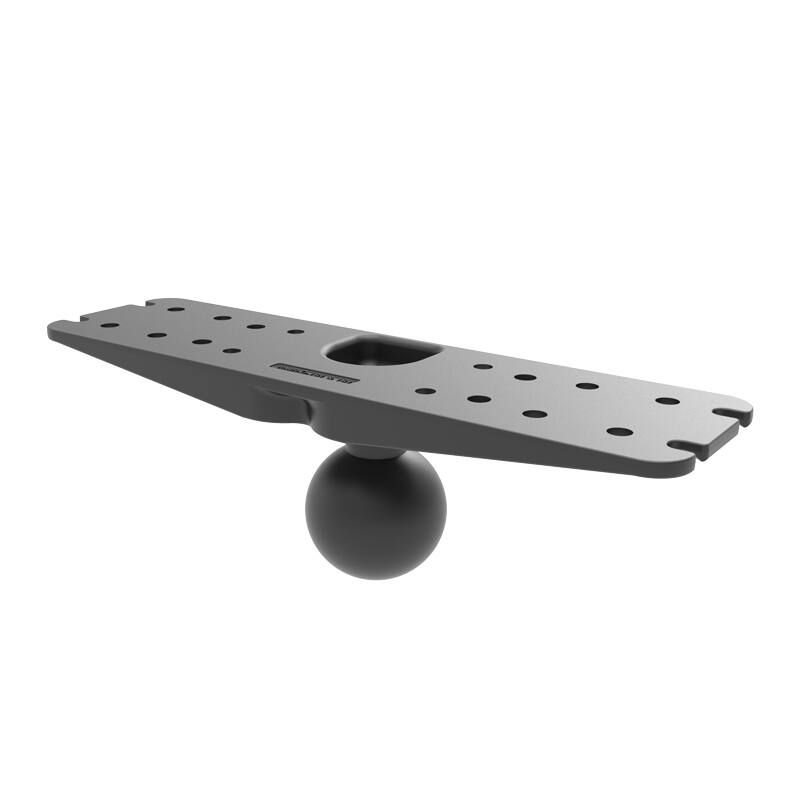

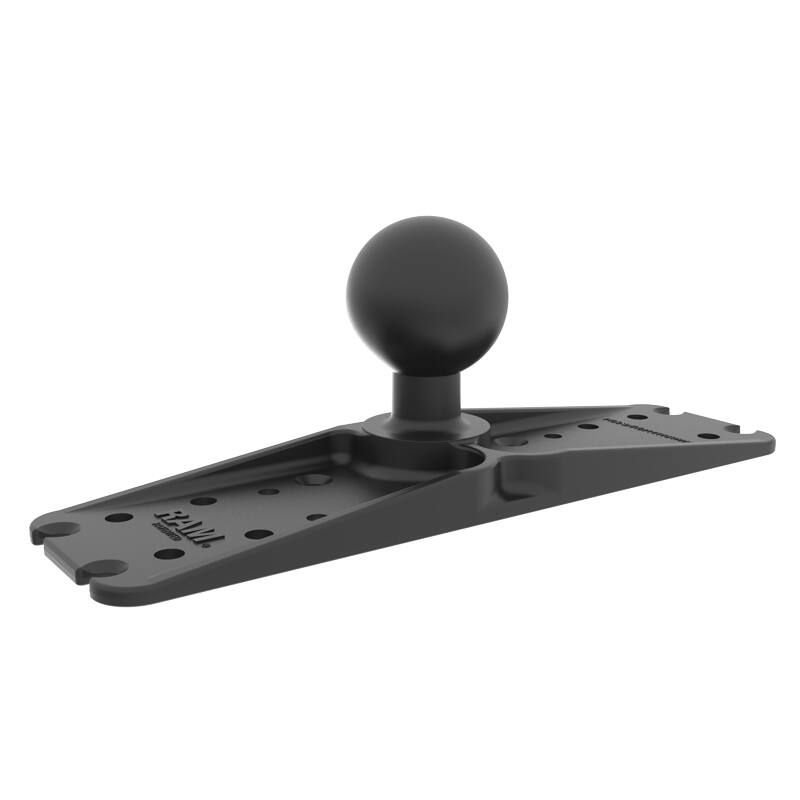

RAM-D-111BU 76mm x 279mm Rectangle Plate with D Size 2.25"/57mm Ball

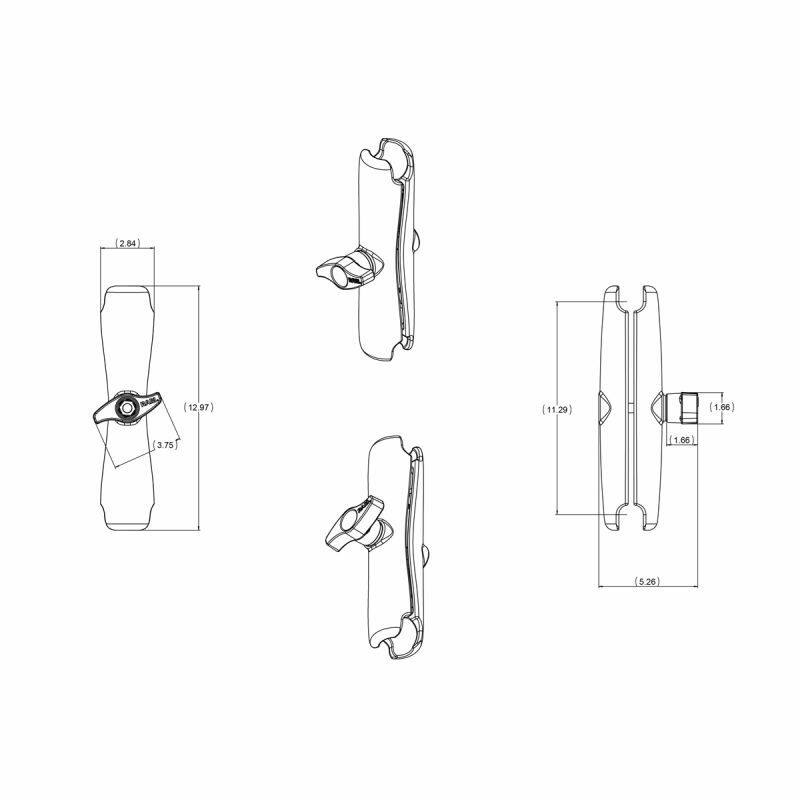

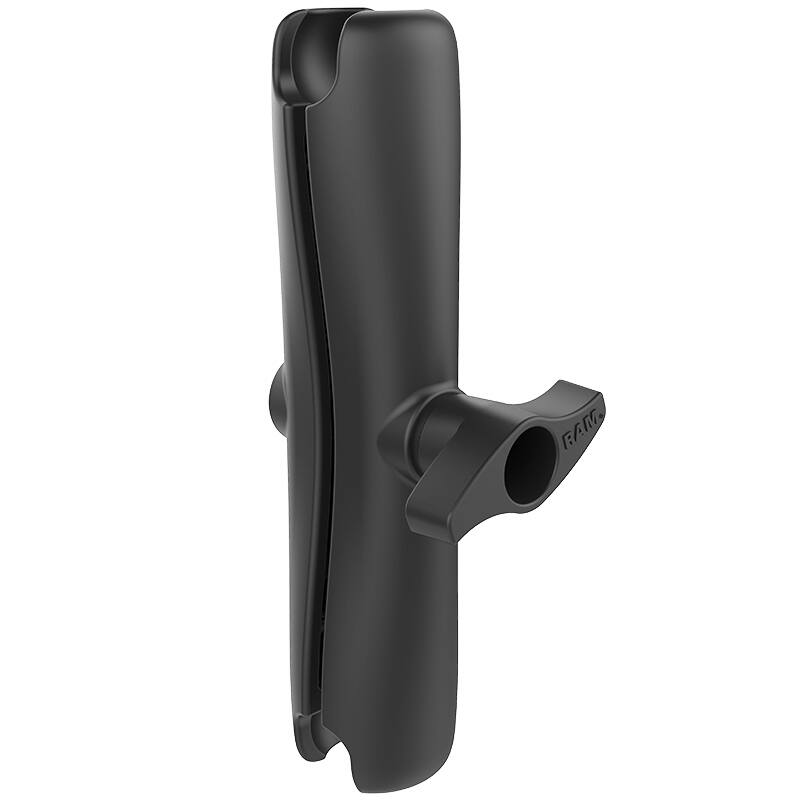

RAM-D-201U-E LONG Length Double Socket Arm for D Size 2.25"/57mm Balls

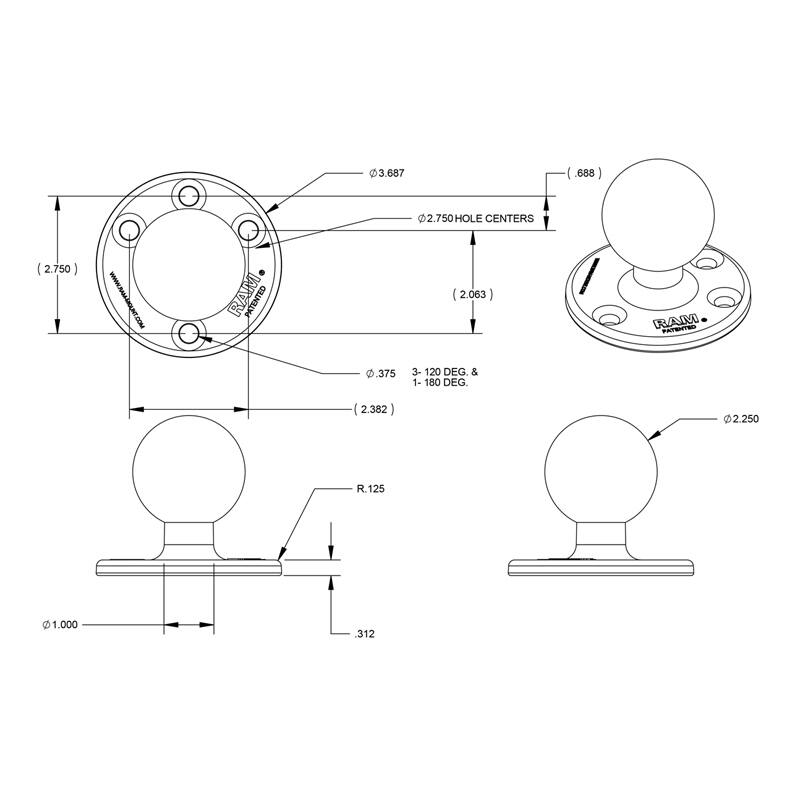

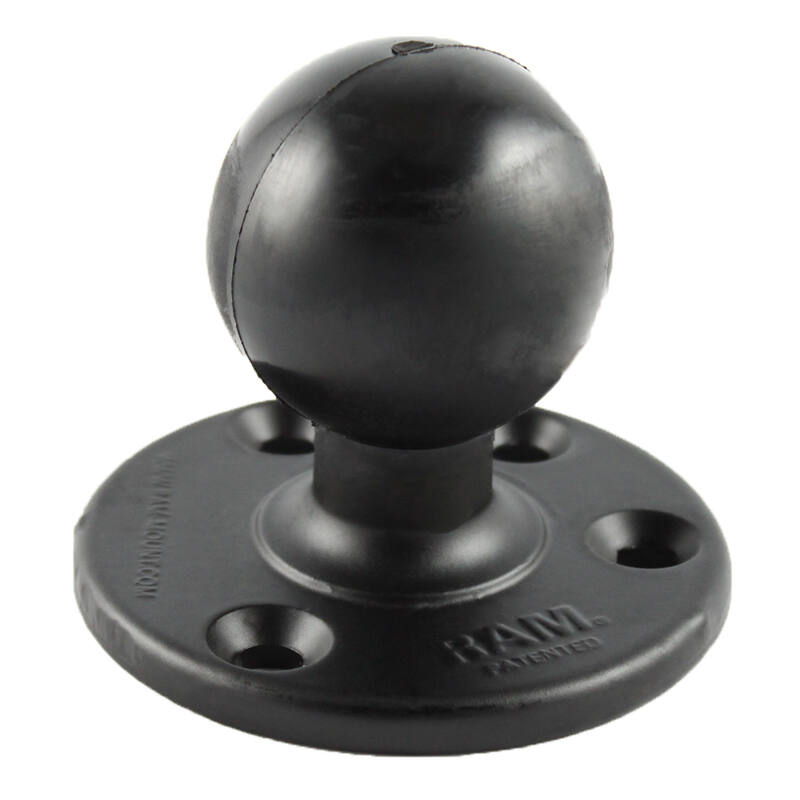

RAM-D-202U 93.5mm Diameter Round Plate with D Size 2.25"/57mm Ball
YouTube Review:
https://www.youtube.com/watch?v=BIsbkRtZfkk
QUESTIONS & ANSWERS
Q: What screws are used to attach the RAM Mount to the gimbal bracket?
A: Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
Q: What are the 4 shoulder washers used for?
A: The four included shoulder washers are meant to accommodate smaller screws in case the original holes on the ball plate are too large. These washers will reduce the risk of smaller screw heads stripping through the larger holes, and can be used with any of the holes on the ball plate.
Q: Will this work with Garmin echomap UHD 73sv?
A: For the Garmin echomap UHD 73sv you would actually need the smaller plate that has the correct hole pattern to line up with that gimbal bracket: RAM-D-115-E.
