RAM Motorcycle Twist and Tilt Pivot Base

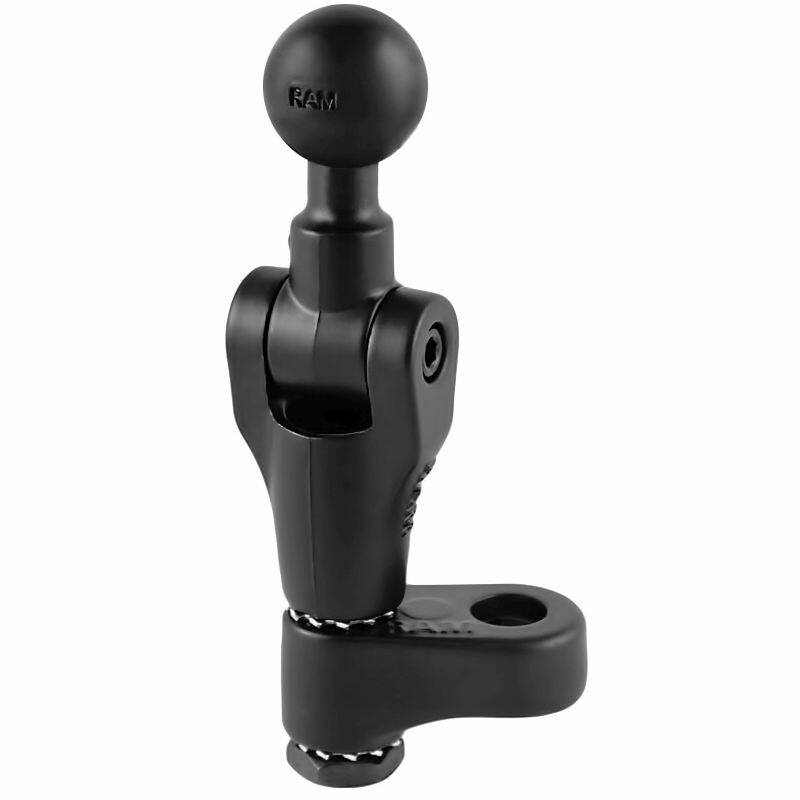

RAM-B-360U RAM® Twist-N-Tilt™ Motorcycle Mirror Ball Base

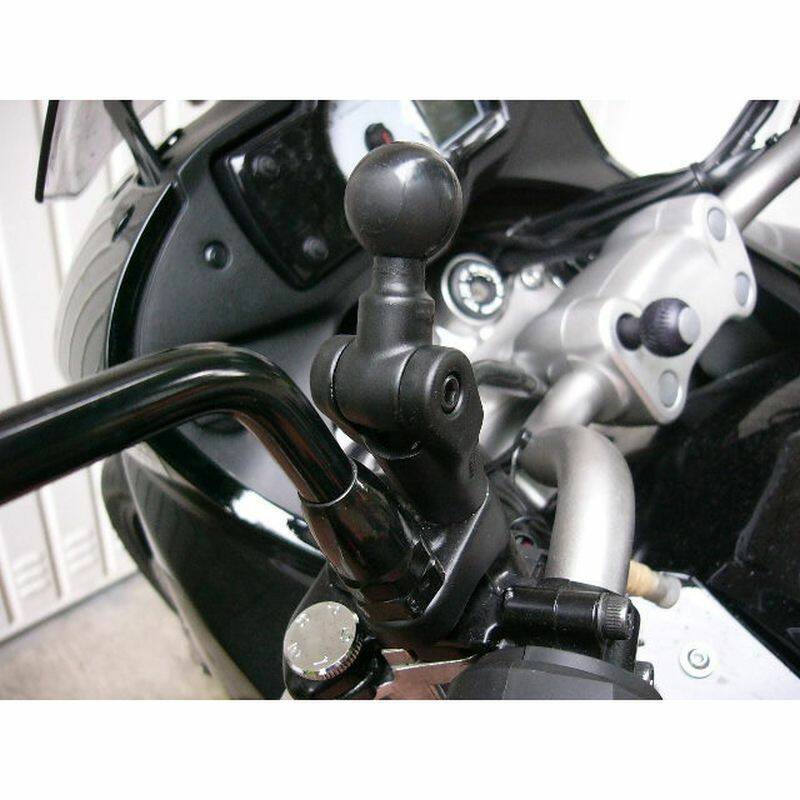

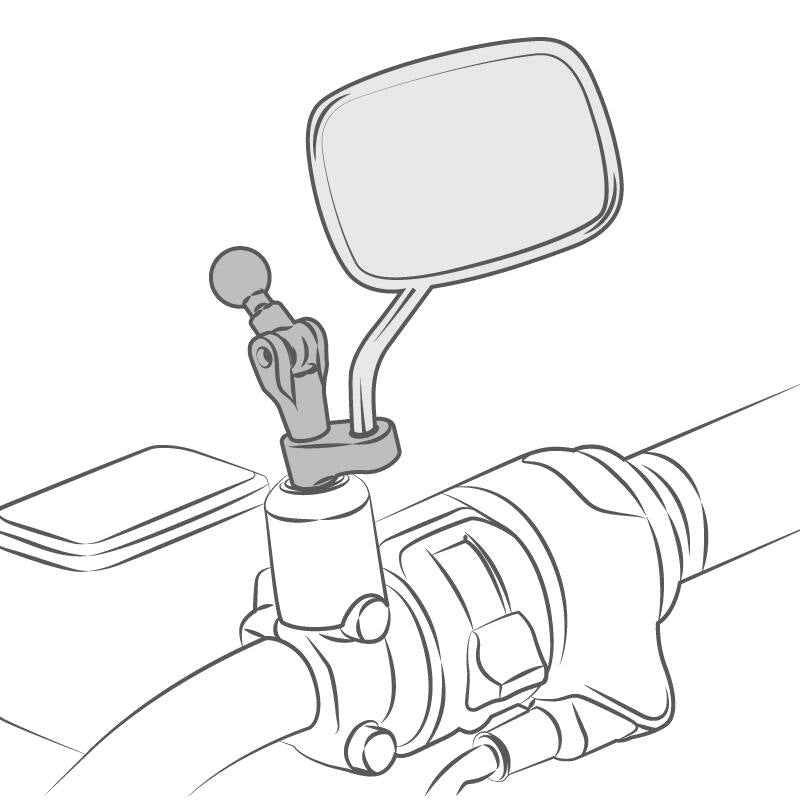

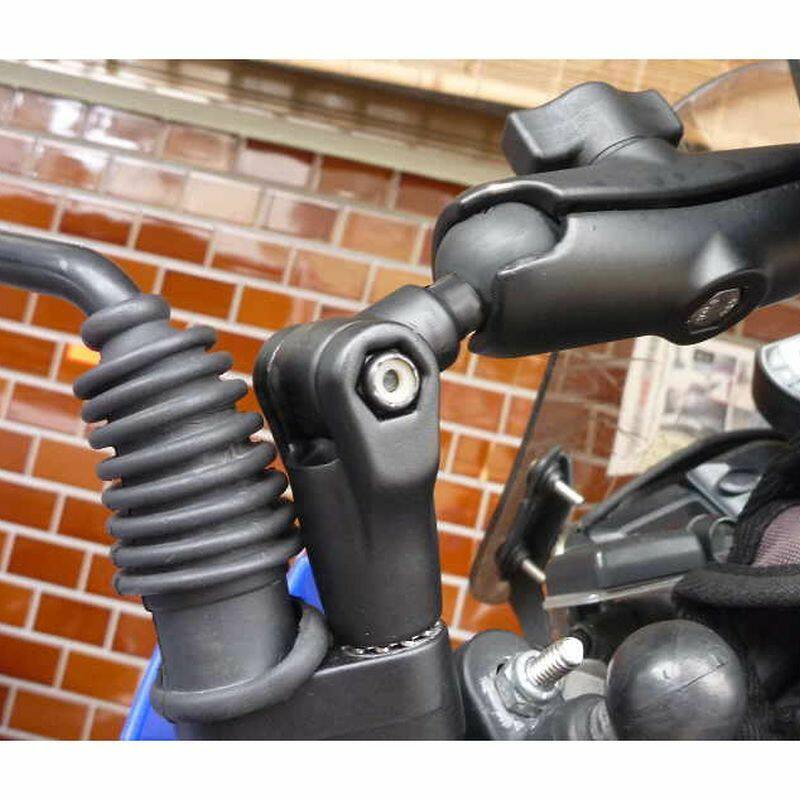

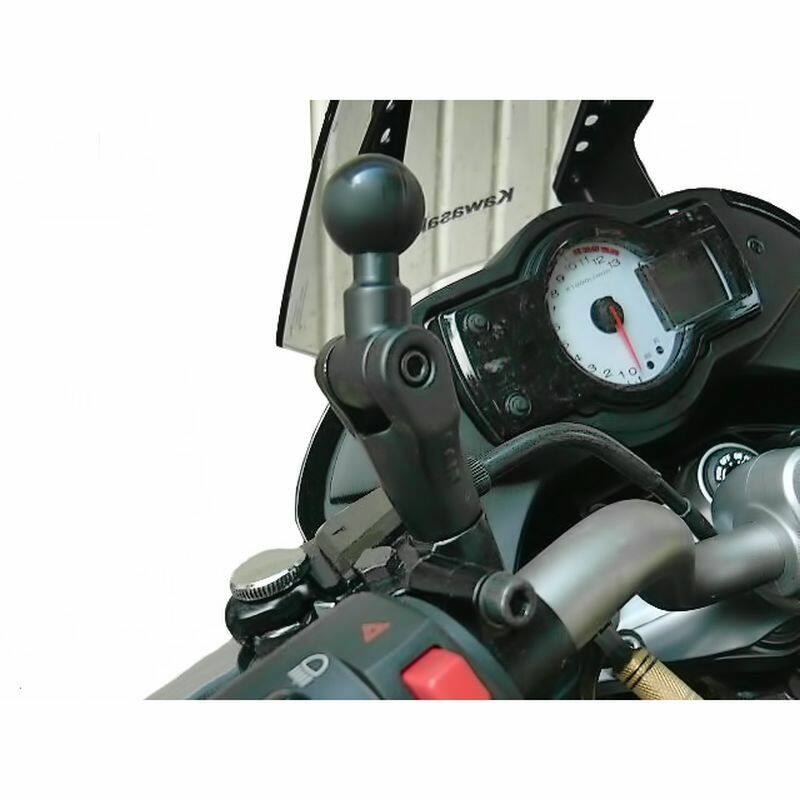

The RAM-B-360U adds a 1" B Size RAM® ball at your motorcycle's mirror mount while keeping the original mirror in place. It bolts into M10 x 1.25 or M8 x 1.25 threads, and the base twists and tilts so you can set the ball at a usable angle before you add an arm and cradle.

Key Features

• Adds a 1" B Size rubber ball at the mirror mount, keeping the original mirror
• Twist and tilt adjustment at the base, on top of the usual ball-and-socket adjustment at the arm
• Supplied with M10 x 1.25 and M8 x 1.25 screws in both 20mm and 40mm lengths
• Compact, so it takes up very little room at the bars
• Die-cast, powder-coated marine-grade aluminium; the rubber ball dampens shock and vibration
• Backed by RAM's lifetime warranty

Works With

Any B Size (1") RAM® double socket arm: the RAM-B-201U-A short, RAM-B-201U medium or RAM-B-201U-C long arm. Add the RAM cradle for your phone, GPS or camera. If your mirror thread is M10 x 1.5, see the RAM-B-349-1-201U-C instead.

Dimensions & Specifications

• Thread options: M10 x 1.25 and M8 x 1.25
• Ball size: B Size (1" rubber)
• Material: powder-coated marine-grade aluminium
• Weight: 222g (0.49 lb)
• Weight capacity: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use

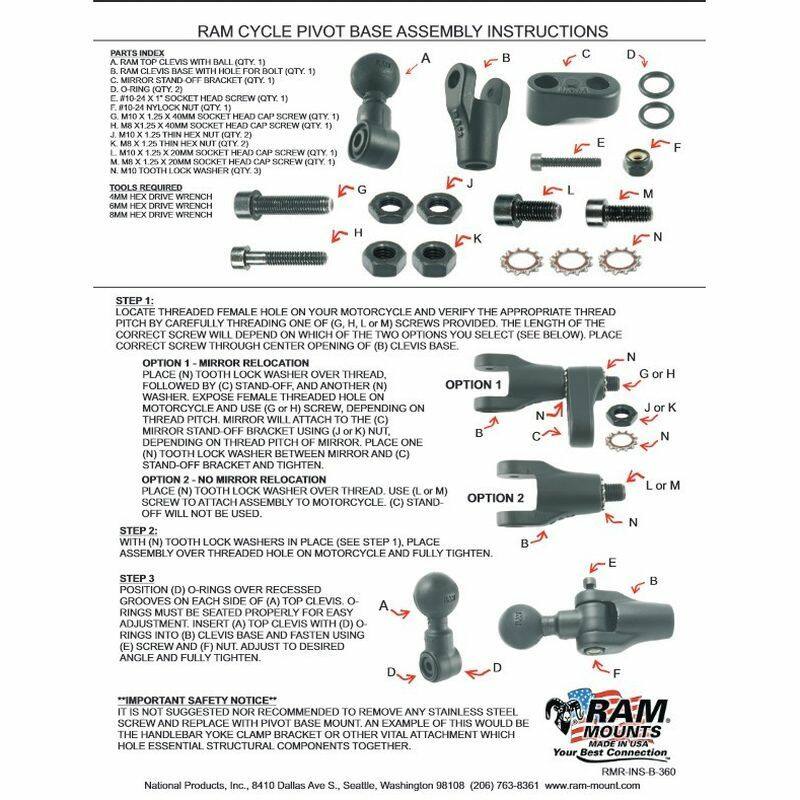

Hardware Included

• One M10-1.25 x 40mm and one M10-1.25 x 20mm socket head cap screw
• One M8-1.25 x 40mm and one M8-1.25 x 20mm socket head cap screw
• Two M10-1.25 hex nuts and two M8-1.25 hex nuts
• Three M10 tooth lock washers

Fitting Note

RAM advises against removing an existing structural screw (a handlebar yoke clamp bolt, for example) and replacing it with the Twist-N-Tilt™ base. Fit it at the mirror mount or another non-structural threaded point.

FAQs

Will it fit my bike? Check your mirror thread first. This kit covers M10 x 1.25 and M8 x 1.25. It won't suit an M10 x 1.5 thread.

Do I need an arm as well? Yes. This is the ball base only. Add a B Size double socket arm and the cradle for your device.
