RAM Mounts

RAM Pod 1 Universal No-Drill Vehicle Mount - 762mm - B Series + Diamond Base

RAM Pod 1 Universal No-Drill Vehicle Mount - 762mm - B Series + Diamond Base


Regular price $140.27 NZD
Regular price Sale price $140.27 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

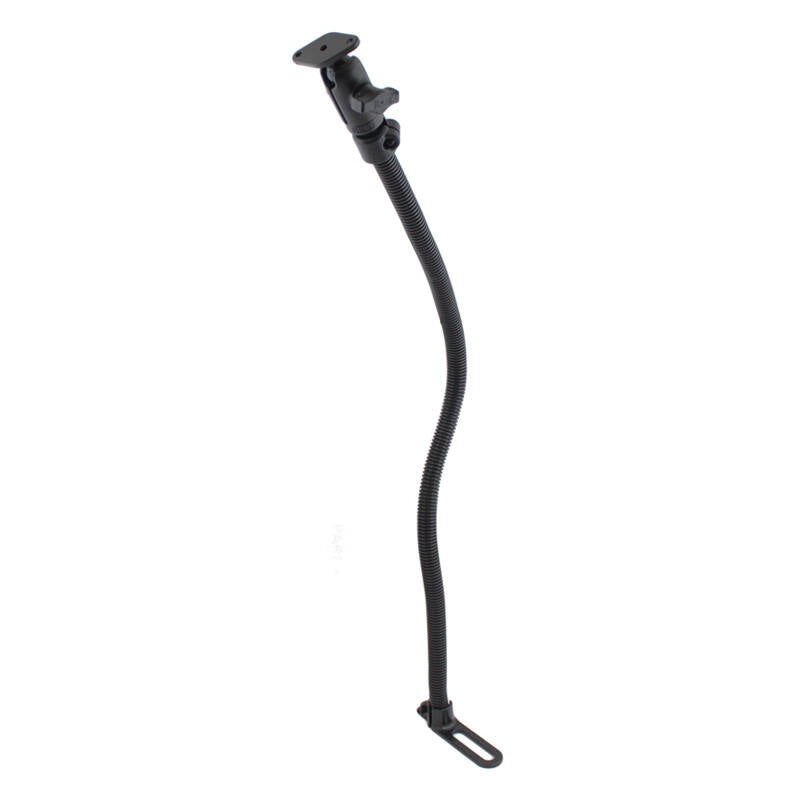

RAM-B-316-1-30-238U RAM POD I No-Drill™ Vehicle Mount with 762mm Rigid Aluminium Rod, Single Socket Arm and Diamond Adapter


* Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminium rod can be bent to your ideal position
* Diamond plate features industry-standard AMPS 2-hole pattern and connects to a variety of lighter RAM® device holders
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

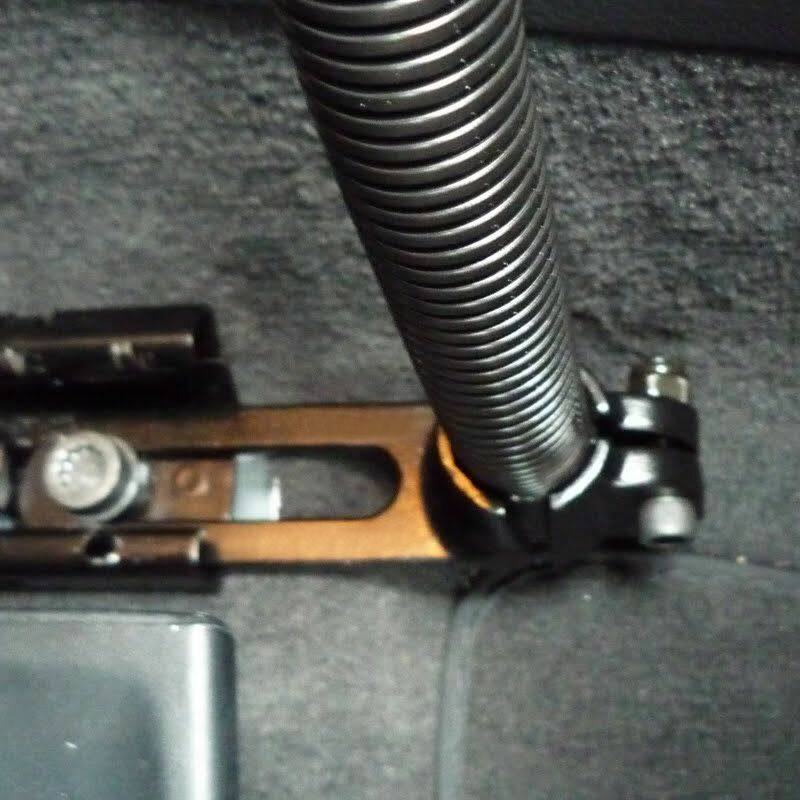

The easy solution for tablet mounting in vehicles. This fitting is designed to be mounted via a seat rail mounting bolt - simply remove a bolt, slip the shoe under the seat rail and refit the bolt. Job done.

The arm has a solid alloy rod approx. 760mm long which is designed to be bent to the desired shape to fit your vehicle.

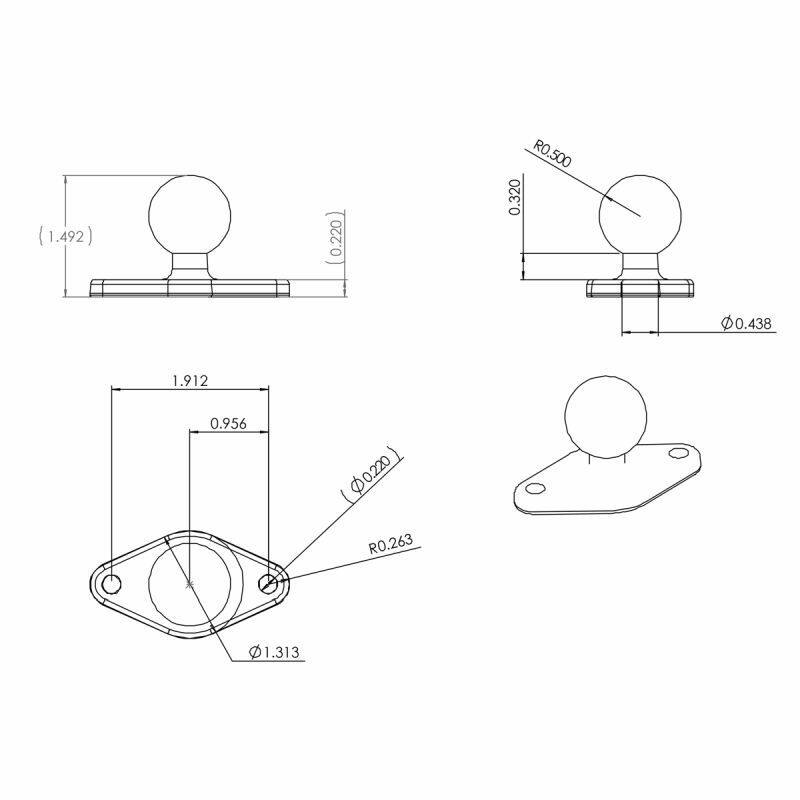

The diamond adapter base consists of a 1" diameter rubber ball connected at right angles to a 2.43" x 1.31" diamond base. The base has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

The rubber ball provides a stable mount and has the advantage of vibration dampening to some degree.

Specs & Features

Installation Instructions:
At right angles to the base of the 762mm / 30" long leg is a foot with a mounting hole. Simply place the hole into the passenger seat mounting bolt and adjust the mount to the required height with the rigid aluminium rod.

High Strength Composite
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber "B" Ball Size

Hole Pattern
2-Hole AMPS: 1.912"

Weight Capacity
Standard Use:
907 grams / 2 lbs
Heavy-Duty Use:
453 grams / 1 lb
