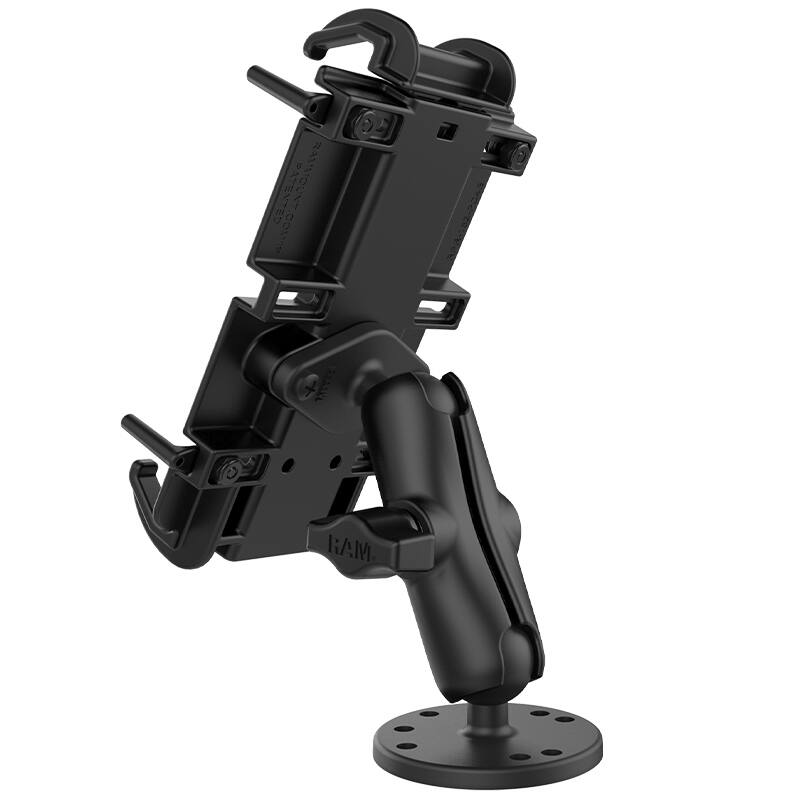

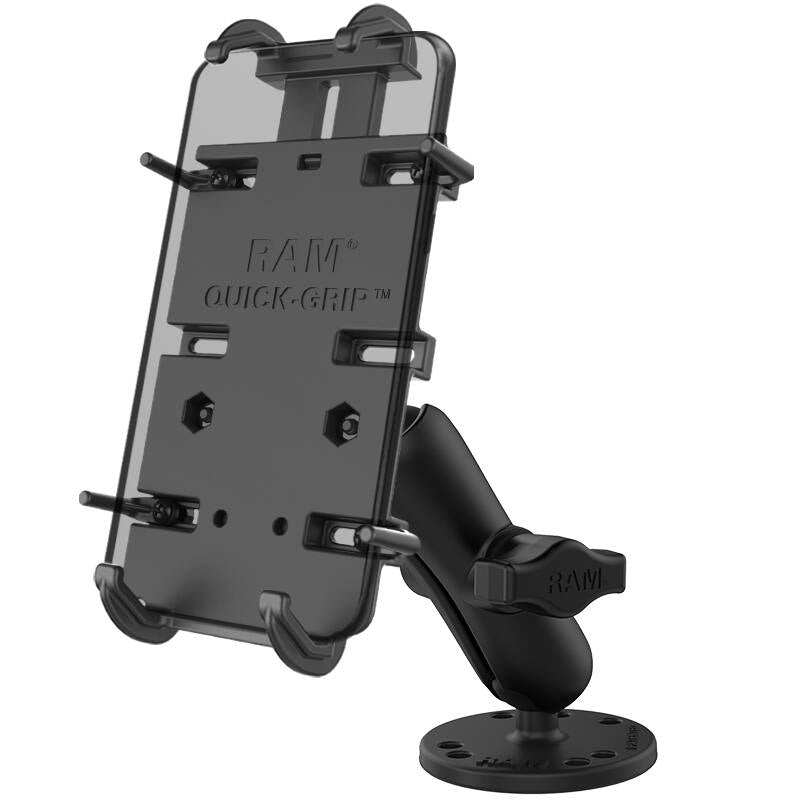

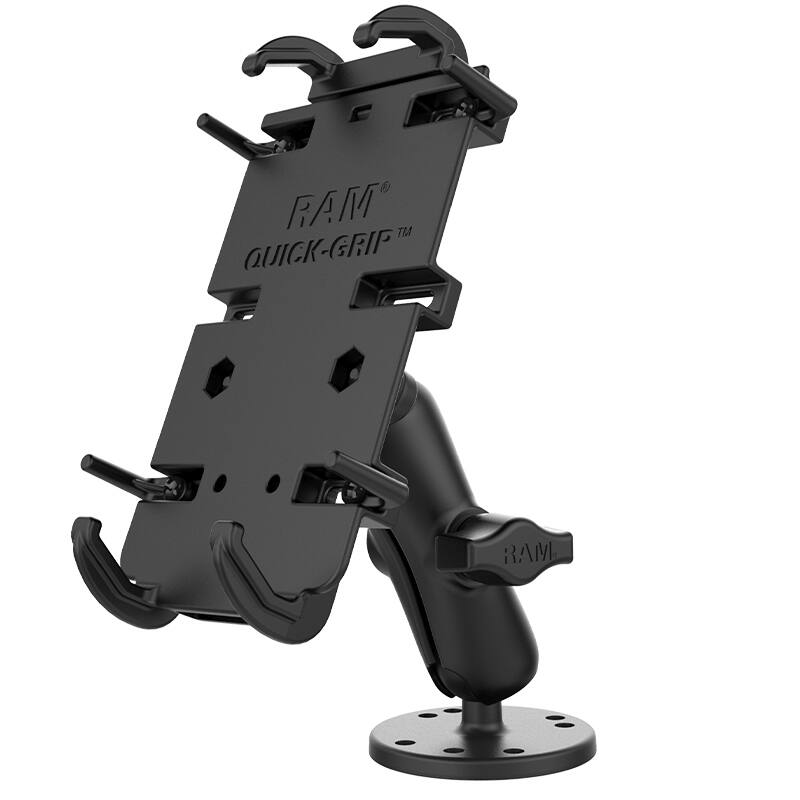

RAM-B-138-PD4U Flat Surface Mount with Quick-Grip™ Universal Spring Loaded Phablet Holder
Features

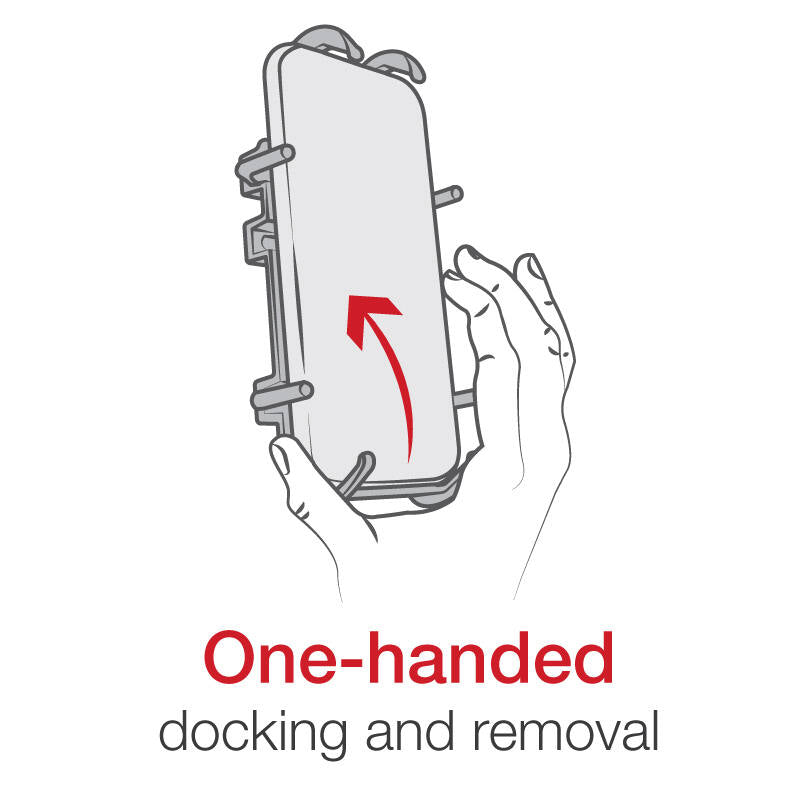

* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand

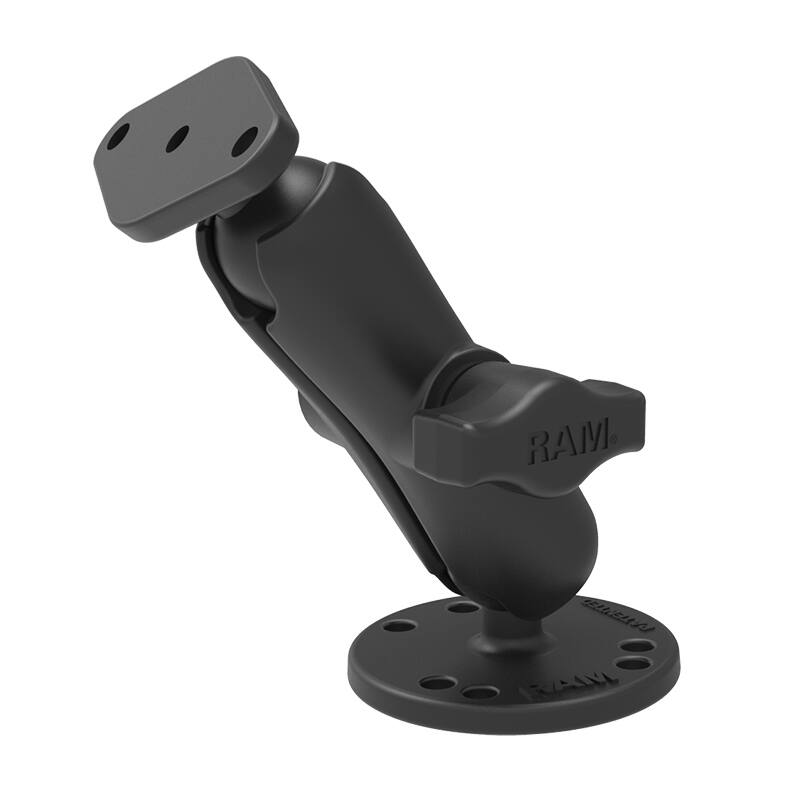

* Includes 2.5" drill-down round ball base, medium length B size RAM® double socket arm, and diamond ball base; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The ball and socket system provides shock and vibration damping, and allows for near-infinite adjust-ability to achieve an ideal viewing and operating angle of your device.
The drill down base consists of a 1" diameter rubber ball connected to a flat 63.5mm (2.5 inch) diameter base. This mount has pre-drilled holes.

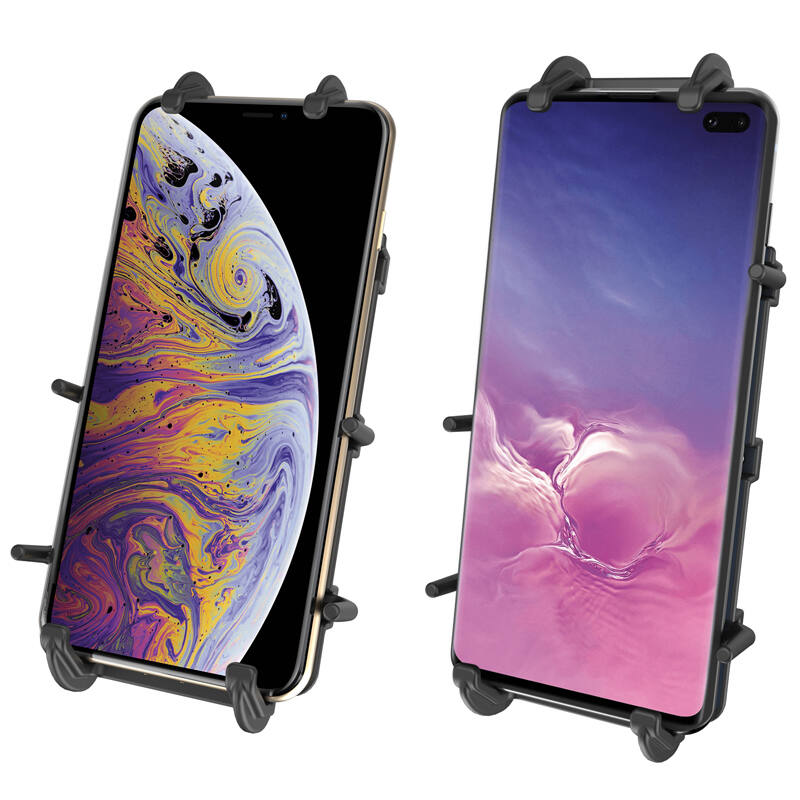

The cradle is the XL version of the spring-loaded RAM® Quick-Grip™ holder which provides a secure fit for a variety of large phones and other devices. Featuring adjustable side supports that provide a secure fit for a variety of large phones and other devices the -PD4U allows you to easily insert and remove your phone with one hand
The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder.

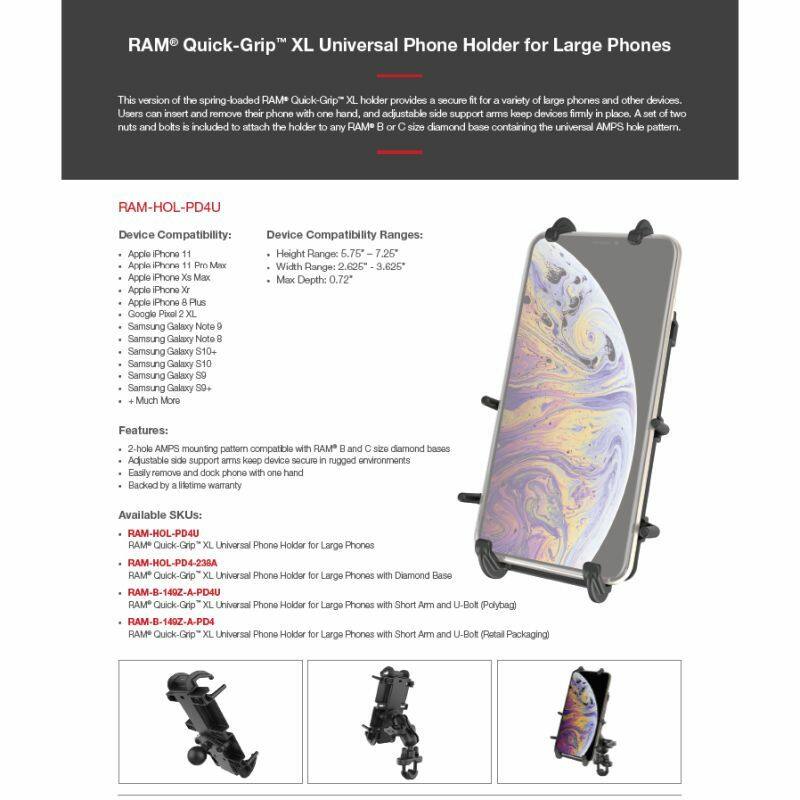

Cradle Clamping Dimensions:
Height Range: 146.1mm to 184.1mm (5.75" – 7.25")
Width Range: 66.7mm to 92.1mm (2.625" – 3.625")
Max Depth: 18.3mm (0.72")
For a list of compatible devices check the listing for the RAM-HOL-PD4U
Specs & Features
Round Plate Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
286 grams (0.63 lbs.)

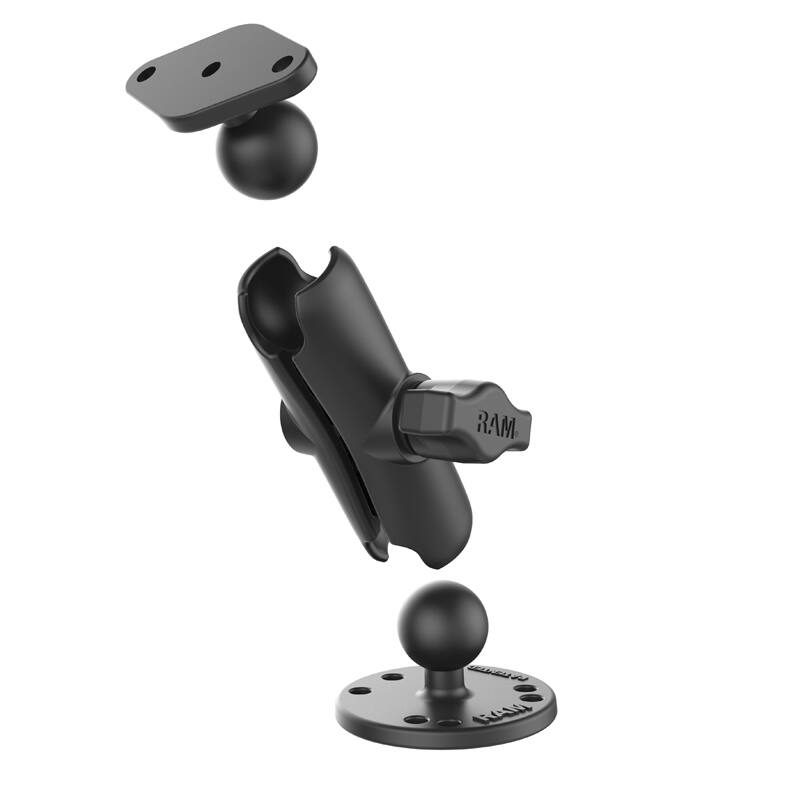

Components
RAM-HOL-PD4U - Phablet Quick Grip
RAM-B-201U - standard arm
RAM-B-238U - diamond base with 1" ball
RAM-B-202U - Round base with 1" ball
