RAM-B-121-PD3 RAM® Quick-Grip™ Phone Mount with Yoke Clamp Base
Features
* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices
* Daesign allows you to easily insert and remove your phone with one hand
* Yoke clamp base fits rails from 16 to 32mm in diameter for the ideal airplane mount
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

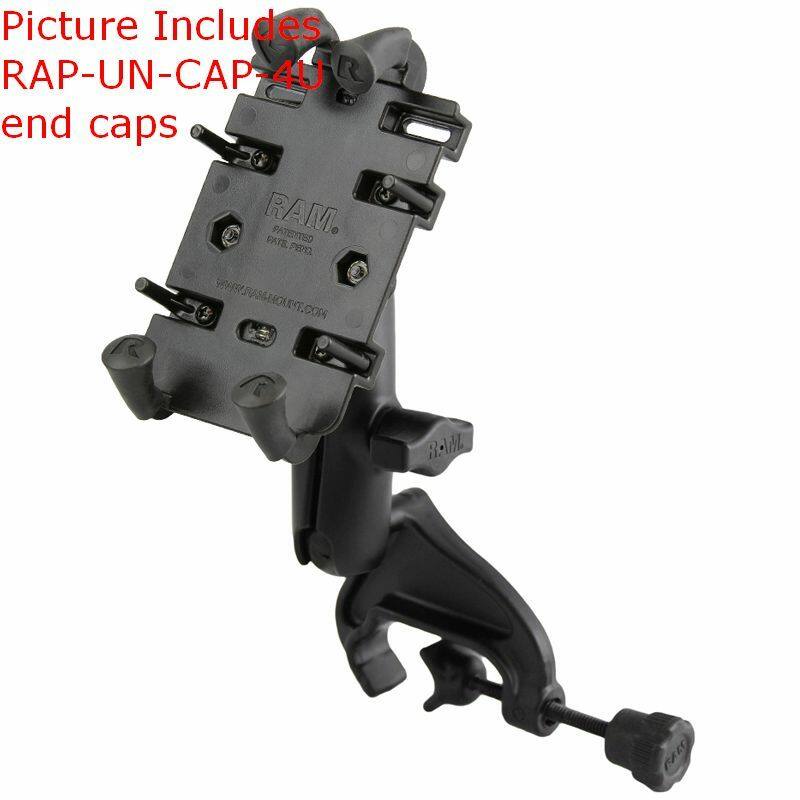

The RAM Quick-Grip™ with Yoke Clamp Mount consists of a yoke clamp base, double socket arm and spring loaded cradle for supporting most phones. The double ball and socket design provides adjustment points at both ends of the socket arm with the turn of a single knob, allowing you to set your phone to the optimal viewing position.

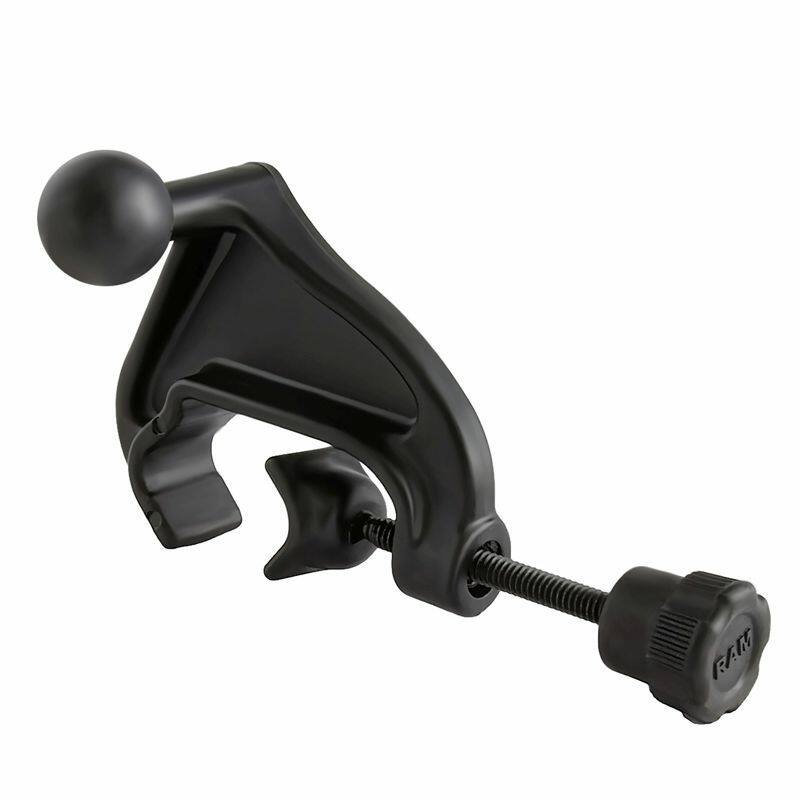

The Yoke Clamp with 1" ball is a G-clamp style mount. Attaches to a round bar such as a control column yoke but could also fit roll bars or small struts from 15.9mm to 31.8mm diameter. Note: The bar does not need to be perfectly round for this clamp to work. The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail.

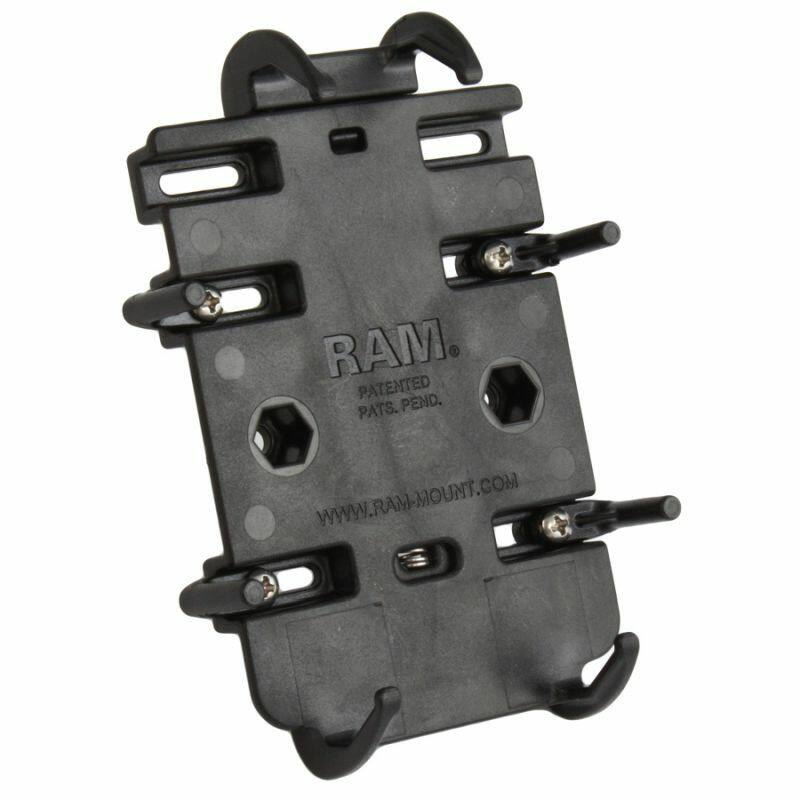

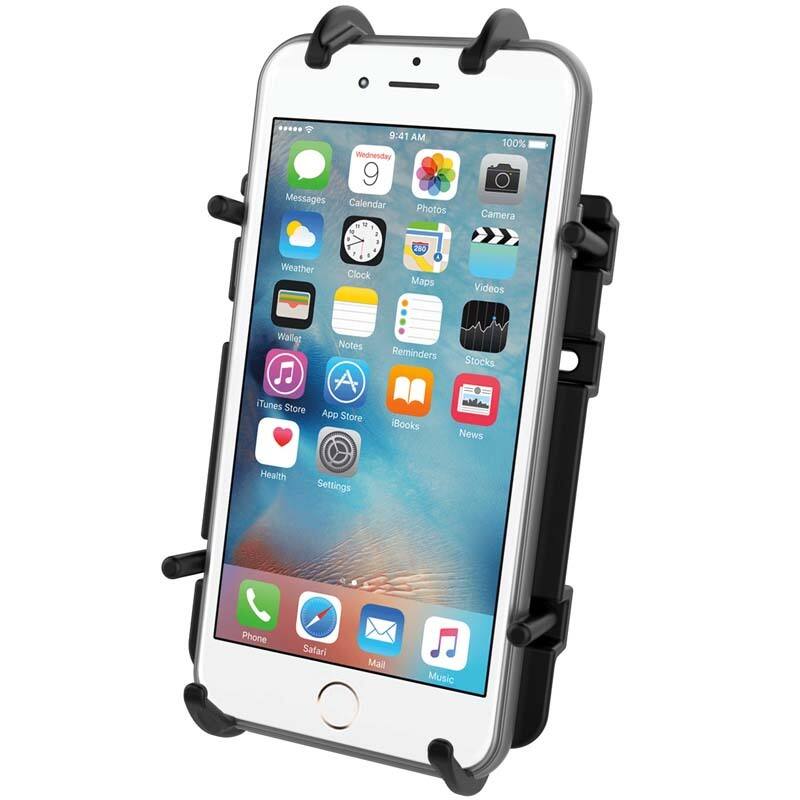

The cradle is the spring-loaded RAM® Quick-Grip™ holder which provides a secure fit for a variety of smartphones and other devices. For Phablets a larger version is available

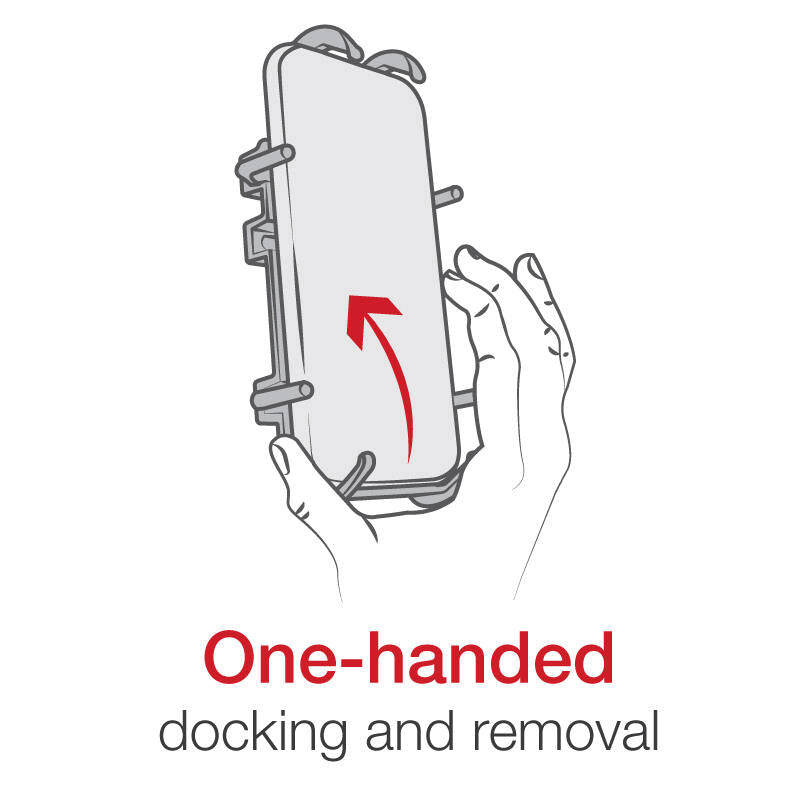

Featuring adjustable side supports that provide a secure fit for a variety of large phones and other devices such as GPS units and Bluetooth speakers within the listed compatible dimensions. The Quick-Grip™ allows you to easily insert and remove your phone with one hand

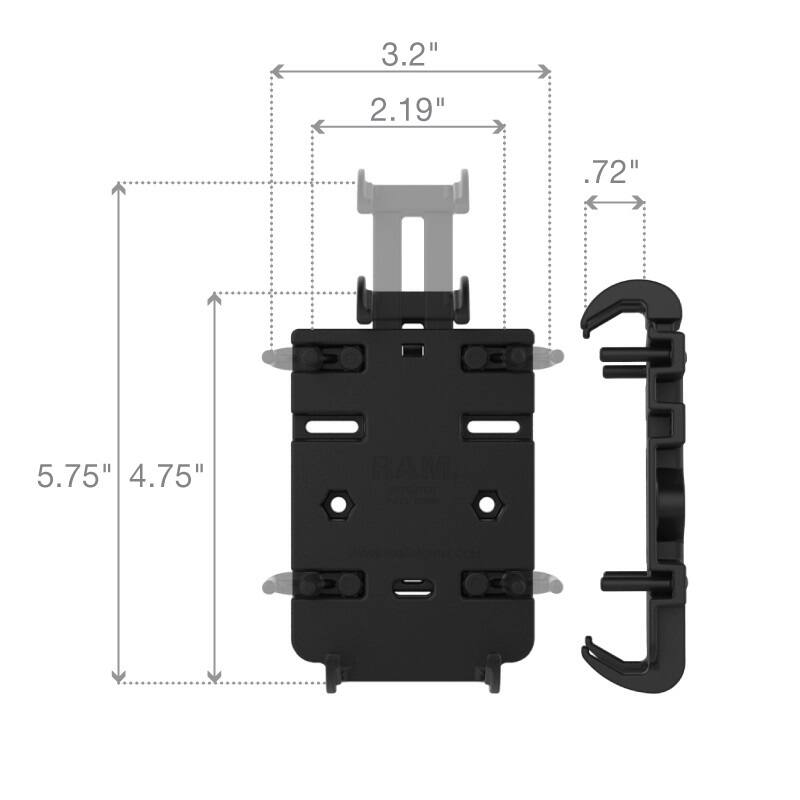

Cradle Dimensions:
Height Range: 120.7 to 144.1mm (4.75 - 5.75")
Width Range: 31.8 to 82.6mm (1.25 - 3.25")
Max Depth: 18.3mm (0.72")
For a list of compatible devices check the listing for the RAM-HOL-PD3U

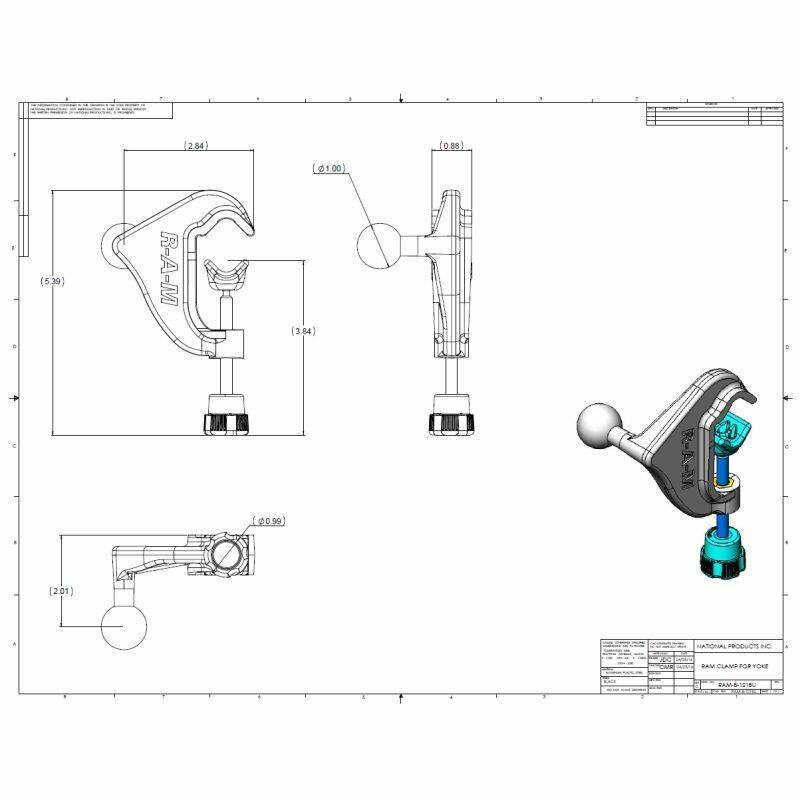

Yoke Clamp Dimensions:
15.9 to 31.8mm (0.625 to 1.25")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
286 grams (0.63 lbs.)
Components
RAM-HOL-PD3U Quick Grip
RAM-B-201U standard arm
RAM-B-238U diamond base
RAM-B-121BU Yoke clamp

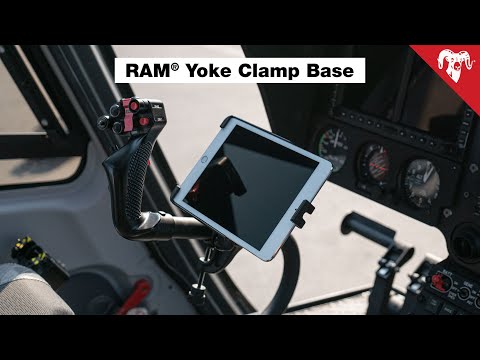

YouTube:
https://www.youtube.com/watch?v=s0l6AQ5xprI
https://www.youtube.com/watch?v=EC-bdR3KAww&t=547s
