RAM Radar Detector Magnetic Holder - Power Plate III (for larger devices)

RAP-300-1U RAM® Power Plate™ III Universal Magnetic Holder

The RAP-300-1U is RAM Mounts' Power Plate III, a universal magnetic holder for radar detectors and similar devices. It is the larger version of the RAP-300U Power Plate II, so it suits bigger units, and it twists off the base for quick removal when you park. It mounts to a round base with a 4-hole AMPS pattern, such as the RAM-B-202U.

Key Features

• Holds radar detectors, cellphones, and other flat-backed devices via a magnetic plate
• Two powerful rare earth magnets plus a composite cradle for a secure hold
• Includes an adhesive steel plate that sticks to the back of your device
• Twist to release, so you can pull the detector off while parked
• Suits a round 4-hole AMPS base such as the RAM-B-202U
• Made from high-strength composite for durability in demanding environments
• Backed by a lifetime warranty

How It Works

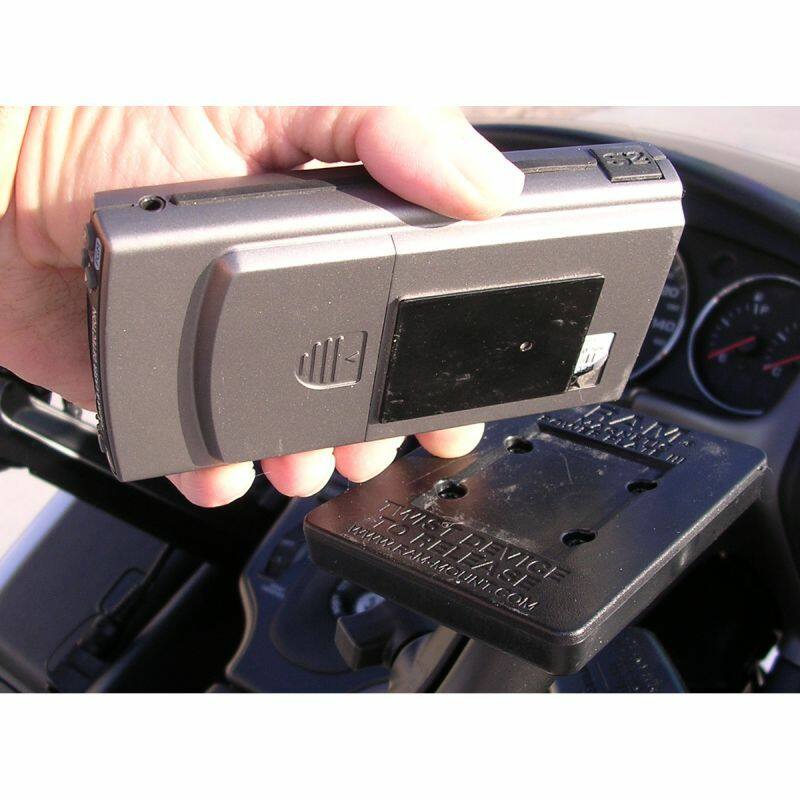

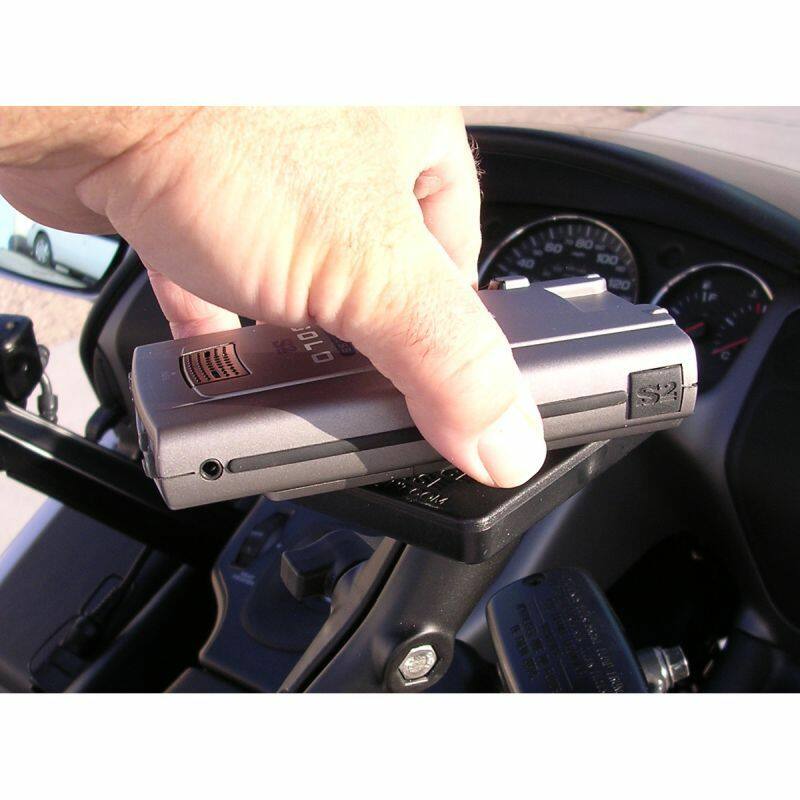

The kit includes two rare earth magnets, a composite cradle, and one adhesive steel plate. You stick the 50mm x 38mm steel plate to the back of your device, then drop it onto the magnetic cradle. To take the device off, just twist it free. Simple, and no fiddling while you are on the road.

Works With

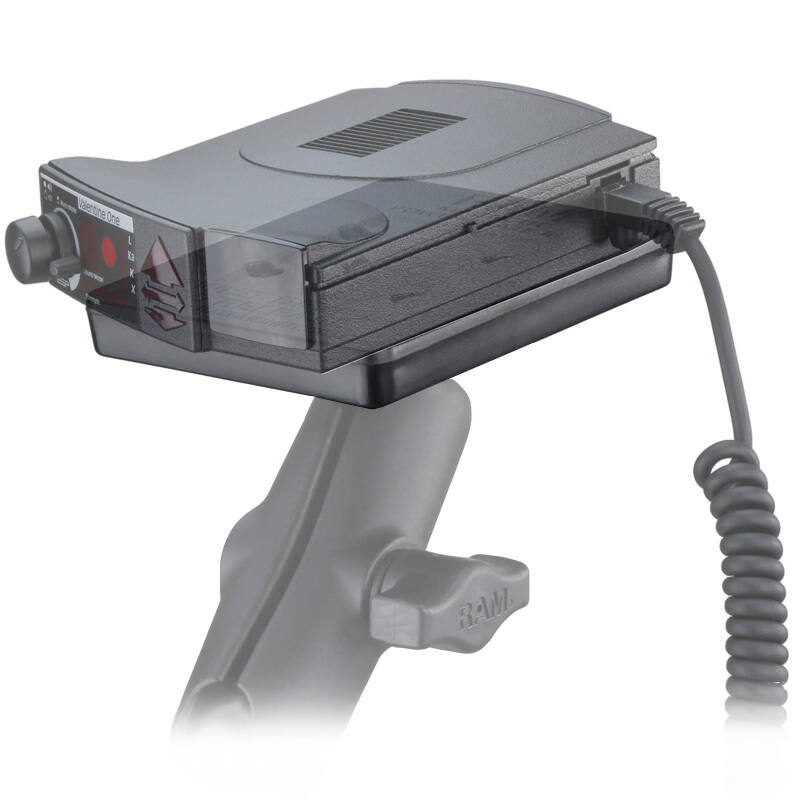

Any radar detector with a 102mm x 76mm (4" x 3") flat bottom surface. The Power Plate III is sized for larger units; for smaller devices, look at the RAP-300U, which uses a 2-hole diamond RAM-B-238U base with ball.

Compatible Devices

Beltronics

• GT-7

Cobra

• ESD 7570

Escort

• iX
• Max 360
• Passport S55
• Solo S4

Radenso

• XP

Uniden

• R3

Valentine

• One V1

Dimensions & Specifications

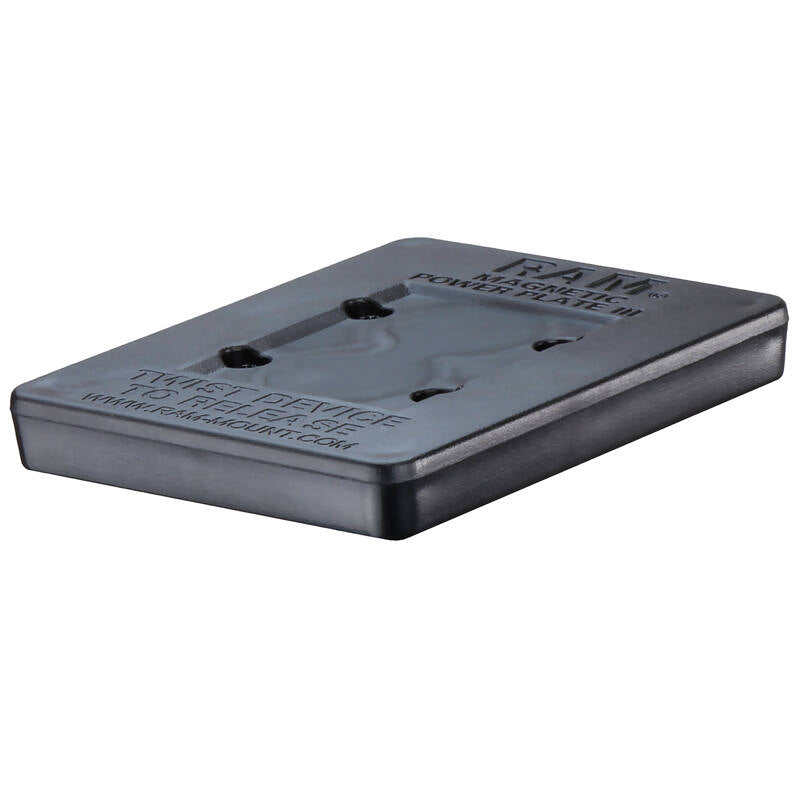

• Holder plate size: 79.5mm x 101.6mm (3.13" x 4")
• Adhesive steel plate: 50mm x 38mm x 0.08mm thick
• Hole pattern: 4-Hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 113 grams (0.25 lbs)
• Material: high-strength composite

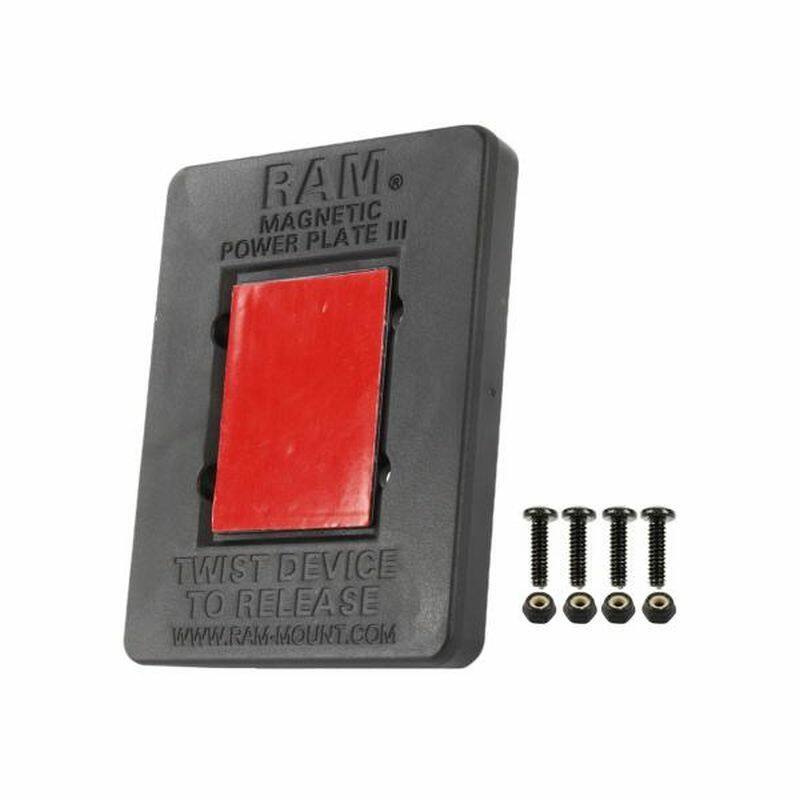

Hardware Included

• (1) 50mm x 38mm steel adhesive plate
• (2) rare earth magnets
• (4) #6-32 x 1/2" machine screws
• (4) #6-32 Nylock nuts

Good to Know

• Base recommendation: from customer experience, we strongly recommend mounting this to a RAM-B-202U base rather than the RAM-B-238U. If the system you are looking at uses a -238 base, no worries, we can supply the same setup with a -202 base for the Power Plate to sit on. Just ask.
• Hard drives: do not use the magnetic mount to hold any device with an internal hard drive, as the magnet may damage the drive. This includes older iPods and similar small battery-operated devices.

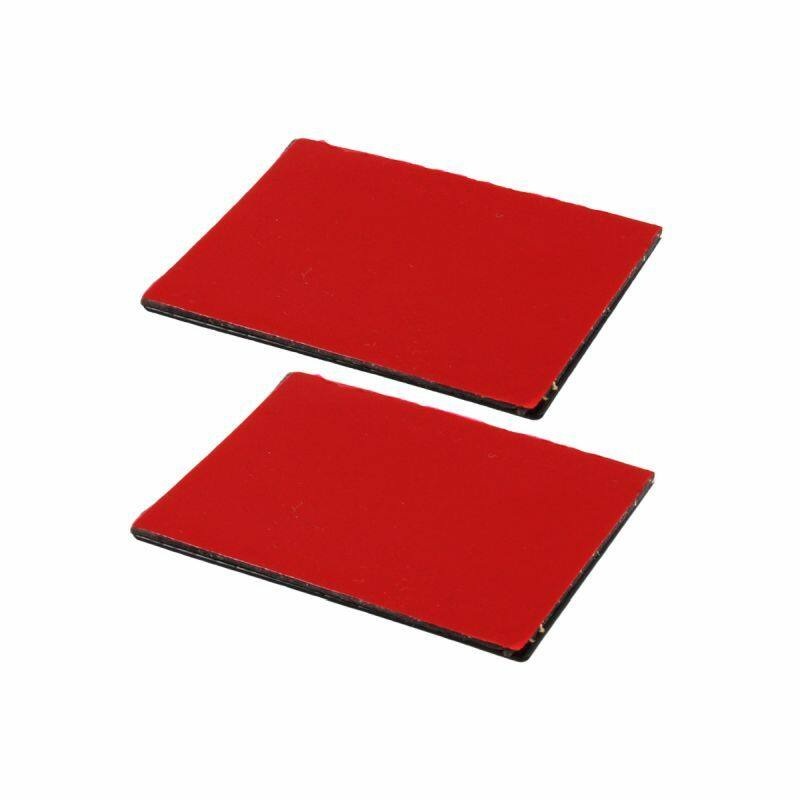

• Spare plates: for replacement magnetic plates, see part RAP-300-1SU.

FAQs

How much weight can the magnet hold?
RAM does not publish a weight rating for the magnets themselves; their ratings are based on the ball-and-socket connection, not the magnetic plate. For reference, the diamond RAM-B-238U base used with the smaller RAP-300U is rated by RAM at 2 lbs (0.9 kg) for standard use and 1 lb (0.45 kg) for heavy-duty use. For this Power Plate III we recommend the RAM-B-202U base. In practice, the two rare earth magnets hold a radar detector securely.

What base do I need?
A round base with a 4-hole AMPS pattern. We recommend the RAM-B-202U. Tell us what you are mounting to and we will sort the right base for you.

Is it in stock and how fast do you ship?
When this shows as in stock, it is dispatched within one business day.
