RAM Mounts

RAM Rectangular Base - D Series for Crown Work Assist

RAM Rectangular Base - D Series for Crown Work Assist

SKU:RAM-D-202U-CRO1

Regular price $87.58 NZD
Regular price Sale price $87.58 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

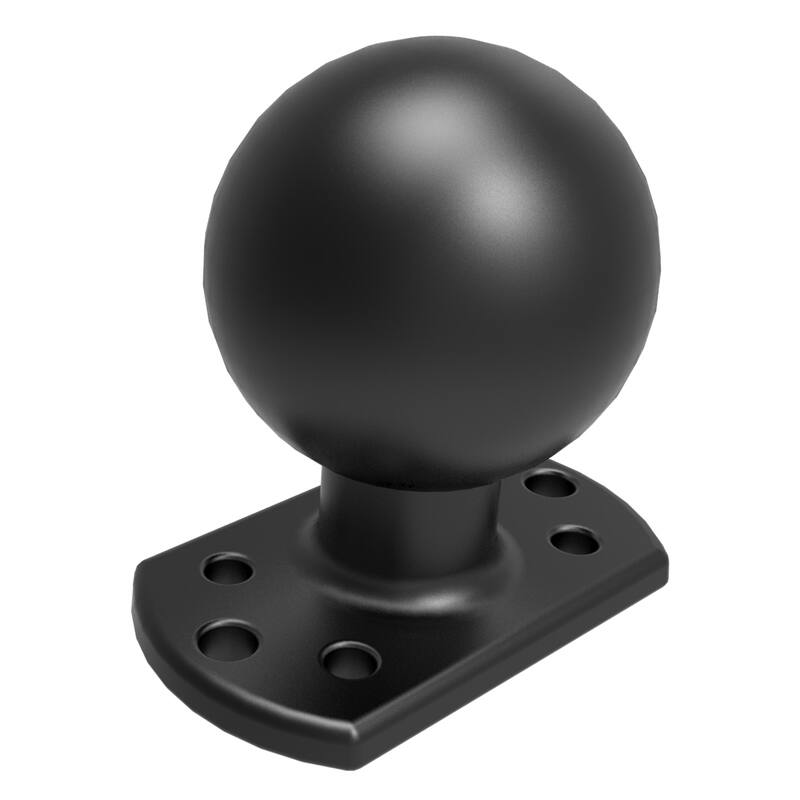

RAM-D-202U-CRO1 RAM® Ball Base for Crown Work Assist®

Features

* Rectangular plate features hole pattern for Crown Work Assist® clamp accessories
* Included D size 2.25" RAM® rubber ball allows for connection to any D size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


The Crown ball base contains mounting holes aligned to work with Crown Work Assist® clamp accessories.


The addition of the RAM mounting system allows you to position your accessories for the best access and prevent damage due to shock and vibration. This is a light weight mounting solution for up to 6.75kg loads. (approx 15 lbs)


BALL/SOCKET SIZE
D Size (2.25")

WEIGHT CAPACITY
6.75kg (15lbs )

Hole Pattern:
4-hole pattern 25.4 x 44.45mm (1" x 1.75") with 63.5mm (2.5") between the wider 2-hole pattern

MATERIALS
Marine-grade aluminium

Weight
231 grams (0.51 lbs )


Additional Information
Note:Crown Work Assist® Clamp not included with purchase.



QUESTIONS & ANSWERS
Q: I cannot find a drawing for this part and need the hole size and dimensions -- RAM-D-202U-CRO1

A: The 4-hole spacing for the RAM-D-202U-CRO1 is 1" x 1.75" with 2.5" distance between the wider 2-hole pattern. RAM recommends using M5x14 screws for the 4-hole pattern and either M6x14 or M6x25 screws for the 2-hole pattern.
