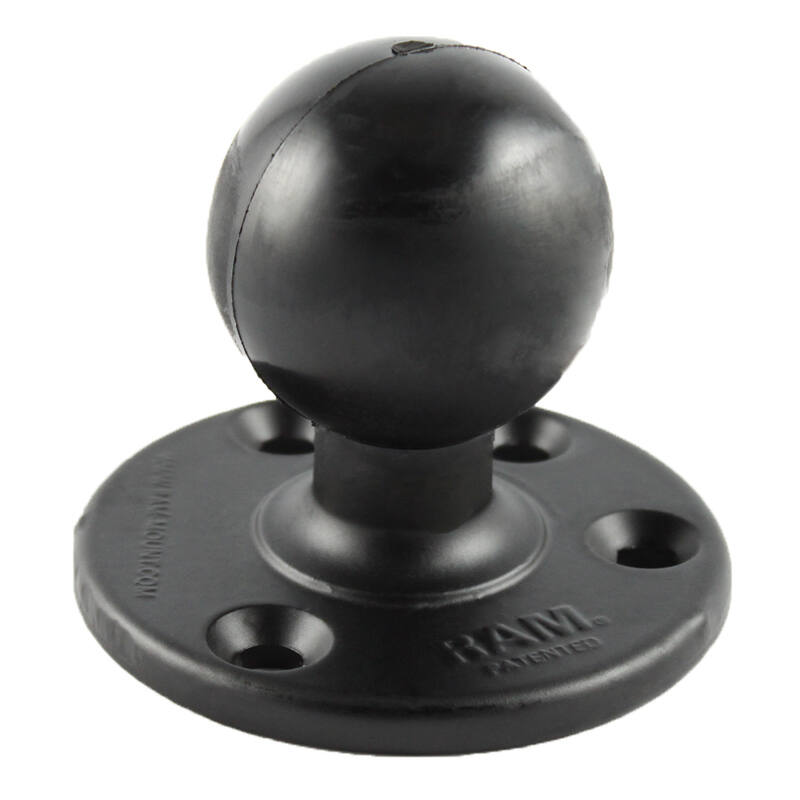

RAM-D-202U RAM® Large Round Plate with Ball - D Size
Features
* 93.5mm (3.68") round plate for drill-down mounting
* Included D size 2.25" RAM® rubber ball allows for connection to any D size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-D-202U consists of a 93.5mm (2.25") diameter rubber ball, connected at right angles to a 93.5mm diameter round base. The base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.
Plate Size
93.5mm (3.68")

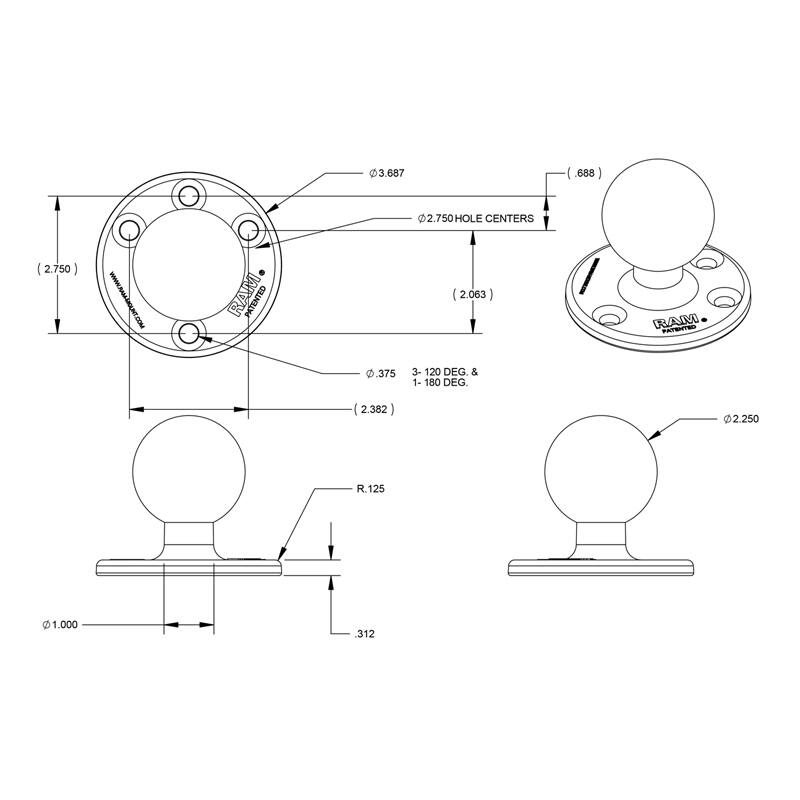

Hole Pattern (see drawing)
2 hole - 180 degrees
3 holes - 120 degrees.
Ball Size:
57mm (2.25") Rubber Ball "D" Size
Weight:
322 grams (0.71 lbs).
Weight Capacity
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.26kg (5 lbs)
YouTube:
https://www.youtube.com/watch?v=o4Kr0dQza6w
QUESTIONS & ANSWERS
Q: Does this SKU include the hardware needed to bolt it to a flat surface?
A: No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
