RAM Tab-Lock Locking Cradle - 8" Tablets with Heavy Duty Cases

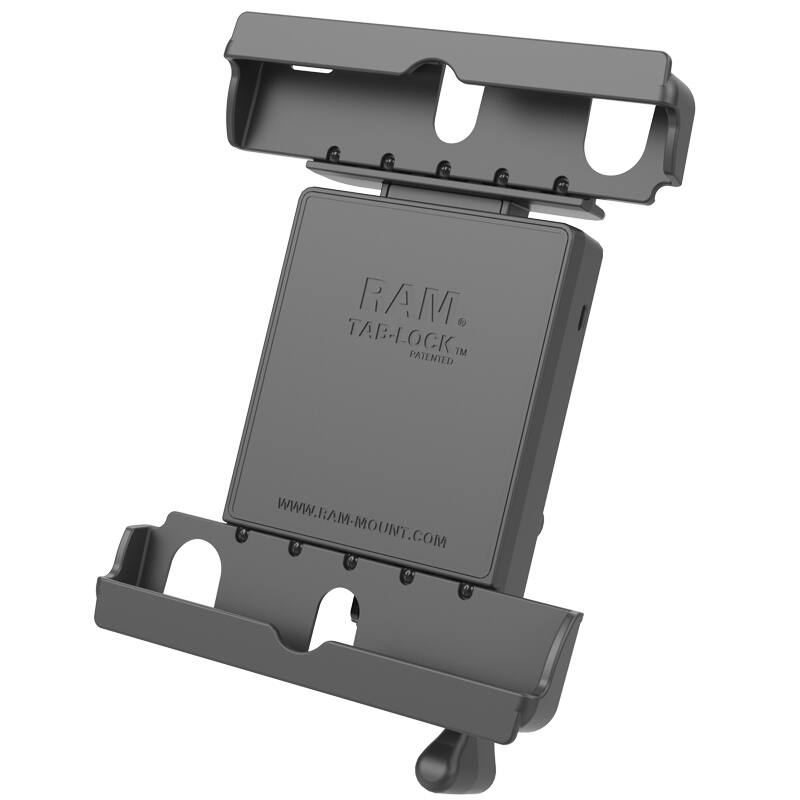

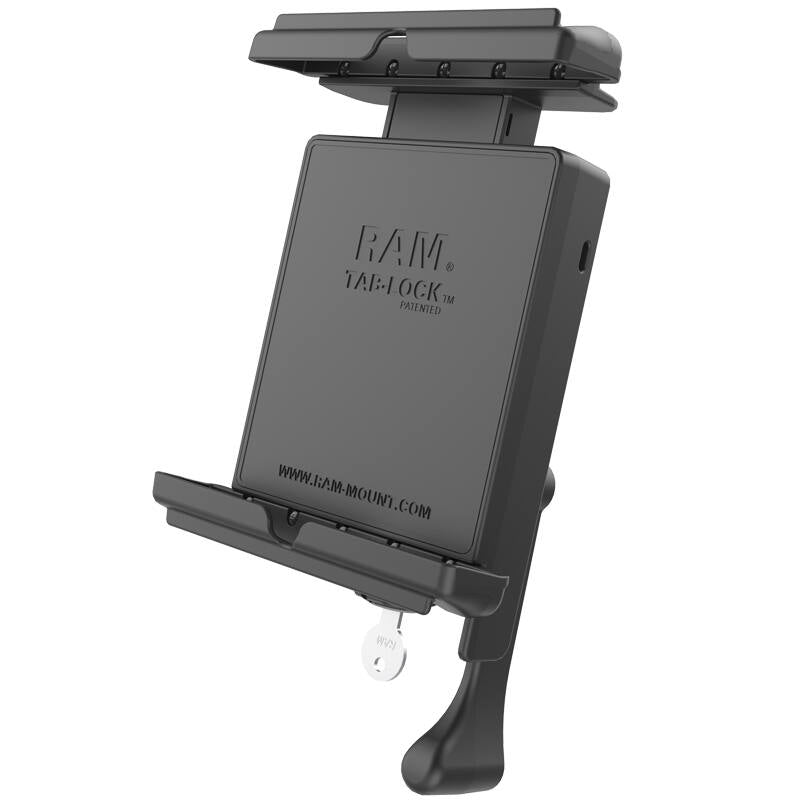

RAM-HOL-TABL12U RAM® Tab-Lock™ Locking Cradle for 8" Tablets with Heavy Duty Cases

The RAM-HOL-TABL12U is a key-locking version of RAM's Tab-Tite™ cradle, holding 8" tablets in heavy duty cases securely with a theft-deterrent locking mechanism. It shares the same cradle body and AMPS mounting pattern as the standard Tab-Tite cradle, with a spring-loaded backplate and interchangeable support cups for a secure, tool-free release.

Key Features

• Key-locking mechanism deters theft and unwanted tampering in public or shared settings
• Spring-loaded backplate with interchangeable support cups for a secure, quick-release fit
• Open-slotted support cups keep audio jacks, USB, power, and other ports accessible while mounted
• Manufactured from high-strength composite for durability in demanding environments
• Backed by RAM's lifetime warranty

Works With

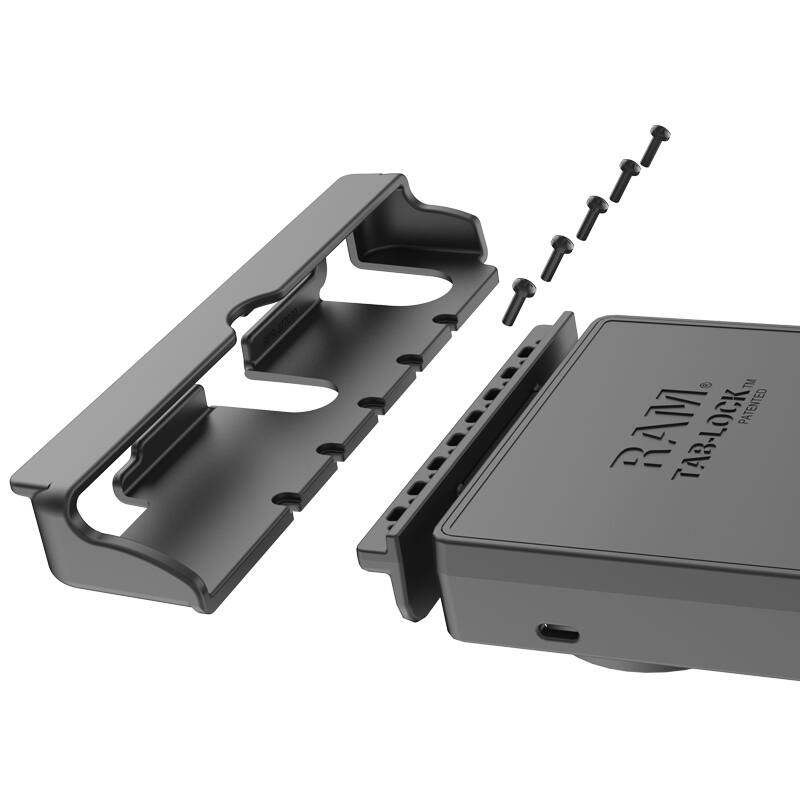

Attaches to any RAM component or mount with the standard 4-hole AMPS pattern using the included hardware. Support cups are field-replaceable — buy an inexpensive replacement pair and refit the same backplate when you change devices.

Dimensions & Specifications

• Fits tablets (in case): 181.0–241.0mm H x 129.0–144.0mm W x 3.3–25.0mm D (7.13"–9.49" x 5.08"–5.67" x 0.13"–0.98")
• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 567g (1.25 lbs)
• Material: high-strength composite

Compatible Devices

Apple

• iPad mini (A17 Pro) with Case
• iPad mini 6 with Case

Amazon

• Fire 7 Kids
• Fire HD 8 Kids
• Fire HD 8 with Case

ASUS

• MeMO Pad 8 with Case
• VivoTab 8 with Case

Dell

• Venue 8 with Case
• Venue 8 (2014) with Case
• Venue 8 7840 with Case
• Venue 8 Pro with Case

Huawei

• MediaPad M3 with Case
• MediaPad M3 Lite with Case
• MediaPad T1 8.0 with Case
• MediaPad T3 8 with Case

Lenovo

• Ideapad Miix 300 with Case
• IdeaTab A2107 with Case
• Tab 2 A8 with Case
• Tab 4 8 with Case
• Tab 4 8 Plus with Case
• Tab A8-50 with Case
• Tab S8 with Case
• Tab3 8 with Case

LG

• G Pad F 8.0 (2nd Gen) with Case
• G Pad F2 8.0 with Case
• G Pad II 8.0 with Case
• G Pad X II 8.0 with Case

Nvidia

• Shield Tablet with Case

Panasonic

• Toughpad FZ-M1

Samsung

• Galaxy Tab 2 7.0 with Case
• Galaxy Tab 3 8.0 with Case
• Galaxy Tab A 8.0 (2017) with Case
• Galaxy Tab A 8.0 (2018) with Case
• Galaxy Tab A 8.0 (2019) with Case
• Galaxy Tab A 8.4 with Case
• Galaxy Tab A7 Lite 8.7 with Case
• Galaxy Tab E 8.0 with Case
• Galaxy Tab Pro 8.4 with Case

Social

• Mobile Rhino T80

TCL

• Tab 8 Gen2
• Tab 8 NXTPAPER 5G
• Tab 8 Plus

FAQs

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Will this fit my tablet if it's not listed? Check your tablet's dimensions (with case) against the sizes above — any tablet within that range will fit, even if the exact model isn't named. Note this cradle is not compatible with the iPad mini 1-3 in a LifeProof case.

What's the difference between this and the standard Tab-Tite cradle? The Tab-Lock version adds a key-locking mechanism to the same cradle body, for use in public or shared vehicles where theft deterrence matters.
