RAM Tab-Tite Cradle - 10" Tablets with Double U-Bolt Rail Mount (C Series)

RAM Tab-Tite Cradle - 10" Tablets with Double U-Bolt Rail Mount (C Series)

SKU:RAM-138-235-TAB17U-v

Regular price $227.98 NZD
Regular price Sale price $227.98 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-138-235-TAB17U RAM® Tab-Tite™ Large Tablet Holder with Double U-Bolt Mount


Features

* Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more; interchangeable end cups allow you to modify the holder when upgrading devices
* C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Double U-Blot base allows for sturdy mounting on rails or bars from 19-32mm in diameter
* Made of aluminium alloy and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty



This consists of a double u-bolt base with 1.5" diameter ball, double socket arm and Tab-Tite™ universal clamping cradle. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports.


The RAM-HOL-TAB17U consists of a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Cradle Dimensions:
Height: 9.5" (241mm) to 11.75" (298mm)
Width: 6.375" (162mm) to 8.25" (210mm)
Depth: 0.13" (3.3mm) to 1.1" (28mm)

Compatible Devices
Apple iPad 1,2,3,4,Air, Air 2, iPad 11" (all with or without case)
10" Screen Tablets with LifeProof nuud cases, Lifedge cases or heavy duty cases


U-Bolt Dimensions:
19-32mm (1" to 1.25") in diameter

Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")


Material:
High Strength Composite
Powder Coated Marine Grade Aluminium

Weight:
716 grams (1.58lbs)

YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44&t=1s

Components:
RAM-HOL-TAB17U IPAD LIFEPROOF TAB-TITE CRADLE
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball

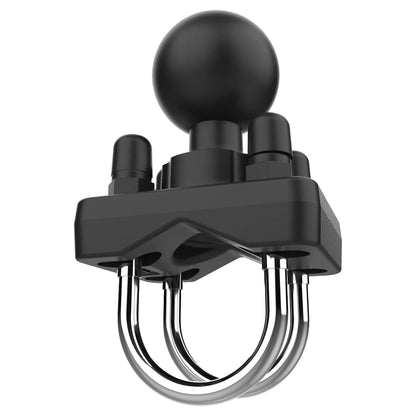

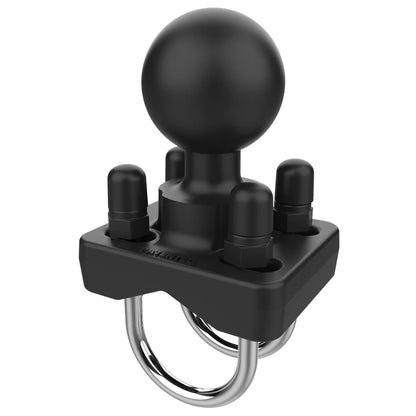

RAM-235U RAM Double U-Bolt Base with 1.5" Ball for Rails from 19mm to 31mm in Diameter
