RAM-HOL-TAB16U RAM® Tab-Tite™ Tablet Holder for Google Nexus 7 with Case
Features
* Spring-loaded holder secures small tablets with light-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
* Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-HOL-TAB16U consists of a spring loaded back plate and custom support cups for the Google Nexus 7 WITH HEAVY DUTY CASE. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.
Perfect for stationary or on the go applications, the RAM-HOL-TAB16U is just what you need to get the most out of your tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
H: 190.5mm to 250.8mm (7.5" to 9.875")
W: 92.1mm to 128.3mm (3.625" to 5.05")
D: 3.3mm to 20.8mm (0.13" to 0.82")
Compatible Devices Include
Google
Nexus 7
Vankyo
MatrixPad Z1 7" with case
Note: Product consists of holder only. Case not included.
Assembly Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS:
30mm to 38mm (1.181" x 1.496")
Materials
High strength composite
Weight
181 grams (0.4 lbs.)

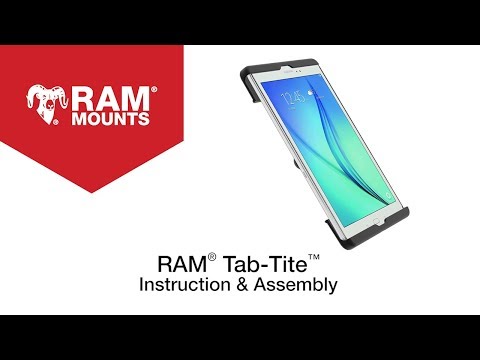

YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
