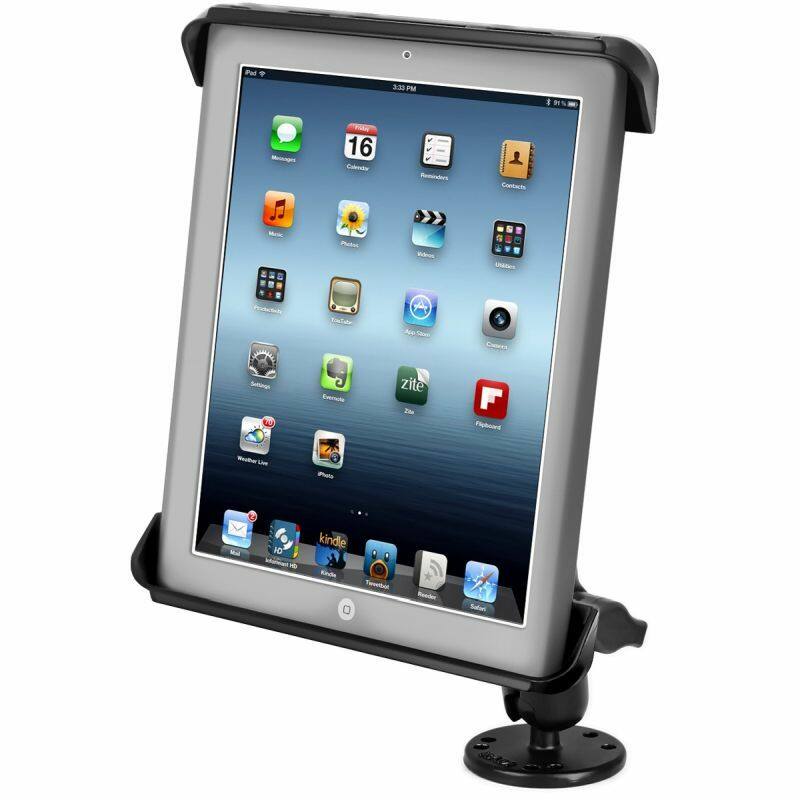

RAM-B-138-TAB-LG RAM® Tab-Tite™ Drill-Down Mount for Large Tablets
Features
* Spring-loaded holder secures large tablets with heavy-duty cases

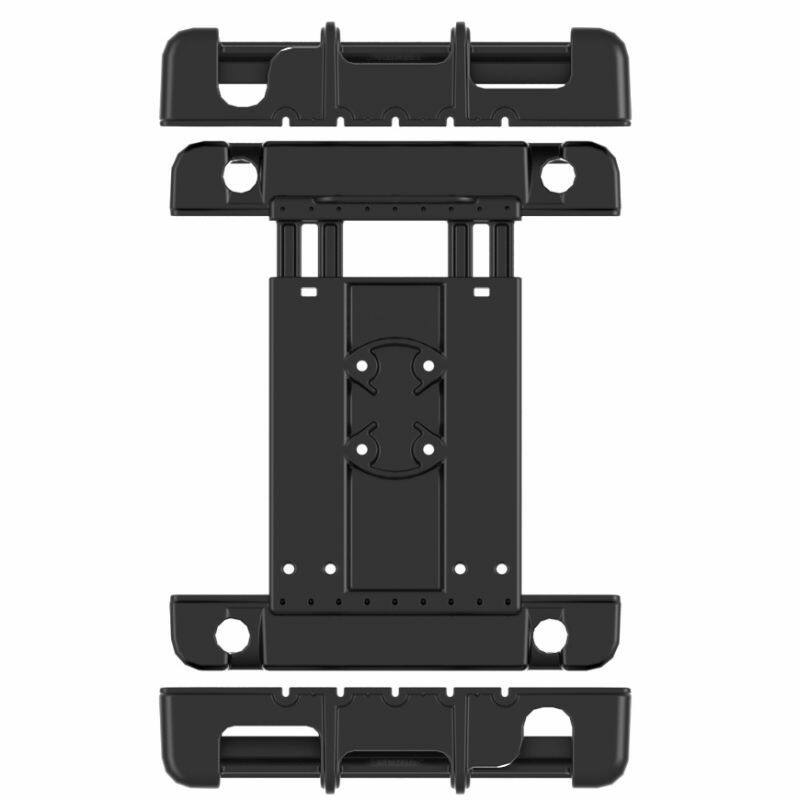

* Interchangeable end cups allow you to modify the holder when upgrading devices
* Round drill down plate has 3 and 4 hole AMP's patterns and provides a stable permanent mounting solution
* B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of marine-grade aluminium alloy and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

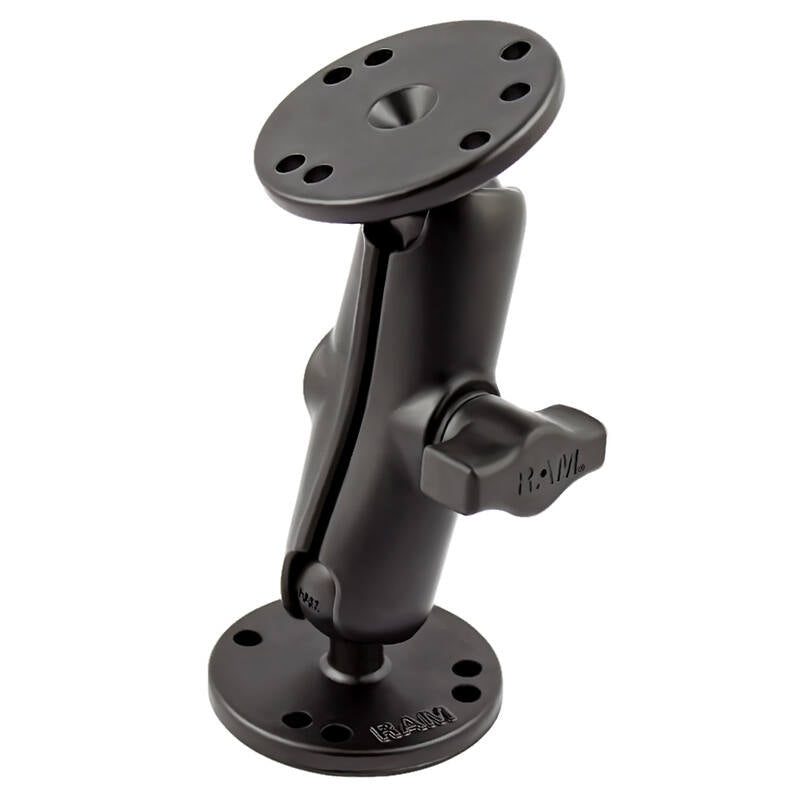

The RAM-B-138-TAB-LG consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the MEDIUM double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

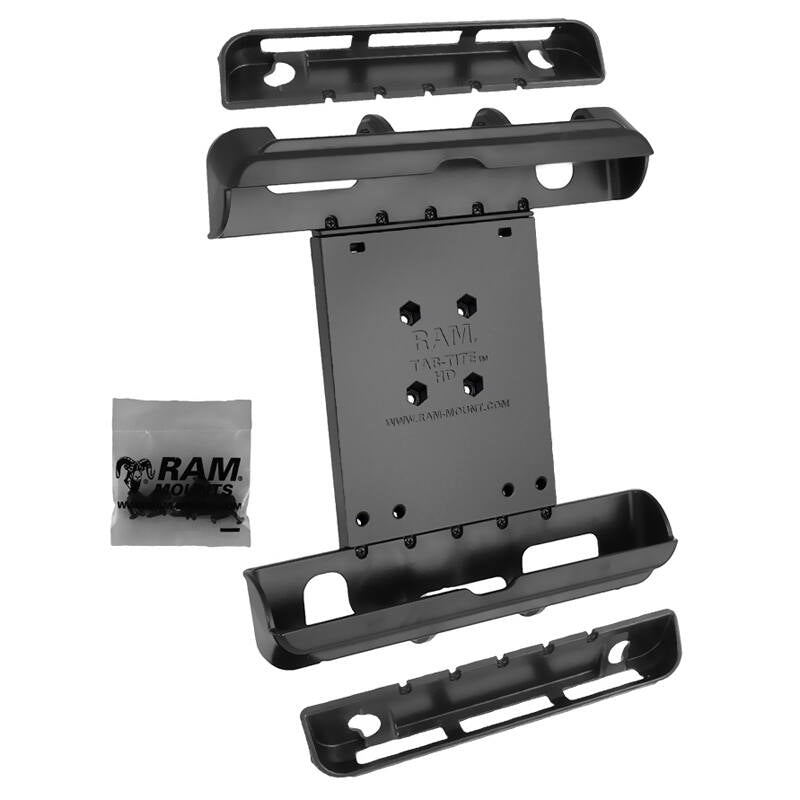

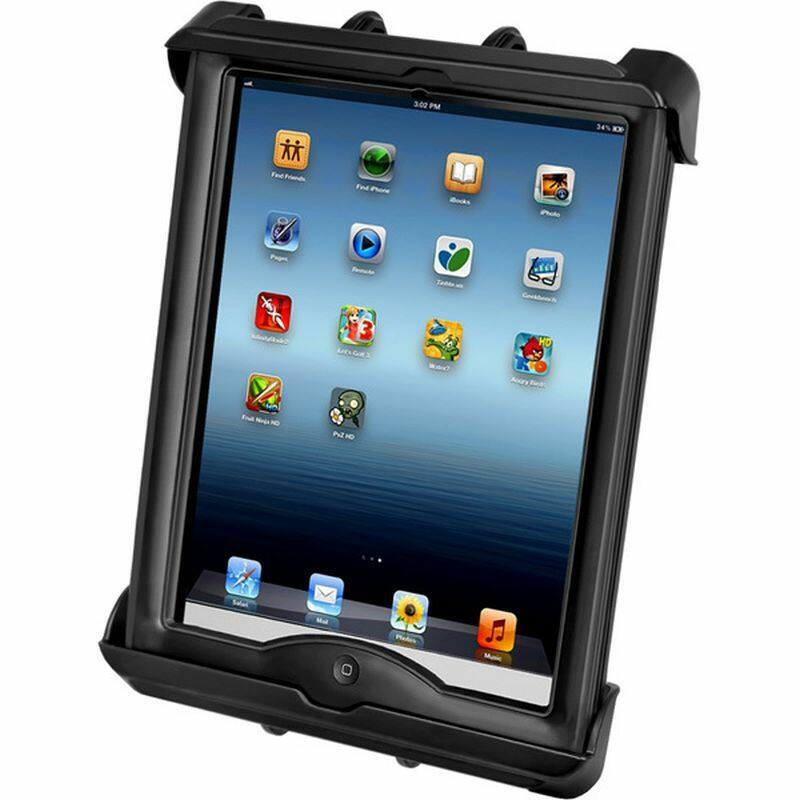

The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Holder Dimensions
Height Range: 216mm to 298mm (8.5" - 11.75")
Width Range: 197mm to 209mm (7.75" - 8.25")
Depth Range: 14mm to 28mm (.56" - 1.1")
Compatible Devices include
10" Tablets with LifeProof nd cases
10" Tablets with Lifedge cases
10" Tablets with Heavy duty cases
Apple
iPad 1, 2, 3, 4
iPad Air, Air 2
HP
TouchPad
Samsung
Galaxy Note 10.1

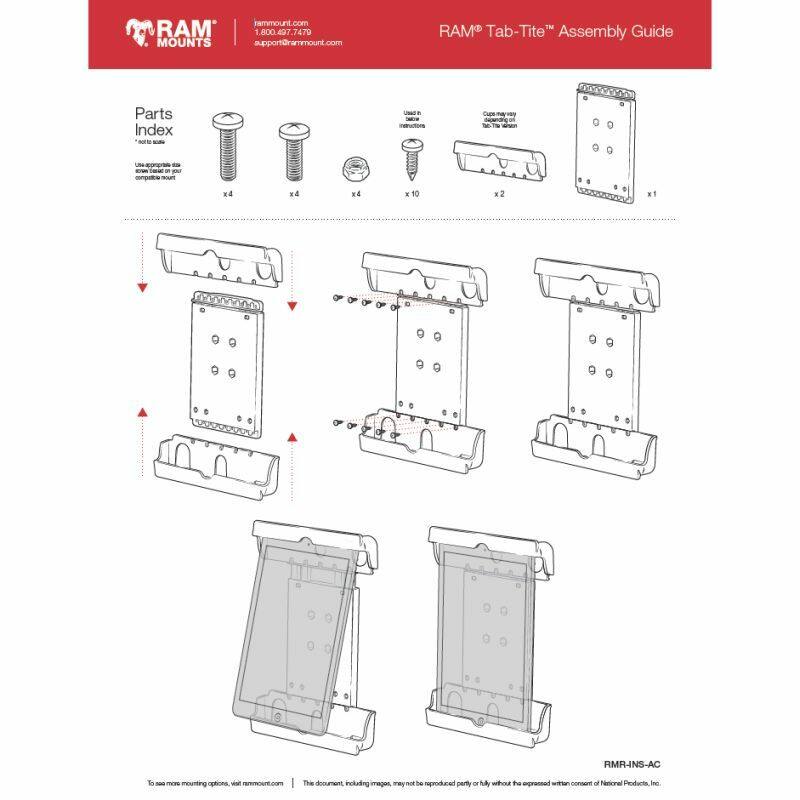

Hardware Included
Assembly Hardware
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

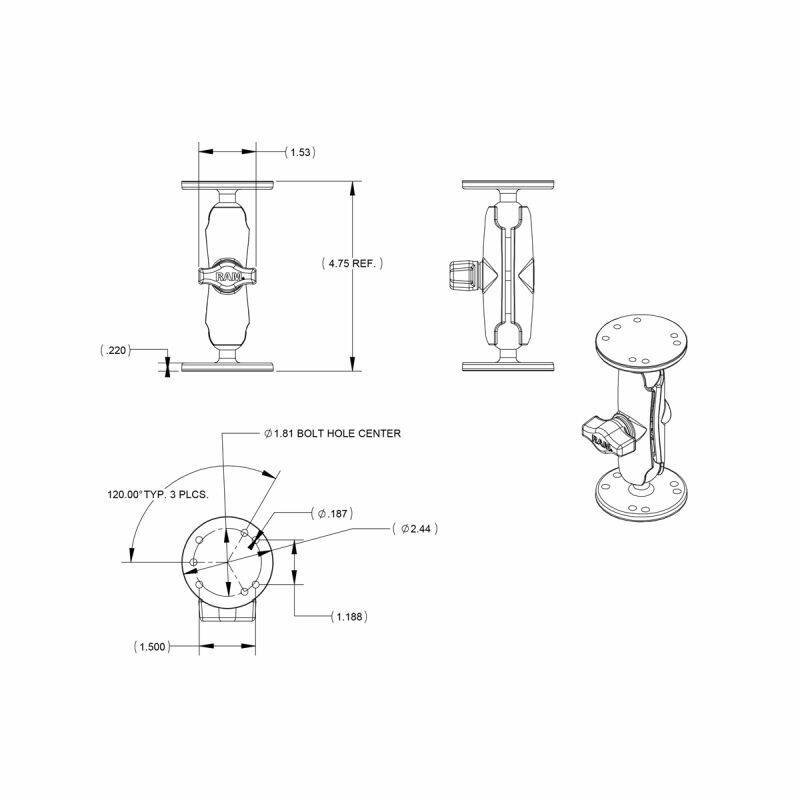

Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter
Plate Size
63.5mm (2.5") Diameter
Ball/Socket Size
B Size (1")
Weight Capacity
907 grams (2 lbs)
Materials
Marine-grade aluminium
High strength composite
Weight
417 grams (0.92 lbs.)
