RAM Tough-Mag 48MM 4-Point Magnetic Mounting Base

RAM-MAG48-4U RAM^® Tough-Mag^™ 48MM 4-Point Magnetic Mounting Base


Features

* Four-point steel plate with 2 sets of 4 rubber coated external magnets for attaching to windows up to 6mm in thickness

* 4-hole AMPS and VESA patterns for attaching C or D size RAM^® drill-down ball bases

* External magnets include handles for ease of install

* Backed by a lifetime warranty

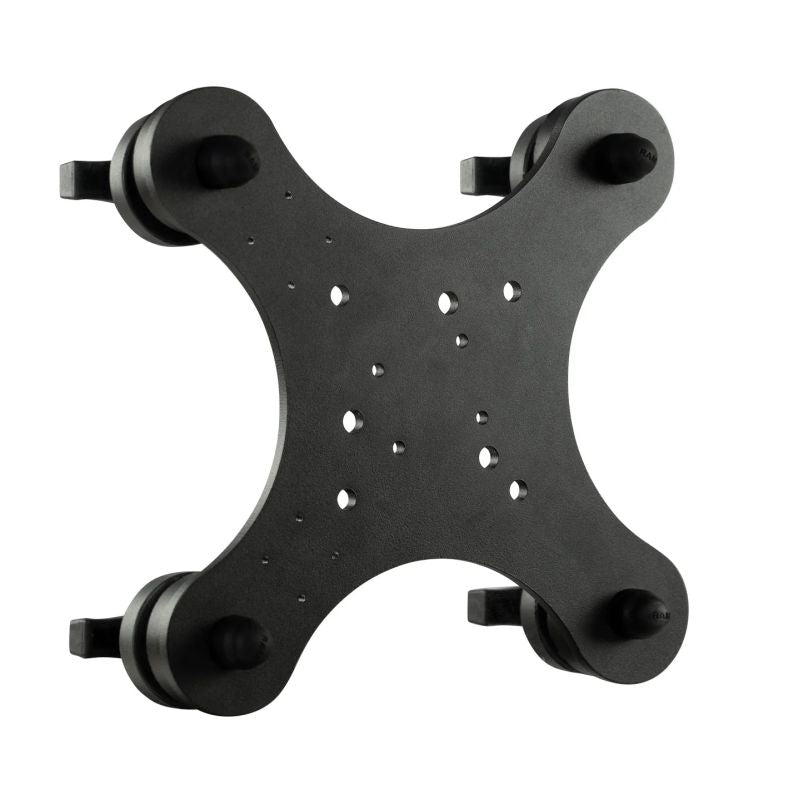

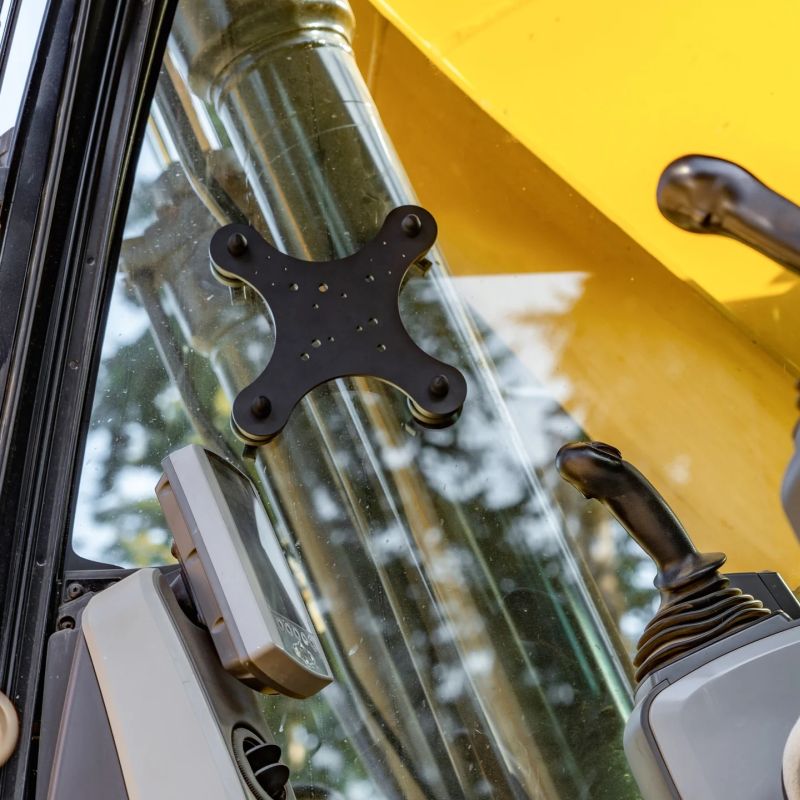

The RAM^® Tough-Mag^™ Magnetic Window Mount (RAM-MAG48-4U) consists of a steel plate with four magnetic ends and four 48mm external magnets for mounting on a window, or any other flat glass surface.

The plate contains pre-drilled 4-hole AMPS and VESA patterns for attaching a recommended C, or D size drill-down ball base. The base is designed with rubber coated magnets to prevent scratching the mounting surface and reduce the impact of the jarring magnetic pull. Each external magnet includes a handle in order to easily install the base to a window. Compatible with any sturdy, flat surface up to 6mm in thickness.

Hardware Included

Assembly Hardware
(8) #4-40 x 1/4" Machine Screws
(4) #10-24 x 3/4" Machine Screws
(4) #10-24 Nylock Nuts
(4) Rubber Caps

Product Dimensions

Overall Length: 228.3mm (8.99")
Overall Width: 228.3mm (8.99")
Overall Thickness (inside surface): 41.7mm (1.64")

Hole Pattern

4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA

Weight

2.109 kg (4.65 lb)

Weight Capacity

1.81kg (4lbs)
