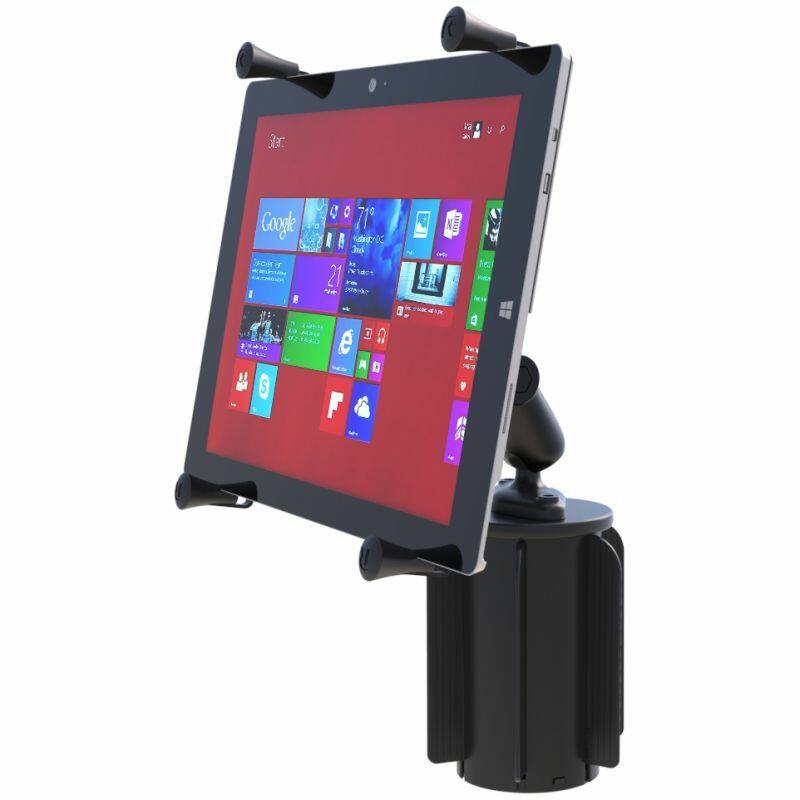

RAP-299-3-UN11U RAM® X-Grip® with RAM-A-CAN™ II Cup Holder Mount for 12" Tablets
Features
* Includes RAM-A-CAN™ II universal cup holder base, medium length B size RAM® double socket arm, and RAM® X-Grip® tablet holder
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" tablets
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

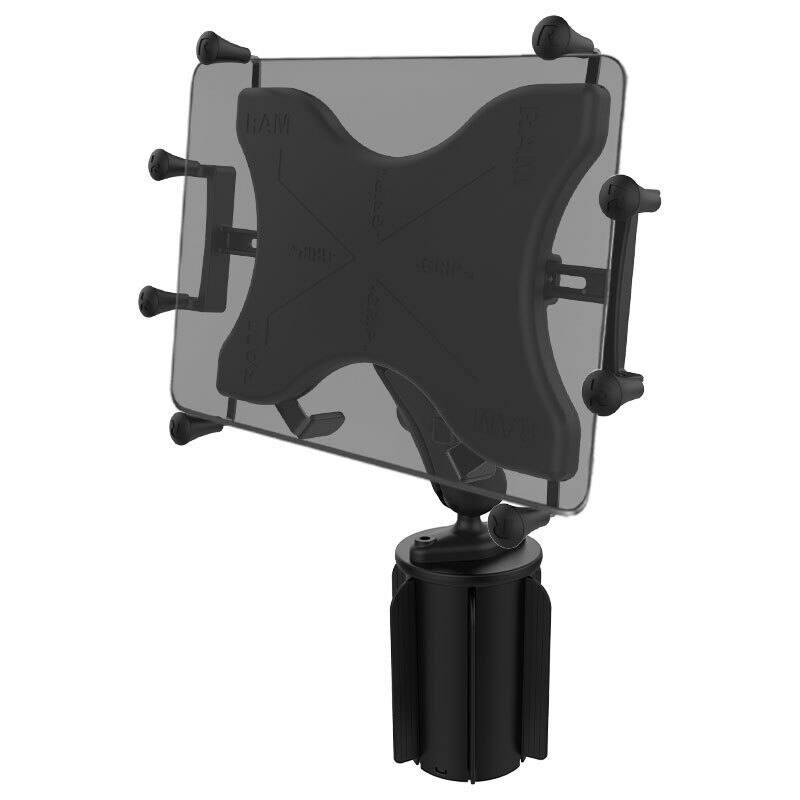

This consists of the RAM-A-CAN™ cup holder base, double socket arm and large X-Grip® cradle. It's an ideal solution if you use different cars or rentals and is designed with a RAM 1" diameter patented rubber ball and socket system that allows for almost infinite adjustment and perfect viewing angles.

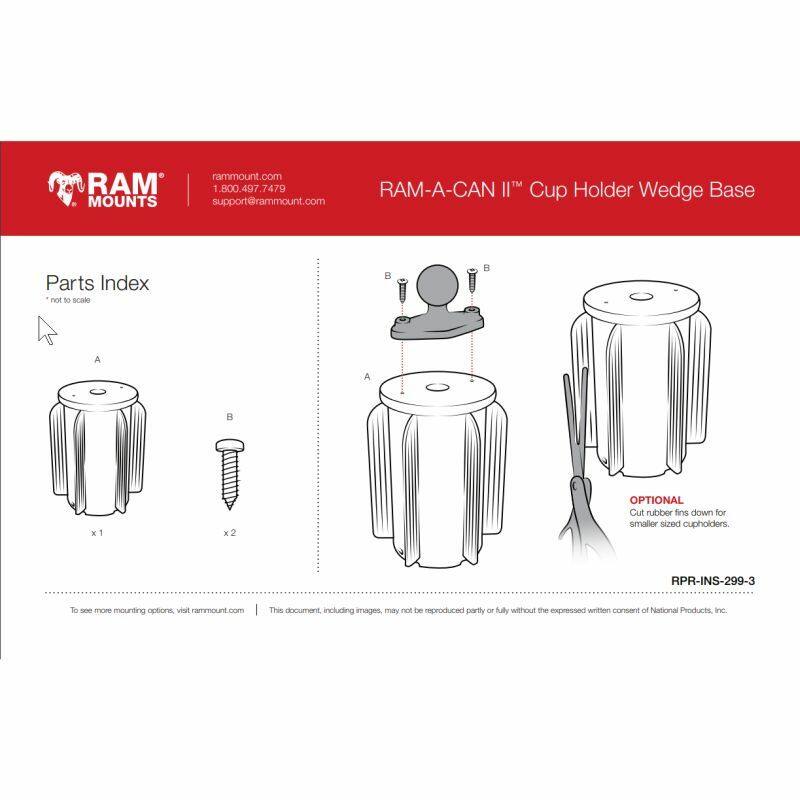

The cup holder base is a solid mounting point. Its support fins that flex, making the cup holder base conform to most vehicle cup holders with an inside diameter range of 65.3mm to 88.9mm (2.57" to 3.5").

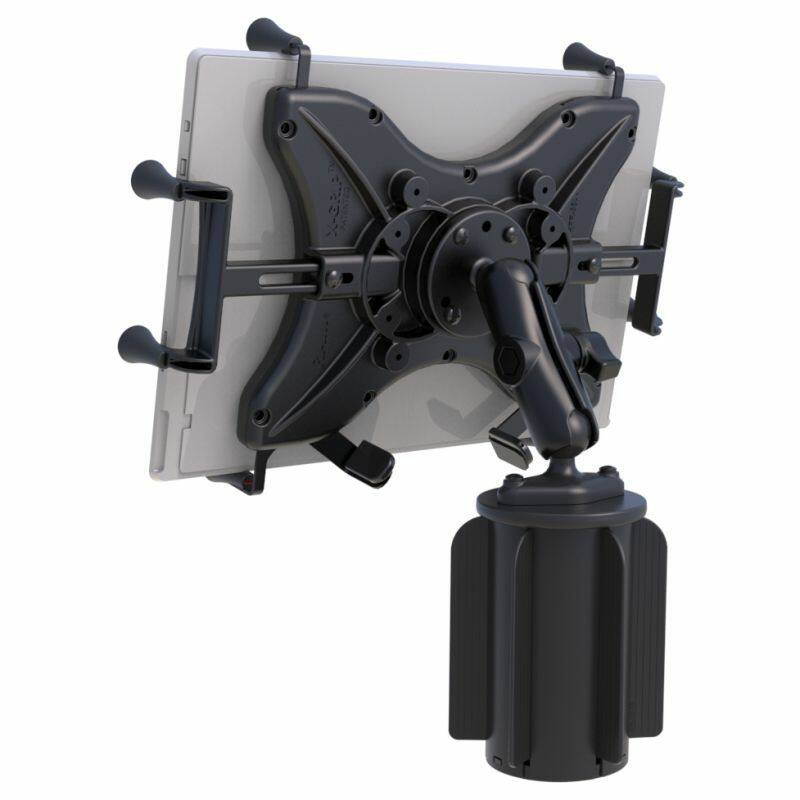

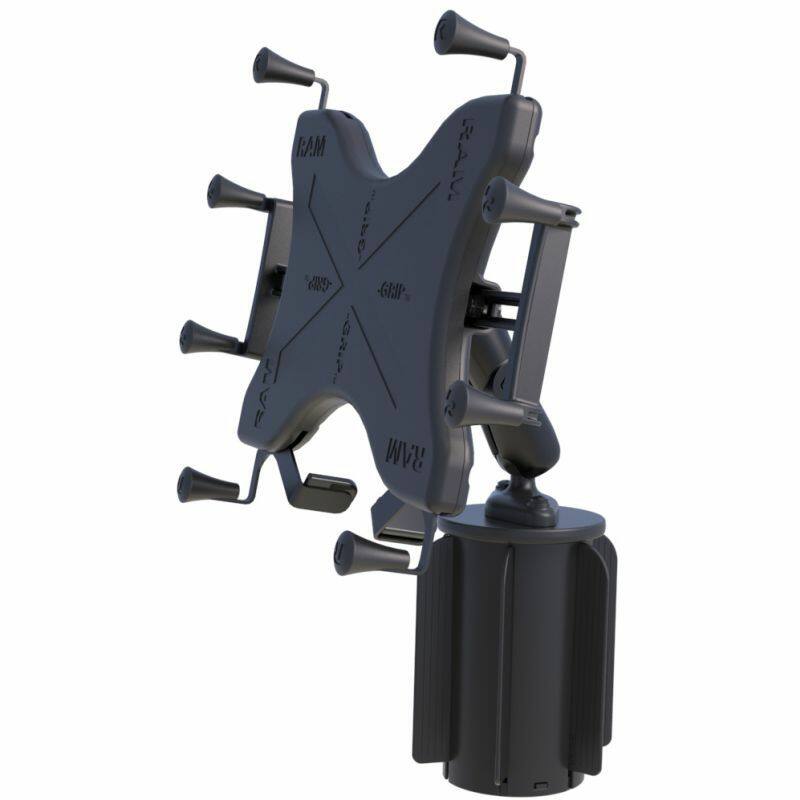

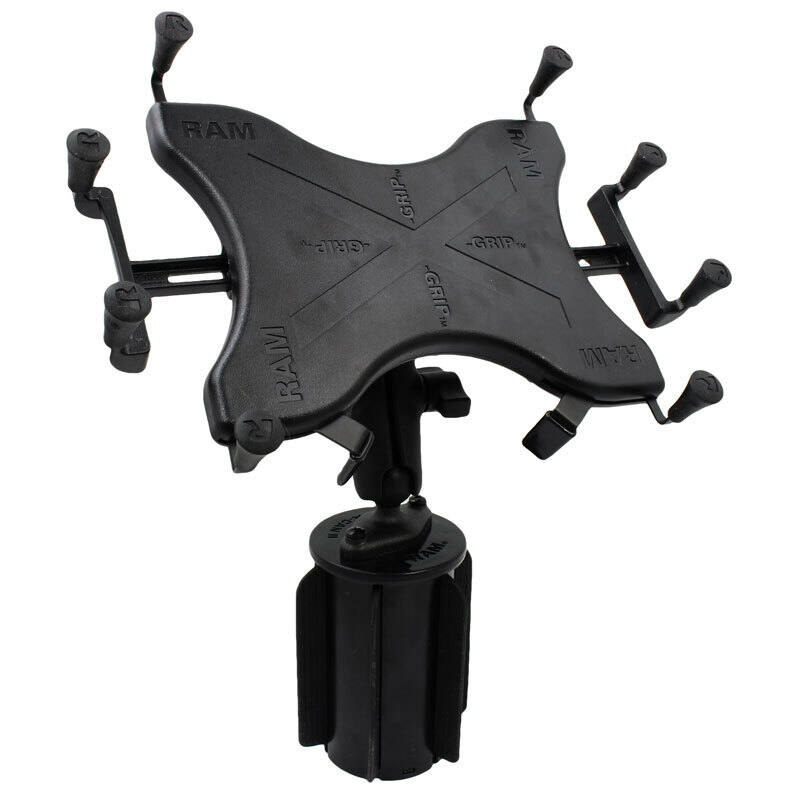

The X-Grip consists of a composite spring-loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 12" tablets with or without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. Please check the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 184.2mm (7.25”)
Max Width = 222.3mm (8.75”)
Max Length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN11U
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Materials
Marine-grade aluminium
High strength composite
Components:

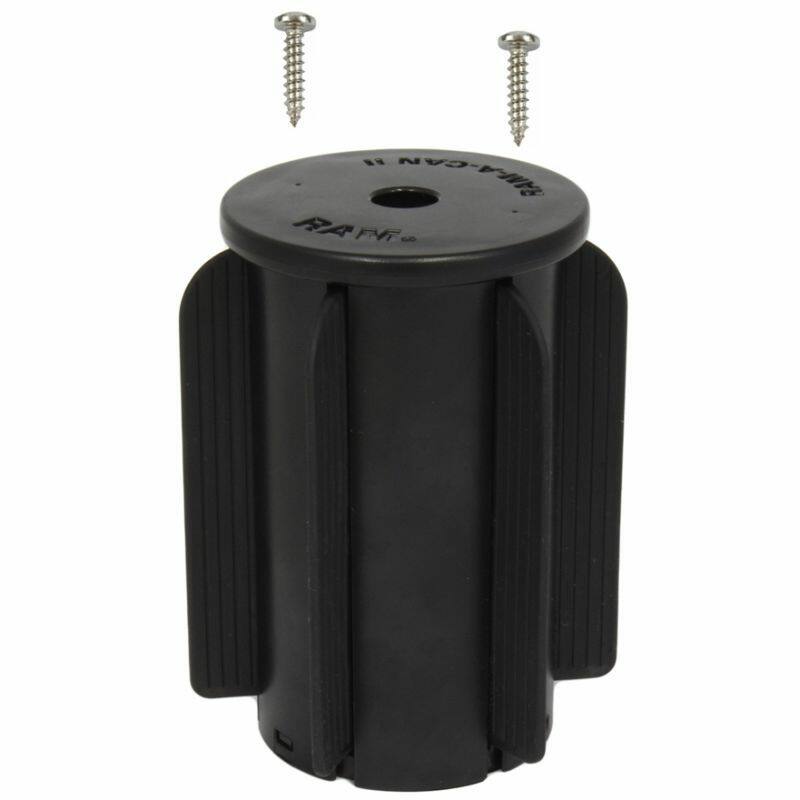

RAP-299-3U RAM-A-CAN base
RAM-HOL-UN11U X-Grip

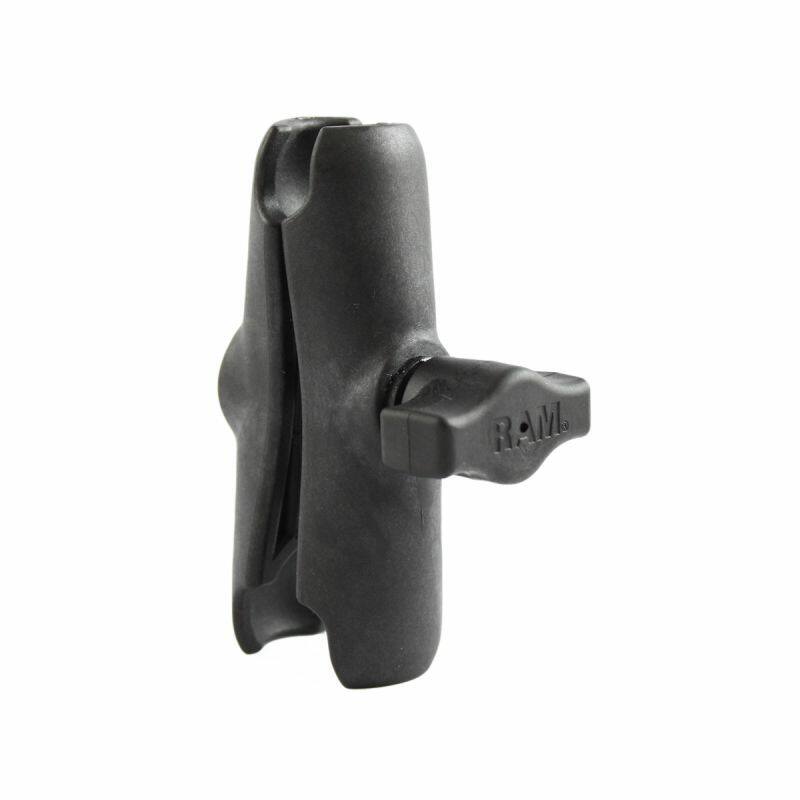

RAP-B-201U Medium Arm
RAP-B-202U Round base

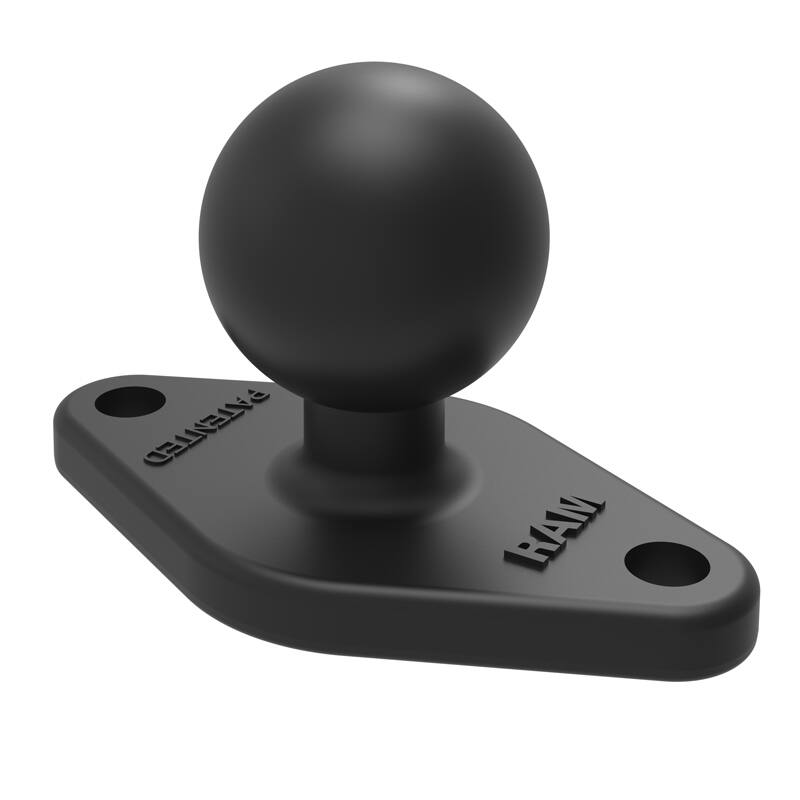

RAP-B-238U Diamond Base
