RAM X-Grip Universal Large Phone Cradle with Suction Cup Base - Low Profile

RAP-B-224-2-A-UN10U – RAM® X-Grip® Large Phone Mount with Low-Profile Twist-Lock™ Suction Base (Short Arm)

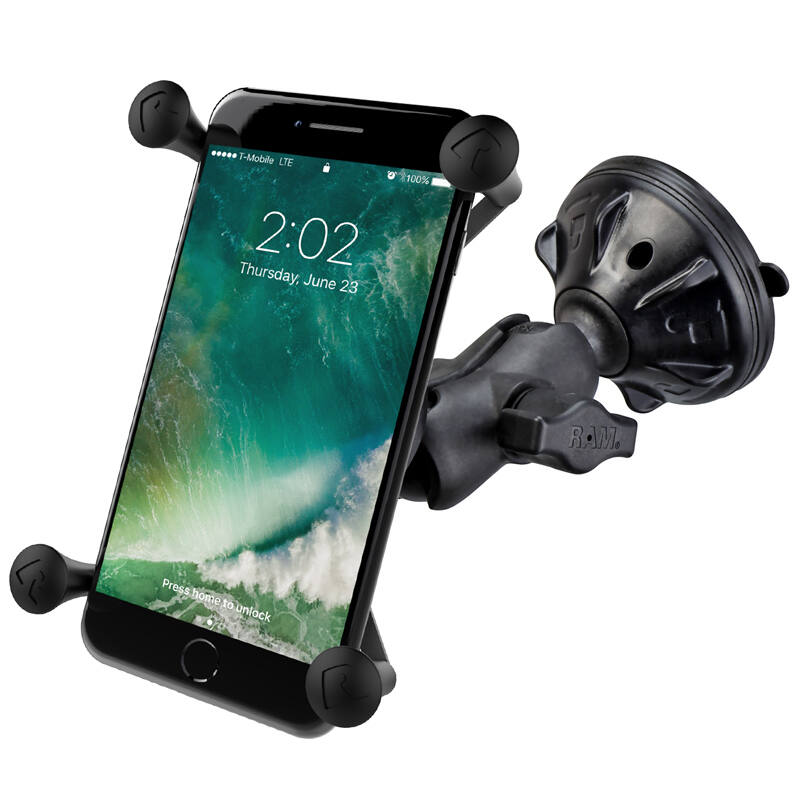

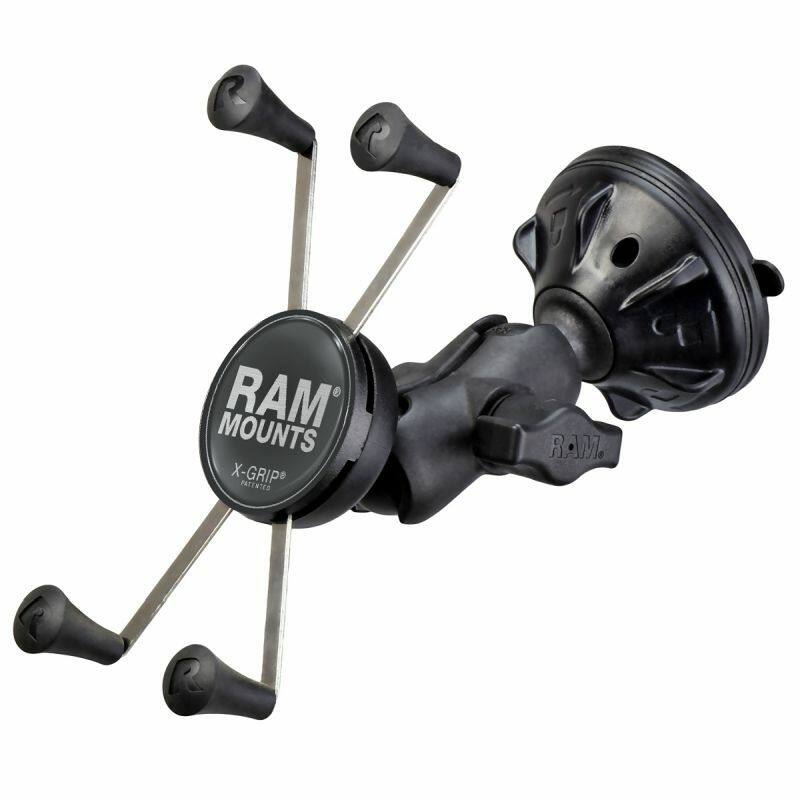

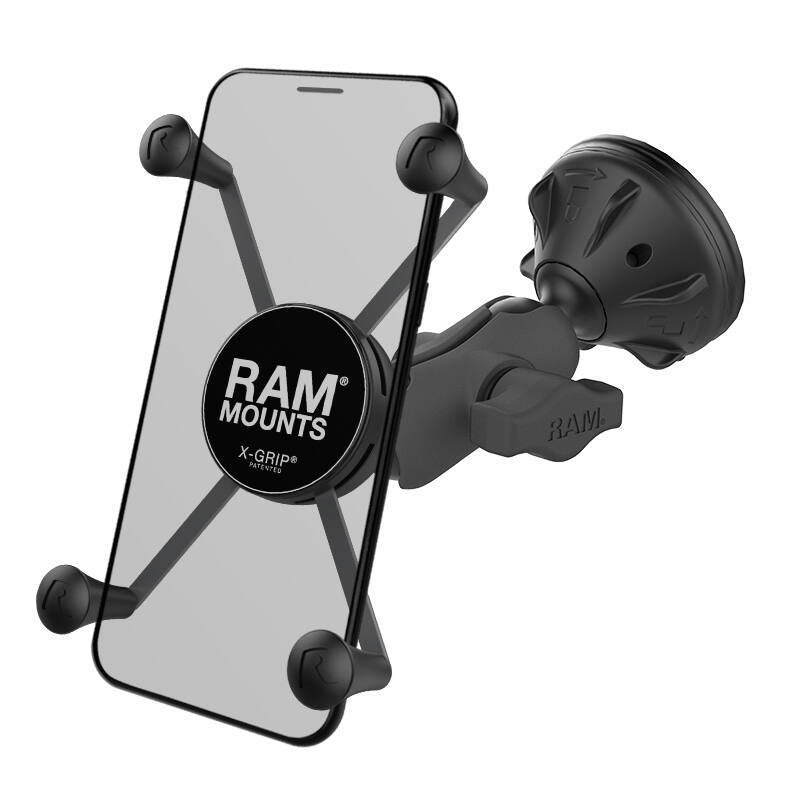

The RAP-B-224-2-A-UN10U pairs the RAM® X-Grip® large phone cradle with a low-profile 70mm (2.75") RAM® Twist-Lock™ suction cup base and a short composite double socket arm. It holds large phones up to 114mm (4.5") wide on glass and smooth, non-porous surfaces, with the short arm keeping everything tucked in close to the screen.

Key Features

• Spring-loaded 'X' design with rubber caps grips large phones firmly without covering the screen, camera, or buttons
• Low-profile 70mm (2.75") Twist-Lock™ suction cup base for a strong hold on glass and smooth, non-porous surfaces, including RAM® adhesive disks
• Short composite double socket arm; ball-and-socket design allows near-infinite positioning and damps shock and vibration
• Includes an optional device tether for extra security during outdoor use
• High-strength composite and stainless steel construction; backed by a lifetime warranty

What's Included

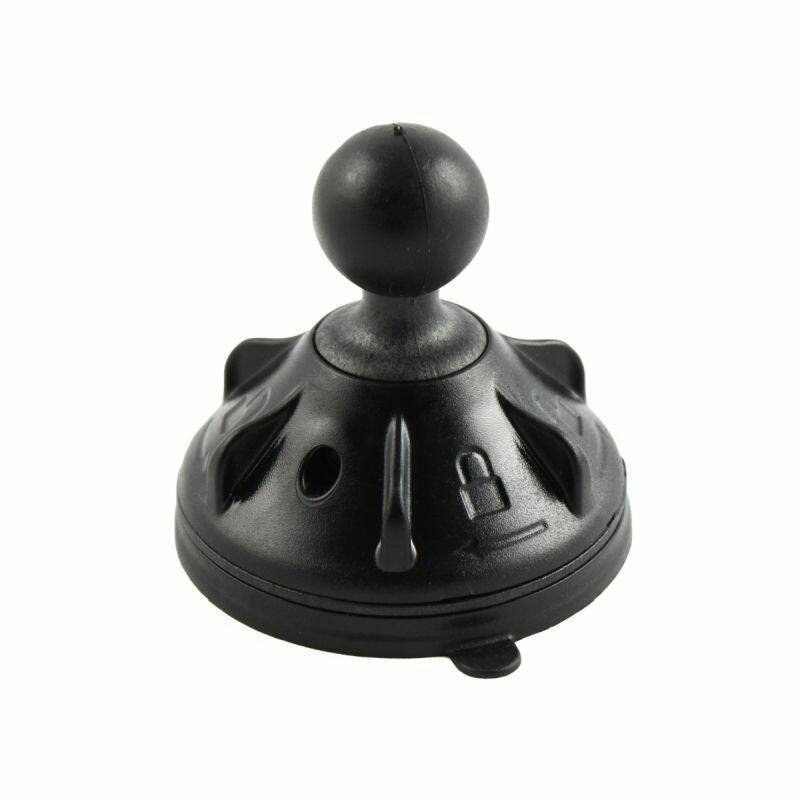

• RAP-B-224-2U low-profile Twist-Lock™ suction cup base, 69.9mm (2.75") diameter, with 1" B size ball

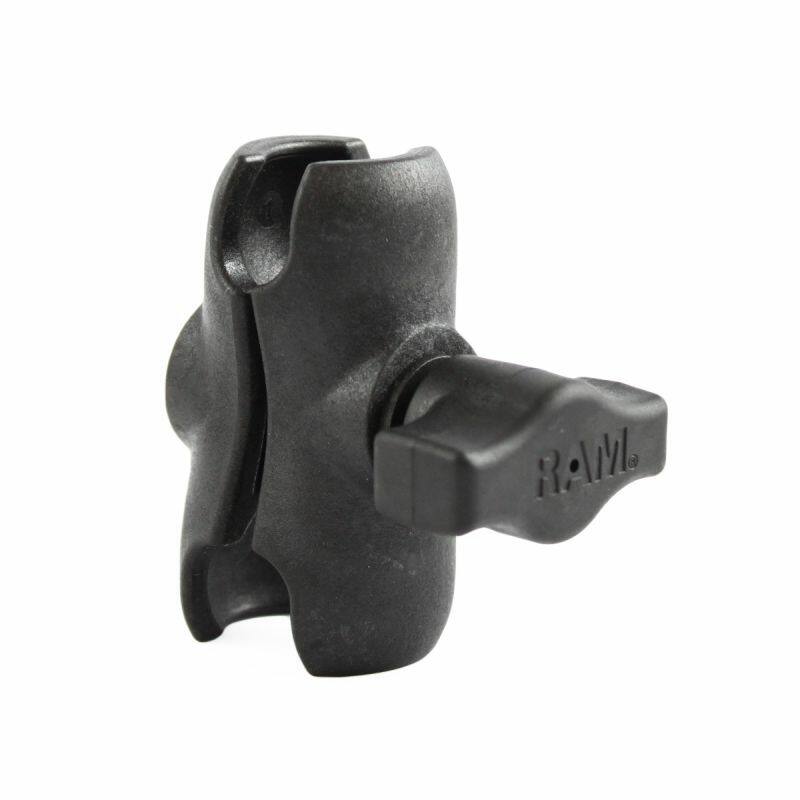

• RAP-B-201U-A short composite double socket arm (B size)

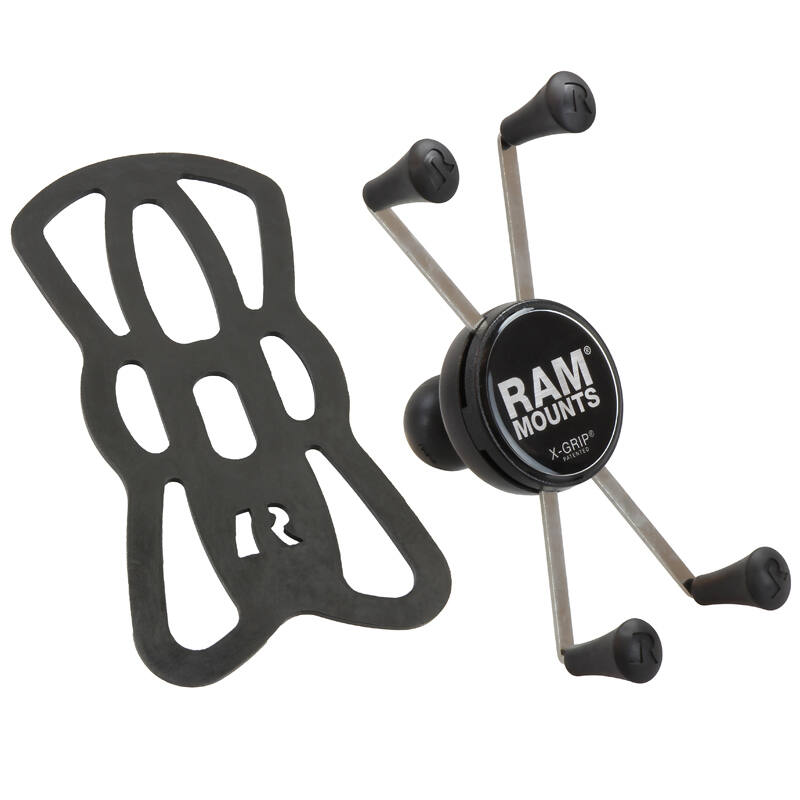

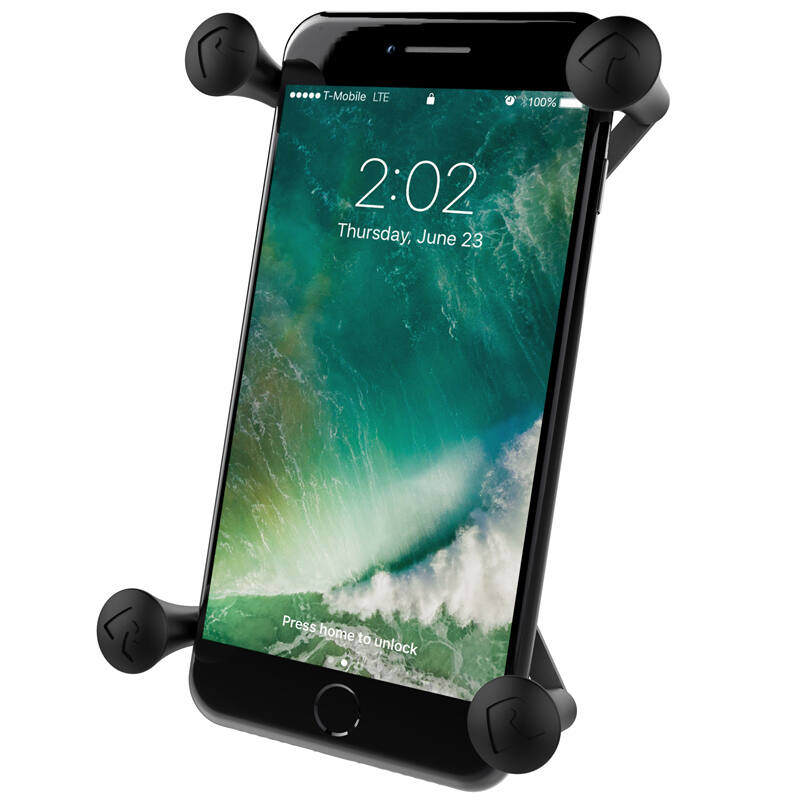

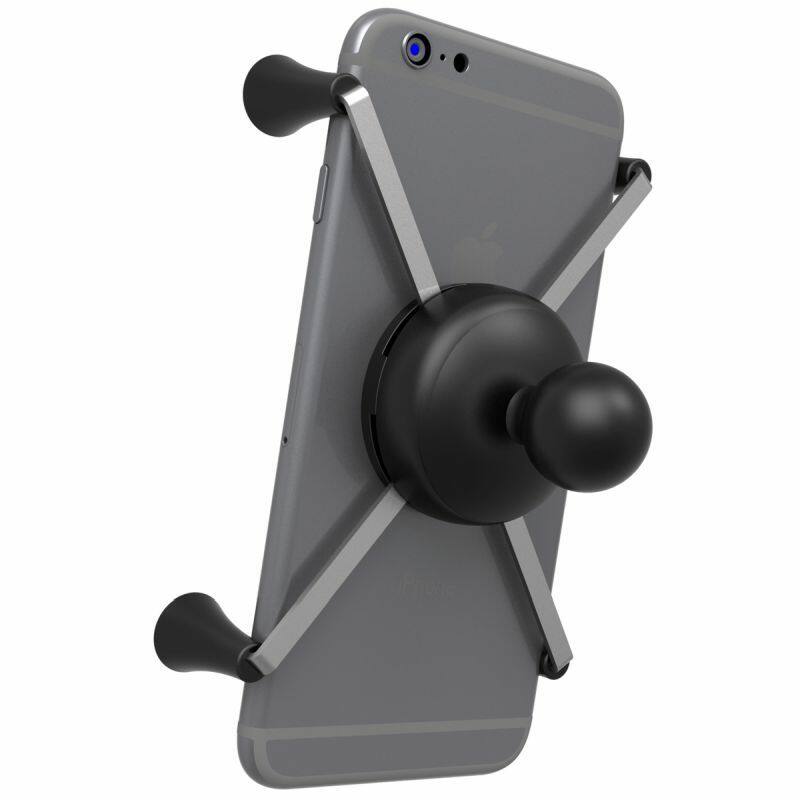

• RAM-HOL-UN10BU X-Grip® large phone cradle with device tether

Dimensions & Specifications

• Suction cup diameter: 69.9mm (2.75")
• Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
• Cradle minimum device width 44.45mm (1.75"), which needs a minimum height of 139.7mm (5.5")
• Cradle maximum device width 114.3mm (4.5"), which needs a minimum height of 82.55mm (3.25")
• Cradle maximum device thickness: 22.2mm (0.875")
• Ball size: B size, 1" rubber ball
• Weight: 232g (0.51 lb)
• Materials: high-strength composite, stainless steel

Compatible Devices

The X-Grip cradle fits large phones within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models, see our RAM-HOL-UN10BU cradle listing.

Videos

• RAM X-Grip overview

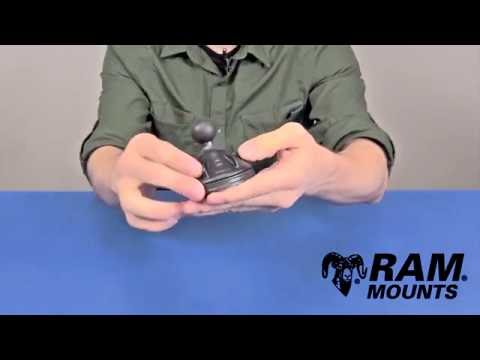

• RAM low-profile suction cup overview
• RAM short double socket arm overview

FAQs

Is this a complete mount? Yes. The low-profile suction base, short arm and X-Grip large phone cradle are all included; there's nothing else to buy to get your phone onto the glass.

How is this different from the RAP-B-166-2-UN10U? Both kits use the same RAP-B-224-2U low-profile suction base and the same RAM-HOL-UN10BU X-Grip cradle. The only difference is the arm. This kit uses the RAP-B-201U-A short composite double socket arm; the RAP-B-166-2-UN10U uses the RAP-B-201-1U lightweight composite arm. The two are within a couple of millimetres of each other in length, so choose on the arm itself rather than expecting any real difference in reach.

What surfaces will the cup stick to? Glass and other smooth, non-porous surfaces. Textured dashboards, matte plastic and any surface with a grain won't hold; clean both the cup and the surface before mounting. A RAM® adhesive disk gives the cup a smooth face to grip on an otherwise unsuitable surface.

Is the smaller cup strong enough for a big phone? On clean glass, yes. The 70mm cup takes up noticeably less of the windscreen than the standard 84mm base, which is the whole point of it. If you're on rough roads, on a boat, or running a heavy phone in a rugged case, the full-size RAP-B-166-UN10U kit gives you more margin.

Will my phone fit with a case on? Measure the width of your phone with the case fitted. This cradle opens from 44.45mm to 114.3mm wide and takes devices up to 22.2mm thick, which covers large phones in most cases, including chunkier rugged ones.

Is the tether included? Yes. We'd recommend fitting it for off-road, marine and any other high-vibration use; it's cheap insurance if the phone is ever knocked loose.

Should I get the UN10 or the UN7 version? The UN10 cradle here is the larger of the two and suits big-screen phones. If your phone is a standard size, the UN7 version of this same kit grips it more securely; a smaller phone in the UN10 cradle sits looser than it should.
