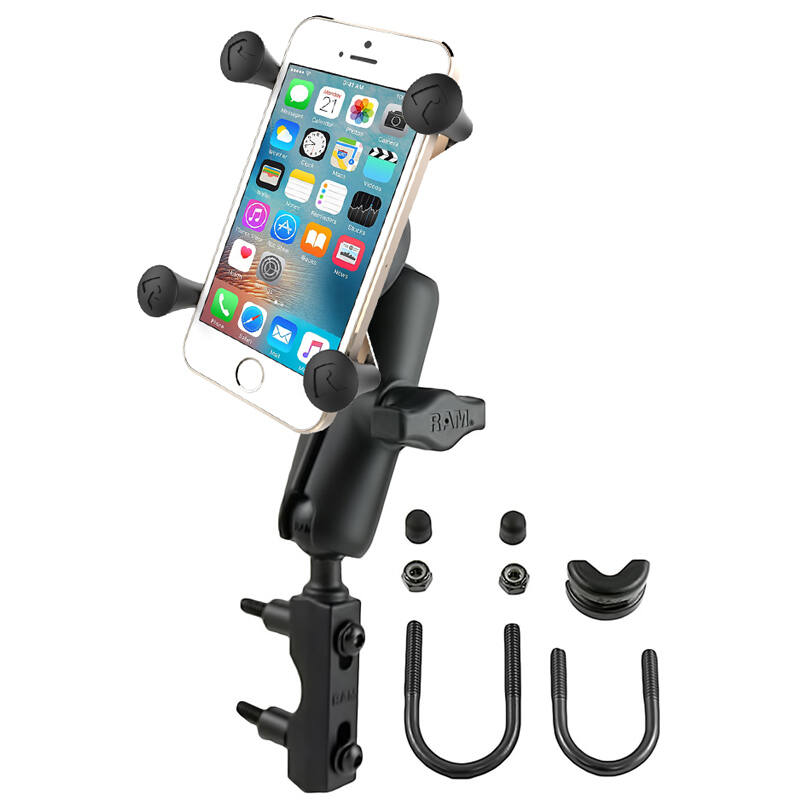

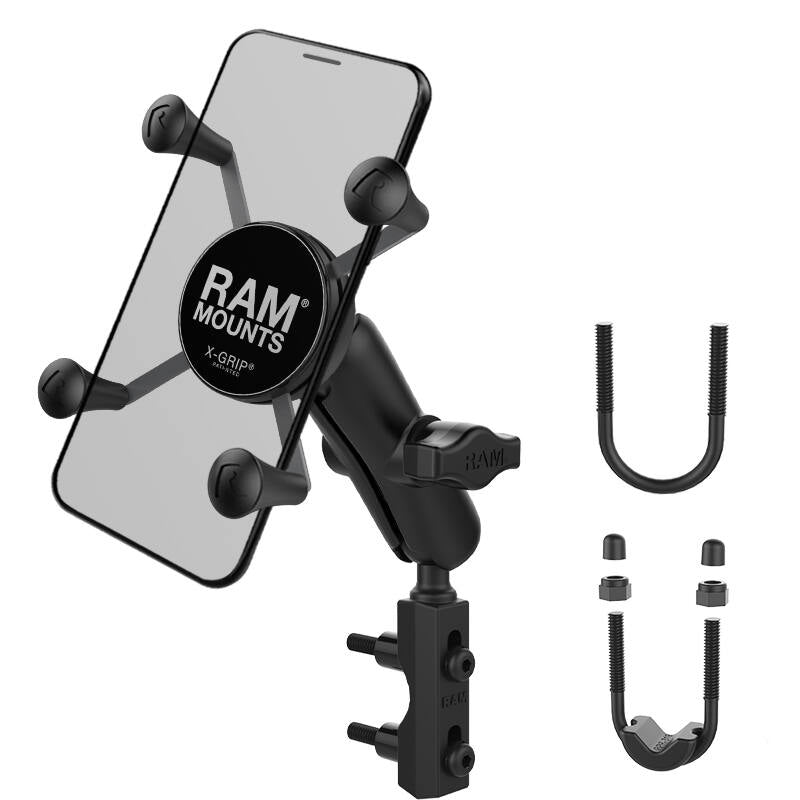

RAM-B-174-UN7 RAM Brake/Clutch Clamp Mount with Short Arm and Universal RAM® X-Grip® Cell/iPhone Cradle
Features
* Spring-loaded 'X' design for phones with rubber caps sports great holding power without hiding your phone

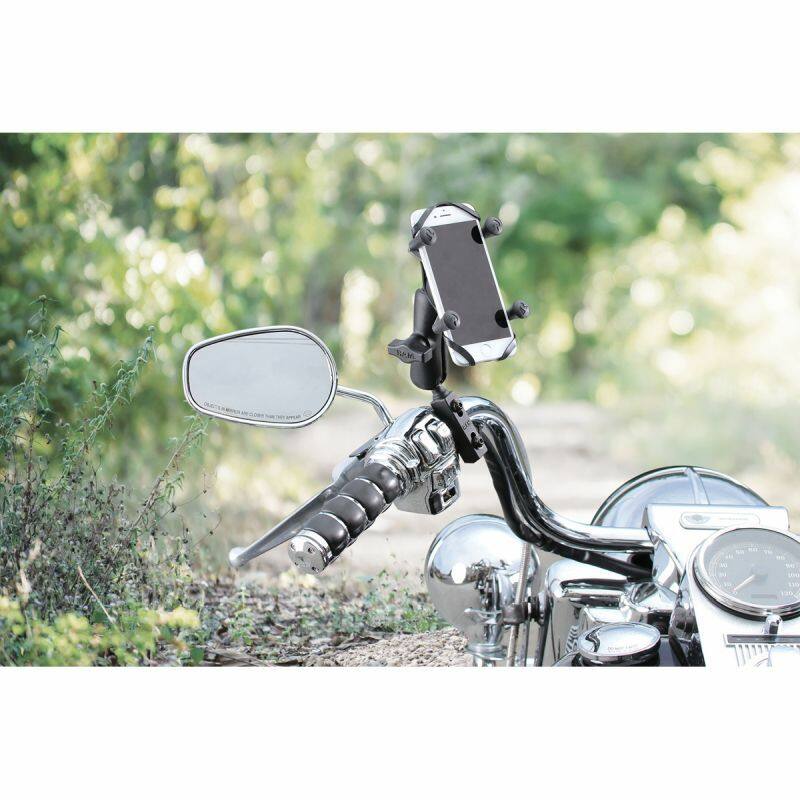

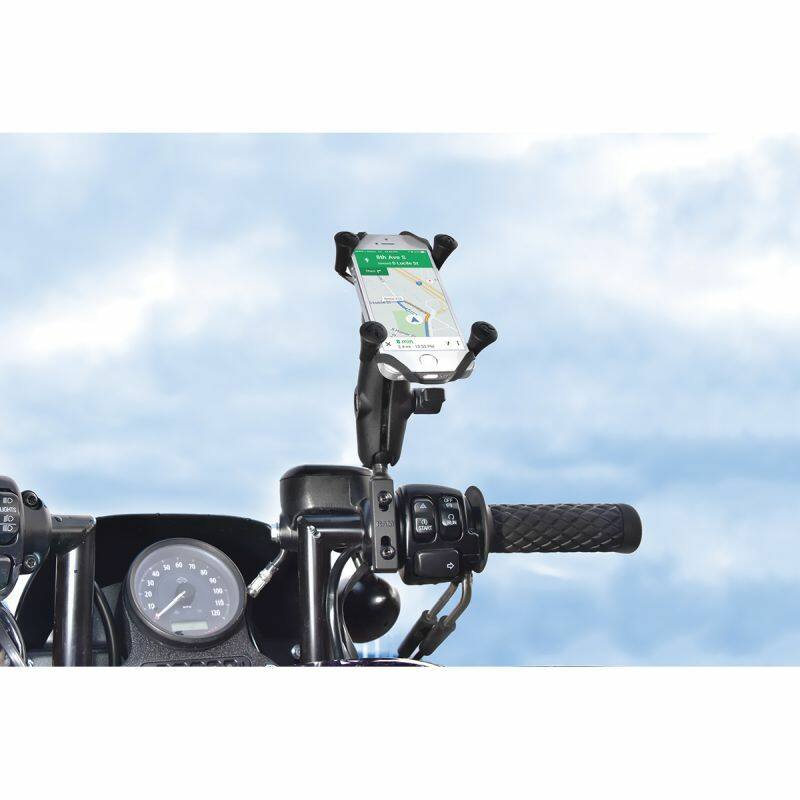

* Base allows for mounting to either brake reservoir or handlebars 12.7 to 31.75mm in diameter
* RAM medium double socket arm with ball and socket technology allows for ideal positioning of the cradle
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

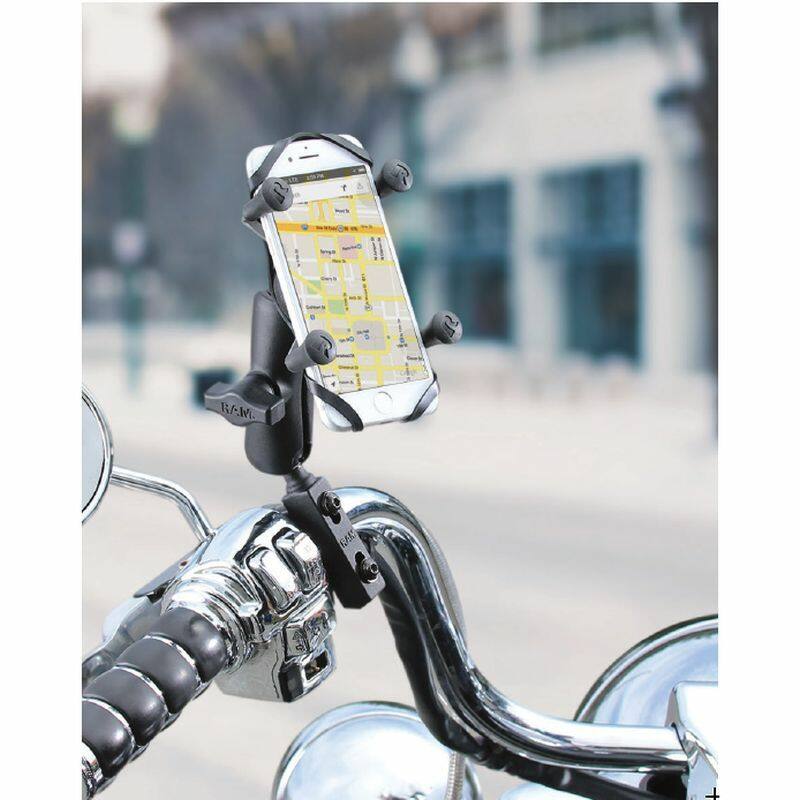

* Includes a device tether recommended for outdoor applications.
* Backed by a lifetime warranty

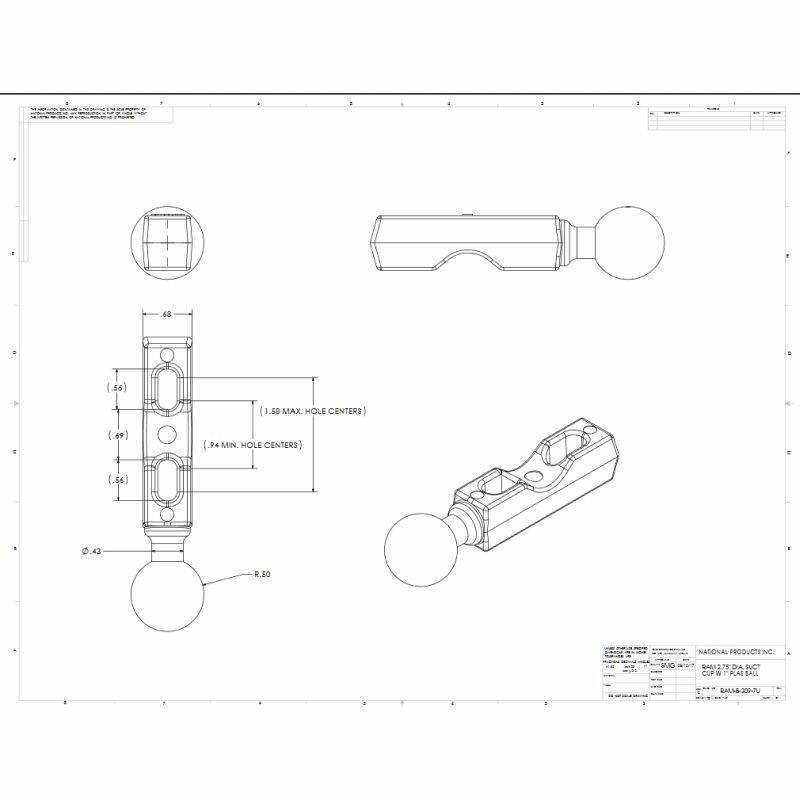

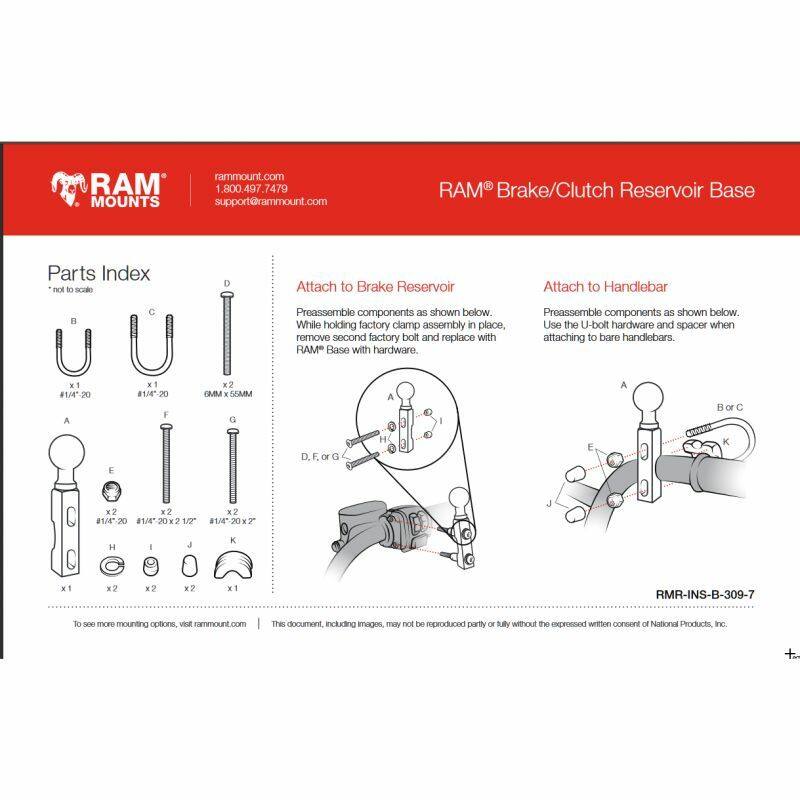

The mounting hardware includes both standard and metric mounting bolts. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The hole centres have a min width of 0.94" and a max of 1.58".
The included U-Bolt option allows for direct connection to rails that are 12.7mm to 40.1mm (0.5 - 1.57") diameter.

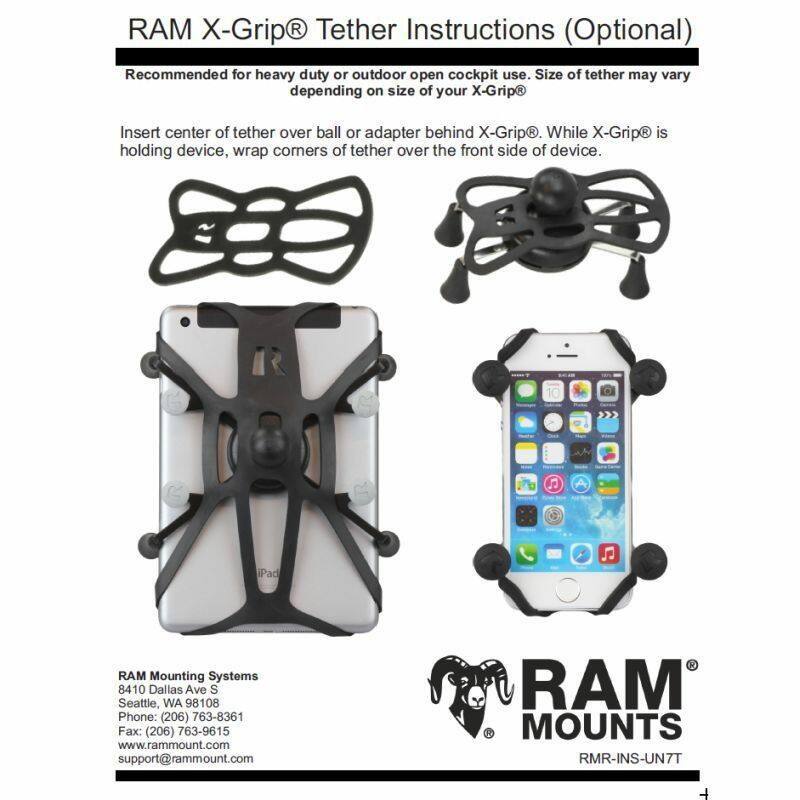

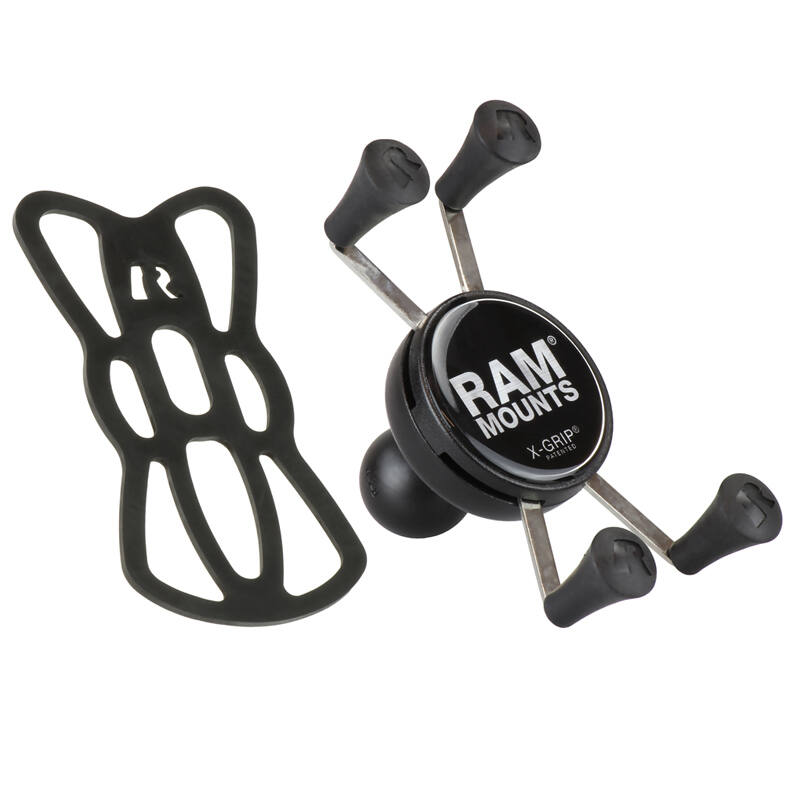

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone and includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. Check the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Min Width = 47.6mm / 1.875” – (if it is min width then the min height = 108mm / 4.25")
Max Width = 82.6mm / 3.25" – (if it is max width then the min height = 57.2mm / 2.25")
Max Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU
Weight:
399 grams (0.88 lbs.)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:

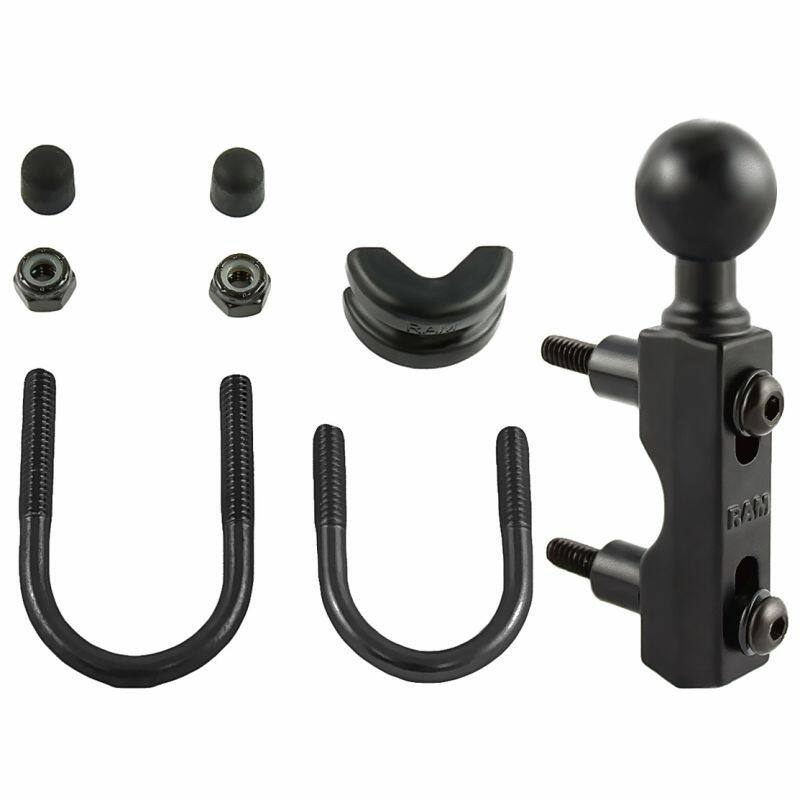

RAM-B-309-7U Combination Brake/Clutch Clamp / U-Bolt Mount
RAM-B-201U DOUBLE SOCKET ARM
RAM-HOL-UN7BU X-GRIP UNIVERSAL HOLDER

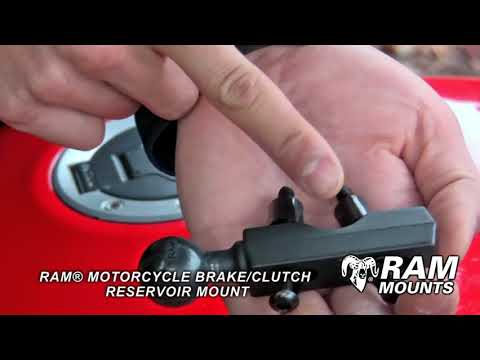

YouTube:
