RAM X-Grip Universal SmartPhone Cradle - Tough-Claw Handlebar Base + Short Arm

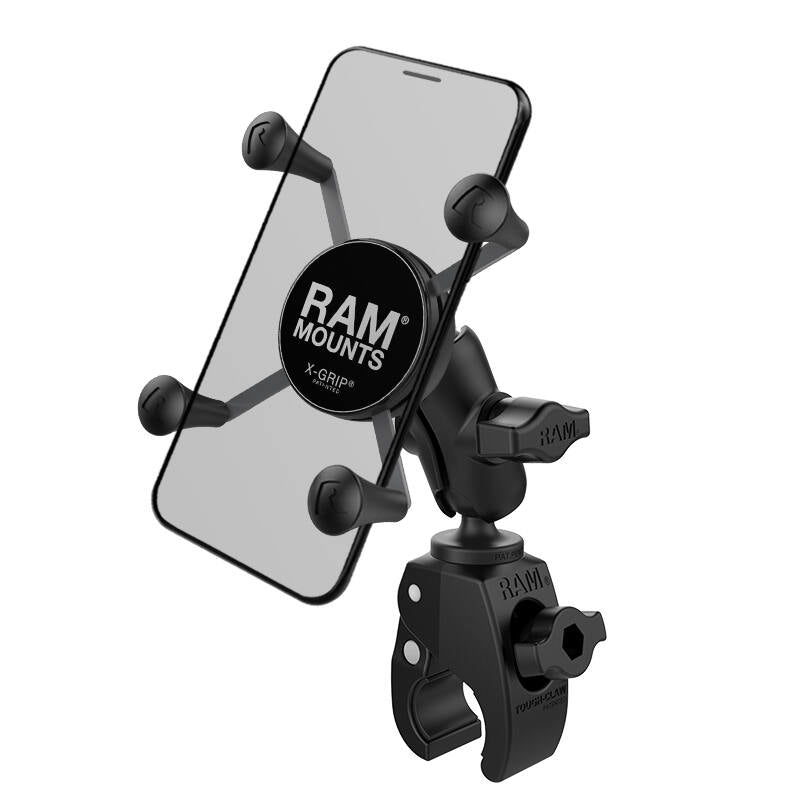

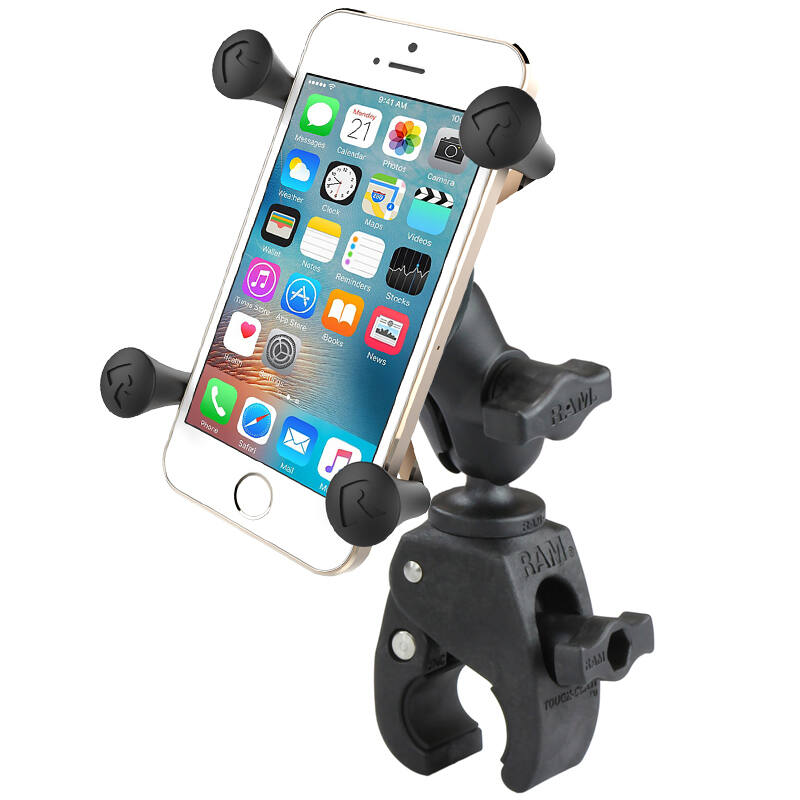

RAM-B-400-A-HOL-UN7BU – RAM® X-Grip® Phone Mount with Tough-Claw™ Base (Short Arm)

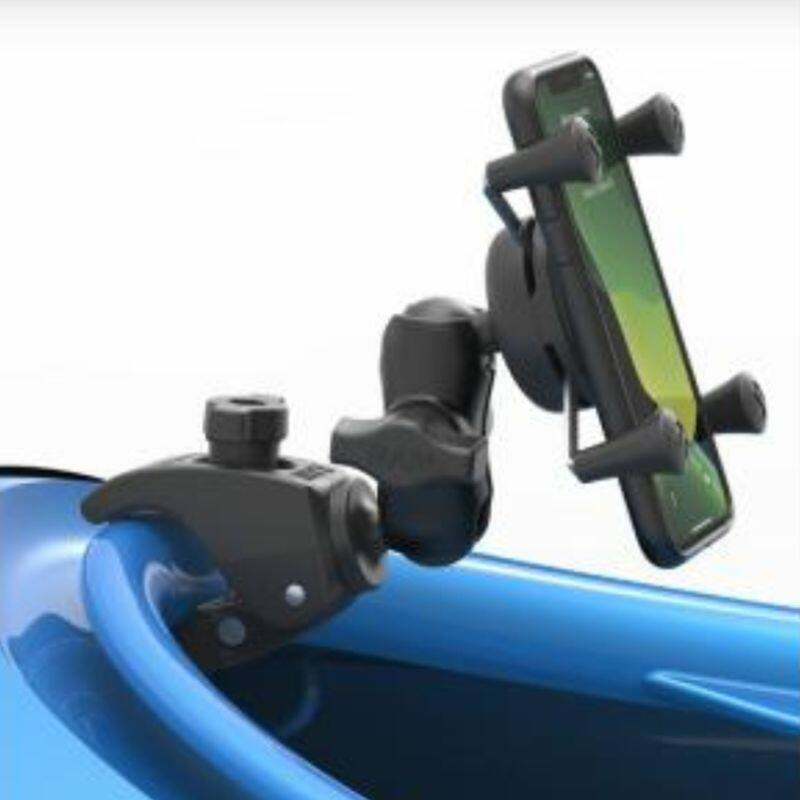

The RAM-B-400-A-HOL-UN7BU pairs the RAM® X-Grip® universal phone cradle with a small RAM® Tough-Claw™ clamp base and a short double socket arm. The Tough-Claw grips round, square, and odd-shaped rails and bars tool-free, making it a quick, secure mount for handlebars, roll bars, and boat rails.

Key Features

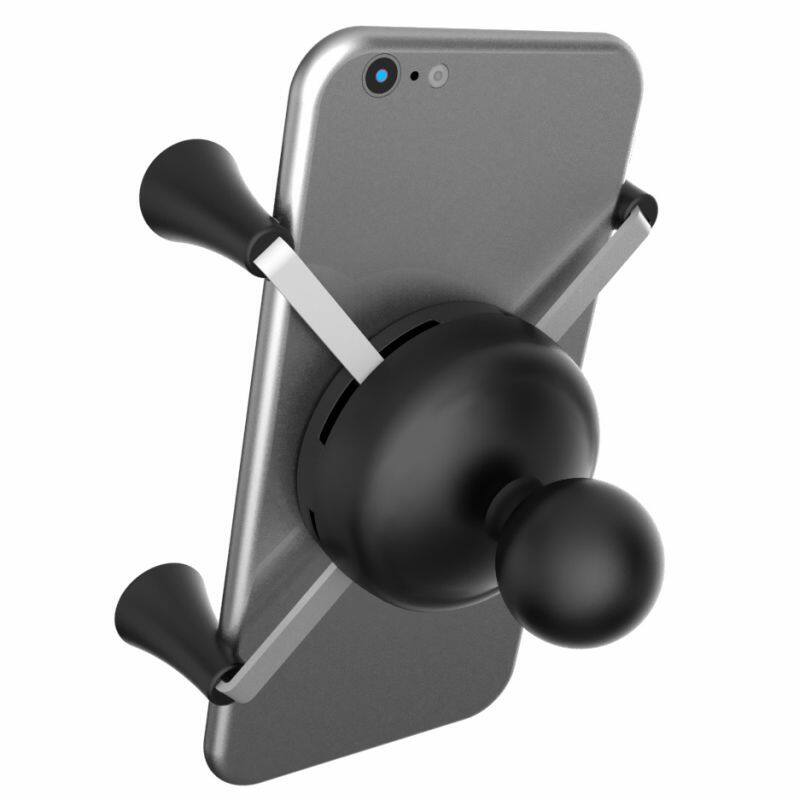

• Spring-loaded 'X' design with rubber caps grips the phone firmly without covering the screen, camera, or buttons

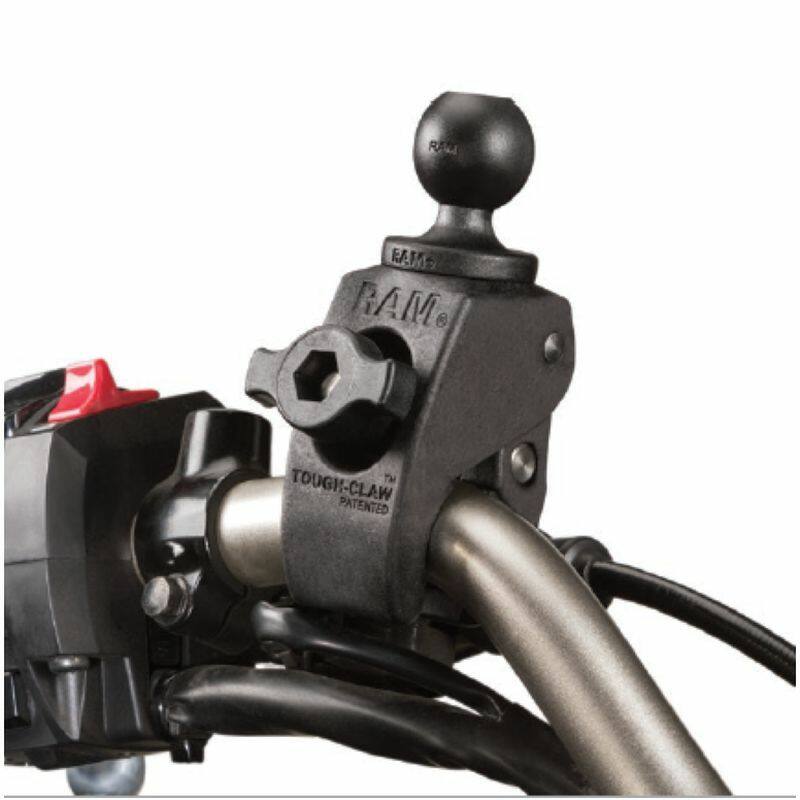

• Small Tough-Claw™ clamps round, square, and odd-shaped rails and bars tool-free
• Rubber pads grip securely and protect the mounting surface
• Short double socket arm keeps the phone close to the bar; ball-and-socket design allows near-infinite positioning
• Includes an optional device tether; powder-coated marine-grade aluminium, stainless steel hardware, and high-strength composite; backed by a lifetime warranty

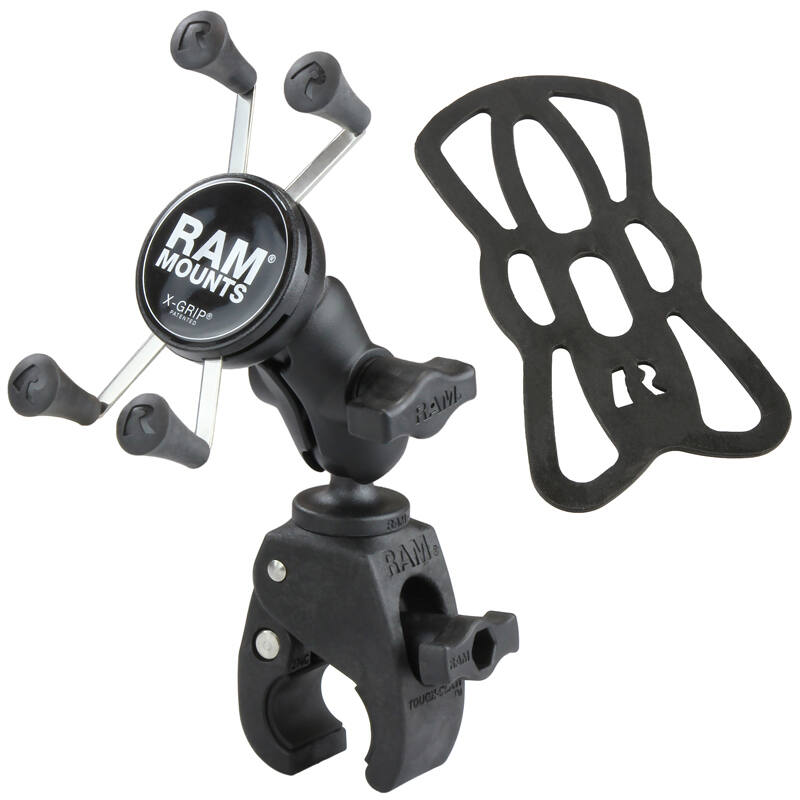

What's Included

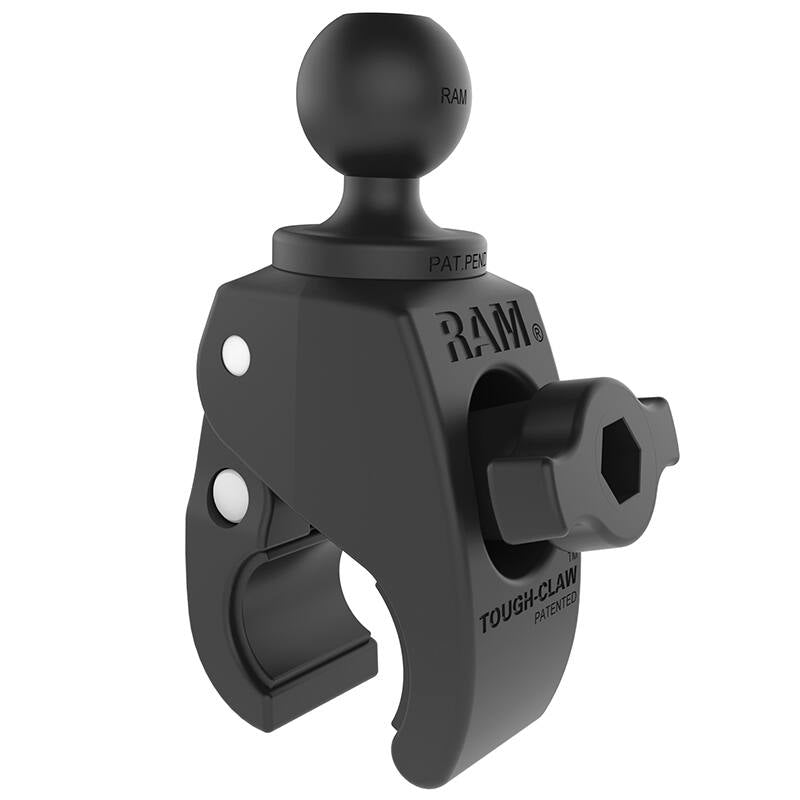

• RAP-B-400U small Tough-Claw™ base with 1" B-size ball
• RAM-B-201U-A short double socket arm

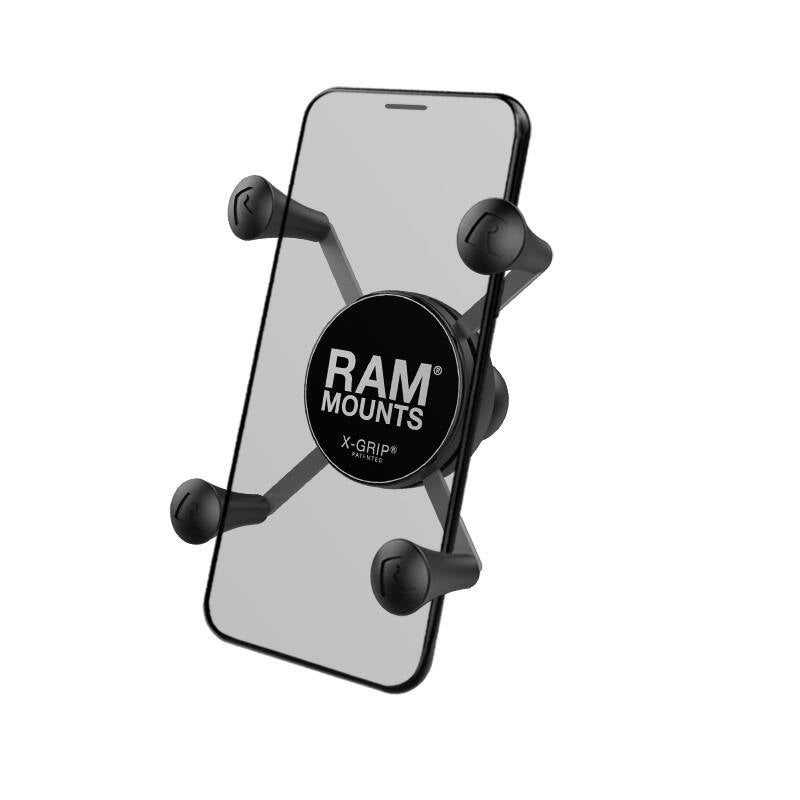

• RAM-HOL-UN7BU X-Grip® universal phone cradle with device tether

Dimensions & Specifications

• Clamping range, rails/tubes: 15.9mm to 29mm (0.625" to 1.14")
• Clamping range, flat surfaces: 0 to 29mm (0" to 1.14")
• Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
• Cradle minimum device width 47.6mm (1.875"), which needs a minimum height of 108mm (4.25")
• Cradle maximum device width 82.6mm (3.25"), which needs a minimum height of 57.2mm (2.25")
• Cradle maximum device thickness: 22.2mm (0.875")
• Ball size: B size, 1" rubber ball
• Weight: 268g (0.59 lb)
• Materials: powder-coated marine-grade aluminium, stainless steel, high-strength composite

Compatible Devices

The X-Grip cradle fits hand-held devices within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models across 14 major brands, see our RAM-HOL-UN7BU cradle listing.

Videos

• RAM X-Grip overview
• RAM Tough-Claw demo
• RAM short double socket arm overview

FAQs

Is this a complete mount? Yes. The Tough-Claw base, short arm and X-Grip cradle are all included — there's nothing else to buy to get your phone onto the bar.

Will the Tough-Claw fit my handlebar? It clamps tool-free to round, square and odd-shaped bars from 15.9mm to 29mm outer diameter, and to flat surfaces up to 29mm thick. Most motorcycle and bicycle bars, aircraft yokes, kayak rails and roll bars sit inside that range — measure yours before ordering.

Will my phone fit with a case on? Measure the width of your phone with the case, sleeve or skin fitted. The X-Grip cradle holds devices from 47.6mm to 82.6mm wide. If you run a large phone, choose the UN10 version of this kit instead.

Short arm or medium arm? This kit uses the short RAM-B-201U-A arm, which holds the phone tight to the bar and suits cramped cockpits and handlebar clusters. The medium-arm version of the same kit gives more reach and a wider range of viewing angles.

Is the tether included? Yes. We'd recommend fitting it for motorcycle, off-road, marine and any other high-vibration use — it's cheap insurance if the phone is ever knocked loose.

Shipping: If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
