DoubleTake Enduro Mirror Kit - RAM Short Arm and DoubleTake Ball Base (Pair)
* Indestructible- Made from reinforced Zytel
* Excellent visibility- SAE spec convex lens
* Easy to fold, remove, or swap between bikes
* Housing guaranteed against breakage
* Ball and Double Socket arm combination gives maximum adjust-ability
* 60 mm short RAM double socket arm included

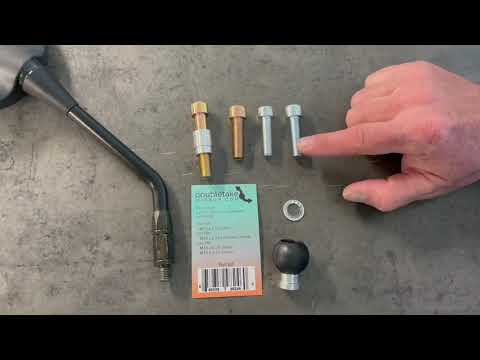

* Ball kit Includes 1.125" (28.575mm) Ball Stud, 10mm x 1.25 bolt long and short, Reverse Thread Bolt 10mm x 1.25, 10mm x 1.5 short bolt, lock washer
* Made in the USA
This kit is designed to replace your factory mirrors. The ball base screws into the mirror post base on most bikes (see note below). Recommended for applications where mirror will be folded down often.
Every ball kit includes 4 bolts to allow fitment to any bike and eliminate unsightly adapters - reverse thread bolts are included.
Mirror Dimensions
Diameter = 100mm (4")
Length = 215mm (8.5")
Arm Dimensions:
Overall:
60.5mm (2.38")
Socket-To-Socket:
51mm (2")
Components:
DTM-M 2 x DoubleTake Enduro Mirror
RAM-B-201U-A 2 x short DBL Socket Arm
DTM-BK 2 x DoubleTake Ball Kit
YouTube:
https://www.youtube.com/watch?v=C8mDODfi2_o&list=TLGGzK26BgaN84kwMjA5MjAyMQ
https://www.youtube.com/watch?v=9OdChYlKTWQ&list=TLGGqEM5kehrThcwMjA5MjAyMQ
