RAM GDS Modular 30-64V Hardwire Charger with Type-C Cable

RAM-GDS-CHARGE-USBC-V8BU GDS® Modular 30-64V Hardwire Charger with Type-C Cable

Features

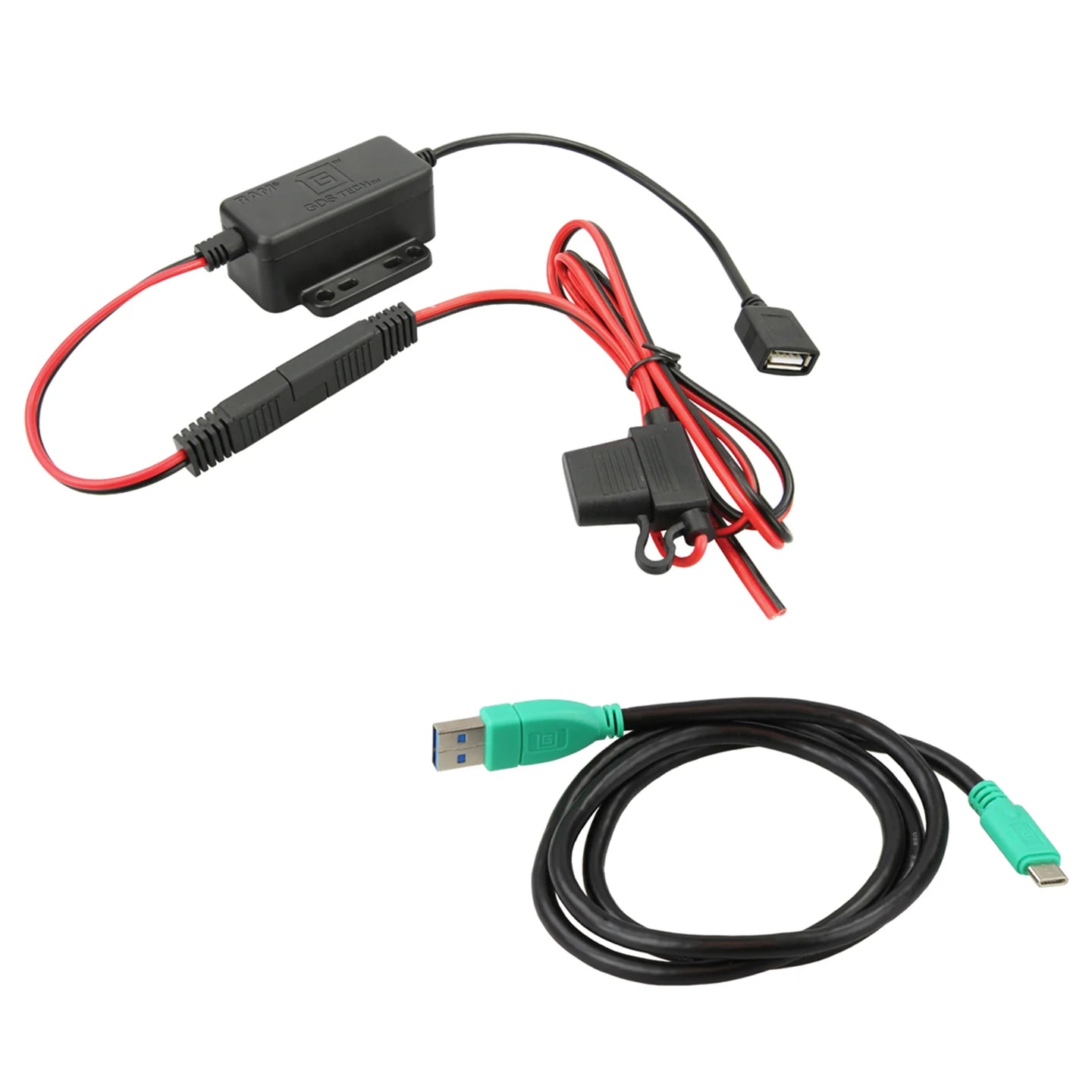

Hardwire charger includes USB Type-A female connector and 1m long USB Type C extension cord; 30V-64V input range, 5V output

When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components

Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application

Backed by a 3-year warranty

The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature you can avoid rewiring with it comes to upgrade by simply unplugging the SAE connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Includes 1-metre-long USB Type-C extension cord. Always Protected. Always Connected.®

Hardware Included:

(1) USB Type-C to Type-A Cable

Input Voltage:

30-64VDC

Output Voltage:

5-9VDC*

Output Current:

2.5A max

Input Connector:

USB Type-C

Input Cable Length:

1.2 Meters including 2 Pole Flat Marine Connector

Output Cable Length:

.2 Meters

Operating Temperature:

-10°C to +70°C

Storage Temperature:

-40°C to +70°C

Regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

Certifications:

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty:

3 year warranty

Weight:

209 grams / 0.46 lb

Additional Information:

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
