RAM Adapt-To-RAM Mounting Plate - connect non RAM parts to RAM gear

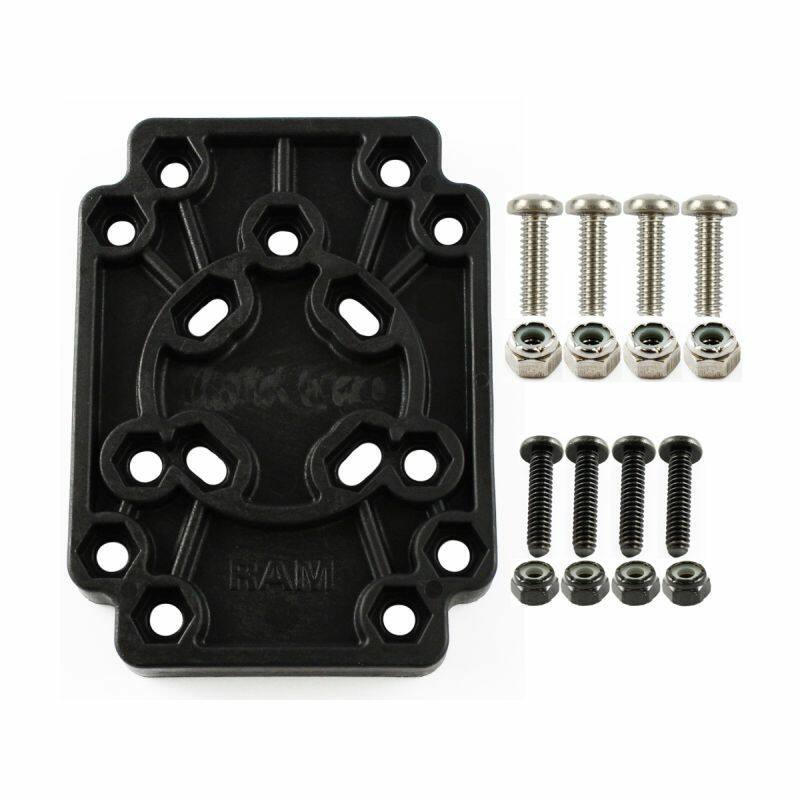

RAP-356U Adapt-To-RAM™ Hole Pattern Plate Adapter

The RAP-356U is a slim adapter plate with multiple hole patterns — AMPS, VESA, and a 120° bolt pattern — letting you mate non-RAM® components to RAM's mounting system.

Key Features

• Combines AMPS and VESA hole patterns on one plate
• Also useful for feeding power through to a non-powered tablet cradle
• High-strength composite construction
• Lifetime warranty

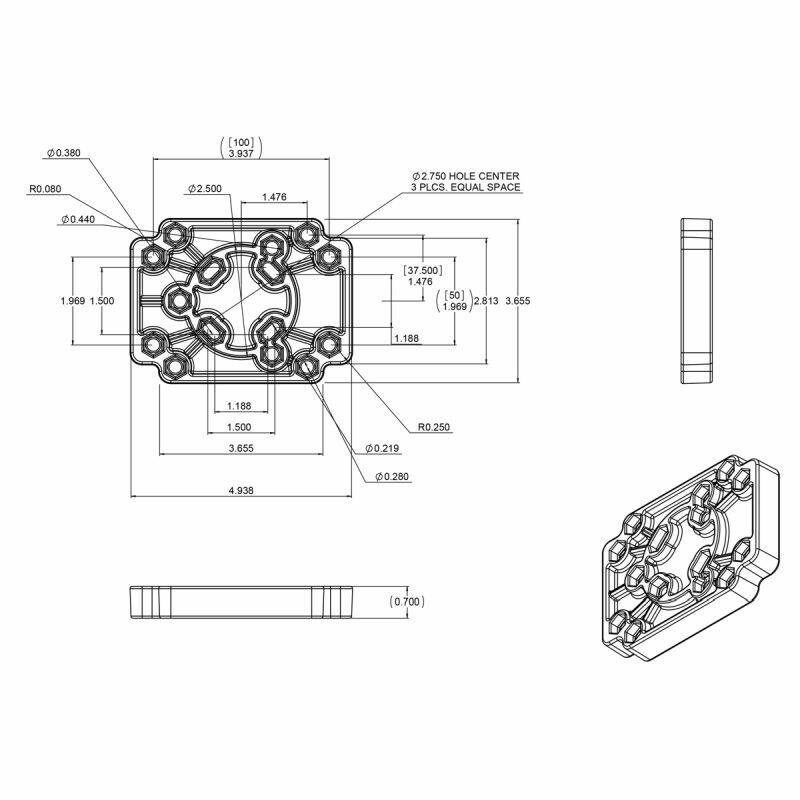

Dimensions & Specifications

• AMPS hole pattern: 1.5" x 1.1875"
• VESA hole pattern: 75mm x 75mm
• VESA hole pattern: 100mm x 50mm
• Bolt hole centre pattern: 2.75" diameter, 120°
• Material: high-strength composite
• Weight: 226g (0.5 lbs)

FAQs

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

Watch the Adapt-To-RAM overview
