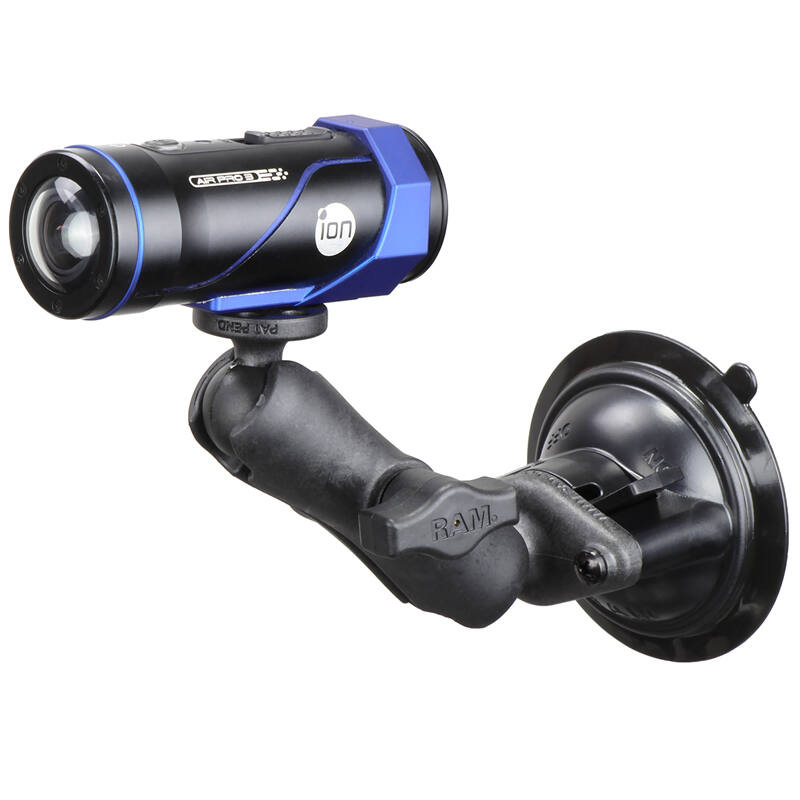

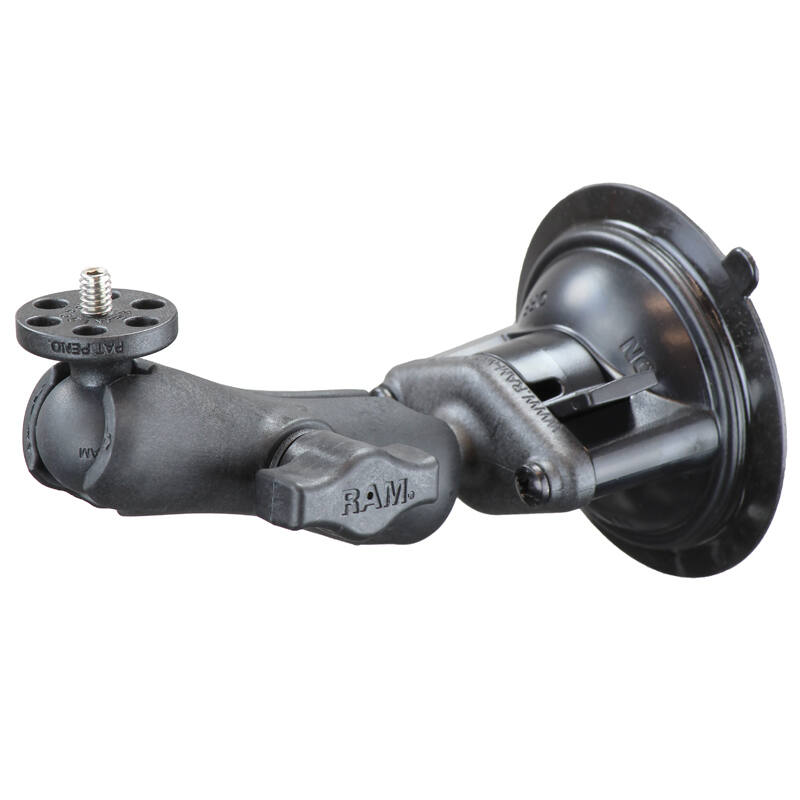

RAP-B-224-1-366 RAM® Twist-Lock™ Composite Suction Cup Mount with 1/4"-20 Camera Adapter
The RAP-B-224-1-366 sticks a camera or camcorder with a standard 1/4"-20 tripod thread to a windscreen, glass or any smooth, non-porous surface. It pairs a RAM® Twist-Lock™ suction cup base with an all-composite medium double socket arm and a round plate carrying a 1/4"-20 male threaded stud.
Key Features
RAM® Twist-Lock™ suction cup grips glass and other non-porous surfaces, including adhesive disks

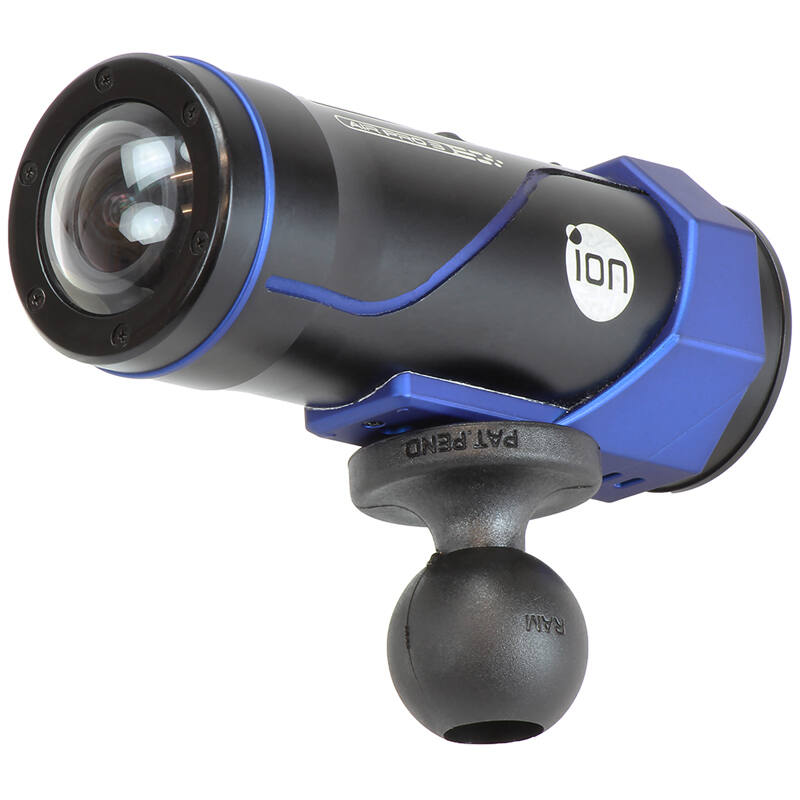

1/4"-20 male threaded stud fits any camera or camcorder with a standard tripod thread
Medium double socket arm with adjustment at both ball ends for near-infinite viewing angles
All-composite construction throughout; backed by a lifetime warranty
Works With

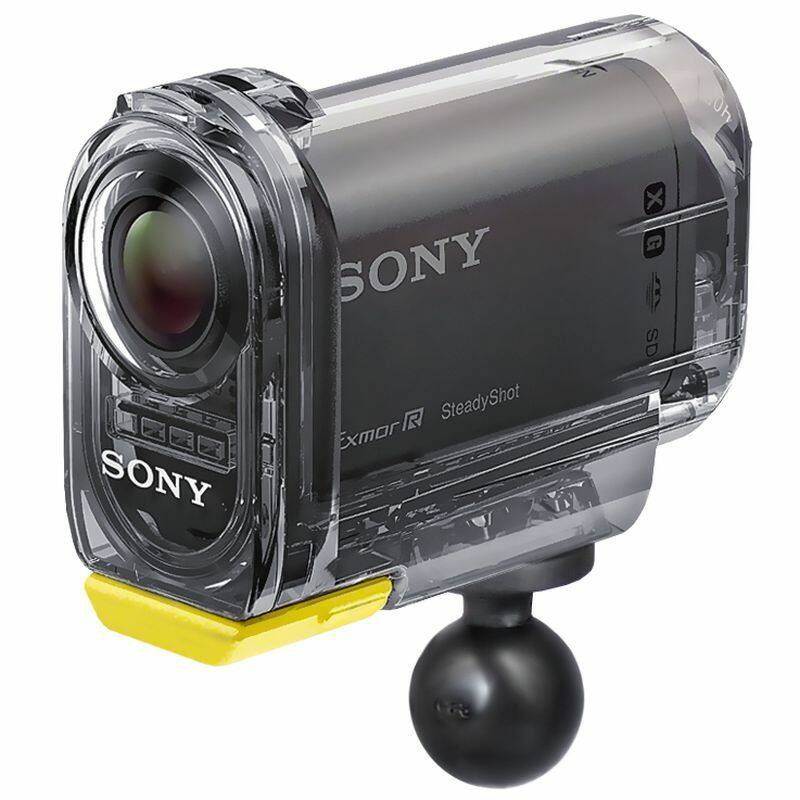

Any camera or camcorder with a standard 1/4"-20 female threaded socket, including most POV/action cameras.
Dimensions & Specifications
Suction base: 83mm (3.3") diameter Twist-Lock cup
Arm overall length: 94mm (3.69")
Arm socket-to-socket: 76mm (3")
Ball size: 1" rubber ball, B size
Weight capacity: standard use 907g (2 lbs), heavy-duty use 454g (1 lb)
Weight: 227g (0.50 lbs)
Material: high-strength composite
What's Included

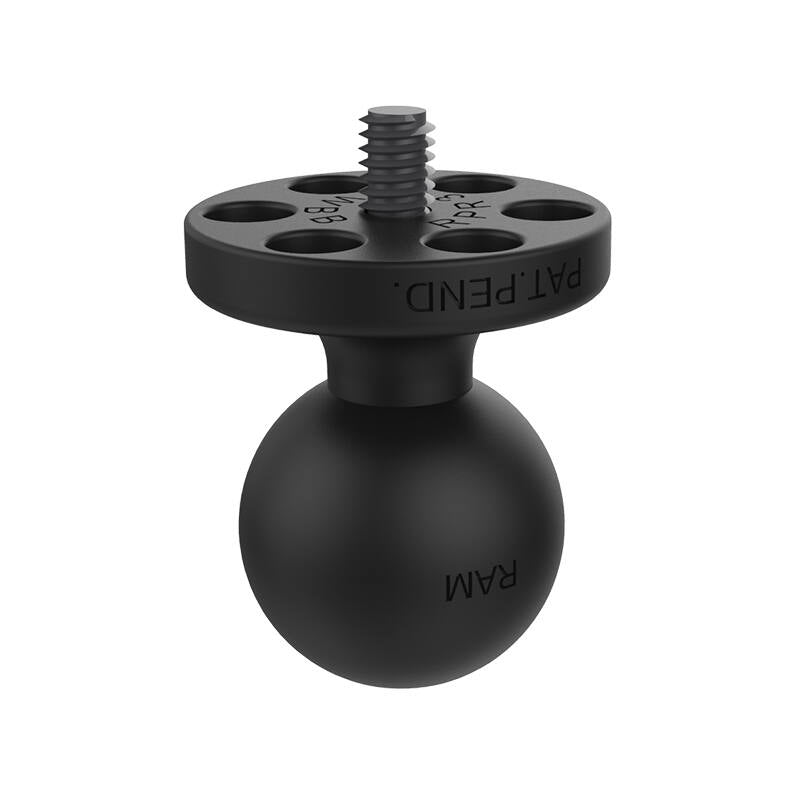

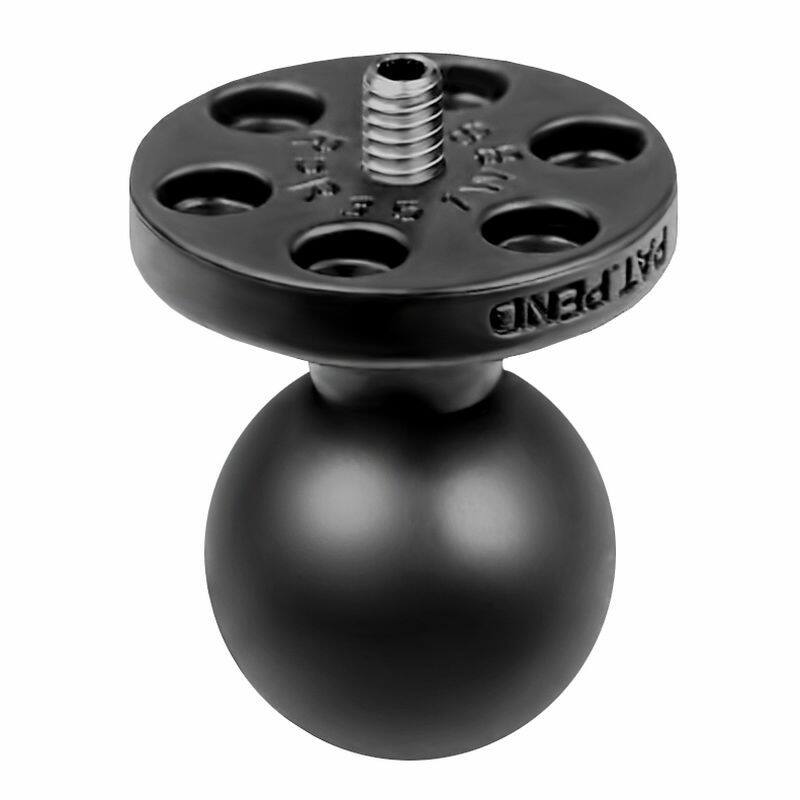

1 x RAP-B-366U small round base with 1/4"-20 thread

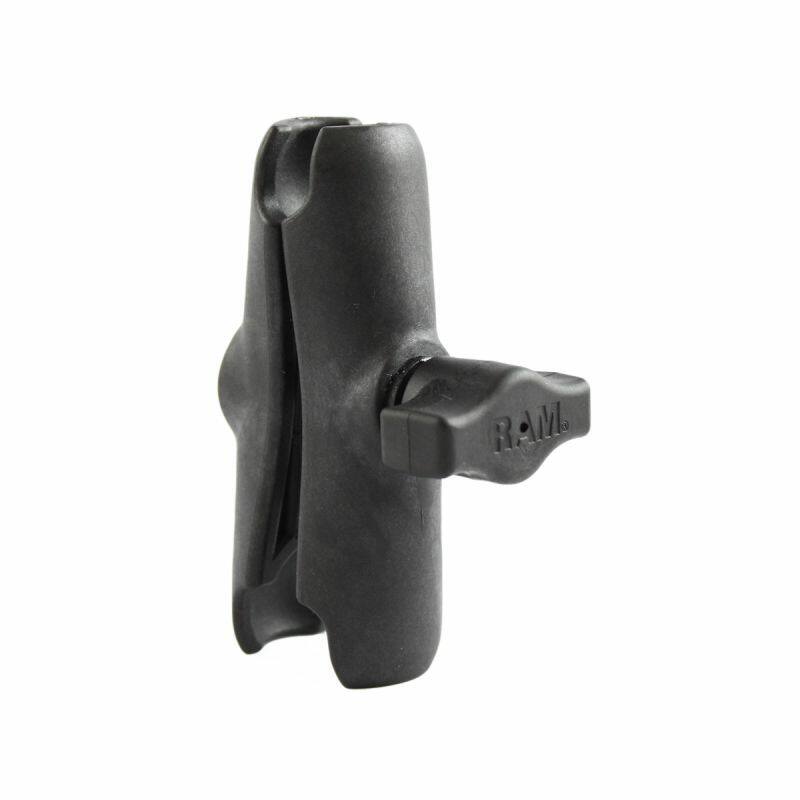

1 x RAP-B-201U composite double socket arm (1" ball, medium length)

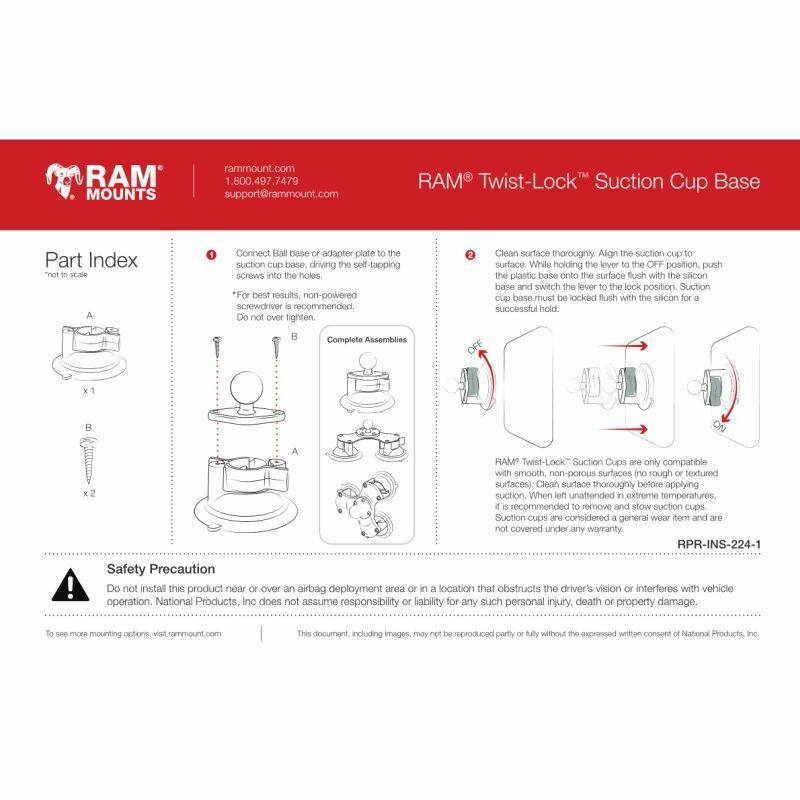

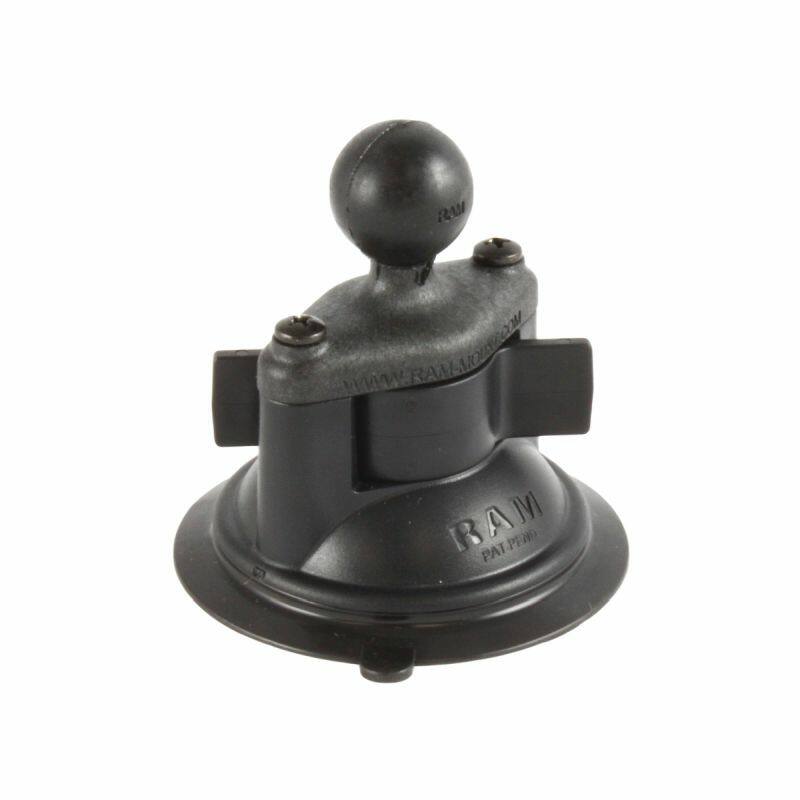

1 x RAP-B-224-1U Twist-Lock suction cup base
FAQs
What surfaces does the suction cup hold? Glass and smooth, non-porous plastic hold best. On textured or painted surfaces, use a RAM® adhesive disk to create a smooth base.
Will it fit my camera? If your camera or camcorder has the standard 1/4"-20 tripod thread on its base, yes.
