RAM-B-201U - Medium Arm - B Series (1" Ball)

RAM-B-201U RAM® Double Socket Arm – B Size Medium (Aluminium)

The RAM-B-201U is the heart of the RAM mounting system: a marine-grade aluminium double socket arm that suits 1" B Series ball fittings at both ends. Simply choose a base style and a device adapter. Looking for the composite version instead? See RAP-B-201U.

Key Features

• Standard overall length of 94mm, 76mm socket-to-socket
• Attaches to any B Size RAM® ball component, including mounting bases and device holders
• Double ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

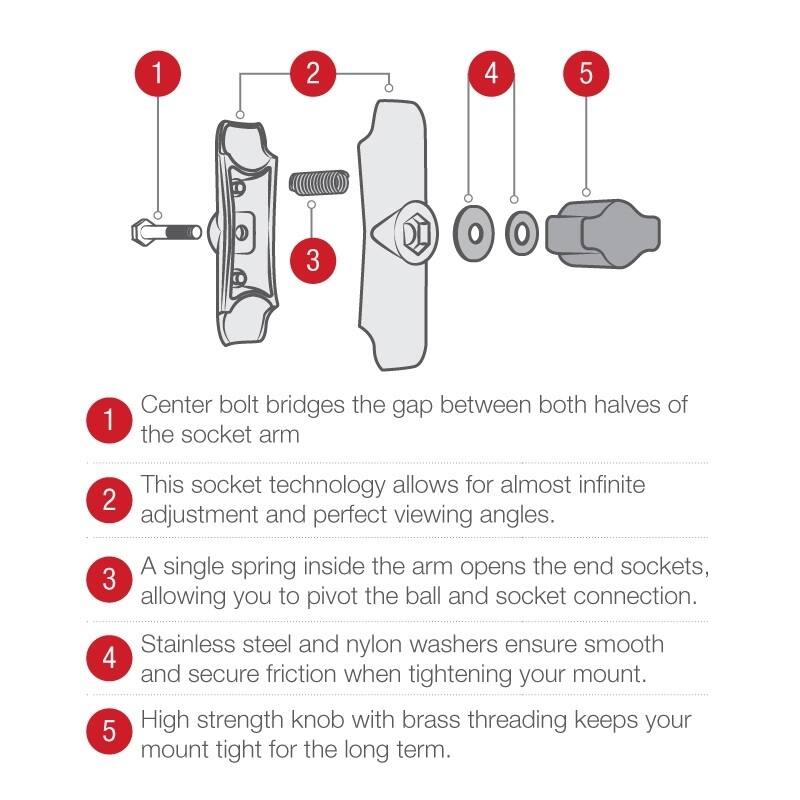

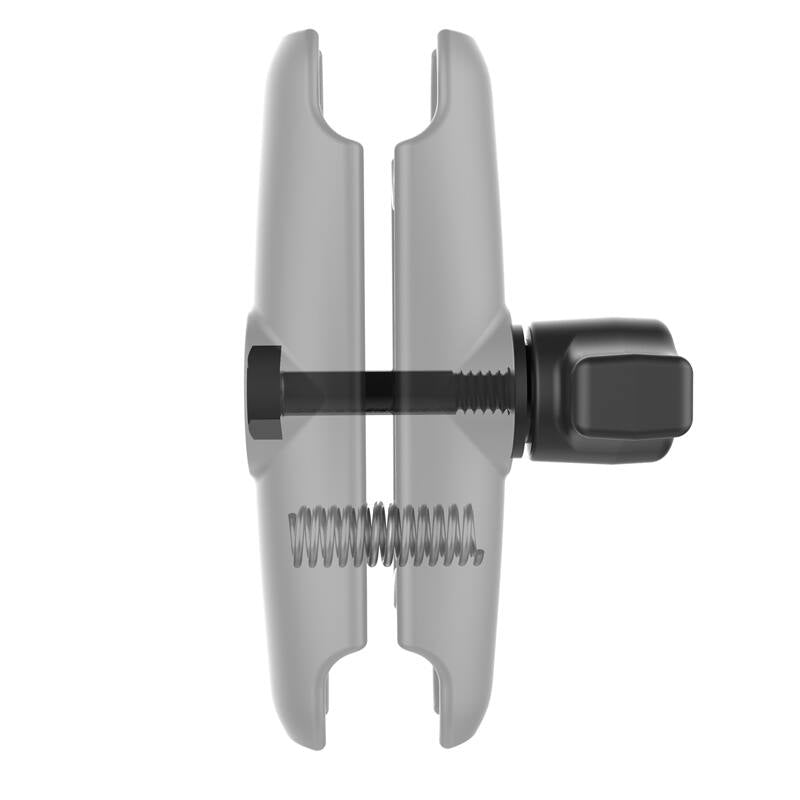

A single spring inside the arm opens the end sockets, allowing you to pivot the ball-and-socket connection for almost infinite adjustment and perfect viewing angles.

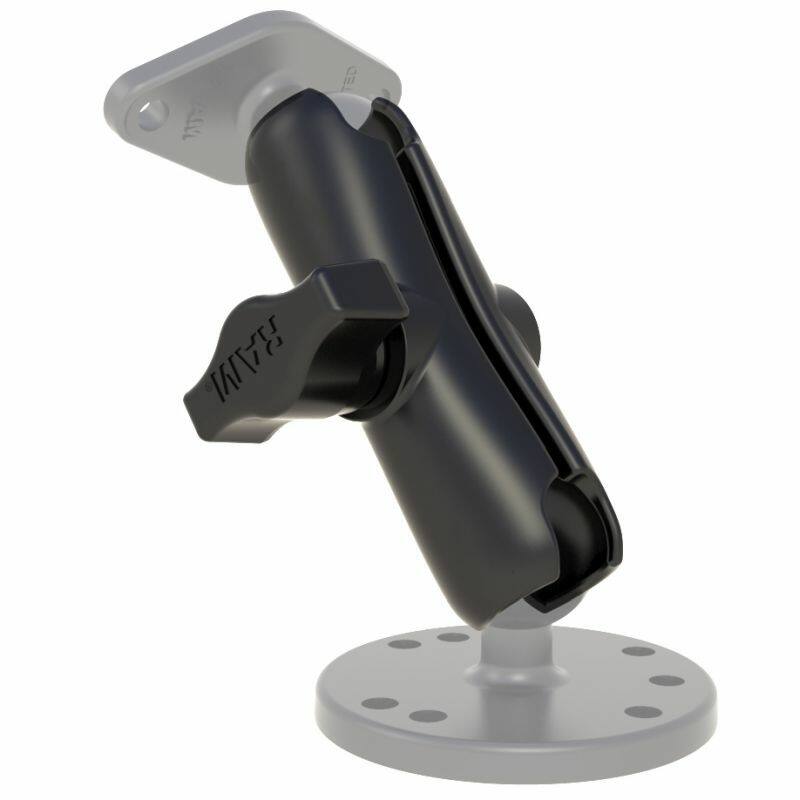

Popular Bases For This Arm

Pair it with a B-size base such as the RAM-B-463-TRA1U aluminium Track Ball for track mounting, or the RAM-B-463-GU Gim-Ball adapter to run it off a fishfinder's gimbal bracket.

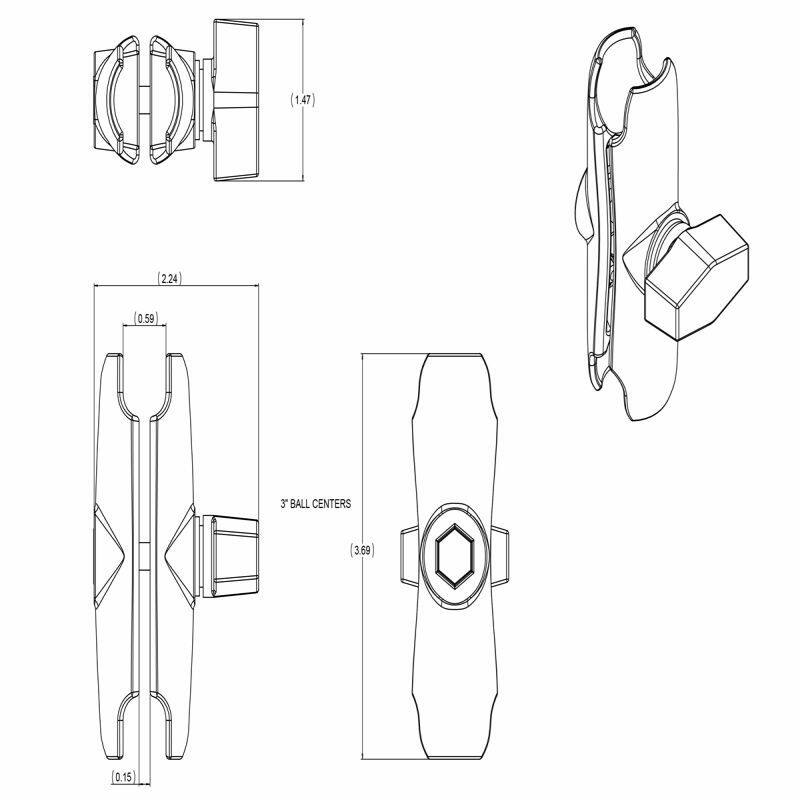

Dimensions & Specifications

• Overall length: 94mm (3.69")
• Socket-to-socket length: 76mm (3")
• Material: Powder-coated marine-grade aluminium
• Ball size: 1" rubber ball, B Size
• Weight: 0.141kg (0.31 lbs)
• Weight capacity: 907g standard use, 454g heavy-duty use

Need a different length? A longer version (RAM-B-201U-C, 152mm) and a shorter composite version (RAP-B-201U-A, 60mm) are also available.
