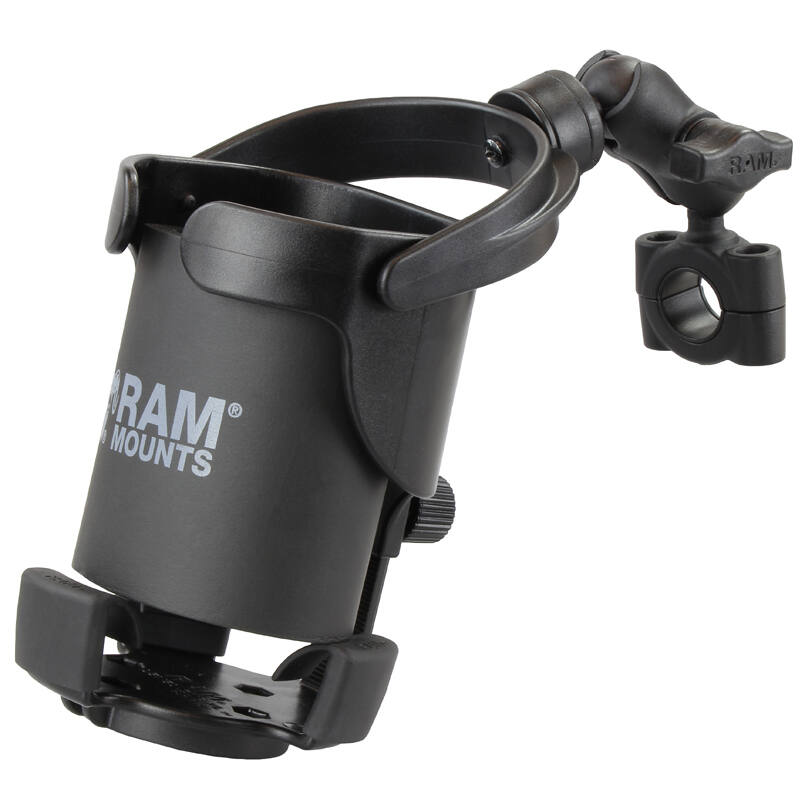

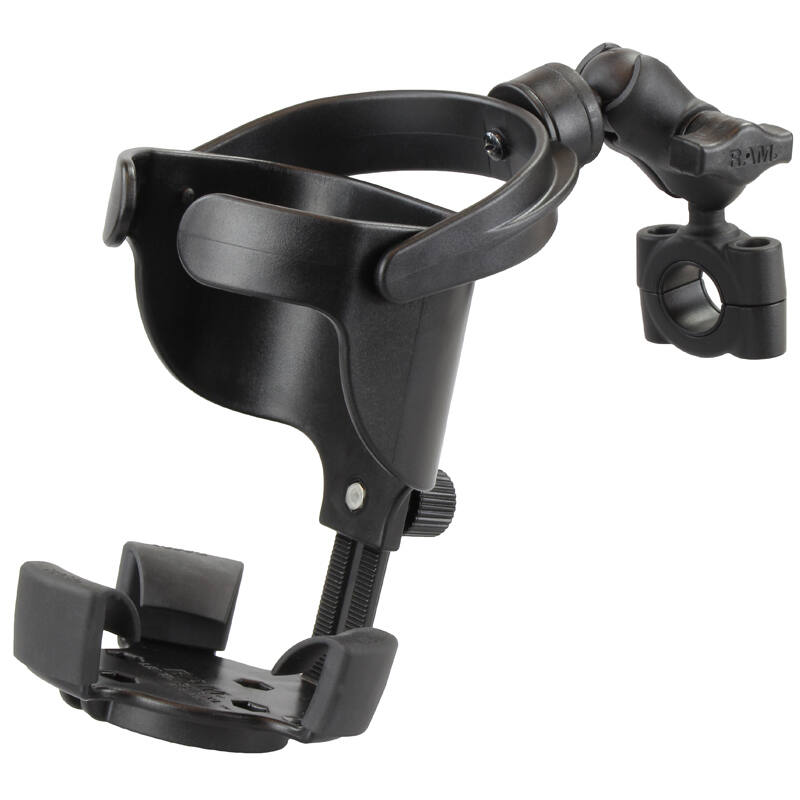

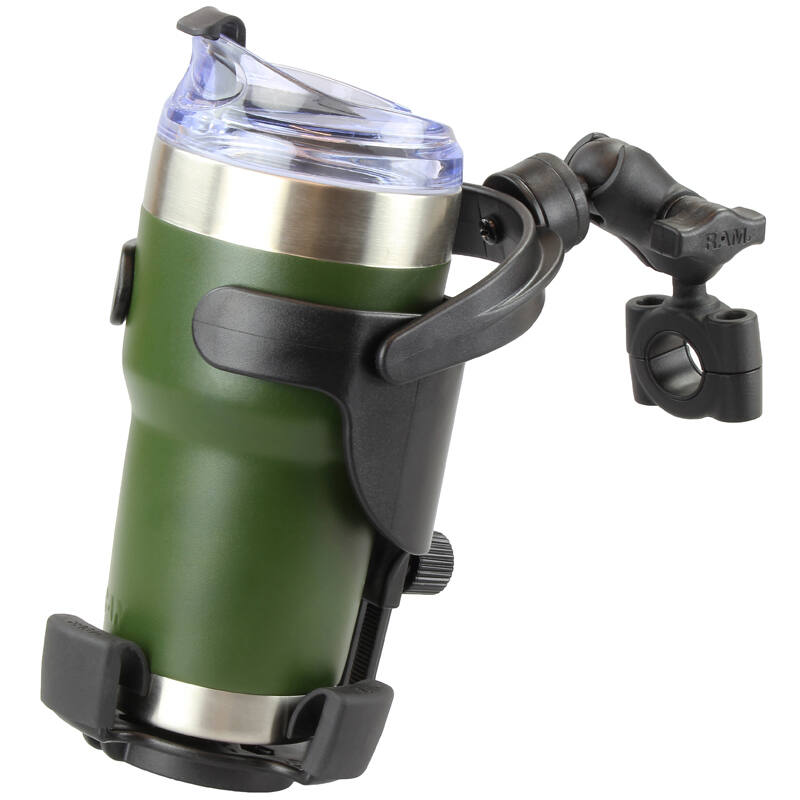

RAM-B-408-75-1-A-417U RAM® Level Cup™ XL 32oz Drink Holder / Cup Holder with RAM® Torque™ Medium Rail Base
Features
* Self-leveling holder keeps your drink upright regardless of the conditions, including 12oz cans, water bottles, insulated cups, and 32oz containers
* Drink koozie included
* Torrque base neatly mounts to rails or posts 19-25mm diameter
* B size RAM® short double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

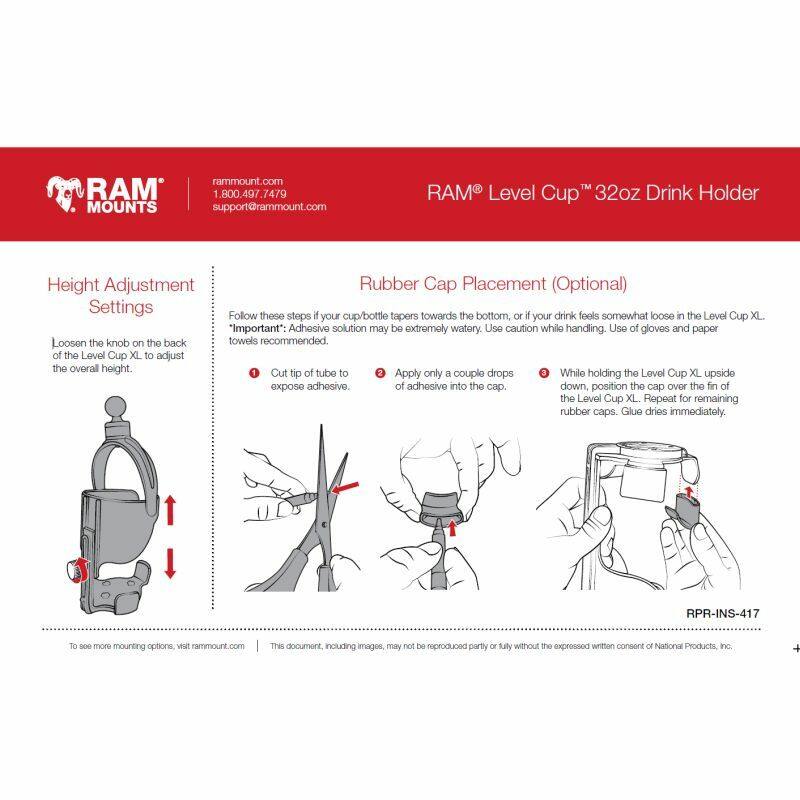

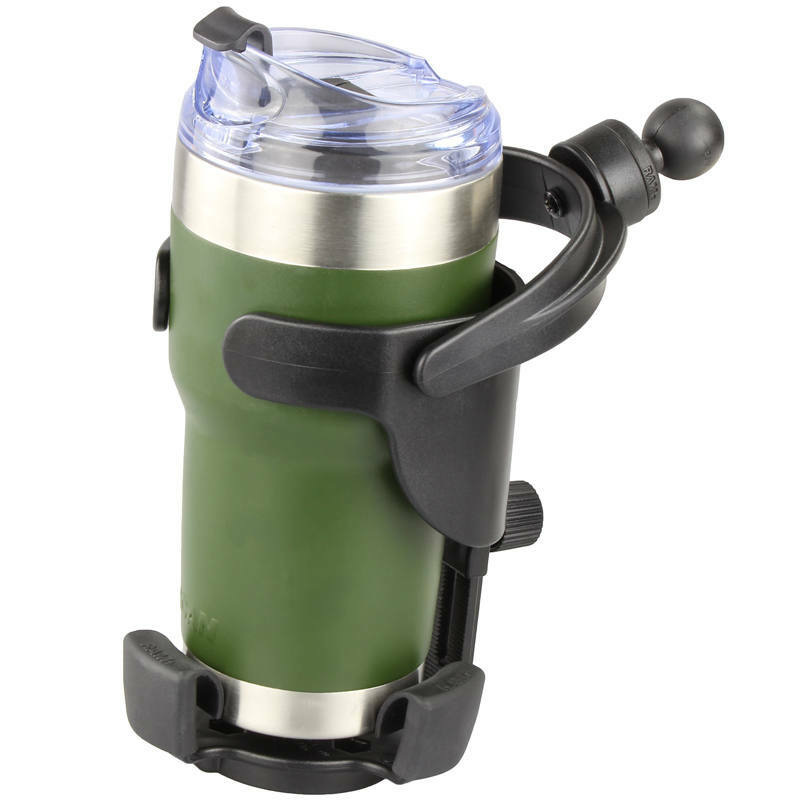

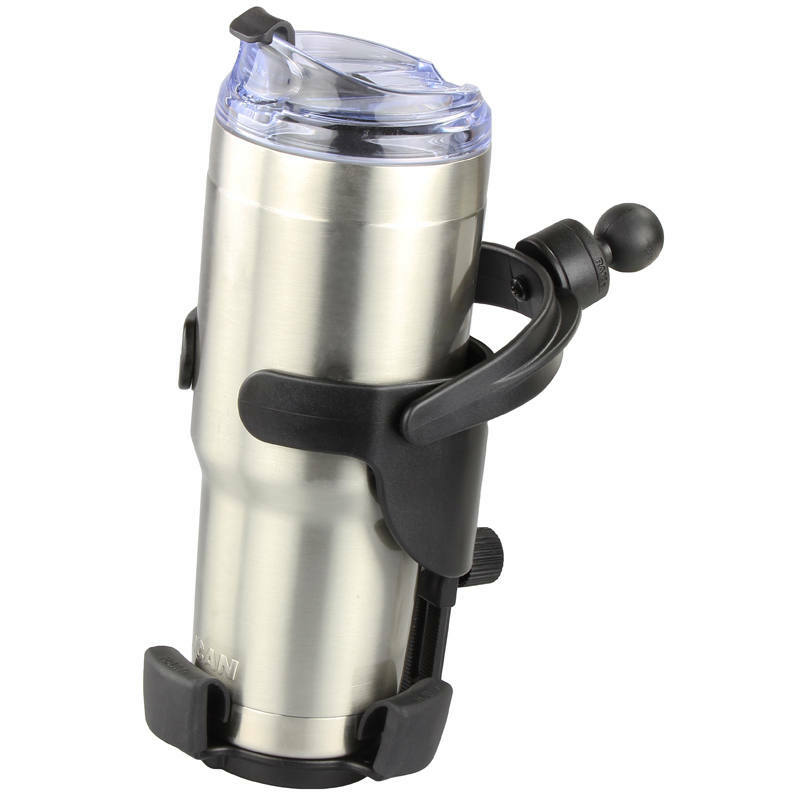

Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup XL keeps your drink upright, regardless of the conditions. This kit includes a Level Cup XL,a short (60mm) arm and a Torque™ base that accommodates round rails from .5” through 1”. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. The rubber feet flex to fit various sized cups as well. RAM Mounts has refined the self-leveling action to keep your cups full.
cup icons
Compatible Beverage Holder Size
355ml - 946ml (12-32 oz)
Common Beverage Sizes supported:
- 12oz (355ml) Cans

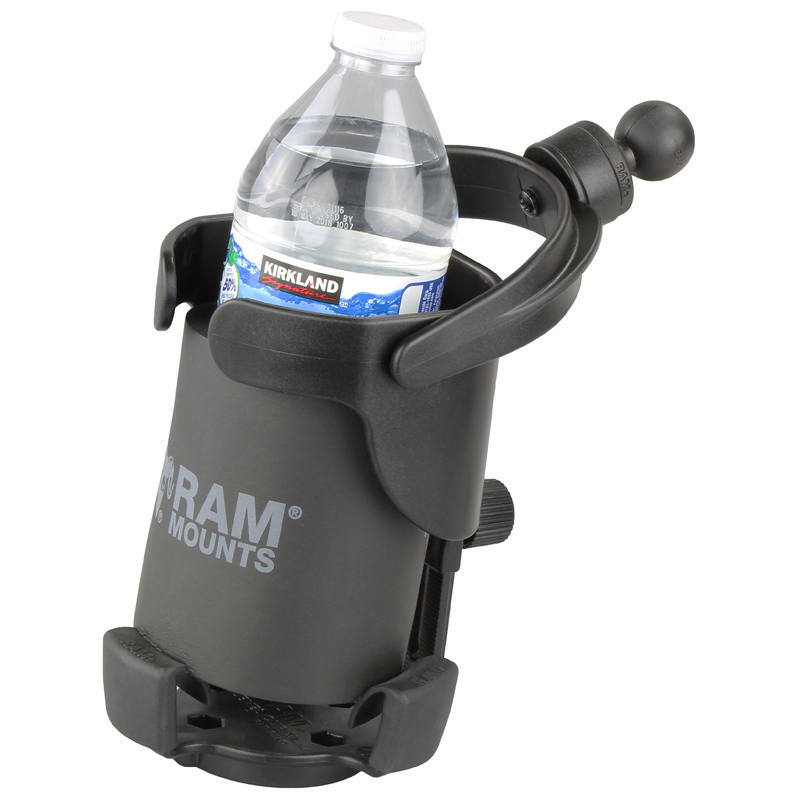

- Water Bottles
- Insulated Cups
- 32oz (946 ml) Containers (Nalgene, Pelican, Contingo, Hydro Flask)
Torque Base Dimensions:
Rails 19 - 25mm (3/4 to 1") in diameter.
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")

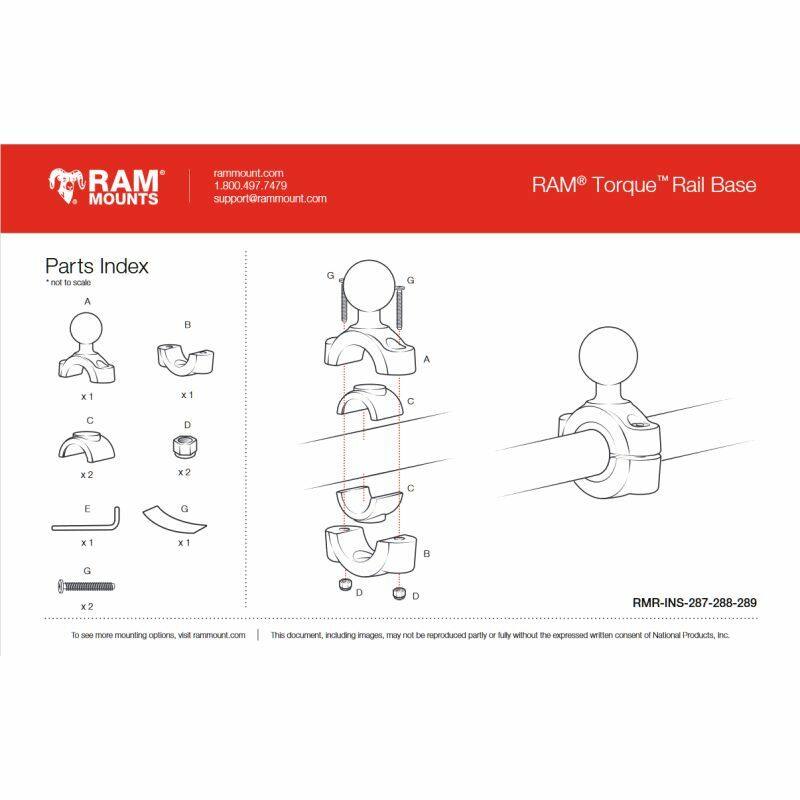

HARDWARE INCLUDED
(3) Rubber Support Fins
(1) Glue Tube for Rubber Fins
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench
WEIGHT CAPACITY
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
WEIGHT
476 grams (1.05 lbs.)
Components:

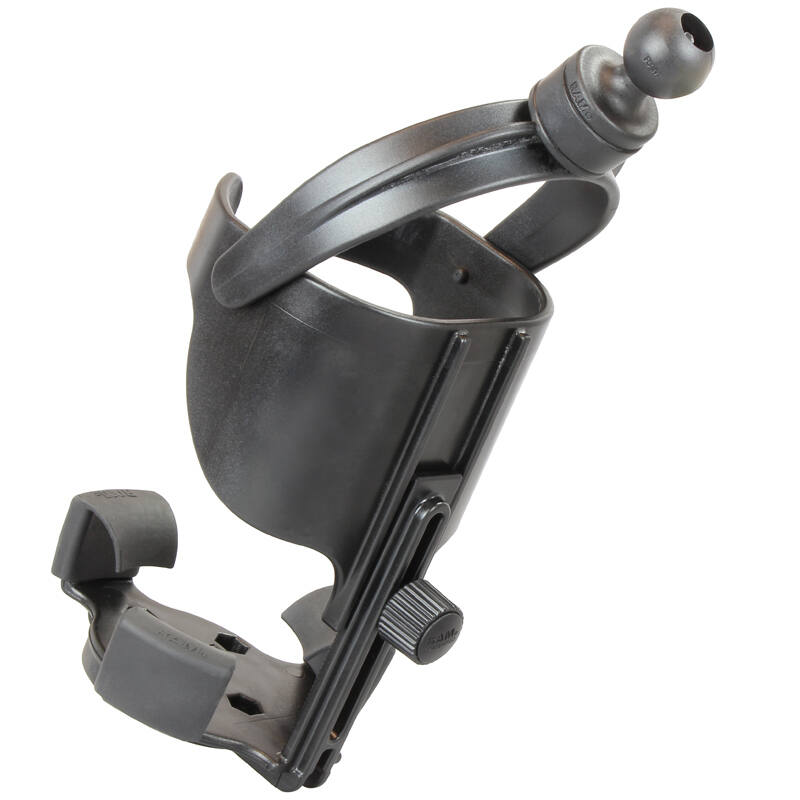

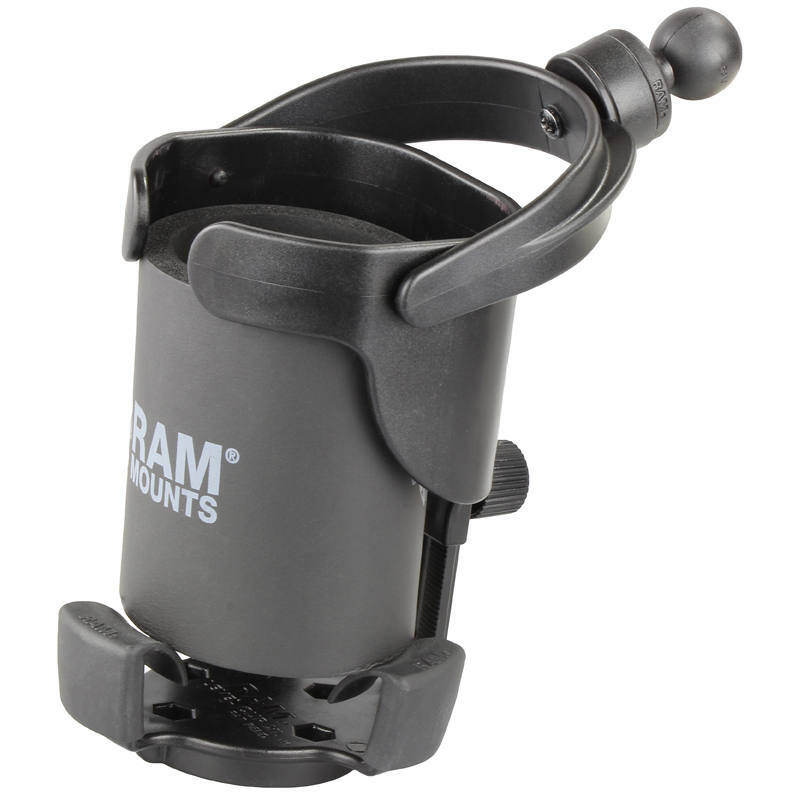

RAP-B-417BU CUP XL with 1" ball

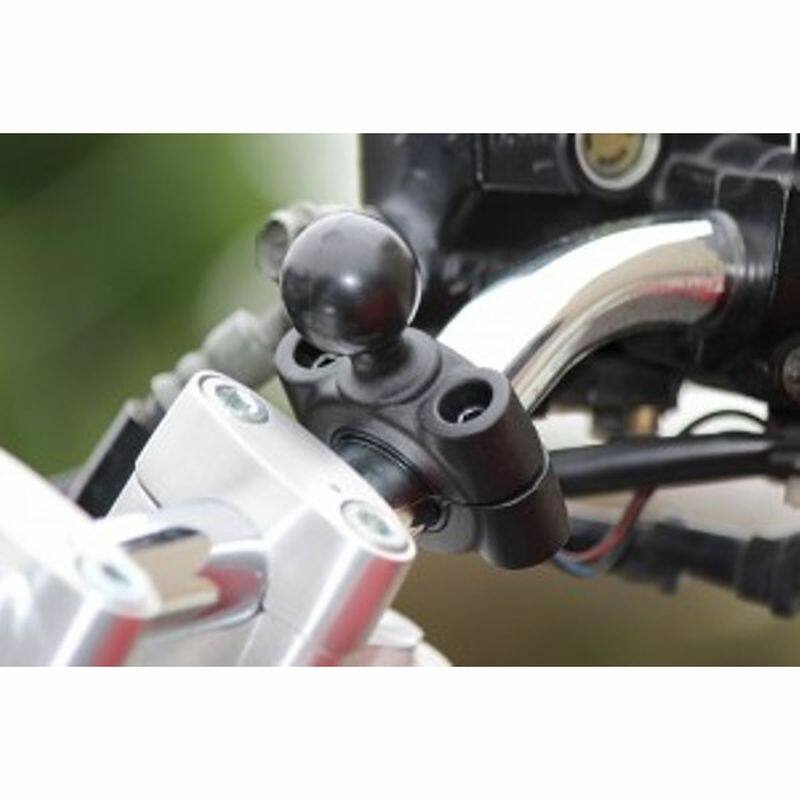

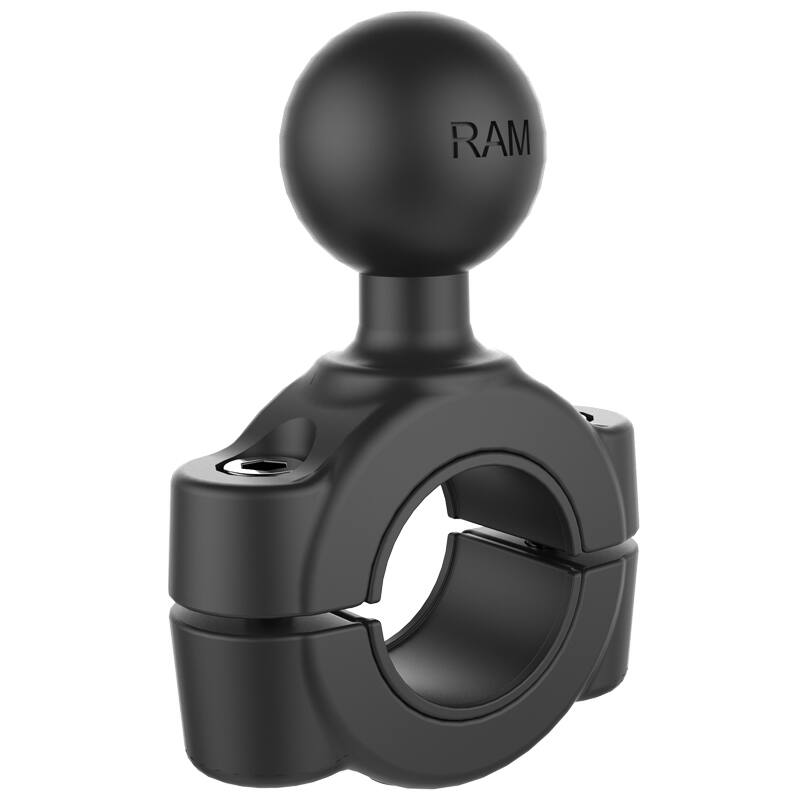

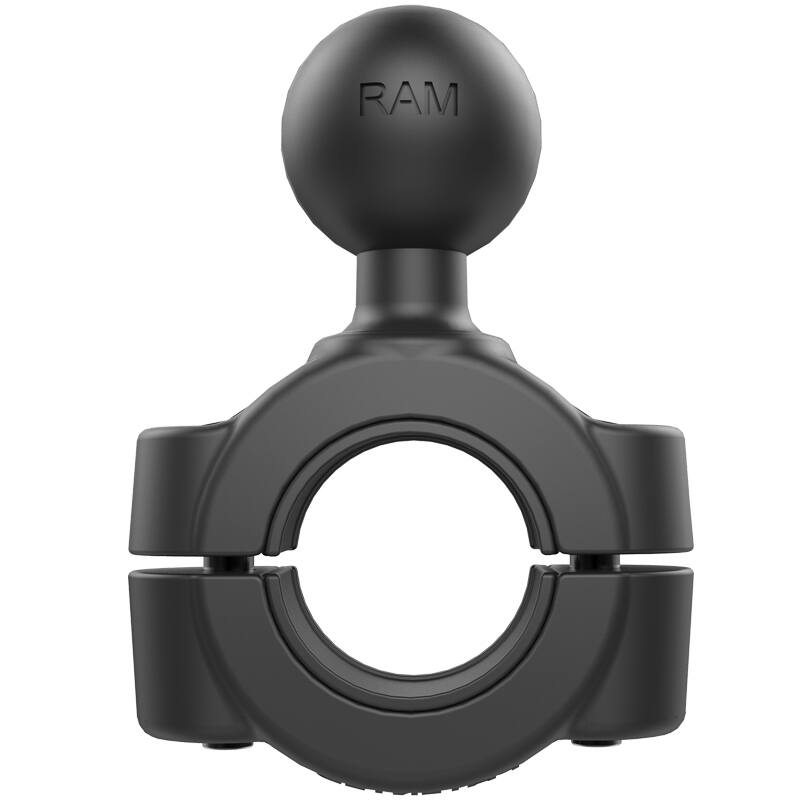

RAM-B-408-75-1U HANDLEBAR MNT 19-25mm/.75-1" 1" BALL
RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL
QUESTIONS & ANSWERS
Q: RAM level cup XL 32oz drink holder uses a 'B' size ball rated for 1 or 2 lbs. Many 32oz insulated cups full of liquid weight 4 lbs. ( I weighed one) Maybe this should be offered with "C" size ball?
A: That is a very good point. We do offer a C size version of this holder, RAP-417B, which would accomodate that heavier weight. The weights will vary depending on each application but both options are available.
