RAM Mounts

RAM Motorcycle Brake/Clutch Clamp / U-Bolt Mount with Round Base

RAM Motorcycle Brake/Clutch Clamp / U-Bolt Mount with Round Base

SKU:RAM-B-174-202U

Regular price $102.21 NZD
Regular price Sale price $102.21 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

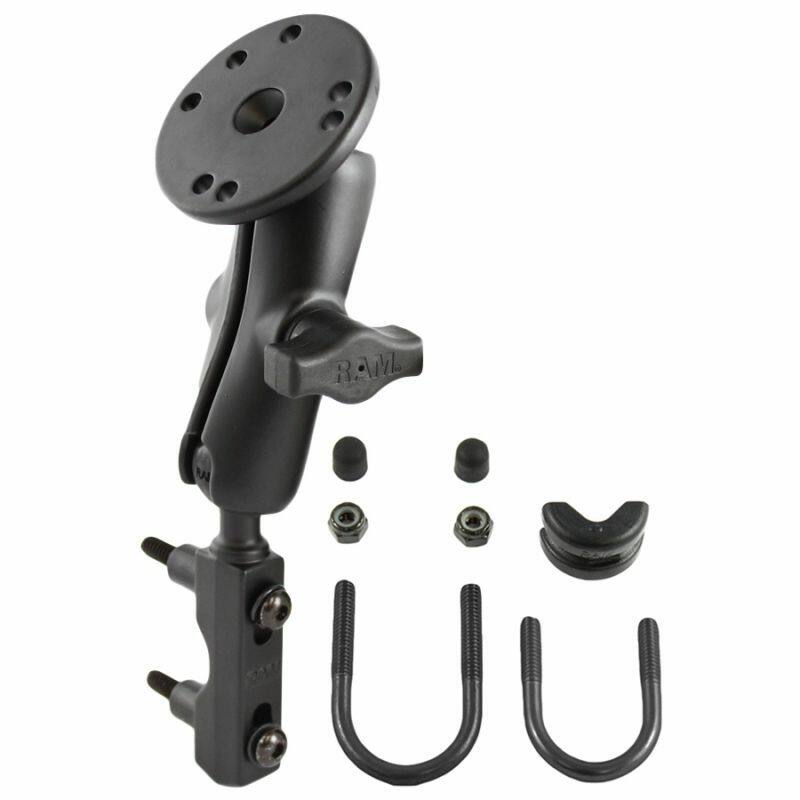

RAM-B-174-202U RAM® Motorcycle Brake/Clutch Reservoir Mount with Round Plate


Features:

* Contains both reservoir and handlebar U-Bolt mounting options
* Includes medium length RAM double socket arm
* Round plate contains 3 and 4 hole AMP's pattern for connection to many RAM cradles
* Marine-grade aluminium construction ensures product longevity
* Lifetime warranty

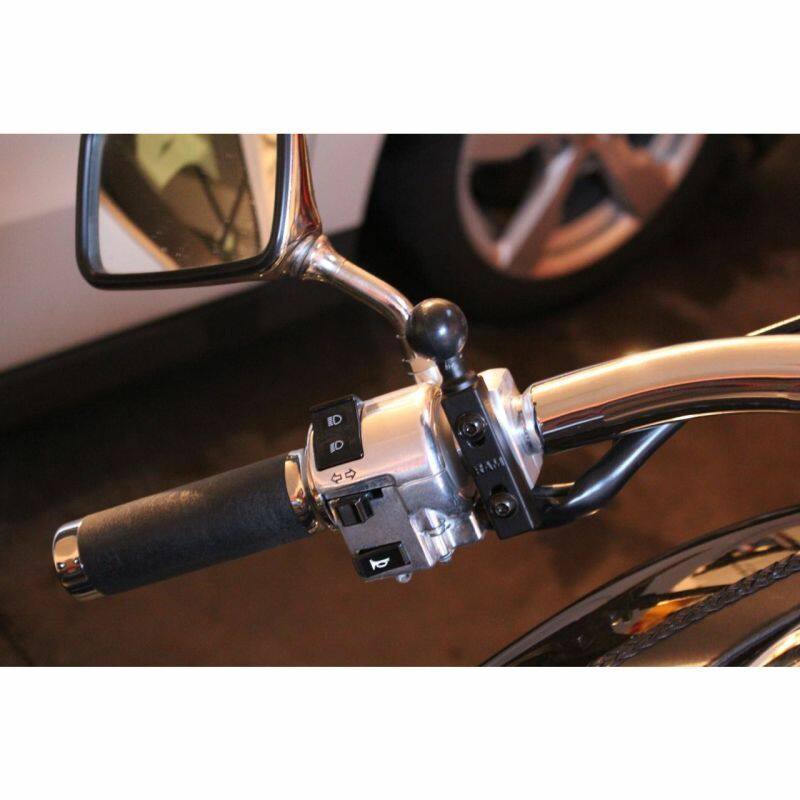

This base consists of the hardware for mounting to both brake/clutch reservoirs or, by using the U Bolt, to rails that are 0.5" (1.27cm) to 1.25" (3.175cm) in diameter. A standard double socket arm and 63mm diameter round base adapter that contains the universal AMPs hole pattern are included.

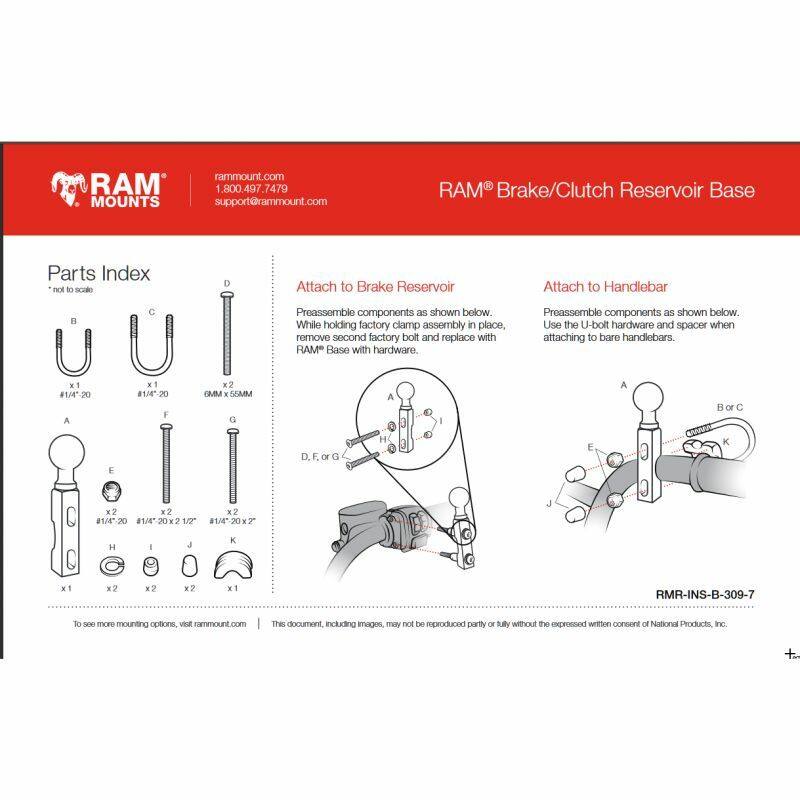

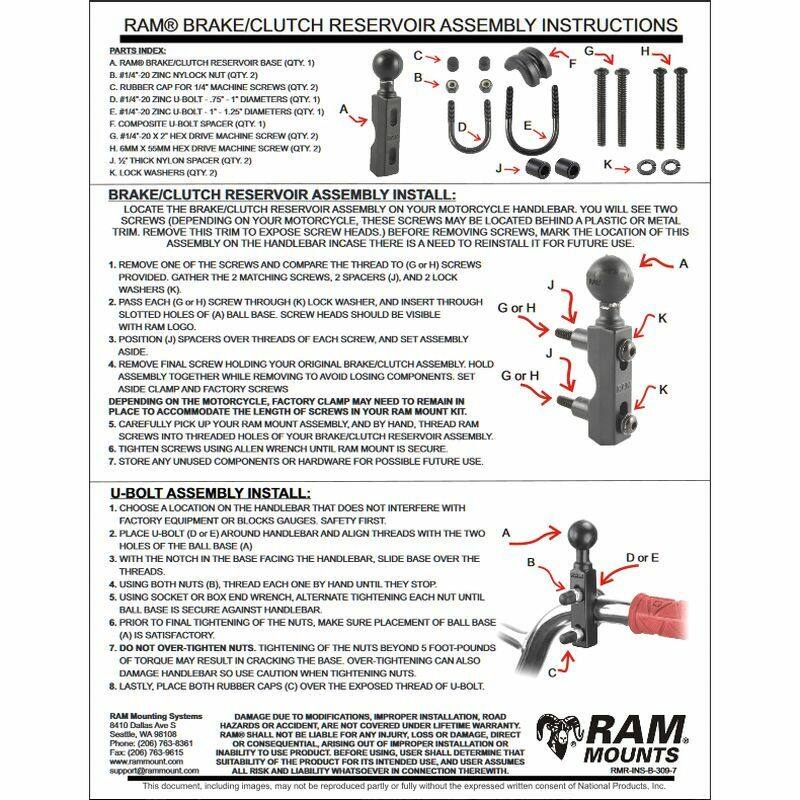

The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.


Specs & Features

Material:
Powder Coated Marine Grade Aluminium

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

Round Plate Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter



Ball Size:
1" Rubber Ball "B" Size

Note:

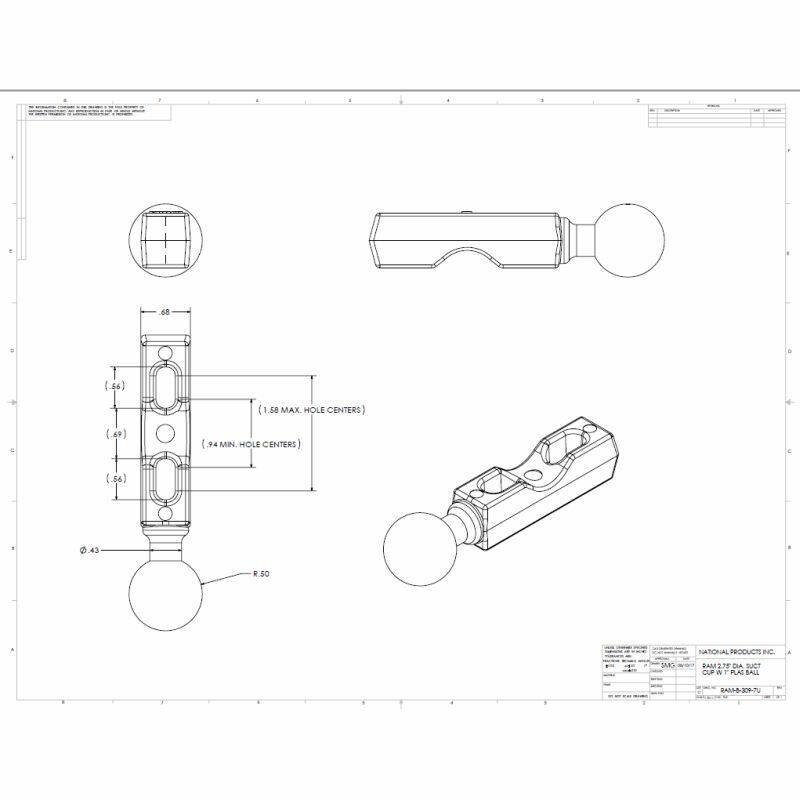

This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" (1.27cm) to 1.25" (3.175cm) in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 0.94" and a maximum of 1.58".


Weight:
0.51 lbs.(231 grams)

YouTube Video:
https://www.youtube.com/watch?v=p3MnpfxCONI

Components:

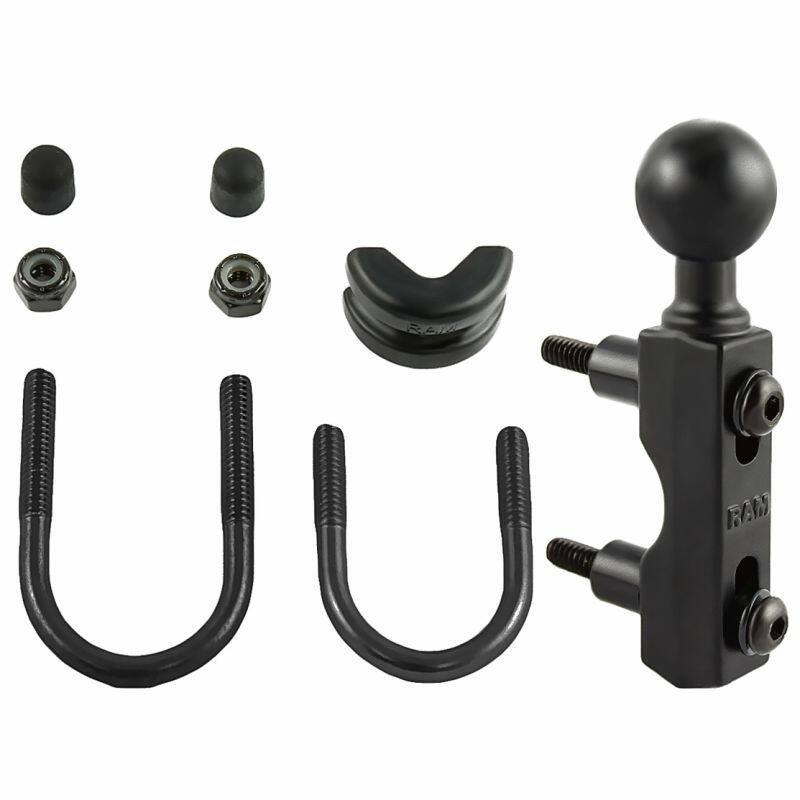

RAM-B-309-7U - RAM Motorcycle Combination Base for Handlebar or Brake/Clutch Reservoir with 1" Ball
RAM-B-202U - Round base with 1" ball
RAM-B-201U - 96mm double socket arm for 1" ball
