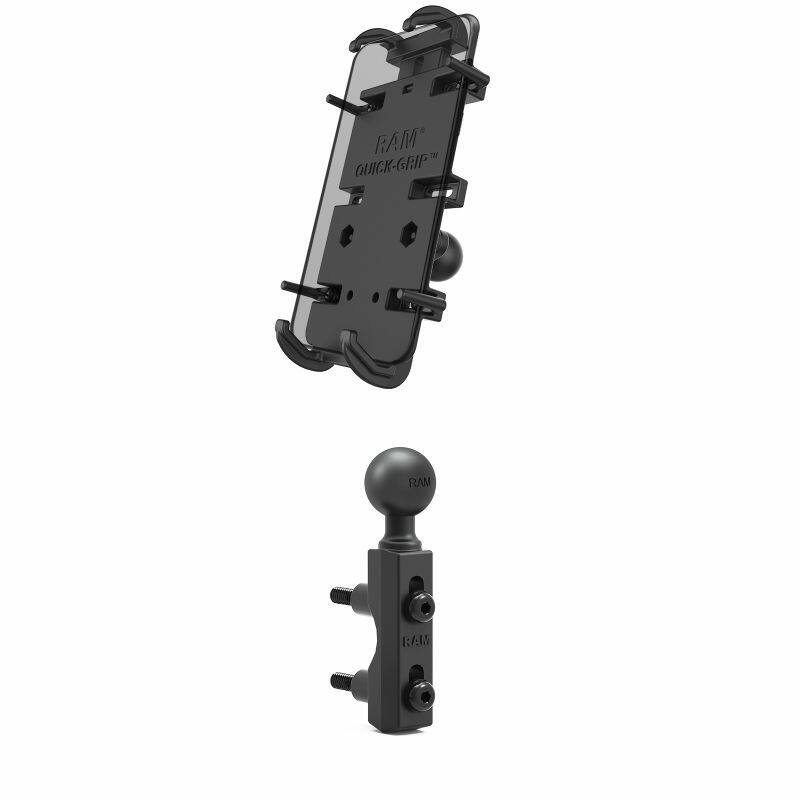

RAM-B-309-1-PD4U Brake/Clutch reservoir Base with 1" Ball, Medium Arm and RAM® Quick-Grip™ XL holder for Phablets
Features
* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
* Base connects to your handlebar clutch/brake clamp, either left or right hand side, and has 1" diameter mounting balls
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
We’ve paired a brake/clutch reservoir mount and the dynamic RAM® Quick-Grip™ XL holder for large phones & phablets.

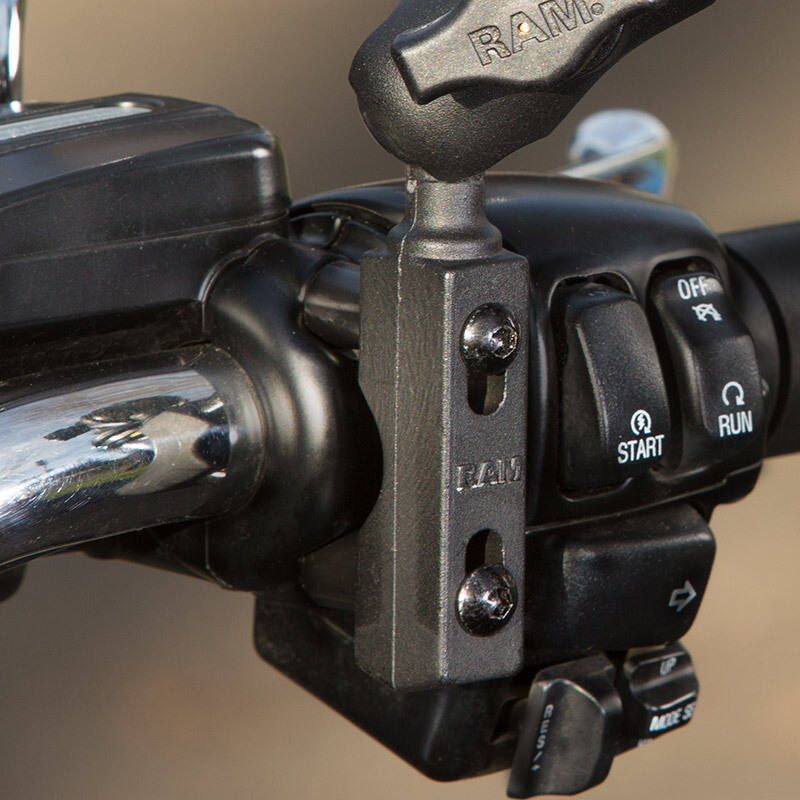

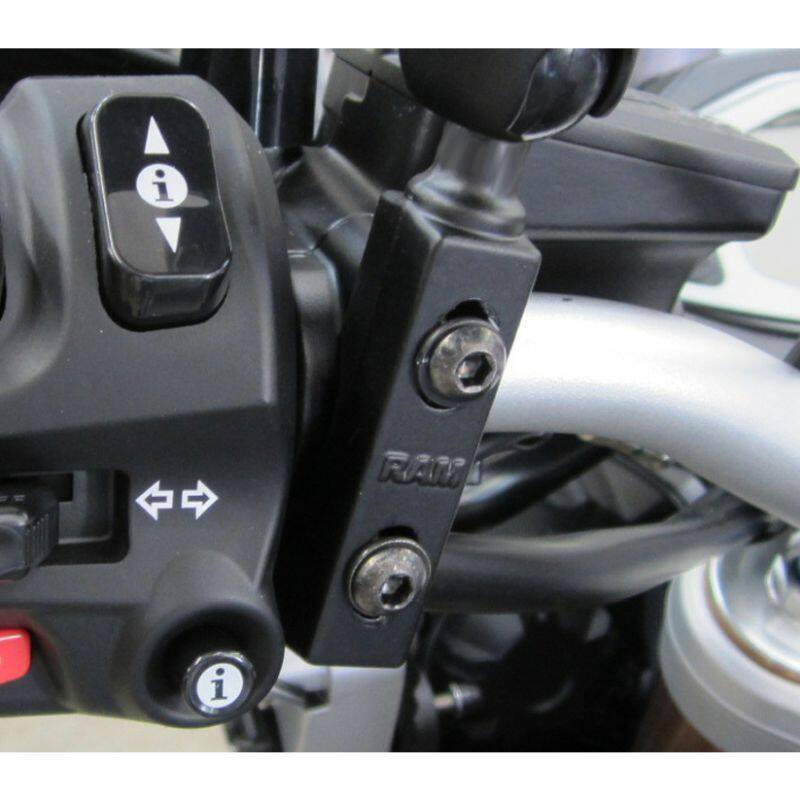

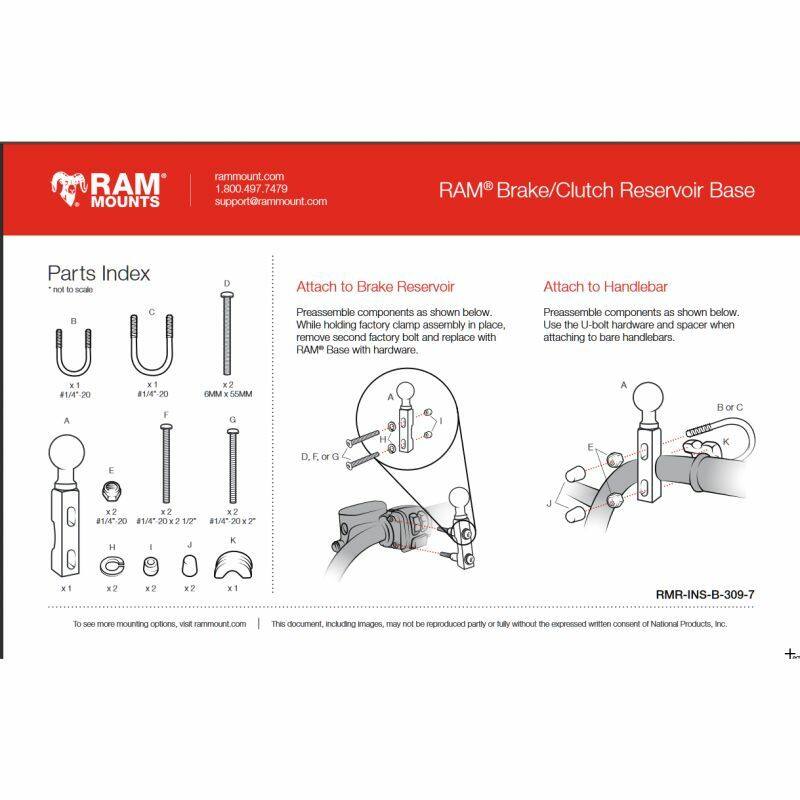

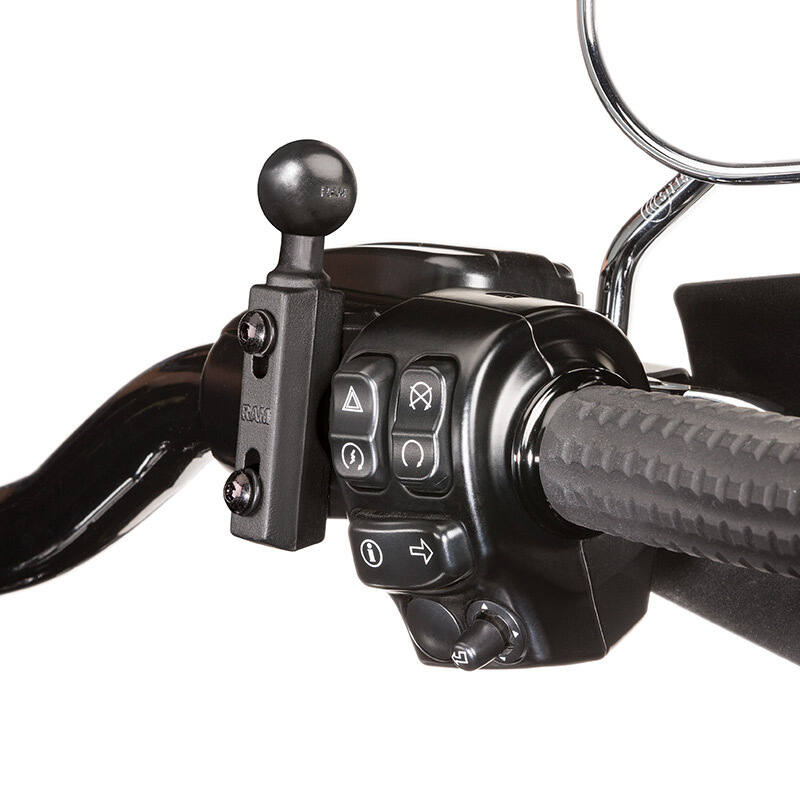

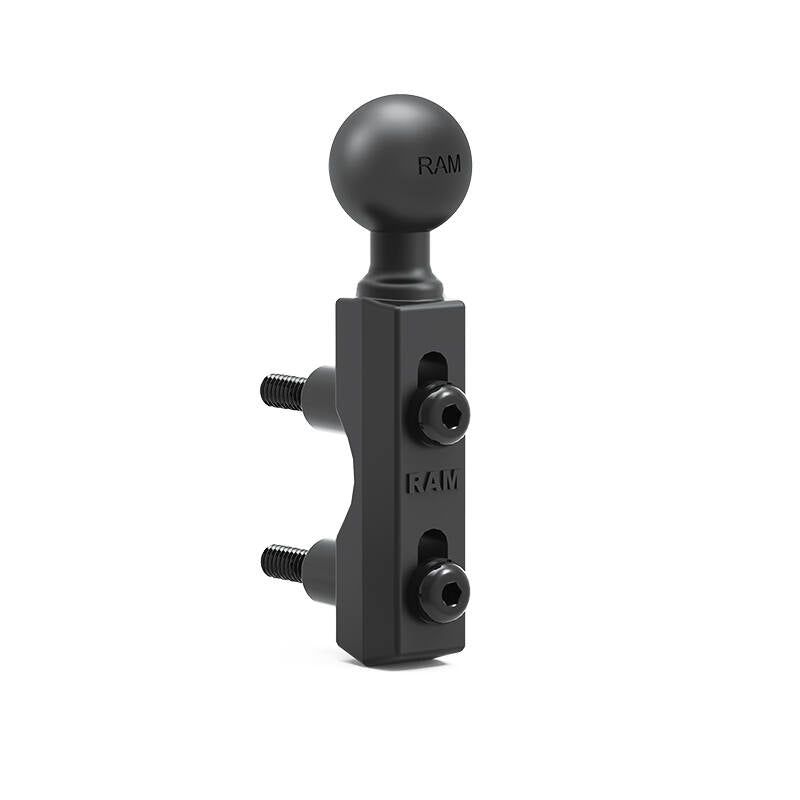

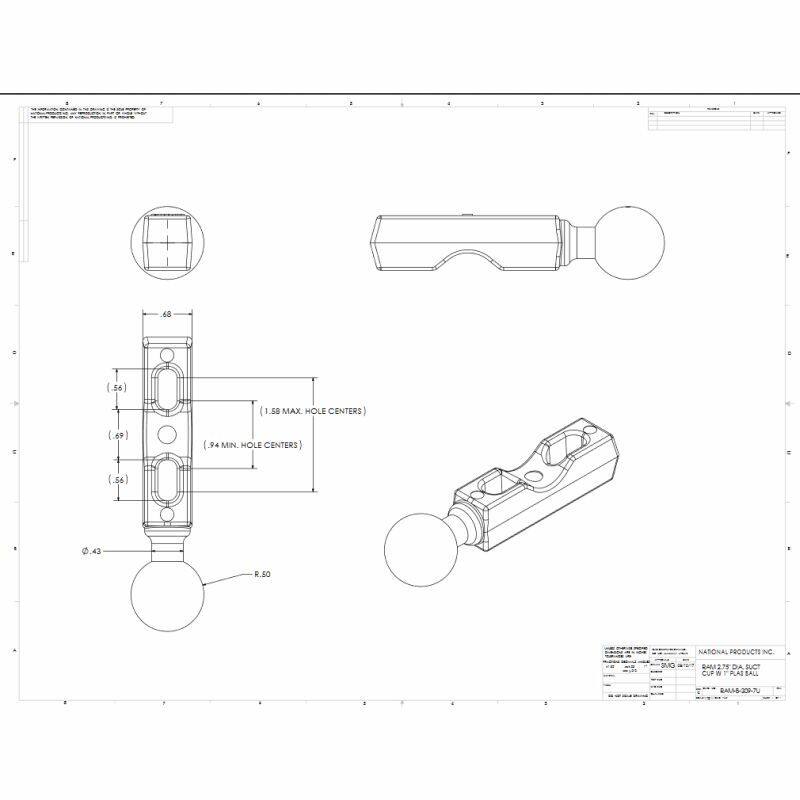

The RAM-B-309-1U base connects to your handlebar clutch/brake clamp, either left or right hand side, and has 1" diameter mounting balls. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 24mm (0.94") and a maximum of 40mm (1.58").

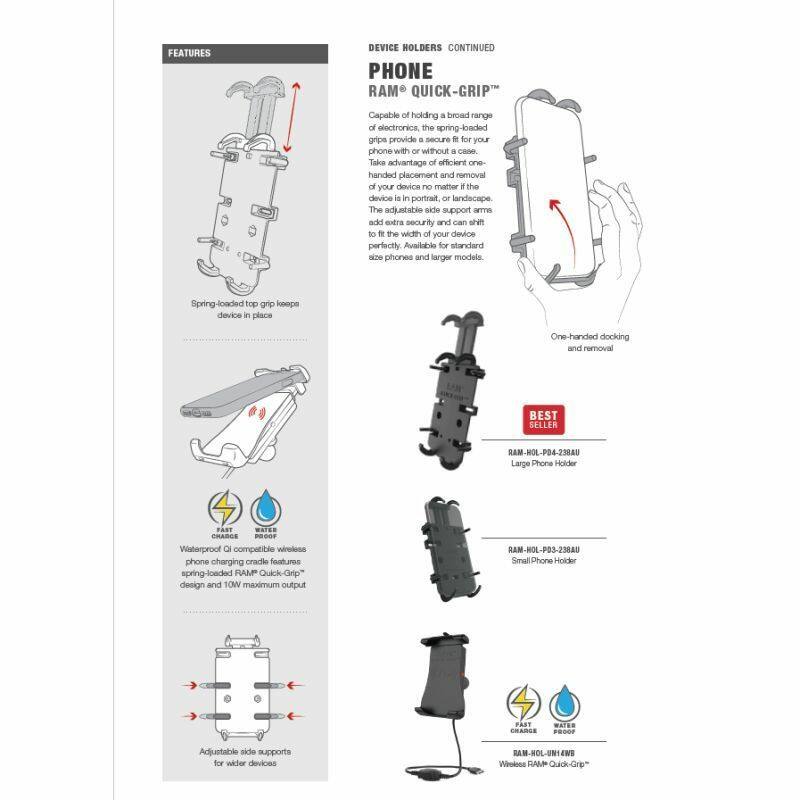

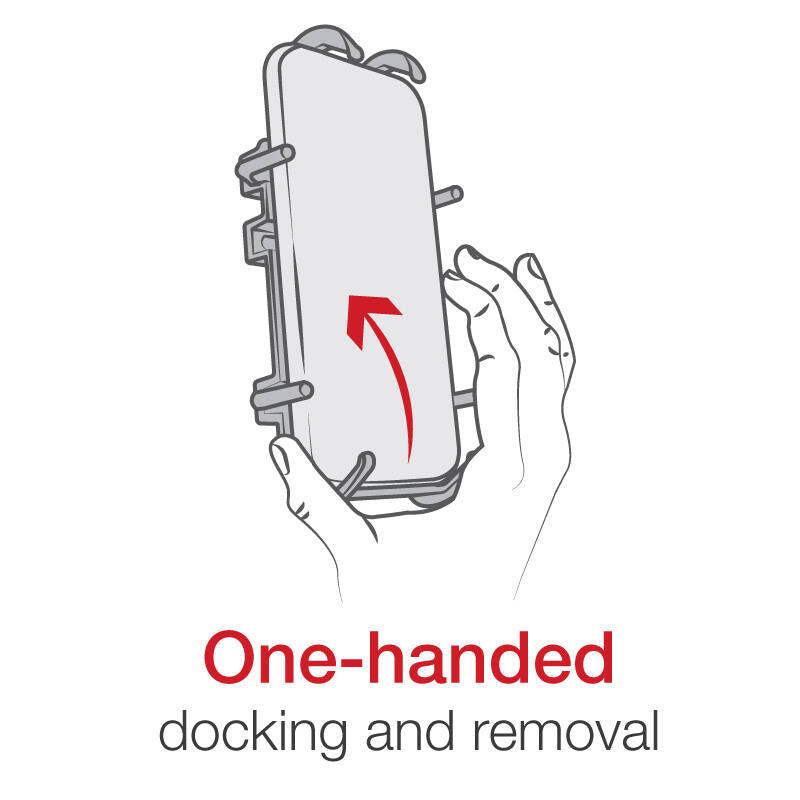

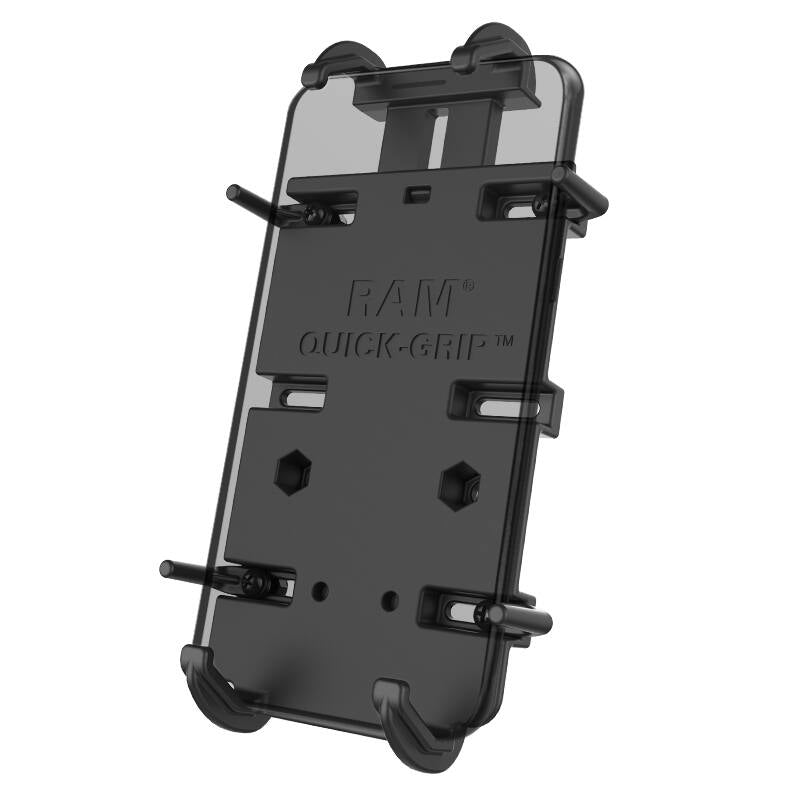

The cradle is the large version of the spring-loaded RAM® Quick-Grip™ XL holder which provides a secure fit for a variety of large phones / phablets and other devices. The Quick-Grip™ XL allows you to easily insert and remove your phone with one hand.
The Quick-Grip™ XL has adjustable side supports that provide a secure fit for a variety of phablets and other devices such as GPS units and Bluetooth speakers within the listed compatible dimensions
Cradle Clamping Dimensions:
Height Range: 146.1mm to 184.1mm (5.75" – 7.25")
Width Range: 66.7mm to 92.1mm (2.625" – 3.625")
Max Depth: 18.3mm (0.72")
For a list of compatible devices check the listing for the RAM-HOL-PD4U. For smaller phones see the smaller version - RAM-HOL-PD3U.
Ball Size:
1" Rubber Ball "B" Size
Weight:
267 grams (0.59 lbs.)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:
RAM-B-309-1U - Brake/Clutch Reservoir mount
RAM-HOL-PD4U - X-Grip® Cell/iPhone Cradle
RAM-B-238U - Daiamond base plate
RAM-B-201U - Double Socket Arm for B Size 1" Balls
