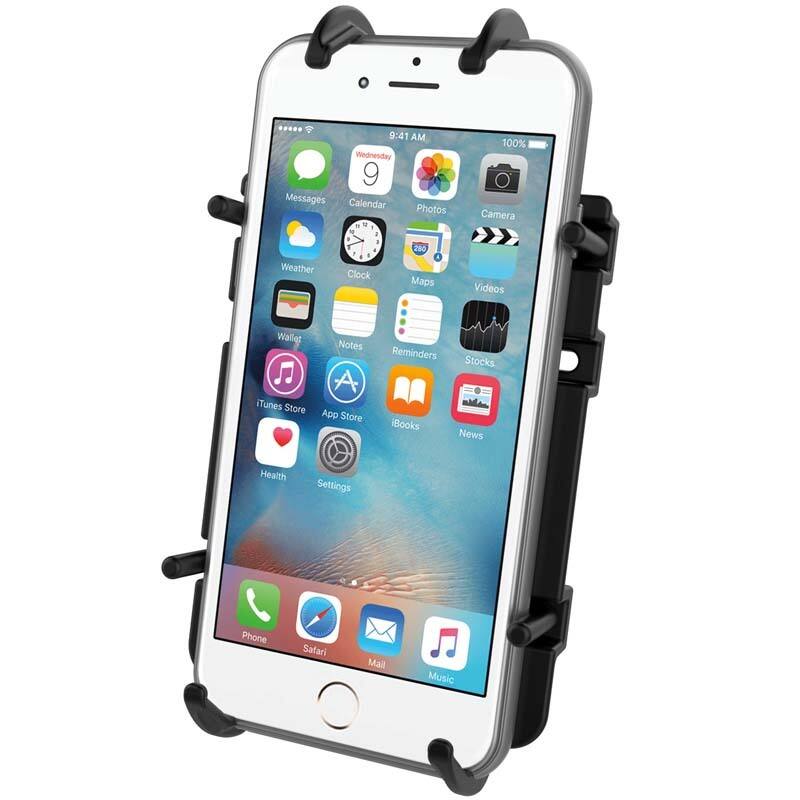

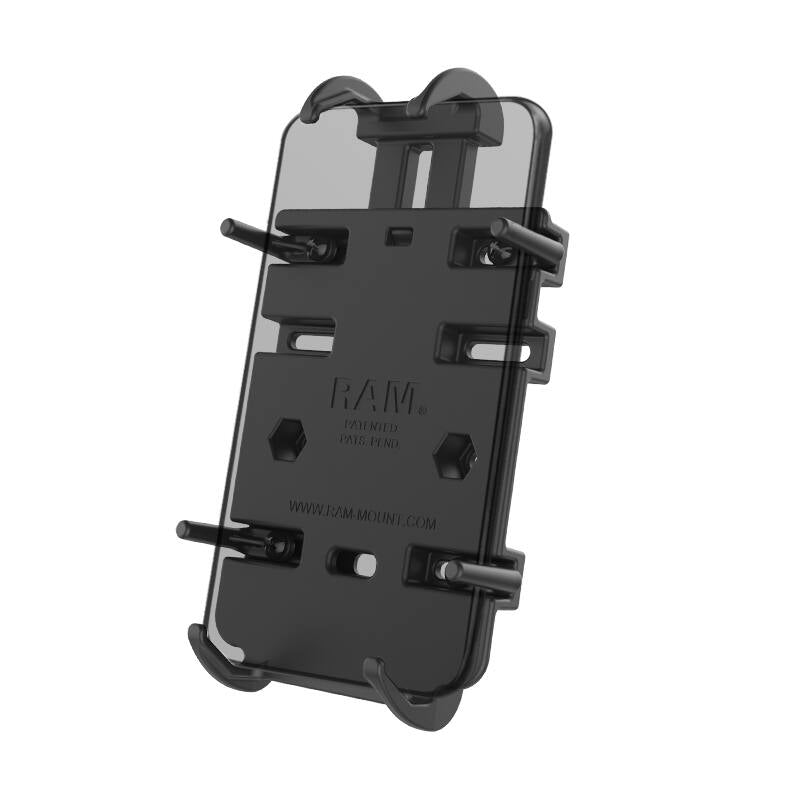

The RAM-HOL-PD3U is RAM® Mounts' standard Quick-Grip™ cradle, built for phones and other devices between 31.8mm and 82.6mm wide. Spring-loaded side supports grip the device securely, with one-handed insertion and release. This cradle ships without a ball base, so it needs to be paired with a separate AMPS-pattern mounting plate, such as the RAM-B-238U diamond base, to attach to a double socket arm.
Key Features
Spring-loaded adjustable side supports grip phones and other devices securely

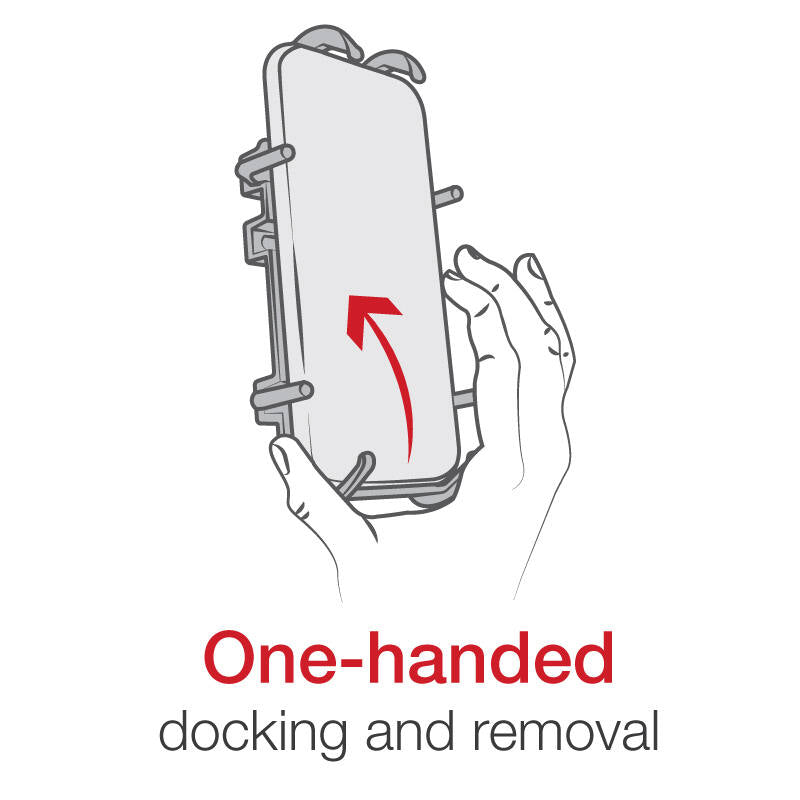

One-handed insertion and release
Mounts to any RAM® component with the universal AMPS hole pattern, including diamond ball bases
Side keepers also fit GPS units and Bluetooth speakers within the listed dimensions
Built from high-strength composite
Backed by a lifetime warranty
Mounting Base

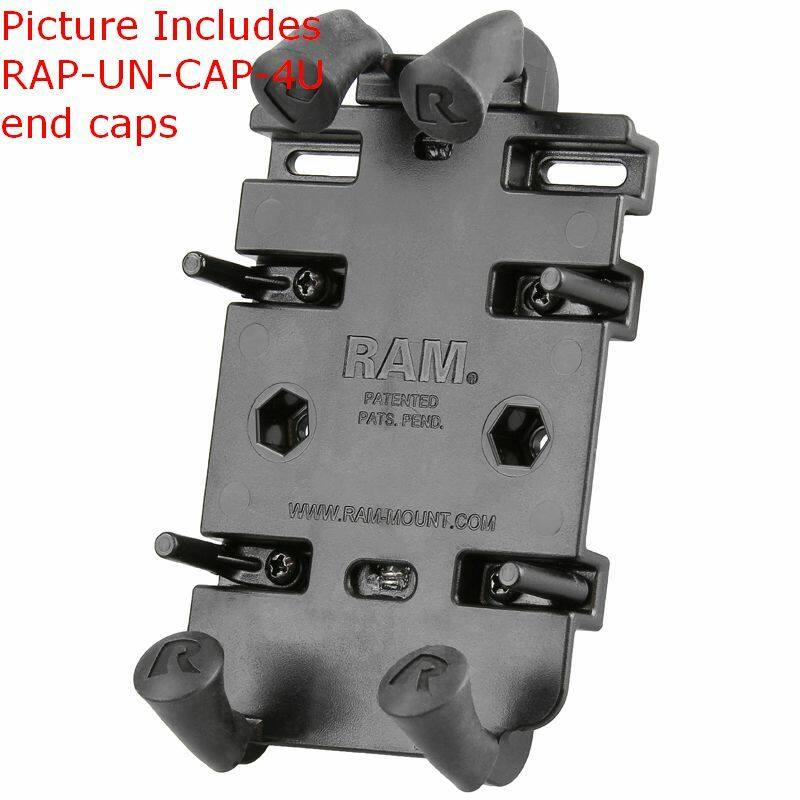

The RAM-HOL-PD3U does not come with a ball base attached. It has a 2-hole AMPS pattern (1.912" centres) on the rear, so you'll need a separate AMPS-pattern base to mount it to an arm; the matching diamond base is the RAM-B-238U. If you'd rather have the ball base already attached, see the RAM-HOL-PD3-238AU instead. If your device is too large for this cradle, the XL version is the RAM-HOL-PD4U (or RAM-HOL-PD4-238AU with the ball base already attached).

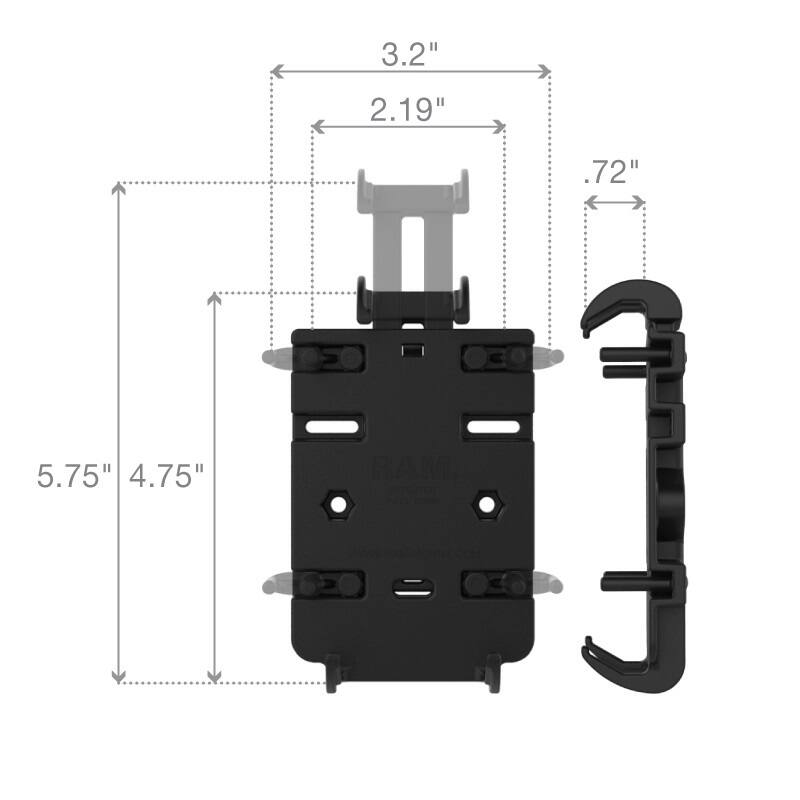

Dimensions & Specifications
Width range: 31.8mm to 82.6mm (1.25" – 3.25")
Height range: 120.7mm to 144.1mm (4.75" – 5.75")
Max depth: 18.3mm (0.72")
Material: high-strength composite
Weight: 104g (0.23 lb)

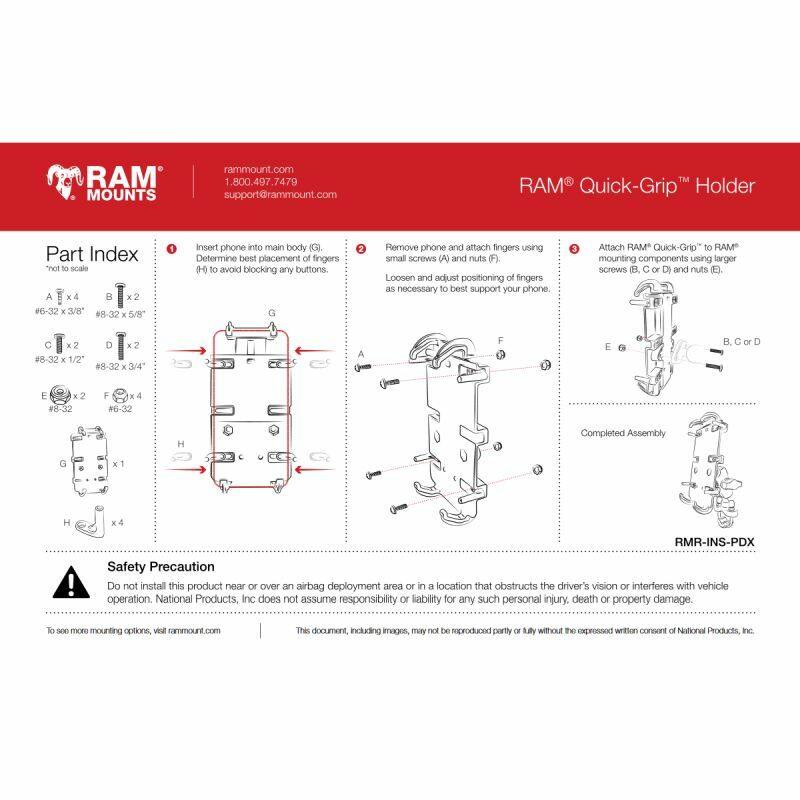

Hardware Included
(2) #8-32 x 1/2" machine screws
(2) #8-32 x 5/8" machine screws
(2) #8-32 x 3/4" machine screws
(2) #8-32 nylock nuts
Compatible Devices
The cradle fits hand-held devices within the dimensions above. Always check your device's dimensions with any case, sleeve, or skin attached before ordering.
