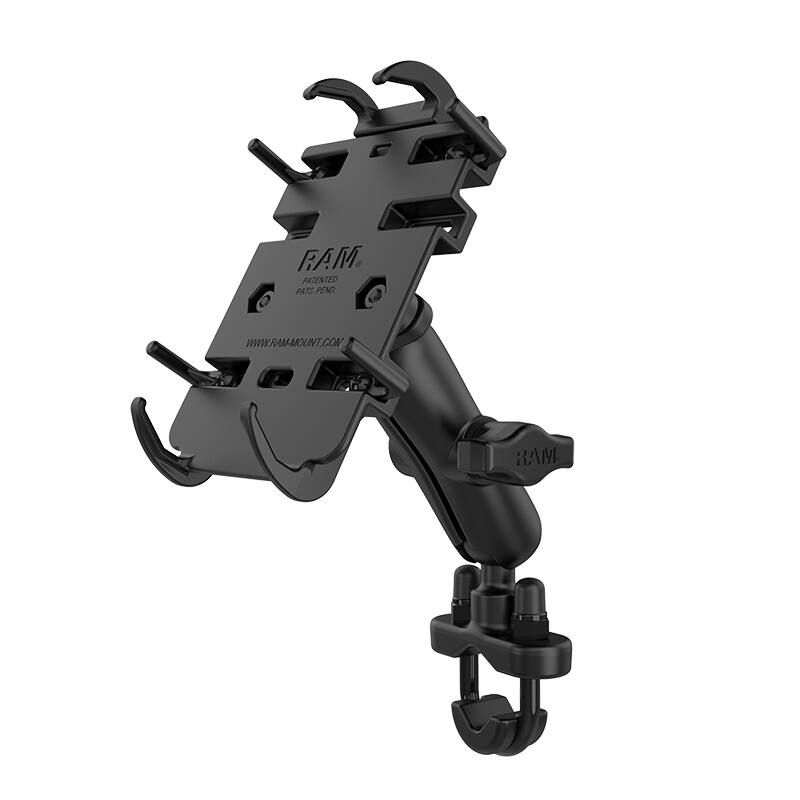

RAM-B-149Z-PD3U RAM® Quick-Grip™ Phone Mount with Handlebar U-Bolt Base - Medium
Features
* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices

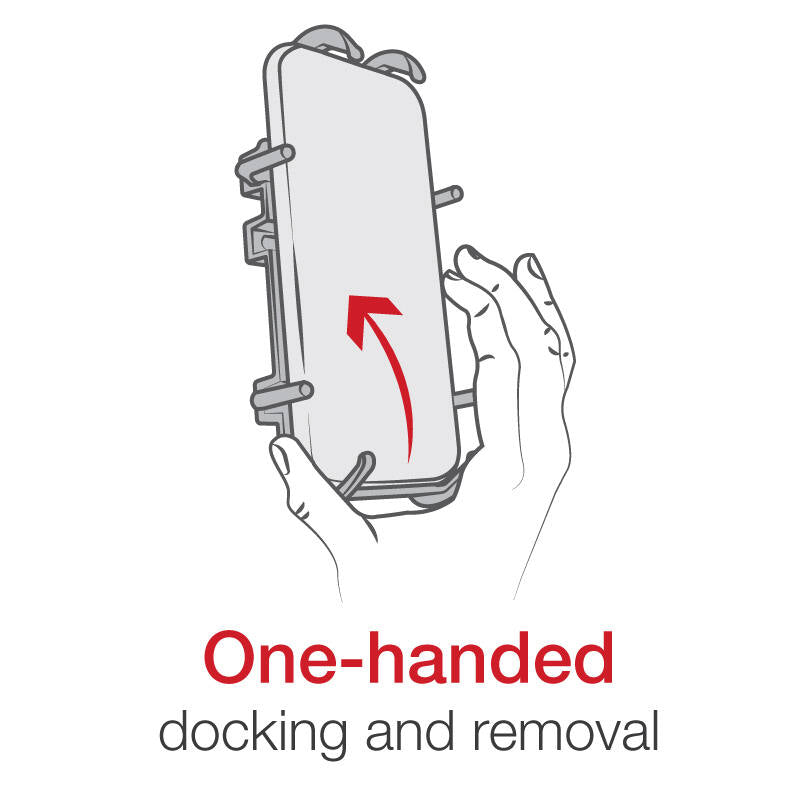

* You can easily insert and remove your phone with one hand
* Includes U-bolt base that accommodates rails from 13 to 32mm in diameter and a medium length, B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

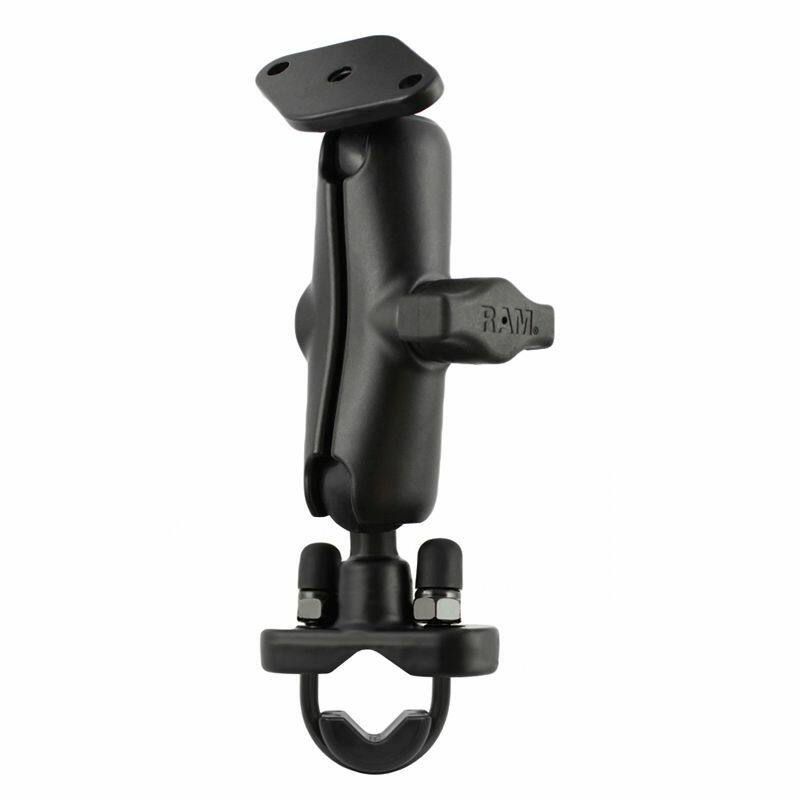

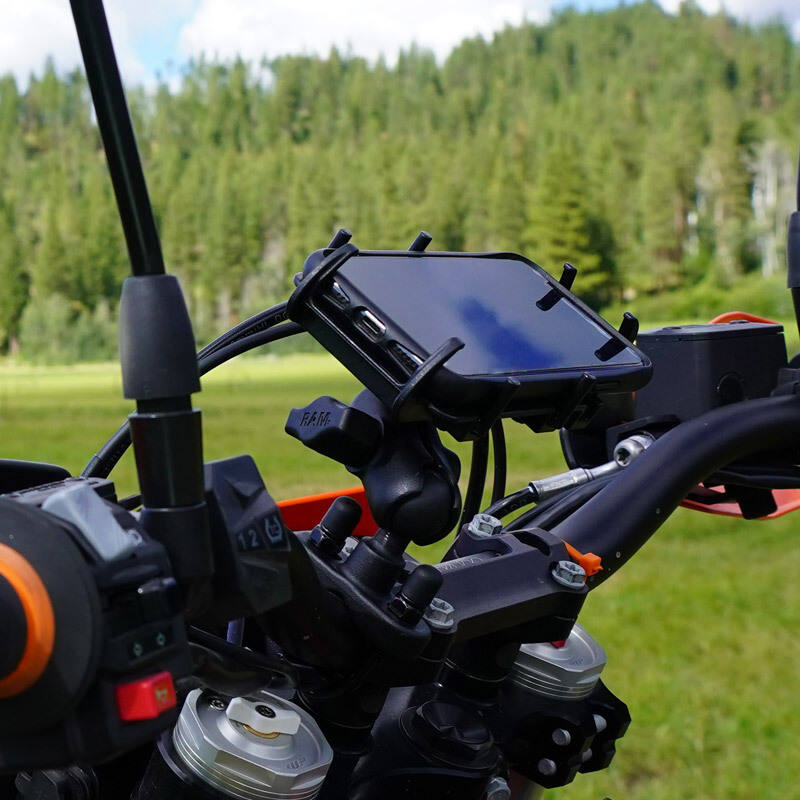

The RAM Quick-Grip™ Handlebar Mount consists of a zinc coated u-bolt base, double socket arm and spring loaded cradle for supporting most phones.

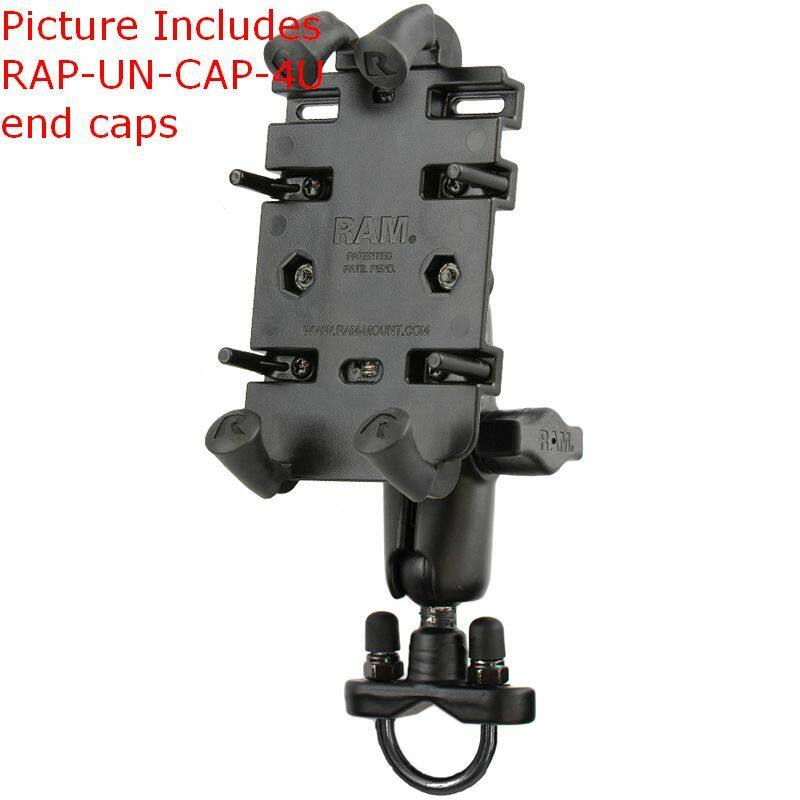

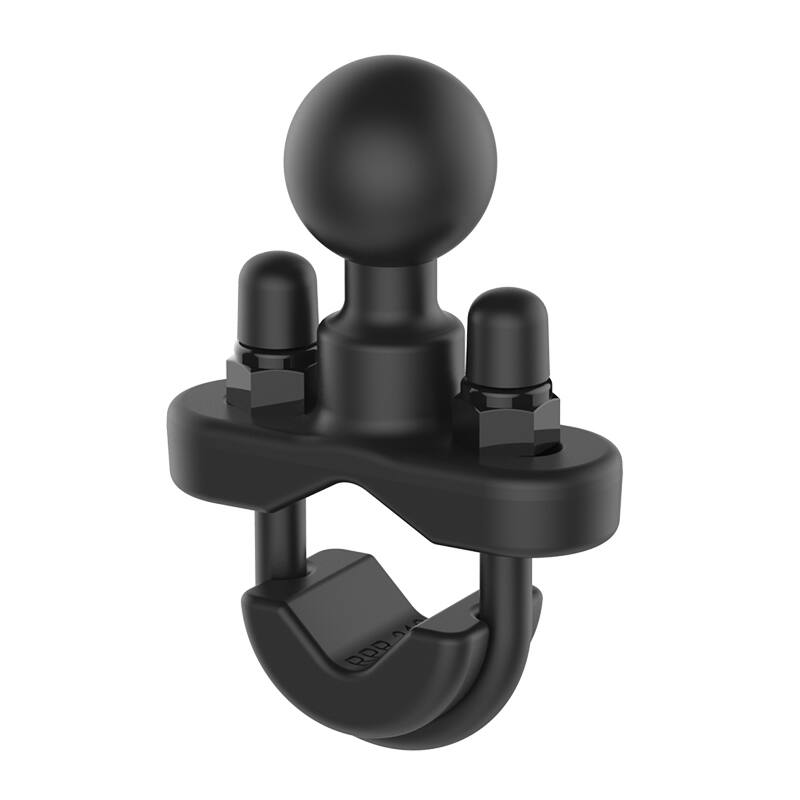

The U-Bolt base will accommodate rails from 13 - 32mm in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

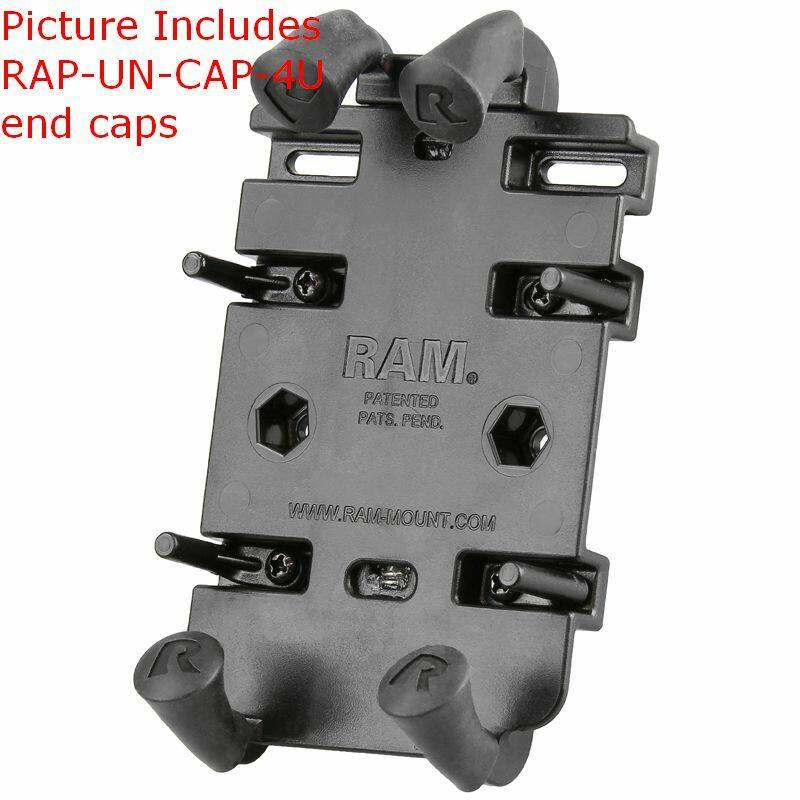

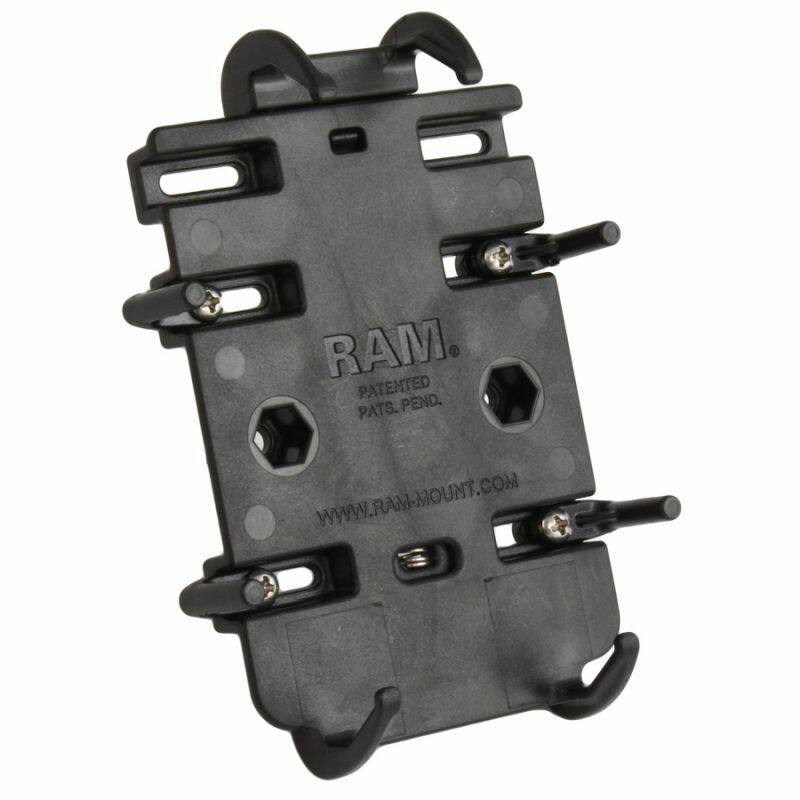

The spring-loaded Quick-Grip™ cradle provides a secure fit for a variety of smartphones and other devices. For Phablets a larger version is available. The Quick-Grip™ allows you to easily insert and remove your phone with one hand. Featuring adjustable side supports that provide a secure fit for a variety of large phones and other devices such as GPS units and Bluetooth speakers within the listed compatible dimensions
Cradle Clamping Dimensions:
Height Range: 120.7 to 144.1mm (4.75 - 5.75")
Width Range: 31.8 to 82.6mm (1.25 - 3.25")
Max Depth: 18.3mm (0.72")
For a list of compatible devices check the listing for the RAM-HOL-PD3U
Specs & Features

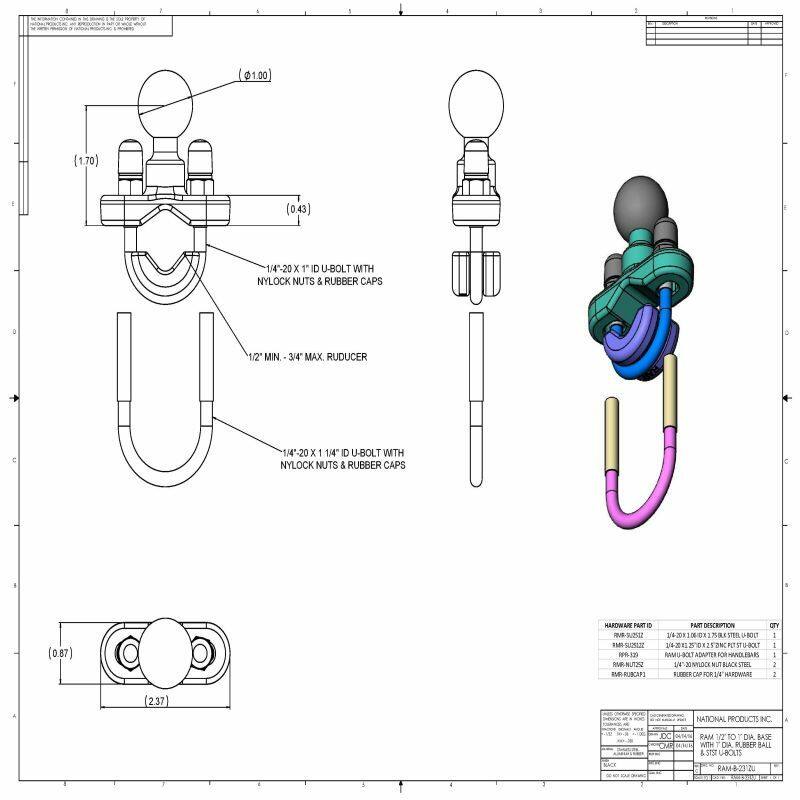

U-Bolt Dimensions:
12.7mm to 31.75mm (0.50" to 1.25")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Stainless steel components
Ball Size:
1" Rubber Ball "B" Size
Weight:
340 grams (0.75 lbs.)
