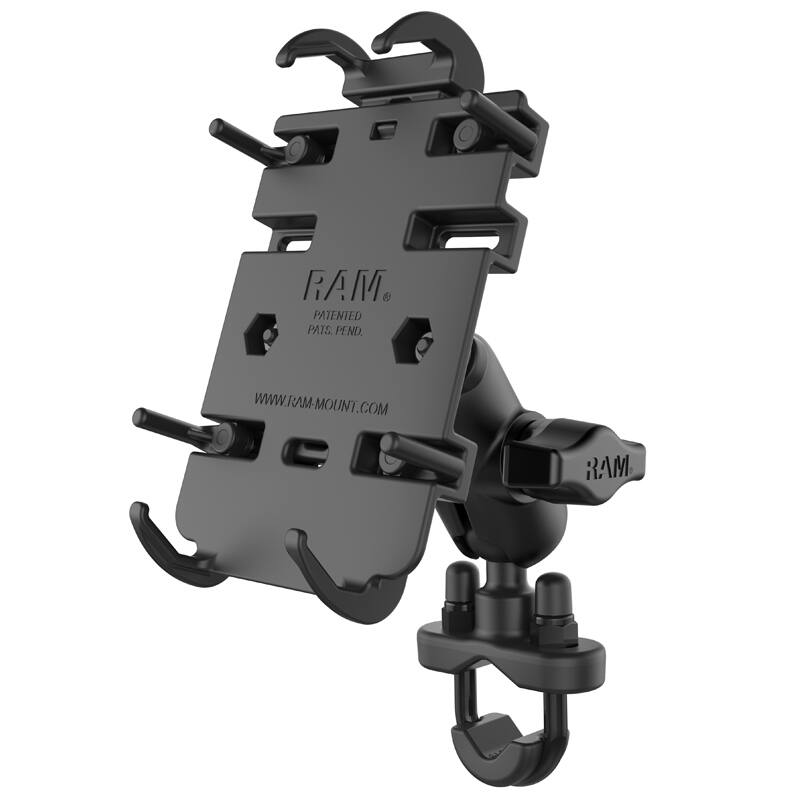

RAM-B-149Z-A-PD3U RAM® Quick-Grip™ Phone Mount with Handlebar U-Bolt Base (Short Arm)

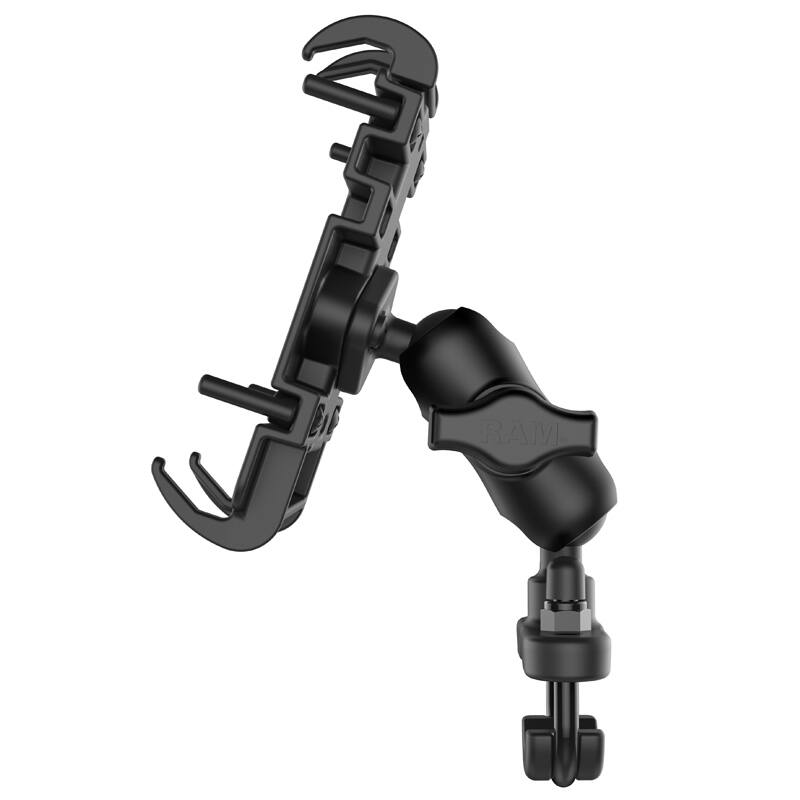

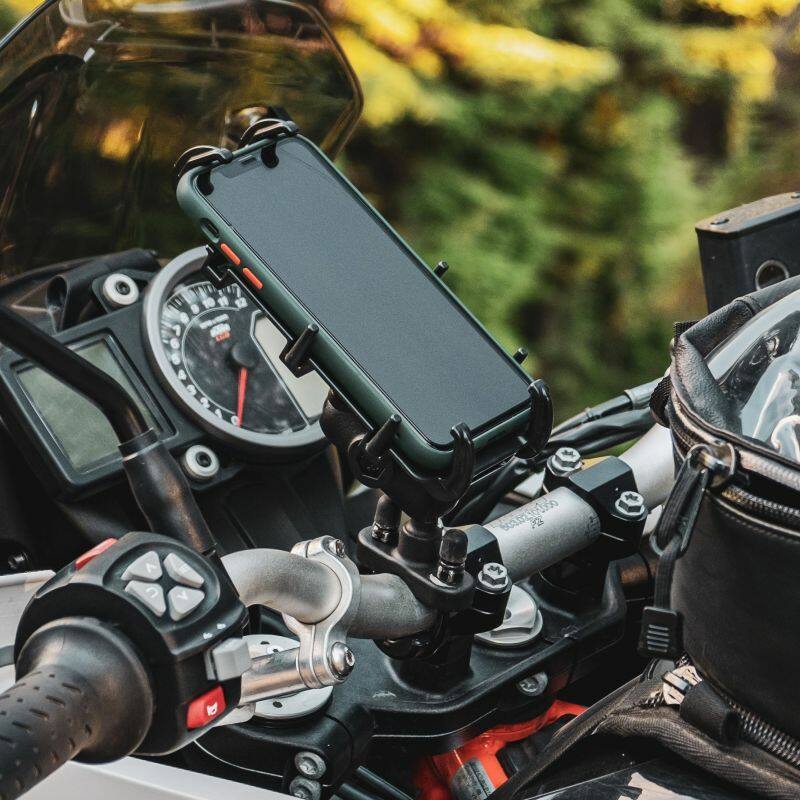

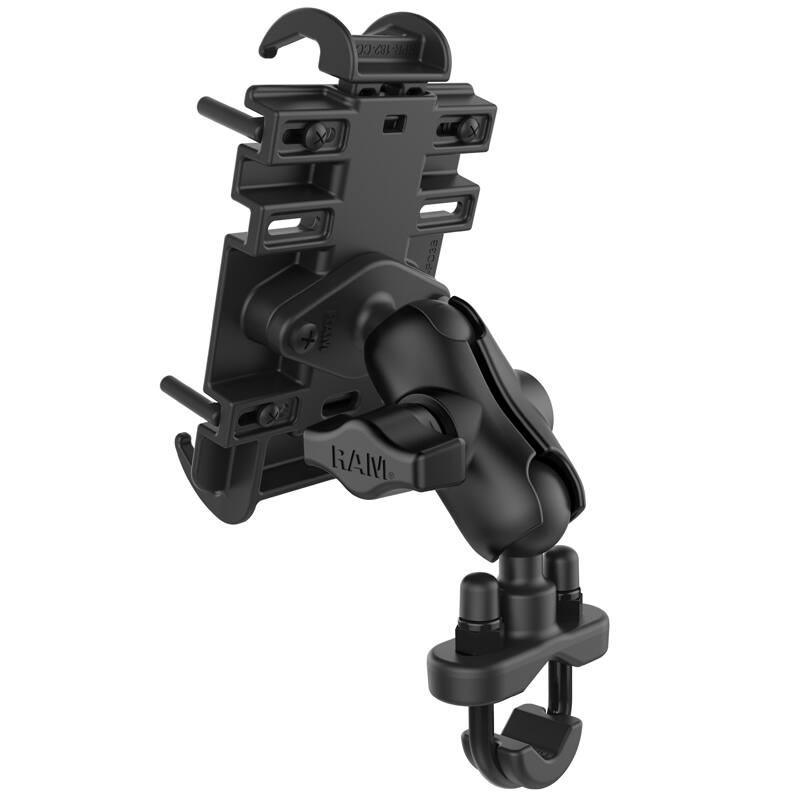

The RAM-B-149Z-A-PD3U mounts phones and similarly-sized devices — GPS units, Bluetooth speakers, handheld radios — to a handlebar, roll bar, or rail using a zinc-coated U-bolt base and a short double socket arm, paired with a spring-loaded Quick-Grip™ cradle with adjustable side supports.
Key Features

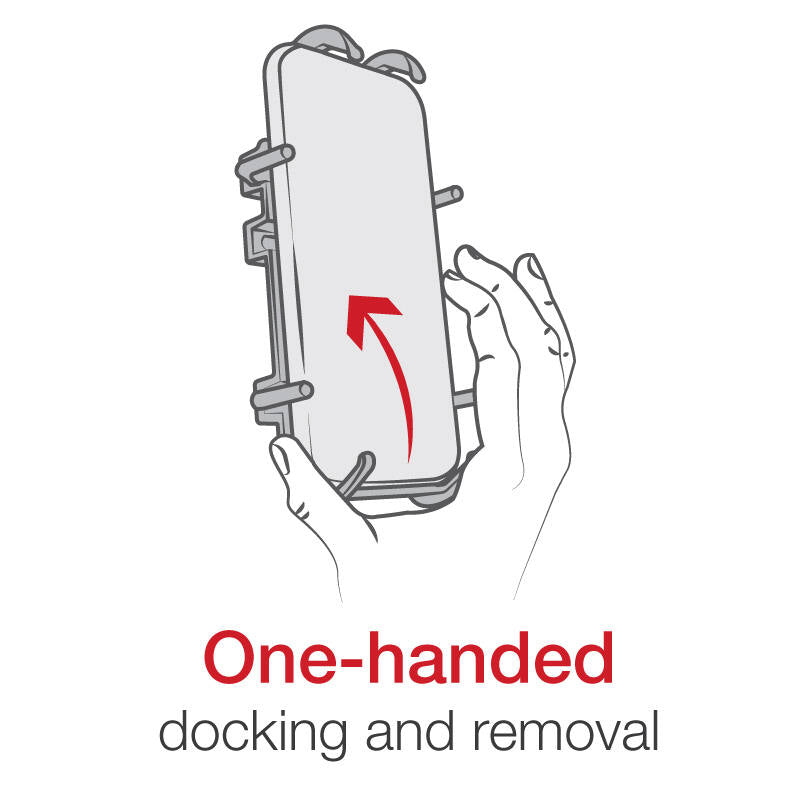

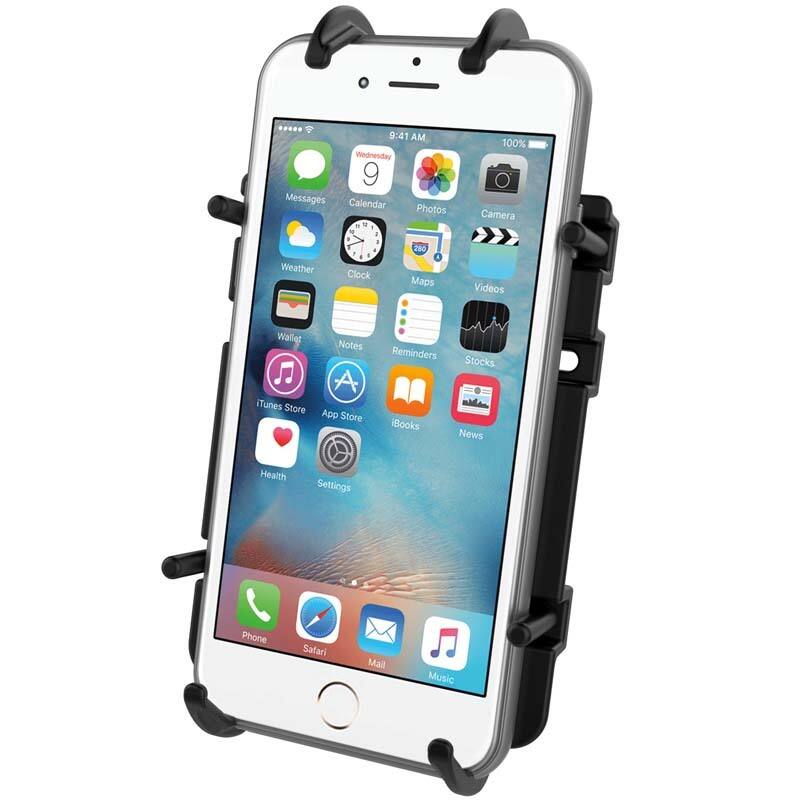

Spring-loaded Quick-Grip™ cradle with adjustable side supports holds a wide range of phones and devices; insert and remove with one hand
Zinc-coated U-bolt base clamps rails and bars from 12.7mm to 32mm (0.5" to 1.25"); a composite rail adapter narrows the fit to 12.7mm (0.5") minimum; black cover caps included for the exposed U-bolt ends
Short-length B size RAM® double socket arm keeps the phone close to the bar; ball-and-socket design allows near-infinite positioning
Powder-coated marine-grade aluminium and high-strength composite construction
Backed by a lifetime warranty
What's Included
RAM-B-231ZU U-bolt rail base for 12.7mm–32mm (0.5"–1.25") bars
RAM-B-201U-A short double socket arm

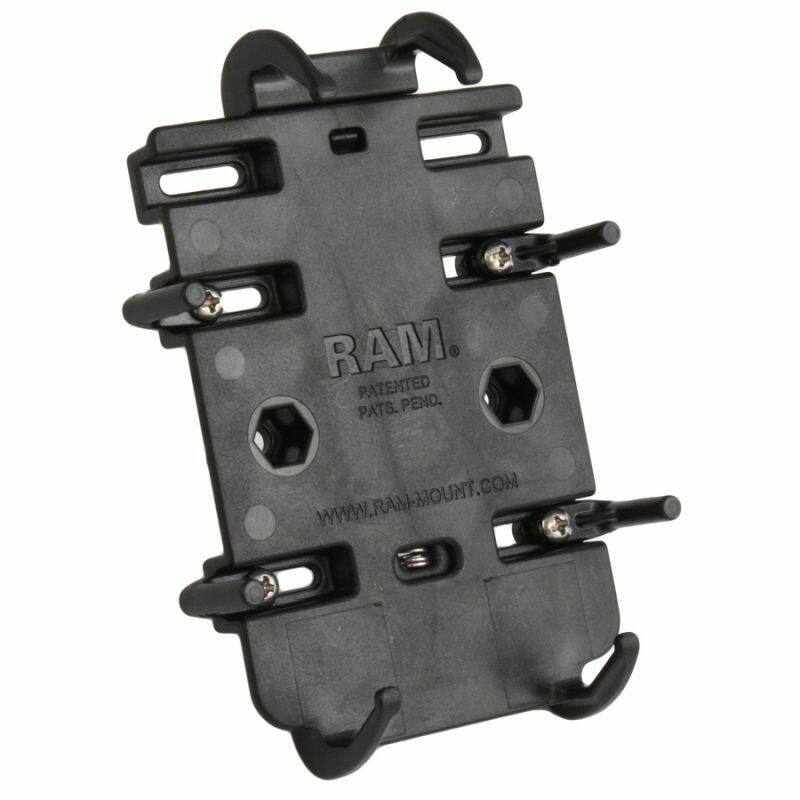

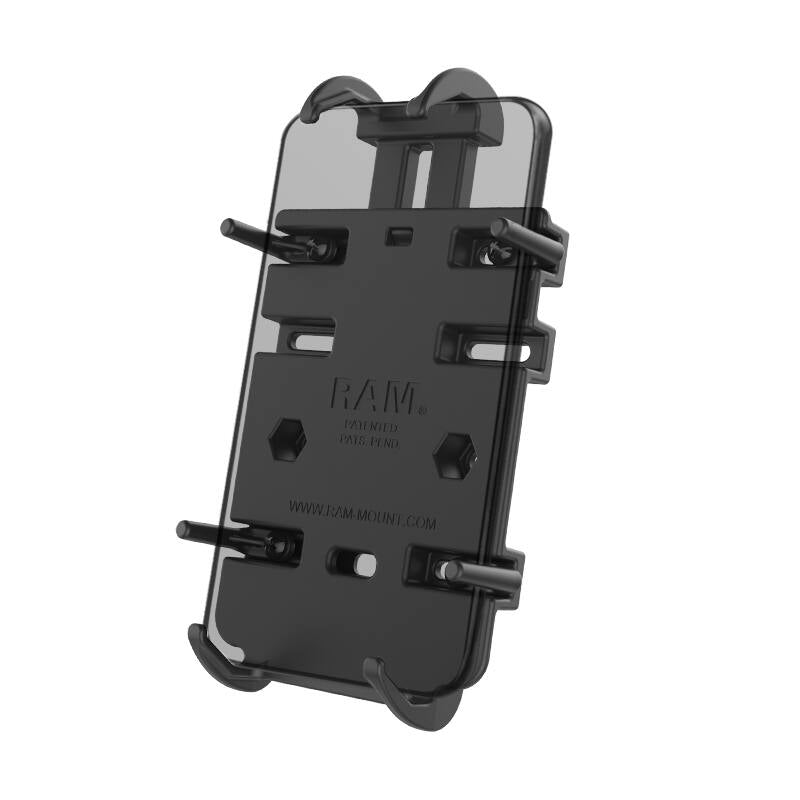

RAM-HOL-PD3U Quick-Grip™ cradle
Dimensions & Specifications

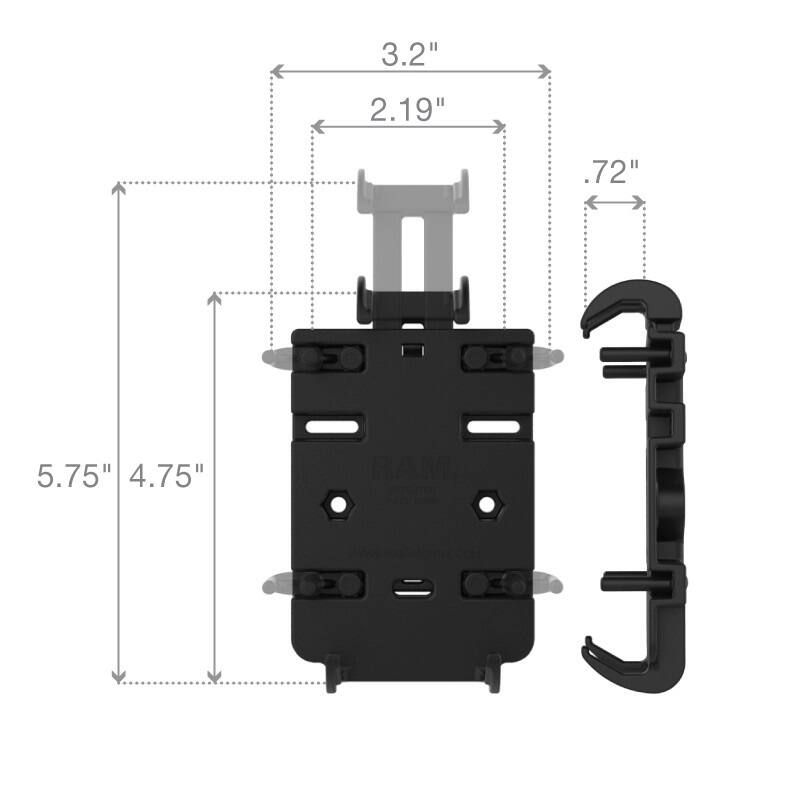

Cradle clamping height range: 120.7mm to 144.1mm (4.75" to 5.75")
Cradle clamping width range: 31.8mm to 82.6mm (1.25" to 3.25")
Cradle max depth: 18.3mm (0.72")
U-bolt clamping range: 12.7mm to 31.75mm (0.5" to 1.25")

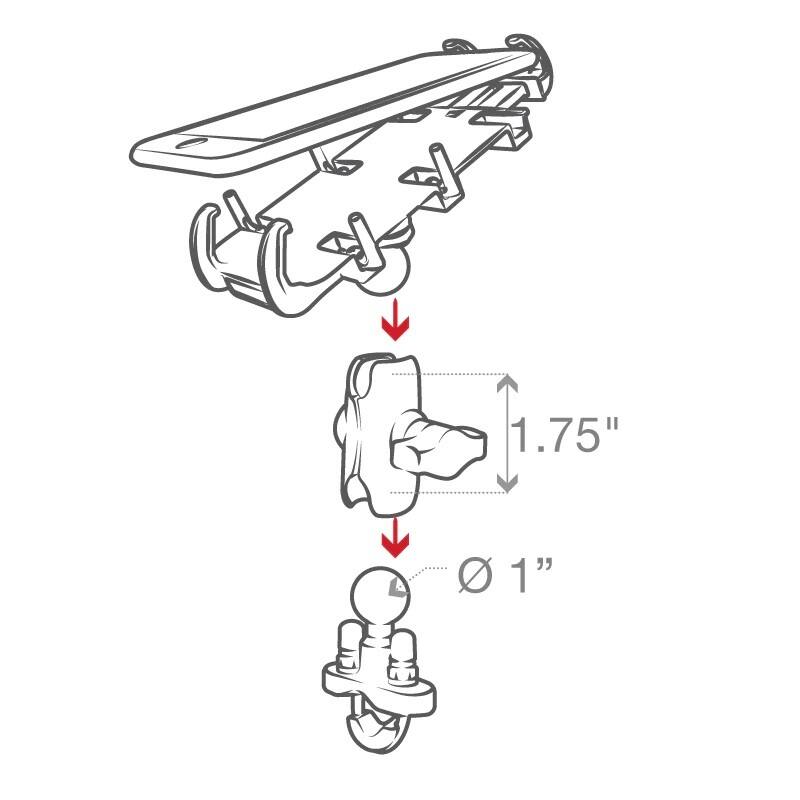

Arm length, overall: 60.5mm (2.38"); socket-to-socket: 51mm (2")
Fits phones and similarly-sized devices within the cradle dimensions above. For a phablet-sized version, see the RAM-HOL-PD4U cradle. For the full list of compatible devices, see our RAM-HOL-PD3U cradle listing.
