RAM-B-347U-BT - Rectangular Base 51×43mm AMPS 7mm Holes - B Series (1" Ball)

RAM-B-347U-BT Ball Adaptor with AMPS Plate and 7mm Holes – B Size

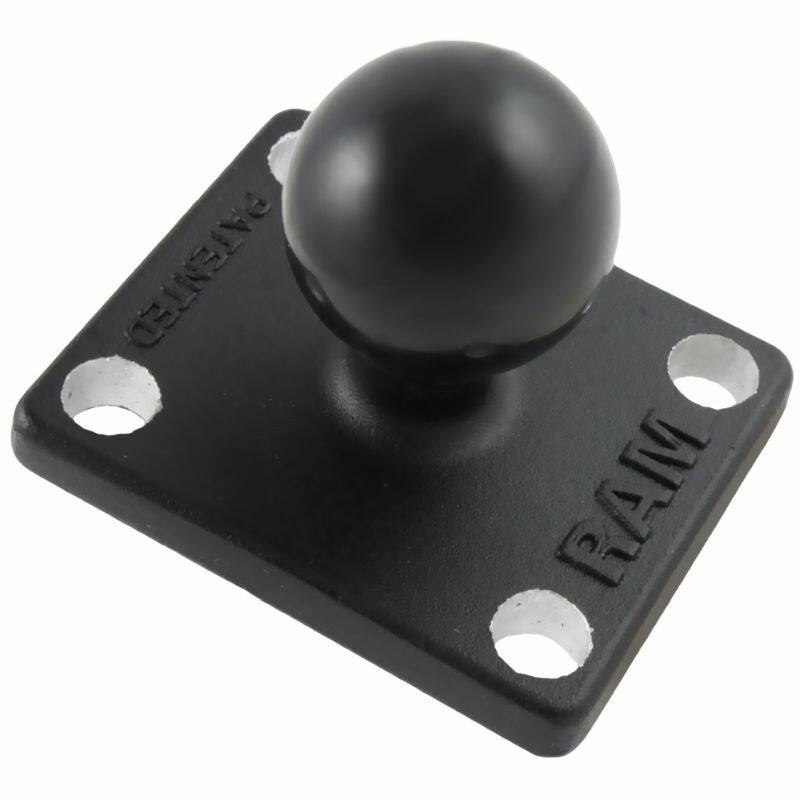

The RAM-B-347U-BT is a rectangular AMPS ball base with a 1" B-Size rubber ball and four pre-drilled 7mm corner holes. It is the same base as the RAM-B-347U, drilled out to take larger fasteners.

Key Features

• 50.8 x 43.2mm (2" x 1.7") plate with the industry-standard 4-hole AMPS pattern
• Four pre-drilled 7mm holes, one at each corner, for larger bolts than the standard RAM-B-347U
• 1" B-Size rubber ball connects to any B-Size RAM® double socket arm
• Powder-coated marine-grade aluminium construction
• Lifetime warranty

Dimensions & Specifications

• Hole pattern — 4-hole AMPS: 1.181" x 1.496" (30mm x 38mm), drilled to 7mm diameter
• Plate size: 50.8 x 43.2mm (2" x 1.7")
• Ball size: 1" rubber B-Size ball
• Material: powder-coated marine-grade aluminium
• Weight: 45g (0.1 lbs)
• Load rating: 907g (2 lbs) standard use, 454g (1 lb) heavy-duty use

FAQs

How is this different from the RAM-B-347U? Identical plate and ball, but the four corner holes are drilled out to 7mm so you can use larger fasteners.
