RAM Mounts

RAM Round Base - Tough-Mag Magnetic Diamond base - 88mm diameter

RAM Round Base - Tough-Mag Magnetic Diamond base - 88mm diameter

SKU:RAM-B-238-MAG88U

Regular price $138.14 NZD
Regular price Sale price $138.14 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-238-MAG88U RAM® Tough-Mag™ 88MM Diameter with 1" Diamond Ball Base


Features

* Magnetic base contains 2-hole AMPS pattern with M4 threaded inserts for attaching B size RAM® 2-hole AMPS diamond ball bases
* Includes B size (1") RAM® 2-hole AMPS pattern ball base for connection to any B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium and rubber for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

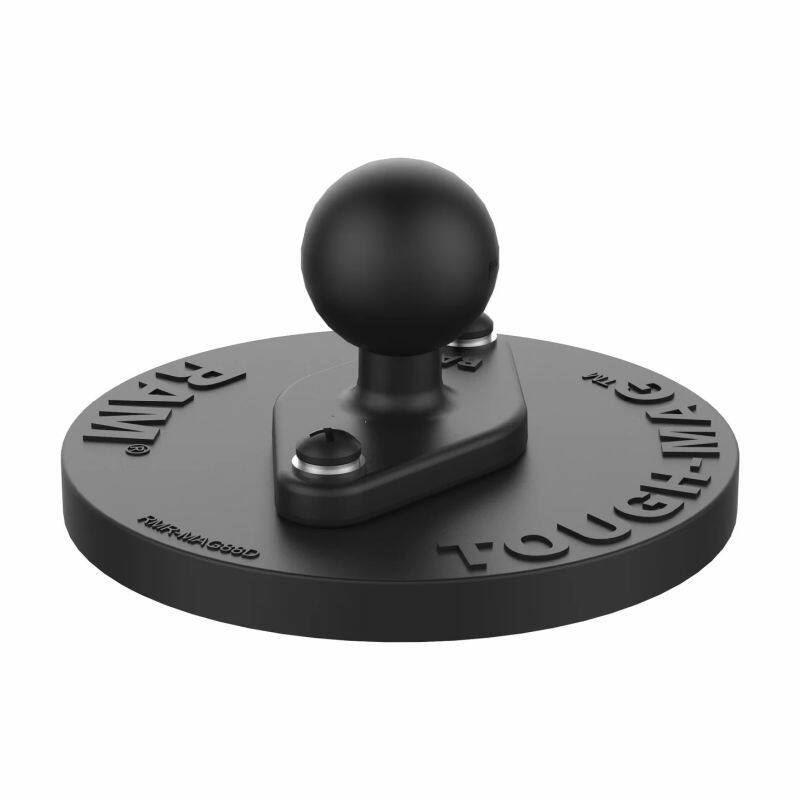

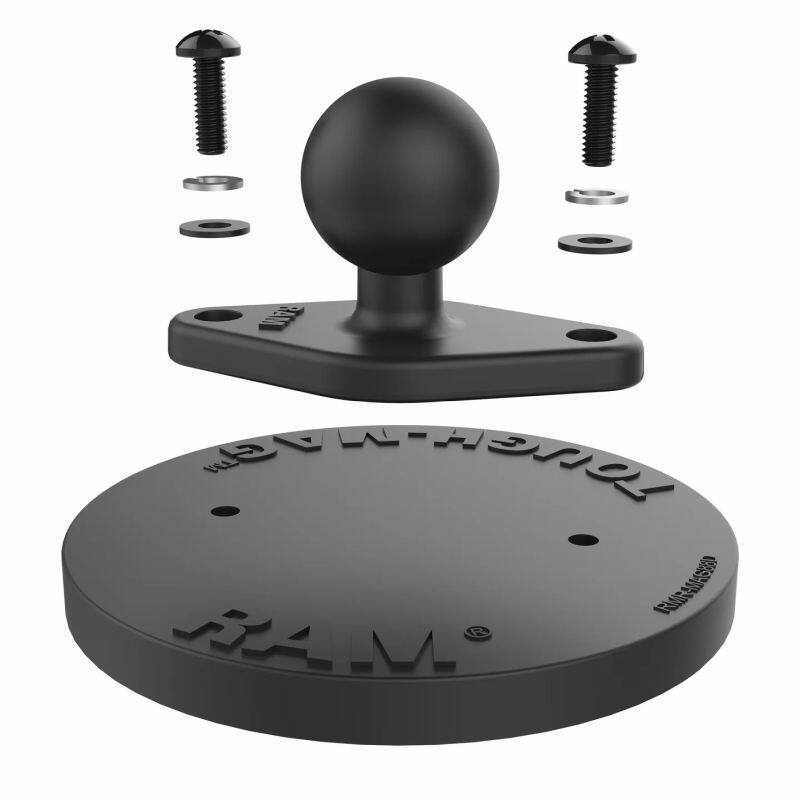

The RAM® Tough-Mag™ base consists of a B size (1") diameter 2-hole AMPS pattern diamond ball base connected to a flat 88mm diameter magnetic base. The magnetic base contains two M4 threaded inserts to attach the included 1" dia ball with diamond base and is designed with a rubber exterior to prevent scratching the mounting surface. Attach any B size double socket arm and your desired holder to complete the magnetic mount.

Hole Pattern
2-Hole AMPS 1.912" (48.5mm)

Plate Size
88mm (3.46") Diameter

Ball Size
B Size (1")

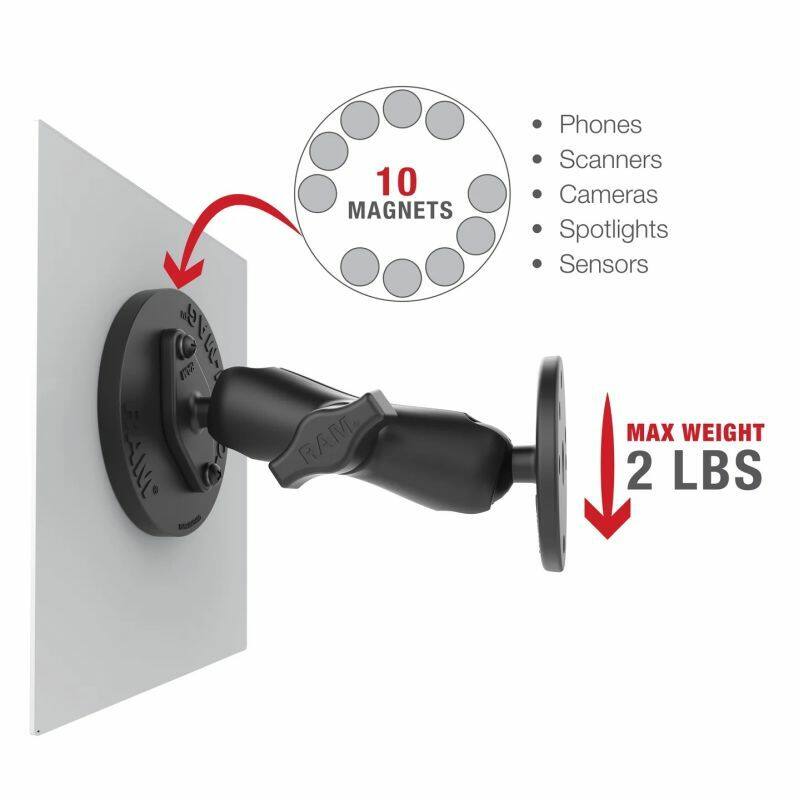

Weight Capacity
Standard Use:
950g (2 lbs)
Heavy-Duty Use:
800g(1.5 lbs)

Materials
Marine-grade aluminium
Rubber


Weight
249 grams (0.55 lbs.)

YouTube:
https://www.youtube.com/watch?v=7iZ4w7pV_Io
