RAM Round Base - Tough-Mag Magnetic Diamond base - 88mm diameter - C Series

RAM-238-MAG88U – RAM® Tough-Mag™ 88mm Diameter Diamond Ball Base, C Size

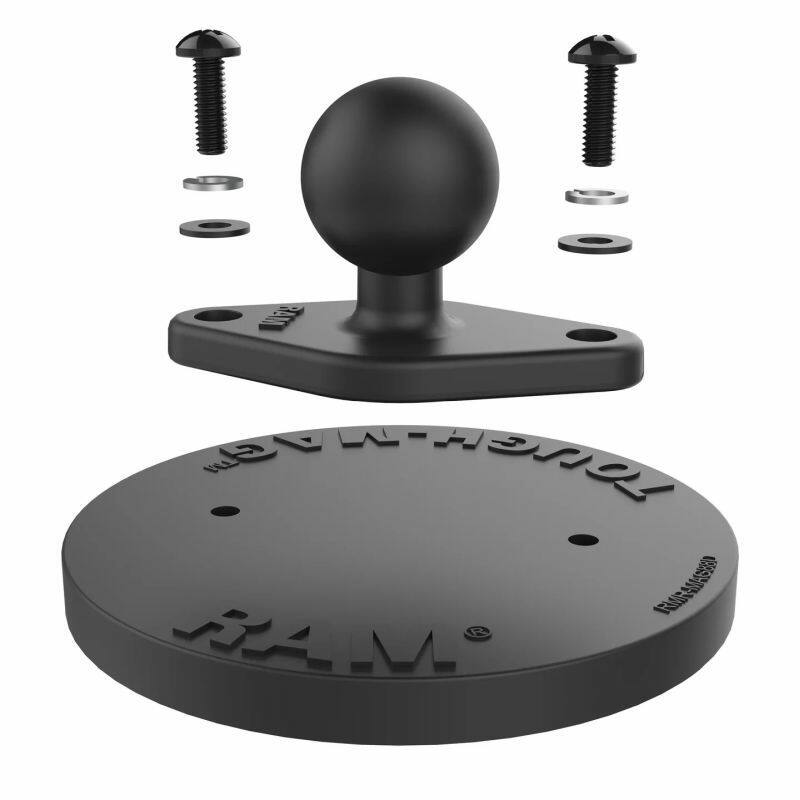

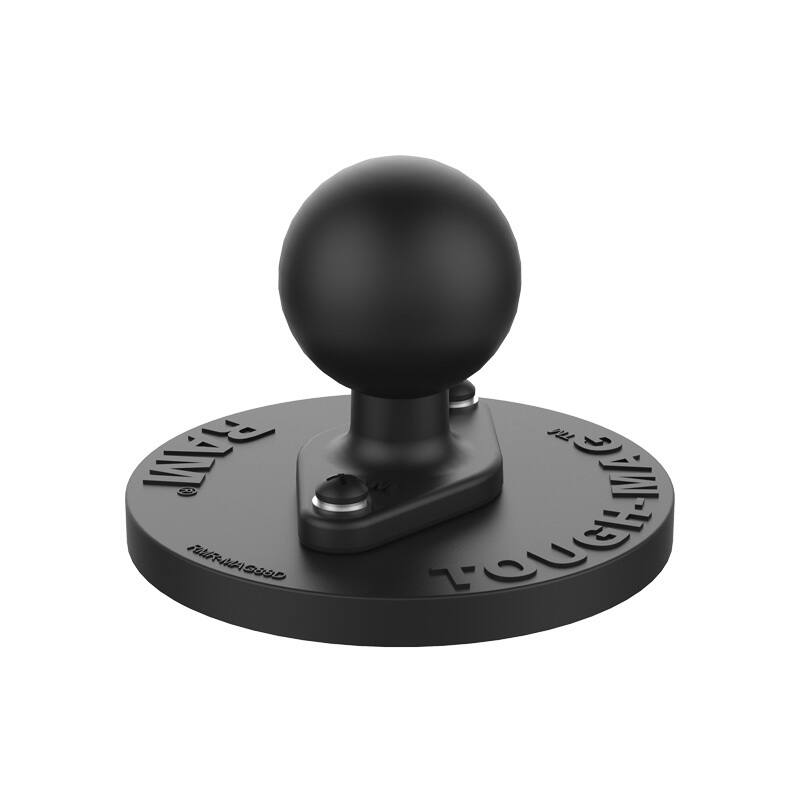

The RAM-238-MAG88U is an 88mm RAM® Tough-Mag™ magnetic base fitted with a C size 1.5" diamond ball, creating a drill-free RAM® mounting point on any ferrous metal surface. Add any C size double socket arm and holder to complete the mount.

Key Features

• Magnetic base with 2-hole AMPS pattern and M4 threaded inserts for B or C size diamond ball bases

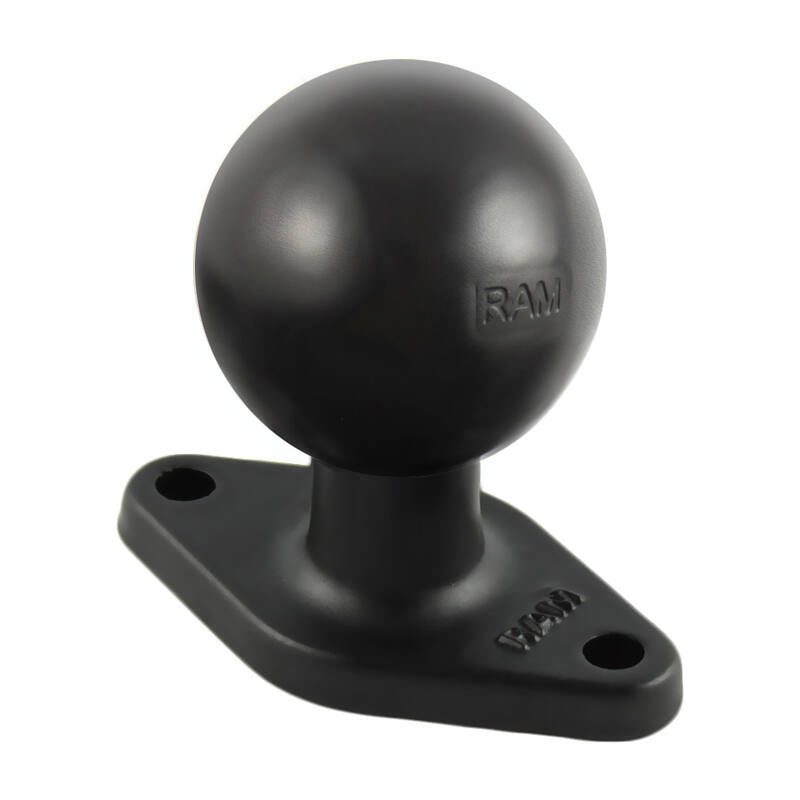

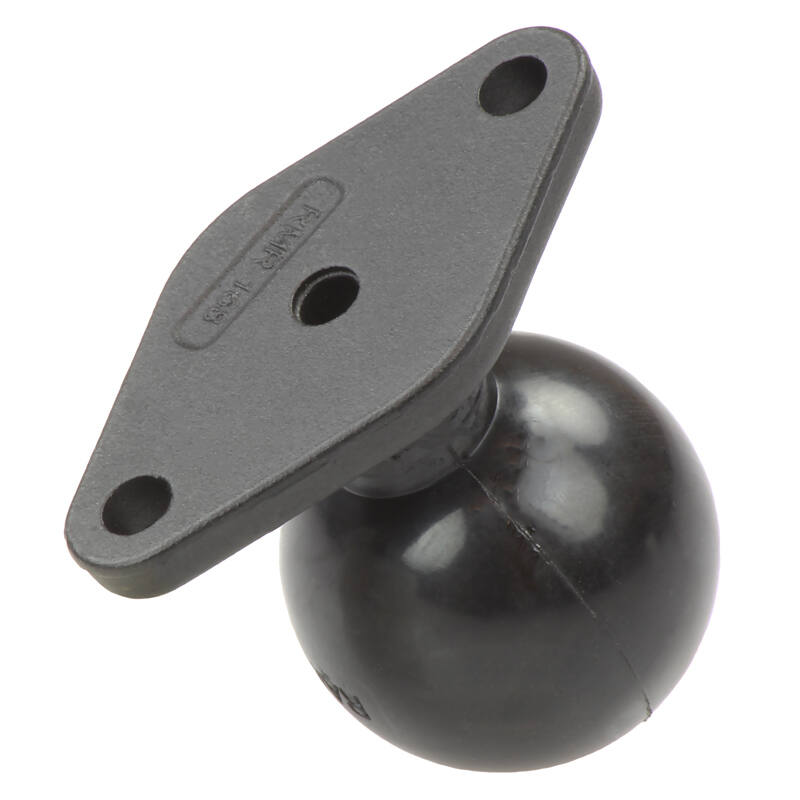

• Includes C size (1.5") 2-hole AMPS diamond ball base for any C size RAM® double socket arm
• Rubber exterior prevents scratching the mounting surface
• Powder-coated marine-grade aluminium and rubber construction
• Backed by a lifetime warranty

Works With

Any ferrous metal surface, paired with C size (1.5") RAM® double socket arms and AMPS-pattern device holders. The M4 inserts also accept B size 2-hole AMPS diamond bases.

Dimensions & Specifications

• Plate diameter: 88mm (3.46")
• Hole pattern: 2-hole AMPS, 1.912" (48.6mm)
• Ball size: C (1.5")
• Load capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use
• Weight: 249g (0.55 lb)
• Materials: marine-grade aluminium, rubber
• Warranty: lifetime

FAQs

Can I swap the ball to a B size?

Yes; the base's M4 threaded inserts accept both B and C size 2-hole AMPS diamond ball bases.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

RAM® Tough-Mag™ overview
