RAM Mounts

RAM Square VESA Base Plate - 75 x 75mm - Arm and Round Plate - D Series

RAM Square VESA Base Plate - 75 x 75mm - Arm and Round Plate - D Series


Regular price $347.57 NZD
Regular price Sale price $347.57 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

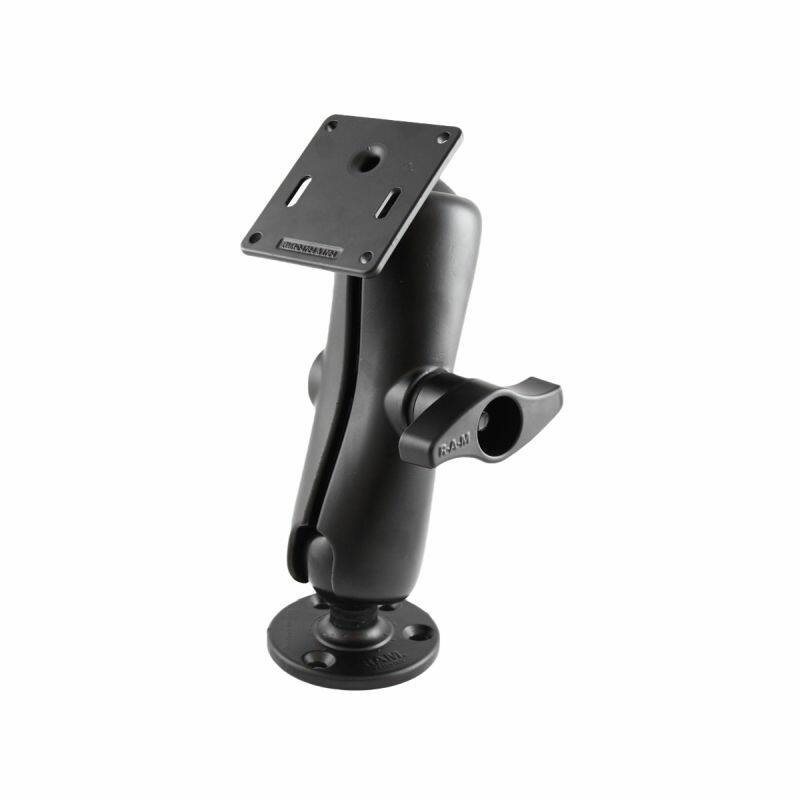

RAM-D-101U-2461 RAM® Double Ball Mount with 75x75mm VESA Plate - D Size Medium


* Square plate features the VESA hole pattern for connection to a wide variety of devices
* RAM® double socket arm and 93.5mm round plate included
* RAM® ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

The RAM-D-101U-2461 consists of a round base, STANDARD length double socket arm and 92mm square plate with the VESA hole pattern.

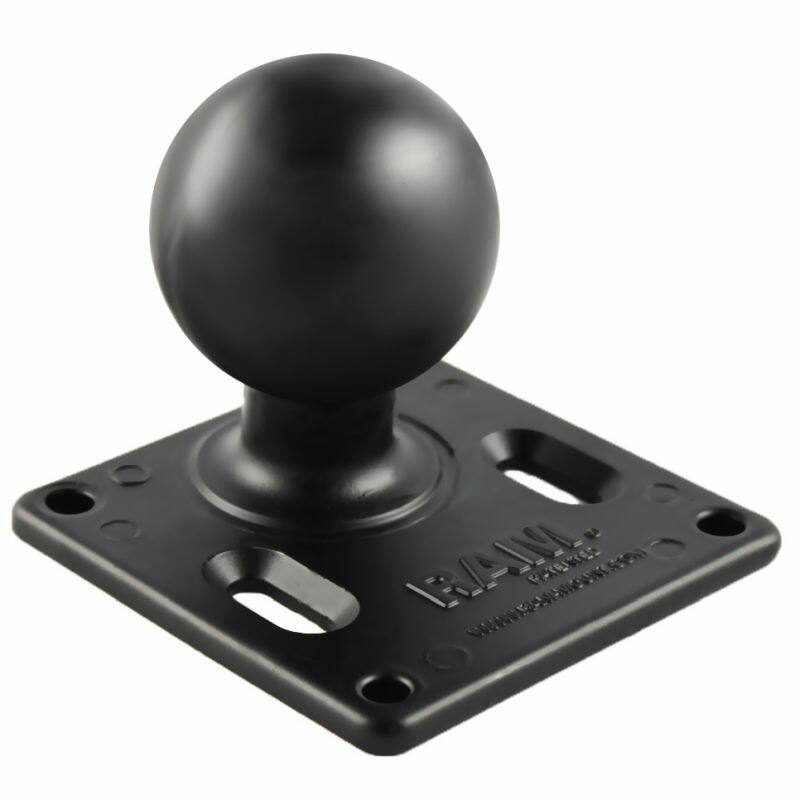

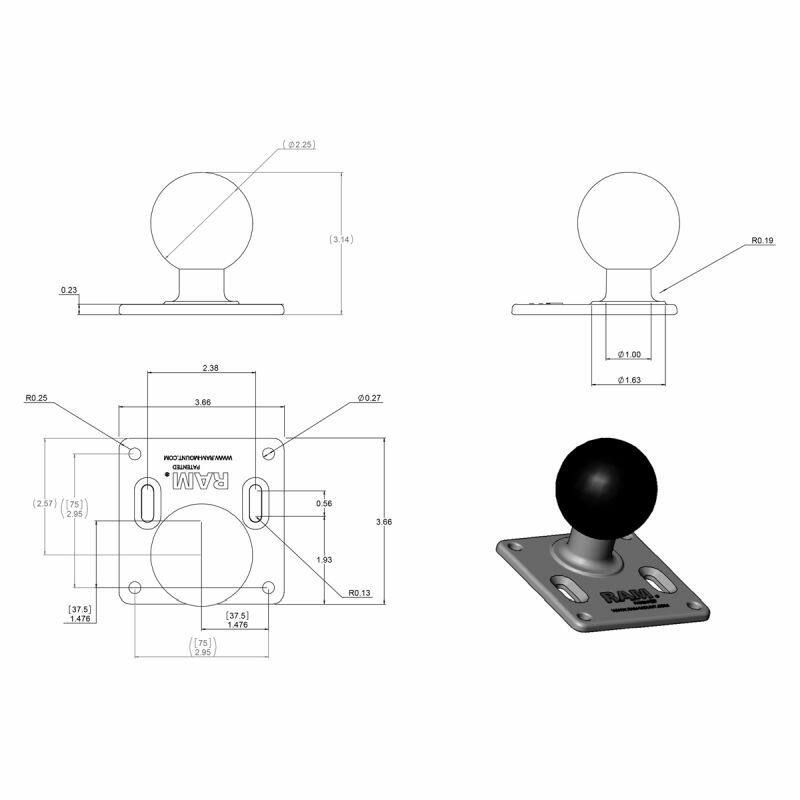

The Square base consists of a 57mm rubber ball, connected to a 92mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 22.3mm from the centre of one edge.

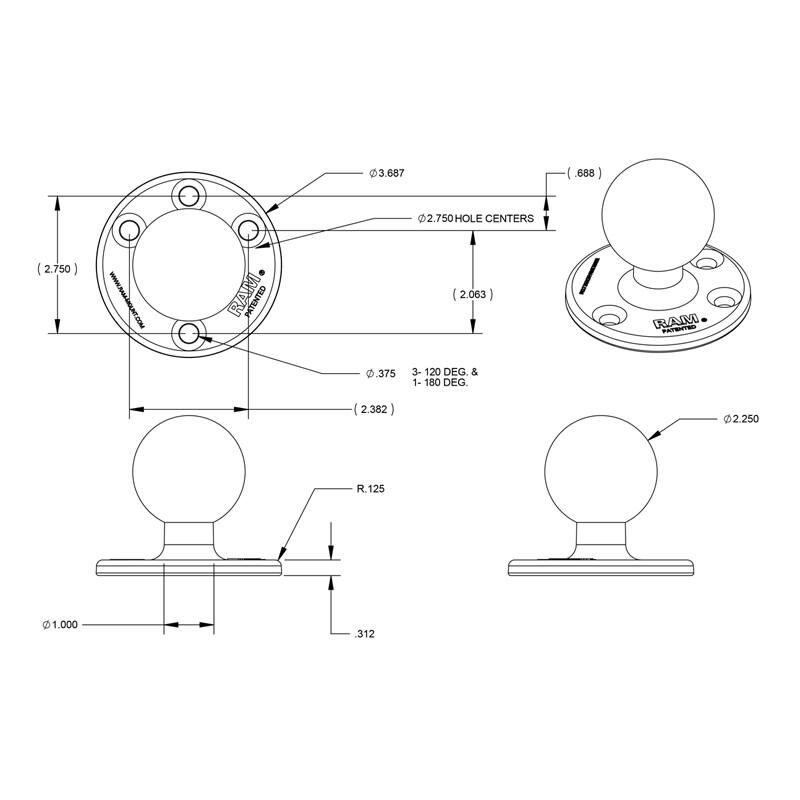

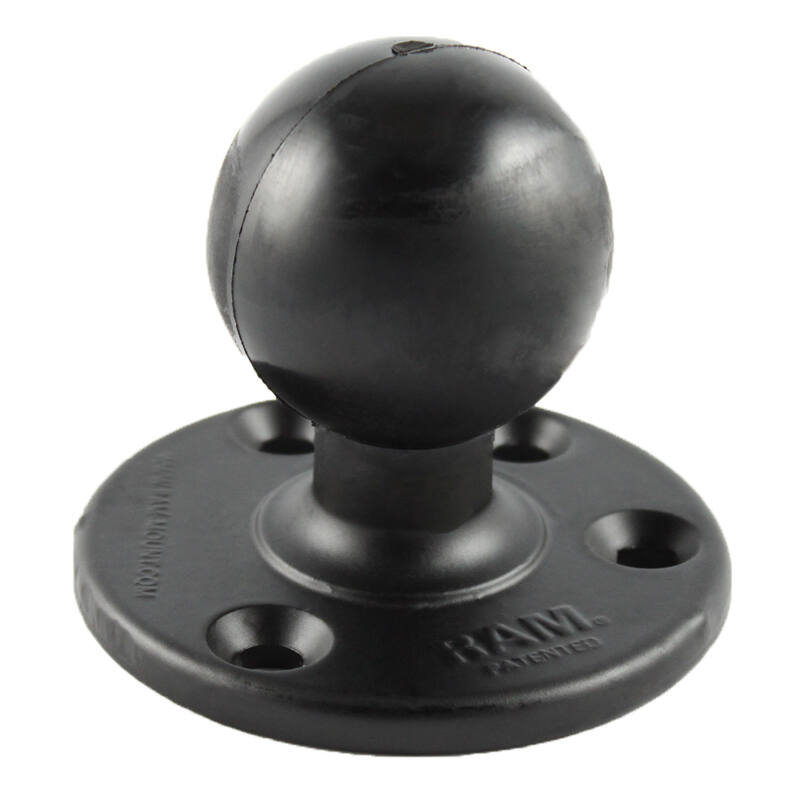

The 93.5mm diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 57mm diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

The VESA plate is compatible with electronic devices including the following:
MobileDemand XTablet T8600
Glacier Computer Ridgeline
Routeware DMS 5000
Honeywell RT10

Specs & Features

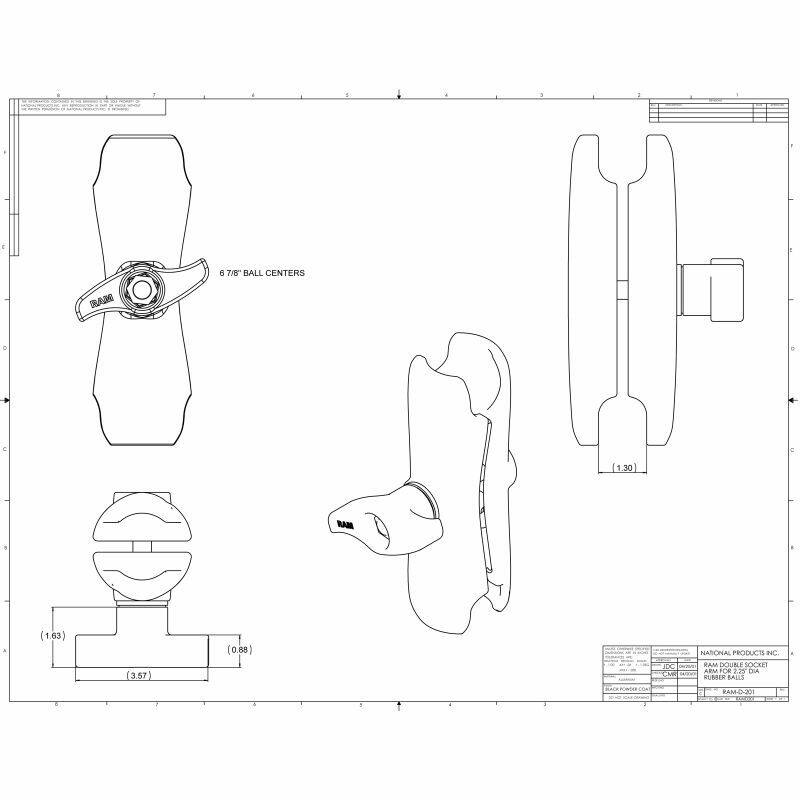

Arm Dimensions
Overall Length:
212.7mm ( 8.375")
Socket-To-Socket Length:
166.6mm (6.5625")

Weight Capacity
Standard Use: 2.72kg (6 lbs)
Heavy-Duty Use: 2.26kg (5 lbs)

Powder Coated Marine Grade Aluminium

Ball Size:
2.25" (57mm) Rubber Ball "D" Size

1.77kg (3.91 lbs.)

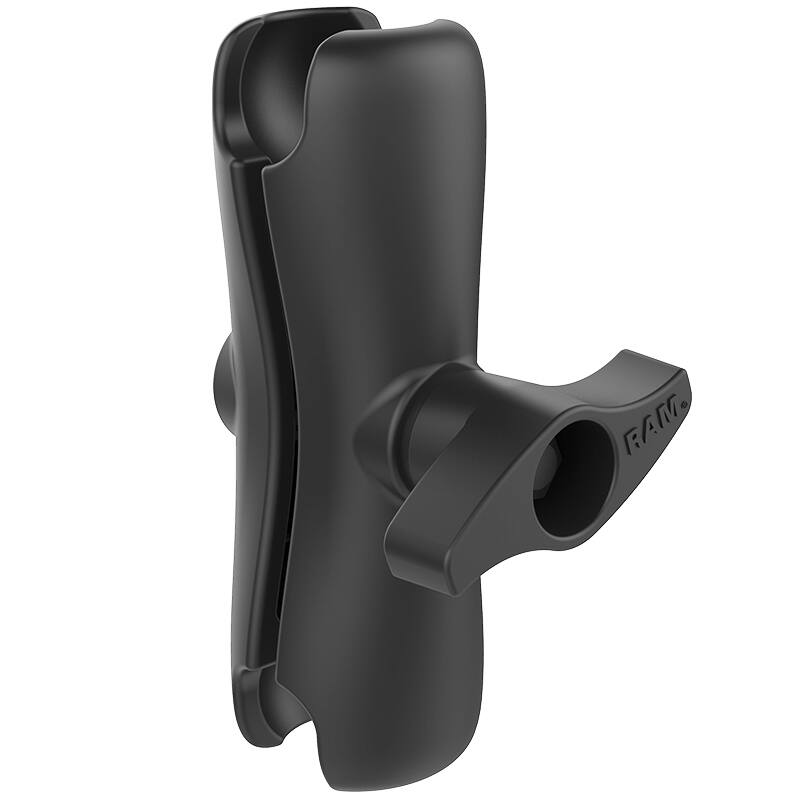

RAM-D-201U - double socket arm
RAM-D-202U - 3.68" round base
RAM-D-2461U - square base
