RAM Mounts

RAM Suction Cup Base - Triple Cup with medium arm and round base - 1" Ball

RAM Suction Cup Base - Triple Cup with medium arm and round base - 1" Ball

SKU:RAP-B-365-101U-v

Regular price $166.00 NZD
Regular price Sale price $166.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAP-B-365-101U RAM® Twist-Lock™ Triple Suction Cup Mount with Round Plate


Features

* RAM® Twist-Lock™ triple suction cup base is ideal for windshields and other nonporous surfaces
* Medium RAM arm with ball and socket technology allows for near-infinite adjustability
* Included round base plate includes 3 and 4 hole AMPs patterns for most RAM cradles
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

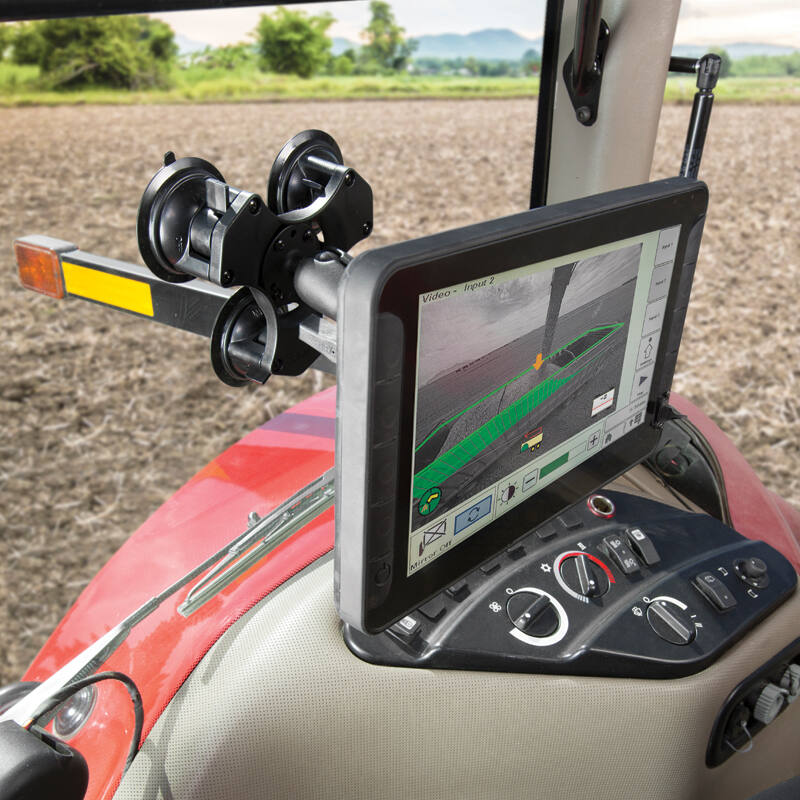

Ideally suited to a wide range of agricultural, commercial, and industrial uses, RAM's new triple suction cup base makes it possible to mount your electronics for optimum access, viewing, and safety. This suction mount is ideal for high vibration environments (e.g. helicopters) and consists of a triple 83.8mm / 3.3" twist lock suction cup base with plate that contains the universal AMPs hole pattern. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.


The round plates are 1" diameter rubber balls connected to flat 63mm (2.5 inch) diameter base. The bases have pre-drilled holes, including the universal AMPs hole pattern.

Arm Dimensions:

Overall Length: 143mm (5.625")

Socket-To-Socket Length:114mm (4.5")




Suction Size
(3) x 84mm (3.3") Diameter Bases,

Total Width
201.9mm (7.95")

Material:
Powder-coated marine-grade aluminum
High Strength Composite

Weight:
839 grams (1.85lbs)


Components

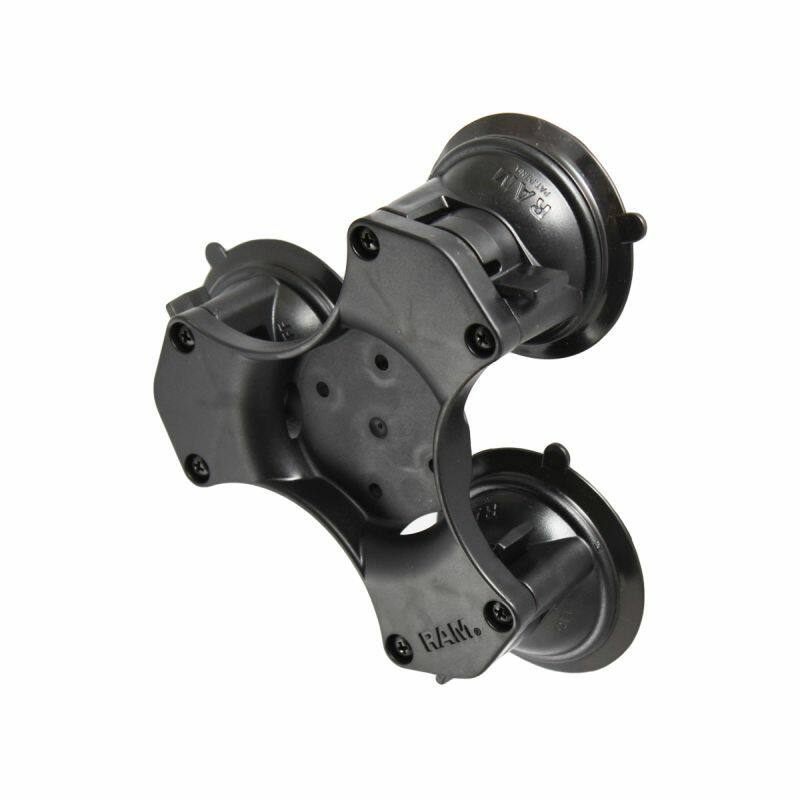

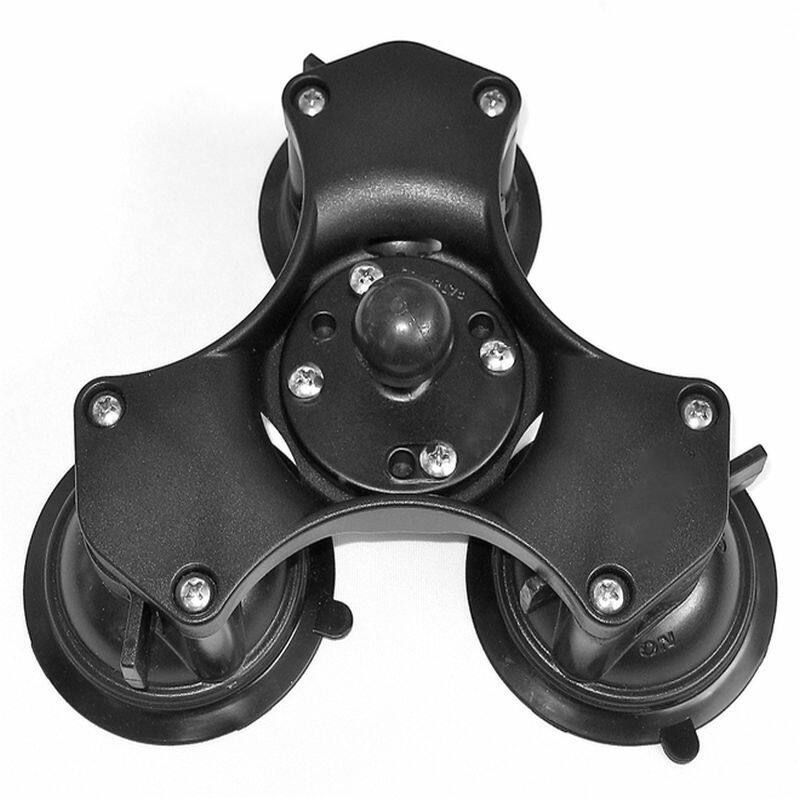

RAP-365-224-1BU Triple Suction Cup Base with AMPs Hole Pattern

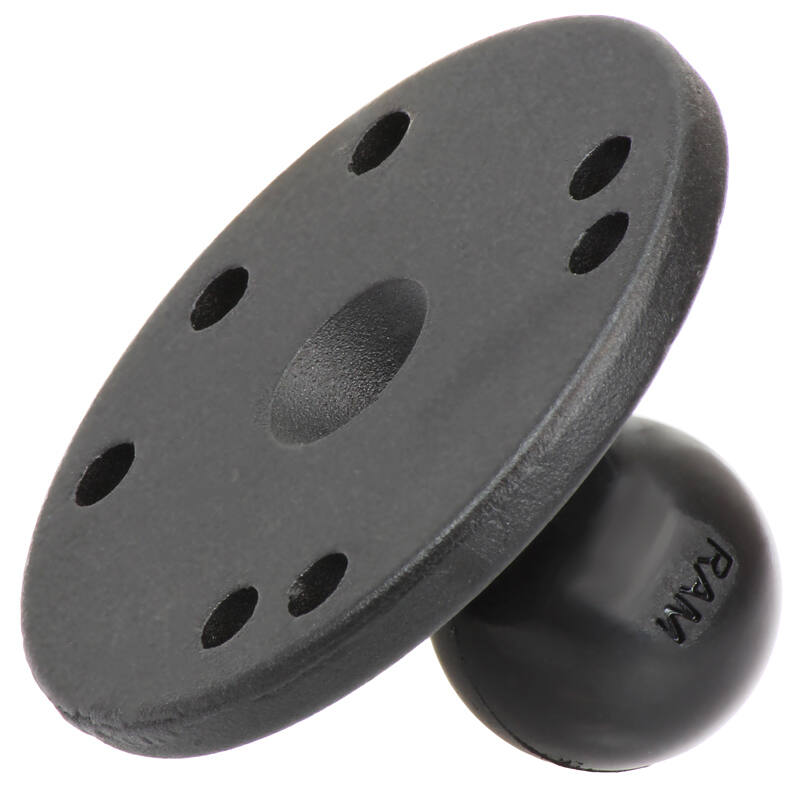

RAM-B-202U 2.5" / 63mm DIA. BASE 1" Ball (x 2)
RAM-B-201U Standard Double Socket Arm for 1" Balls

YouTube:
https://www.youtube.com/watch?v=gjZxBRWNng0
