RAM-166-TAB17U RAM® Tab-Tite™ Suction Cup Mount for iPad Gen 1-4 (C-Series)

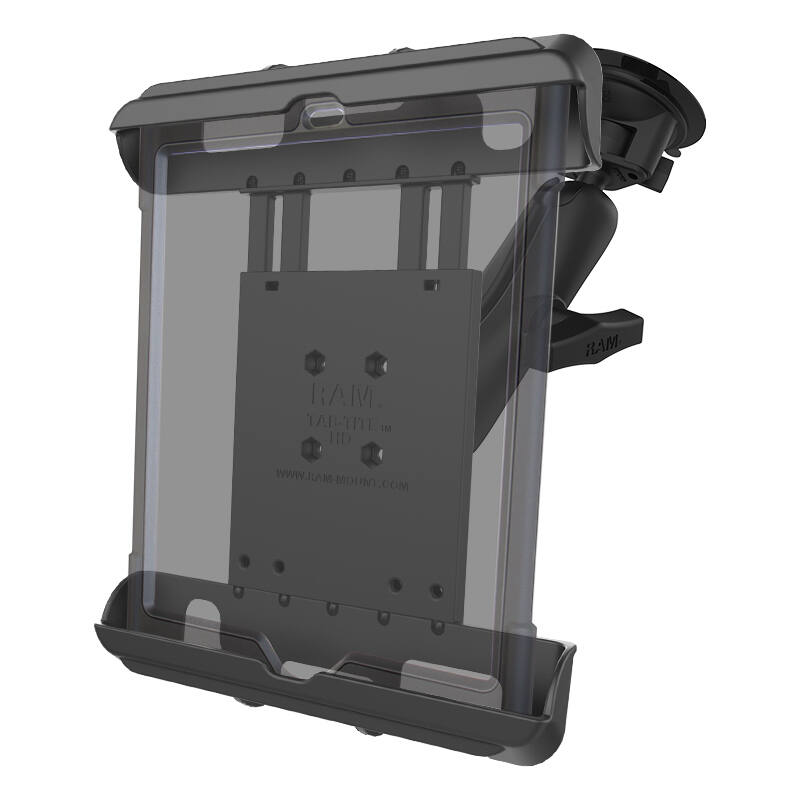

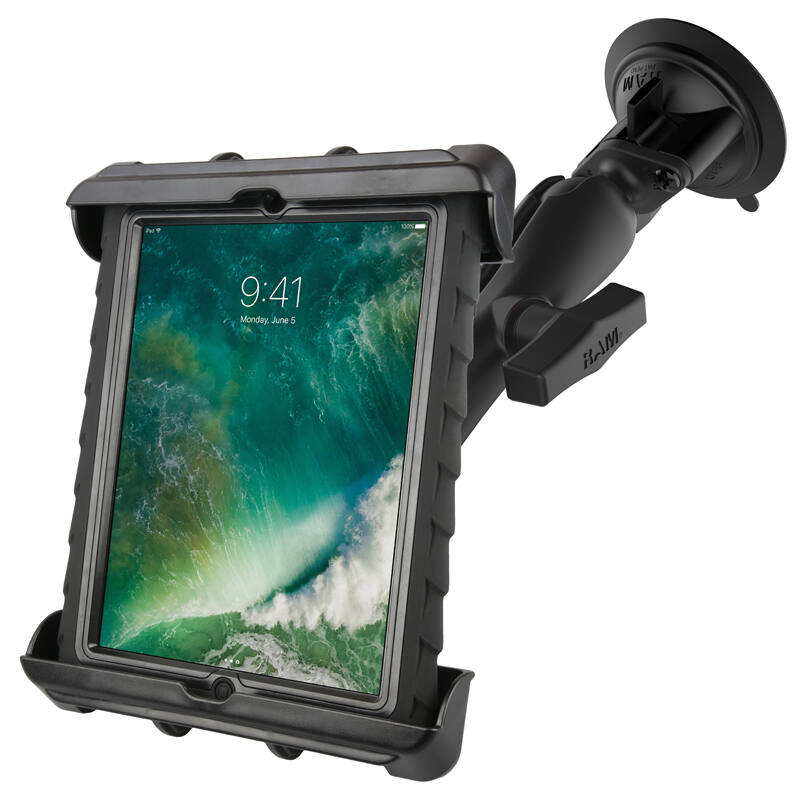

The RAM-166-TAB17U is a complete RAM® suction cup mount for the Apple iPad Gen 1-4 in a case and other 10" tablets. It pairs the spring-loaded RAM® Tab-Tite™ cradle with a RAM® Twist-Lock™ suction base on the heavier-duty C-size (1.5") arm and ball, for a stronger hold on glass or a flat surface such as a benchtop.
Key Features
Complete mount: cradle, suction base and C-size arm in one kit.
C-size 1.5" ball: the larger, heavier-duty RAM® ball and socket for a stronger hold and higher load rating than the standard 1" version.

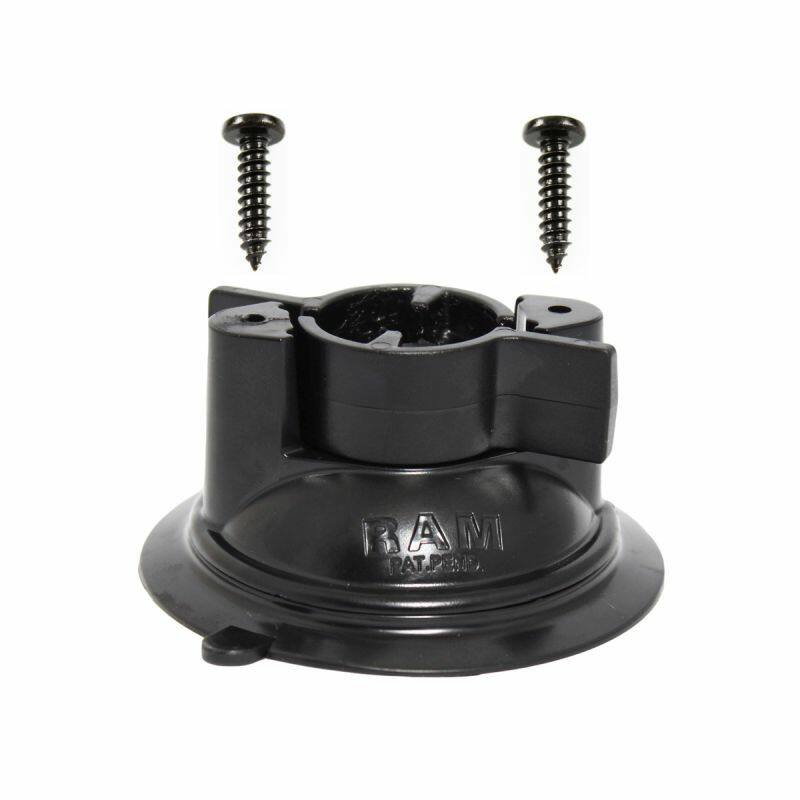

Twist-Lock suction base: 83.8mm (3.3") cup grips glass and smooth, non-porous surfaces. Suits windscreens, benchtops and flat panels.

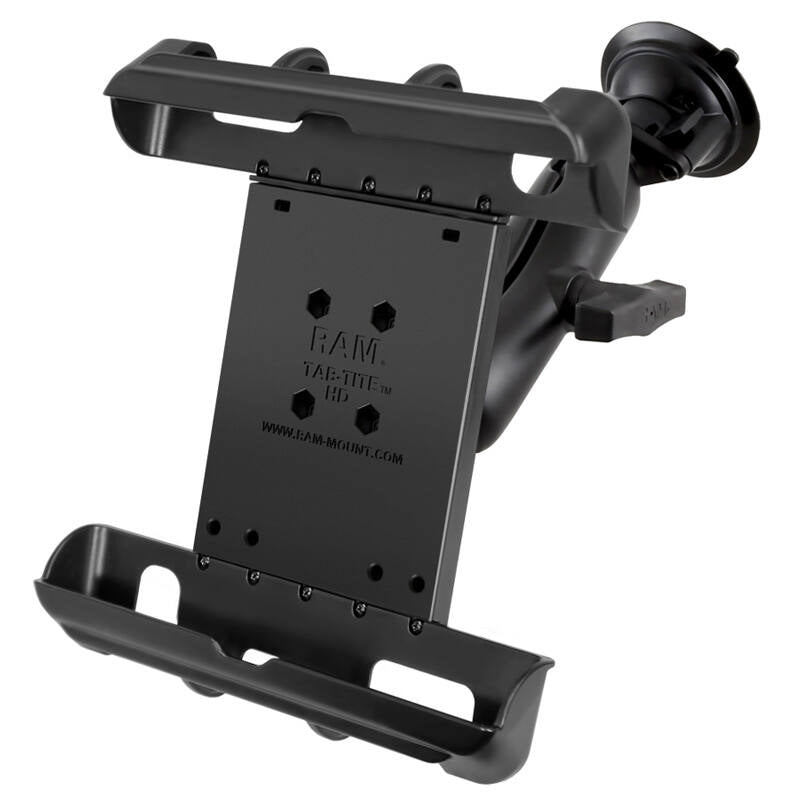

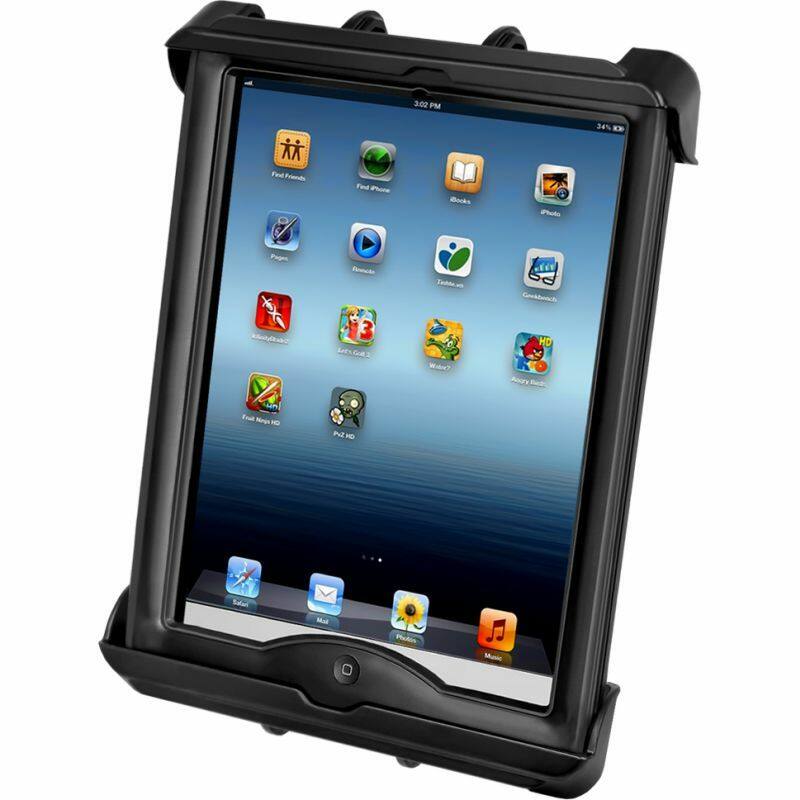

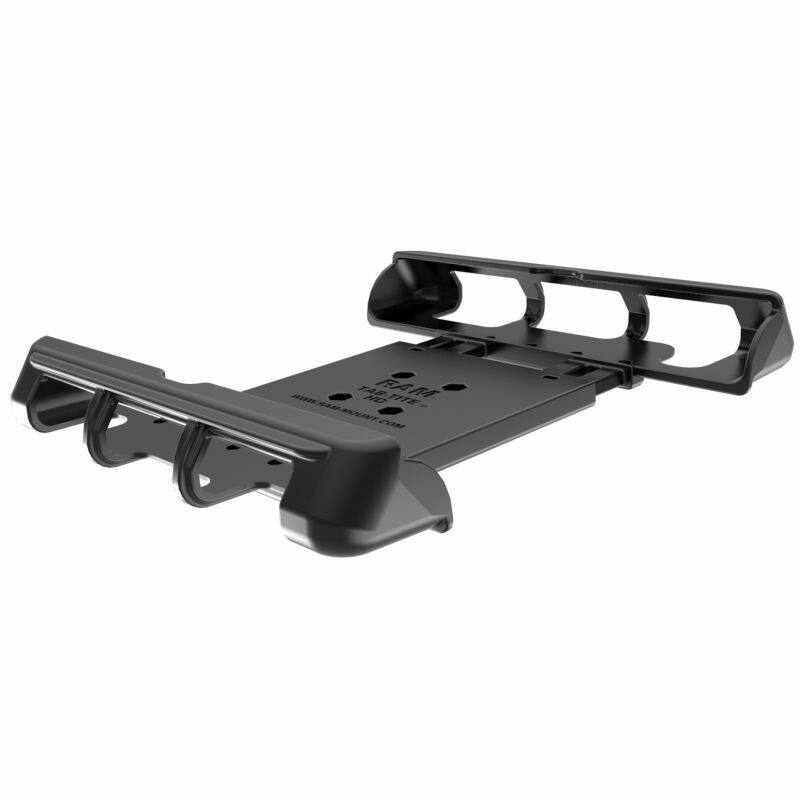

Spring-loaded Tab-Tite cradle: holds the tablet top and bottom with interchangeable end cups.
Built to last: marine-grade aluminium and high-strength composite, backed by RAM®'s lifetime warranty.
Works With
Sized for the iPad Gen 1-4 in a case and most 10" tablets that fit the cradle dimensions below. The C-size 1.5" ball pairs with any RAM® C-size double socket arm. Mounts to glass and other smooth, non-porous surfaces.
Compatible Devices
Apple
iPad (1st to 4th Generation) with case
Dell
Venue 10 7000 with case
Google
Nexus 10 with case
HP
ElitePad 900 G1 with case
Pro 610 with case
Pro Slate 10.1 with case
Lenovo
S6000 with case
Yoga Tablet 2 (10 inch) with case
Plus any tablet that fits within the cradle dimensions below.
Dimensions & Specifications
Cradle height range: 241–298mm (9.5"–11.75")
Cradle width range: 162–210mm (6.375"–8.25")
Cradle depth range: 3.3–28mm (0.13"–1.1")
Suction cup diameter: 83.8mm (3.3")
Ball size: C Series 1.5"
Arm length: 144.5mm (5.69") overall, 118.4mm (4.66") socket-to-socket
Load rating: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use

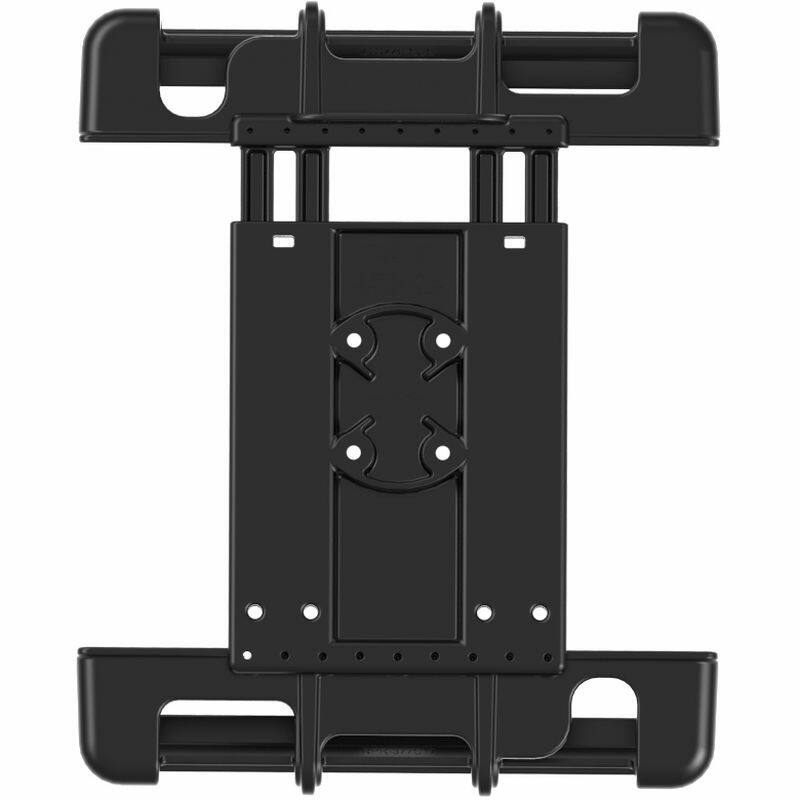

Hole pattern: 4-Hole AMPS, 1.181" x 1.496" (30mm x 38mm)
Material: marine-grade aluminium and high-strength composite
Weight: 671g (1.48 lb)
What's Included
RAM® Tab-Tite™ spring-loaded cradle (back plate and end cups)
RAM® Twist-Lock™ suction cup base with 1.5" ball
RAM® C-size double socket arm

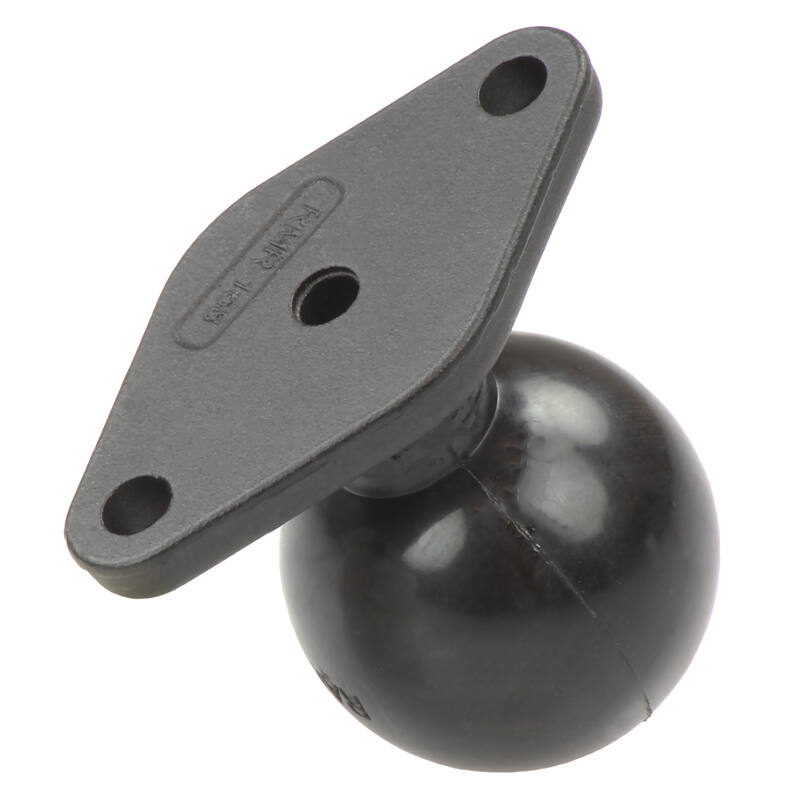

Round/diamond base adapter with 1.5" ball

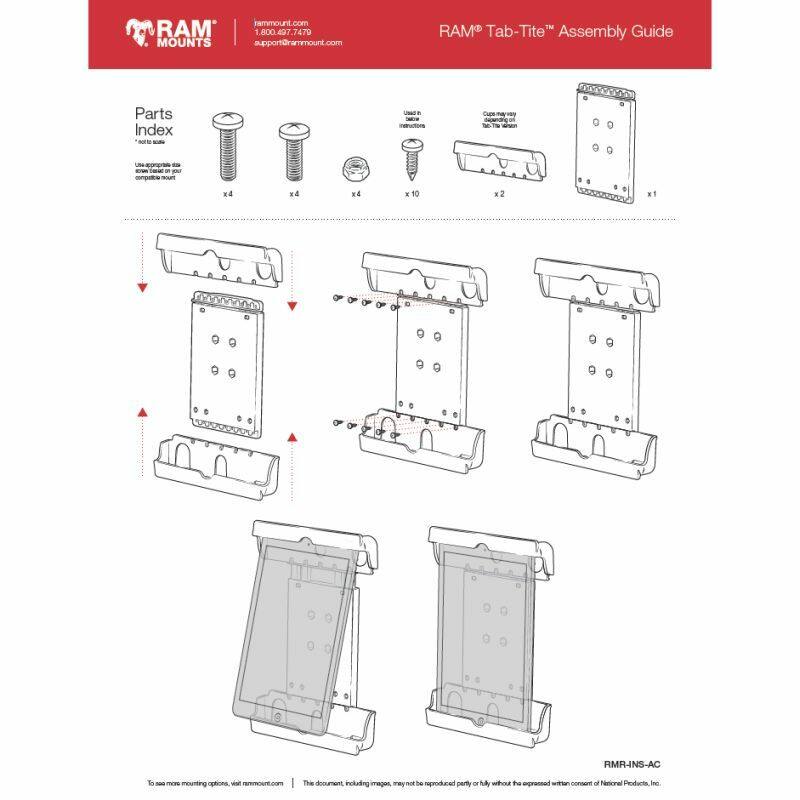

Assembly hardware
FAQs
How is this different from the B-size suction mounts? It uses the larger C-size 1.5" ball and arm, which gives a higher load rating and a stronger hold for heavier 10" tablets.
Will it hold on a benchtop or glass? Yes, the Twist-Lock suction base grips smooth, non-porous surfaces such as glass or a flat panel.
How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
