RAM Tab-Tite Cradle - 10" Tablets including iPad Pro 9.7 with Case

RAM-HOL-TAB8U RAM® Tab-Tite™ Cradle for 10" Tablets with Case

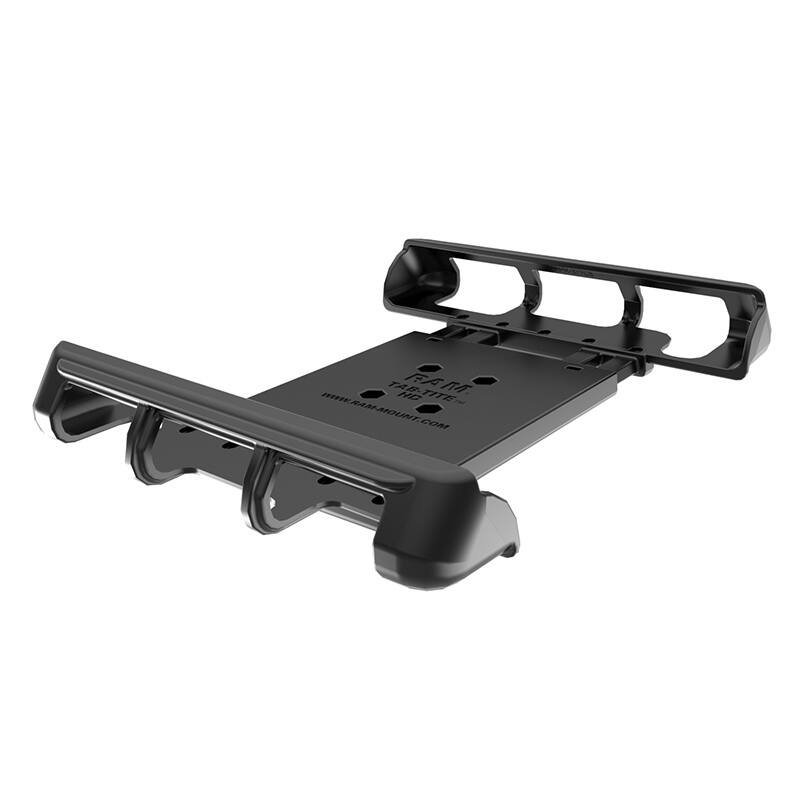

The RAM-HOL-TAB8U is RAM® Mounts' spring-loaded Tab-Tite™ cradle for 10" tablets in a case, sized around the Apple iPad Pro 9.7 (1st Gen) with a case. It grips the tablet top and bottom with quick-release end cups and bolts onto any RAM® component with the standard AMPS hole pattern, so you can build it into a car, truck, boat, aircraft or desk mount. This listing is the cradle on its own, ready to pair with the RAM® ball base and arm of your choice.

Key Features

• Spring-loaded grip: holds 9.7" to 10.5" tablets with or without a case, with one-handed load and release.
• Interchangeable end cups: swap the cups to re-fit the cradle when you upgrade devices rather than buying a whole new holder.

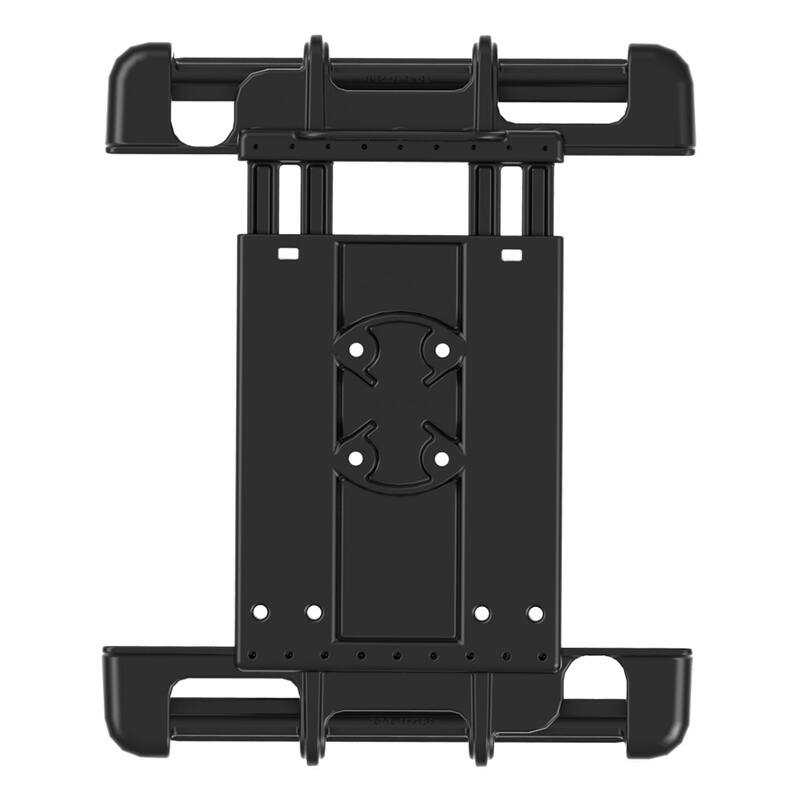

• Universal AMPS pattern: the back plate carries the 4-hole AMPS pattern and takes B-size (1") and C-size (1.5") RAM® round ball bases for near-infinite ball-and-socket adjustment.
• Built to last: high-strength composite construction for vibration resistance in demanding environments, backed by RAM®'s lifetime warranty.

Works With

The cradle bolts to any RAM® base, arm or plate that uses the universal AMPS hole pattern, and the back plate accepts both B-size (1") and C-size (1.5") round ball bases. Fit is determined by the tablet's measured size, not the brand, so check your device against the cradle dimensions below.

Compatible Devices

Apple

• iPad Pro 9.7 (1st Gen) with or without case
• iPad (9th Gen) 10.2" with or without case

Plus any tablet that fits within the cradle dimensions below.

Dimensions & Specifications

• Cradle height range: 229–292mm (9"–11.5")
• Cradle width range: 162–211mm (6.38"–8.31")
• Cradle depth range: 3.3–28mm (0.13"–1.12")
• Hole pattern: 4-Hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Material: high-strength composite
• Weight: 295g (0.65 lb)

What's Included

• RAM® Tab-Tite™ spring-loaded cradle (back plate and end cups)
• Assembly hardware: (4) #8-32 x 5/8" machine screws, (4) #8-32 x 1/2" machine screws, (4) #8-32 Nylock nuts

Replacement end cups for this cradle are available here: RAM-HOL-TAB8-CUPSU end cups.

FAQs

Does this come with a mount or base? No. The RAM-HOL-TAB8U is the cradle only. To complete a mount you add a RAM® ball base (B or C size) and a double socket arm. If you'd rather buy it ready to go, see our TAB8 cradle with a C-series or B-series ball base built in.

Will my tablet fit? If your tablet (in its case) sits within the height, width and depth ranges above, it will fit. The cradle is sized around the iPad Pro 9.7 with a case.

Can I reuse it when I upgrade my tablet? Often, yes. The end cups are interchangeable, so a new pair of cups can re-fit the same back plate to a different device.

How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.

Videos

Watch the RAM® Tab-Tite™ overview on YouTube
