RAM Mounts

RAM Tab-Tite Cradle - 10" Tablets with Drill Down Mount

RAM Tab-Tite Cradle - 10" Tablets with Drill Down Mount

SKU:RAM-B-138-TAB8U-v

Regular price $113.42 NZD
Regular price Sale price $113.42 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

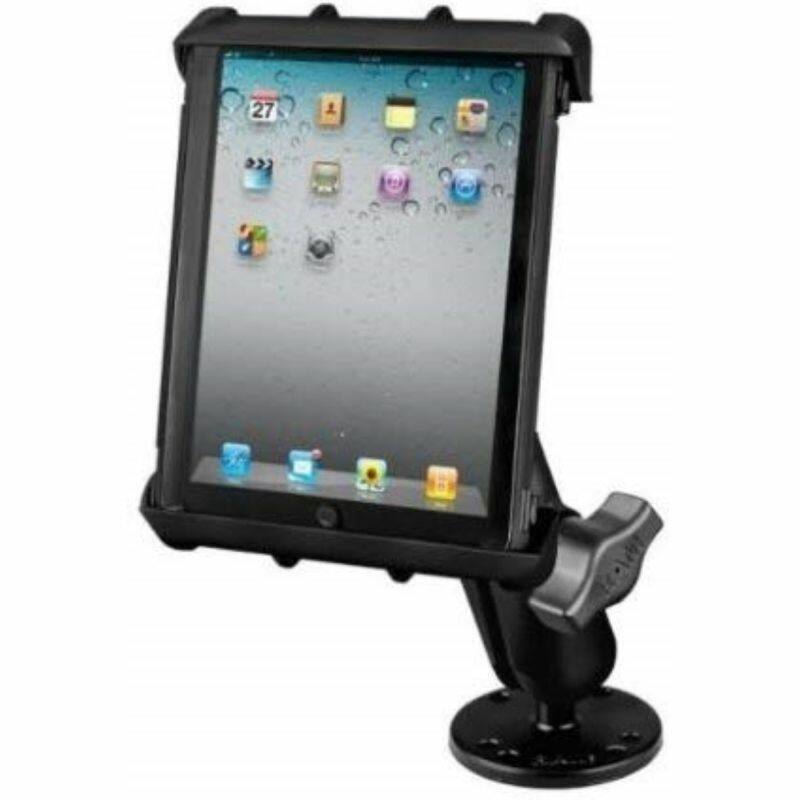

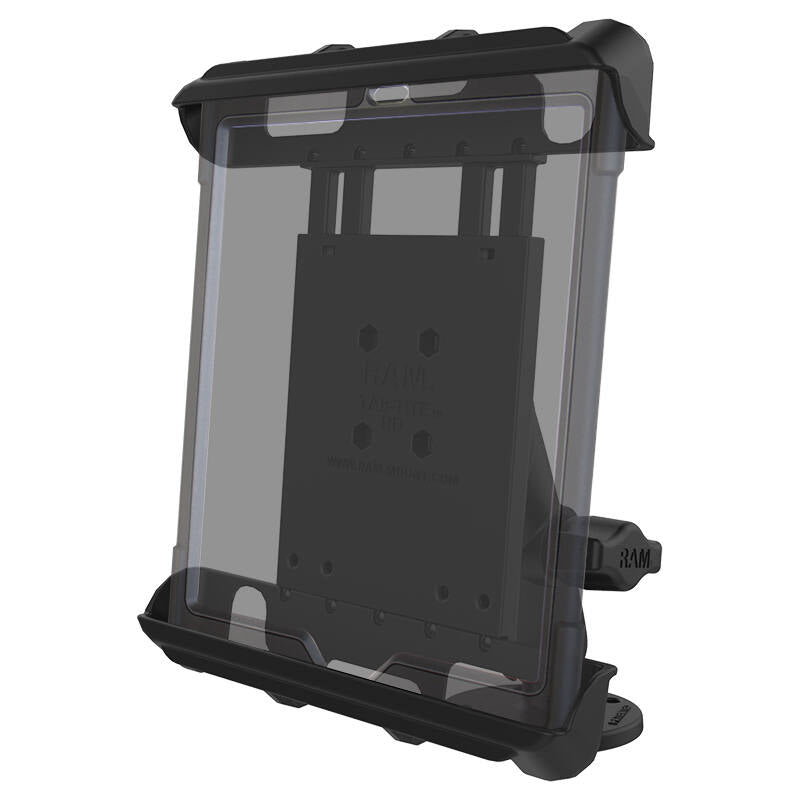

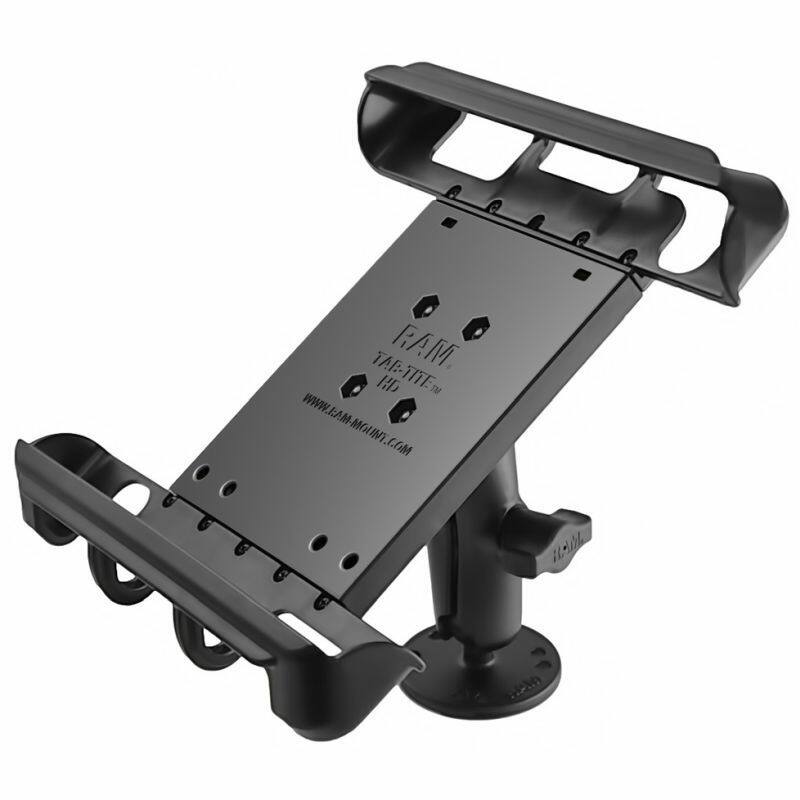

RAM-B-138-TAB8U RAM Flat Surface Mount with Tab-Tite Cradle for 10" Tablets (with cases)

Features

* Spring-loaded holder secures the iPad Pro 9.7 (1st Gen) with case; interchangeable end cups allow you to modify the holder when upgrading devices
* Drill down B series mount includes round base with AMP's hole pattern
* Made of marine grade aluminium alloy and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


This consists of a 2.5" diameter round base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. It's designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

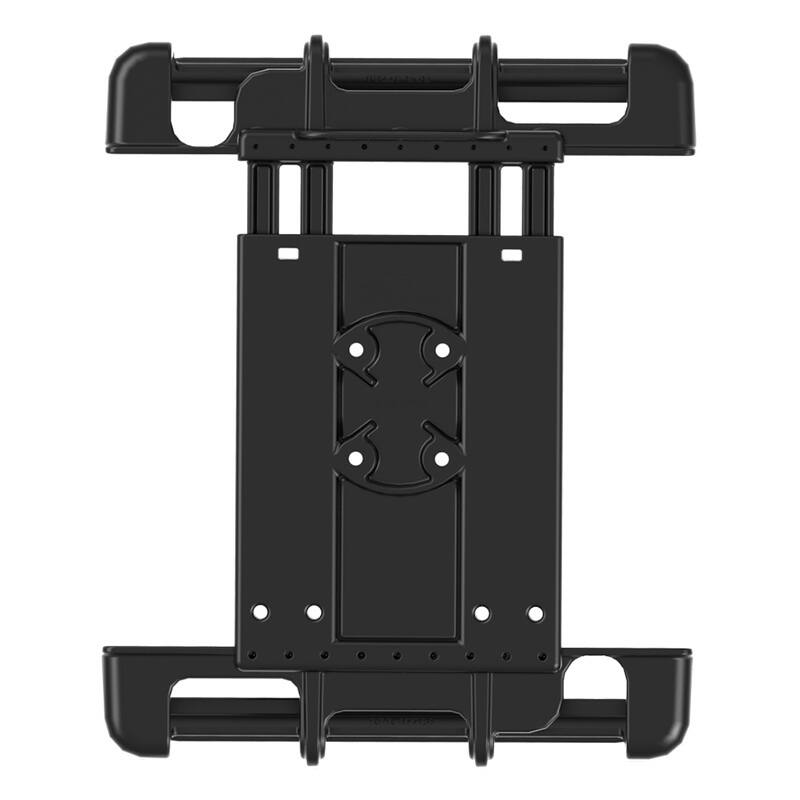

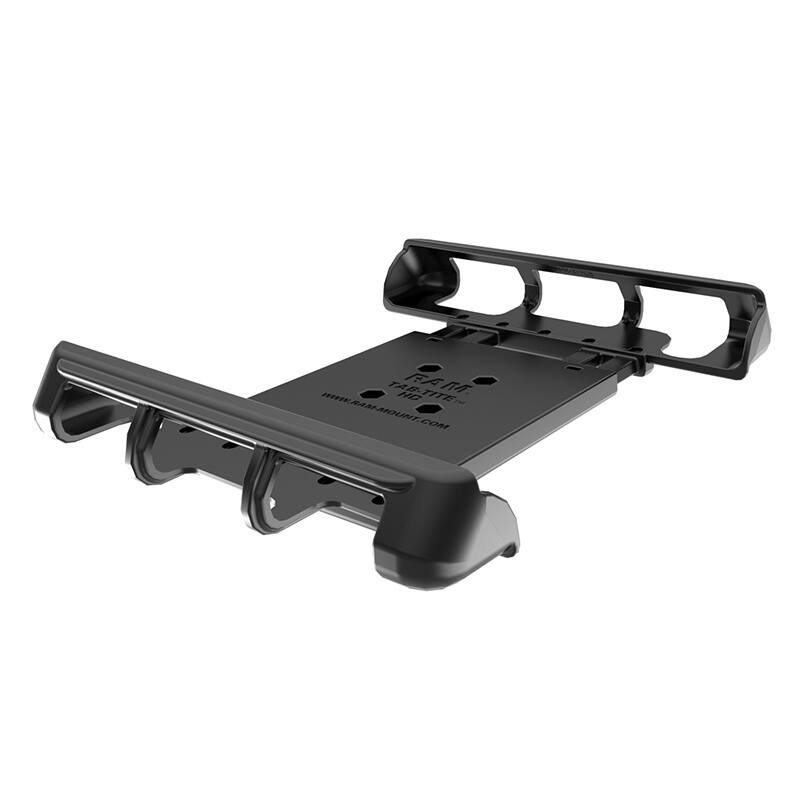

The Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet and keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.


The cradle is compatible with any 10" tablet that will fit the dimensions listed below. Please verify the dimensions of your tablet when determining the overall size.


Cradle Dimensions:

Height: 229mm to 292mm (9" to 11.5")
Width: 162mm to 211mm (6.38" to 8.31")
Depth: 3.3mm to 28mm (0.13" to 1.12")


Compatible Devices Include:

Apple iPad Pro 9.7 (1st Generation) with Case
Samsung Galaxy Tab 10.x series,

10" Screen Tablets with:
OtterBox Defender cases
Gumdrop Drop Tech cases
Griffin Technology cases
Belkin cases
heavy duty cases

iPad Mini 4 with SupCase Unicorn Beetle case


Hardware Included
Assembly Hardware

Socket-to-Socket Length
76.2mm (3")

Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter


Plate Size
2.5" Diameter

Ball/Socket Size
B Size (1")

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

Materials
Marine-grade aluminium
High strength composite


Weight
417 grams (0.92 lbs.)

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


Components:

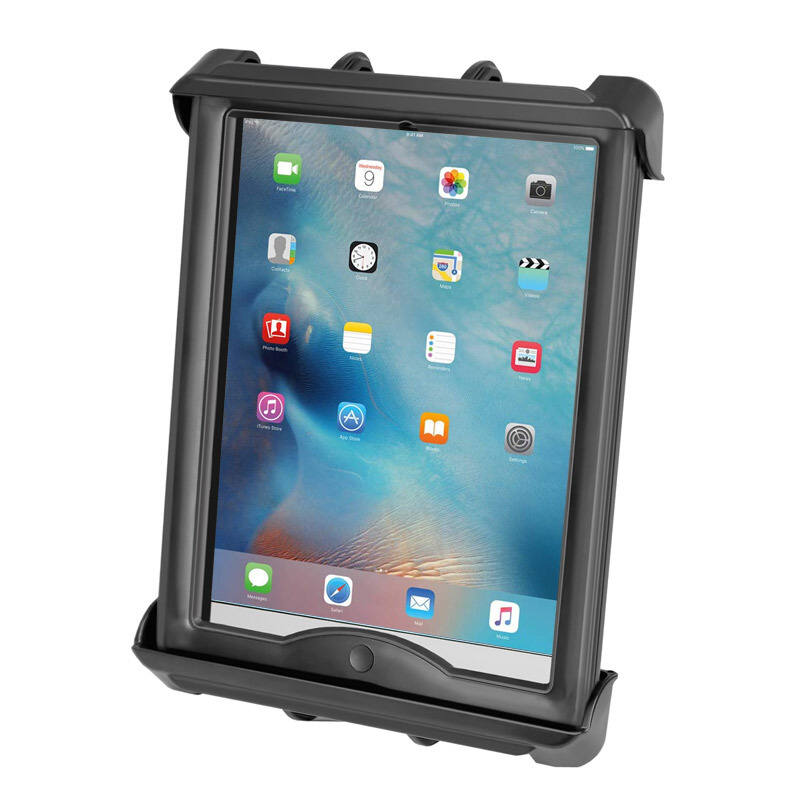

RAM-HOL-TAB8U TAB-TITE 10" TAB WITH CASE

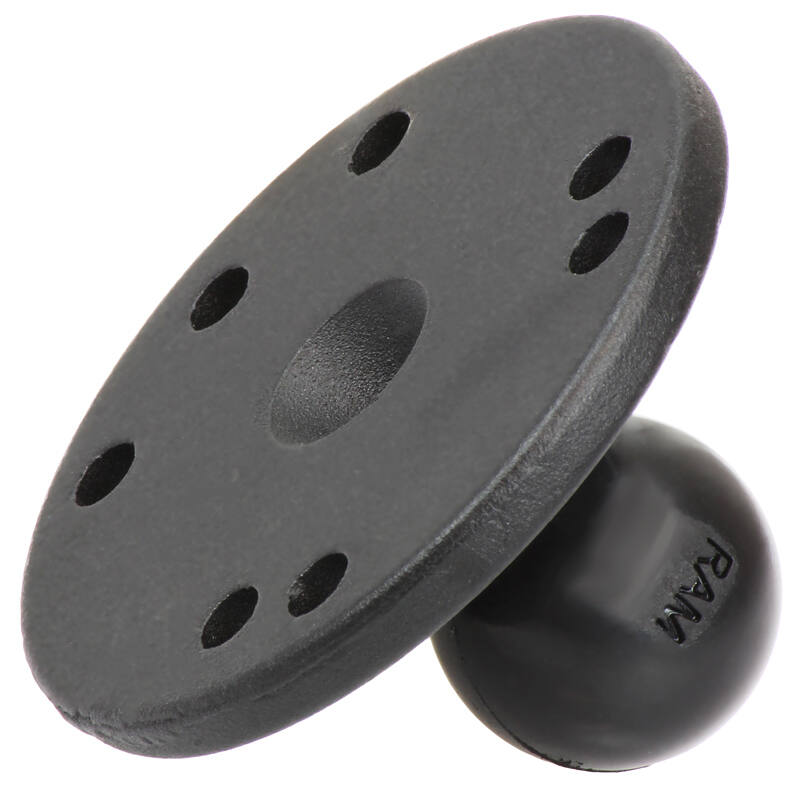

RAM-B-202U 62mm DIA.BASE
RAM-B-201U DOUBLE SOCKET ARM
