RAM-HOL-TAB10U RAM® Tab-Tite™ Tablet Holder for Panasonic Toughpad FZ-A1 + More
Features

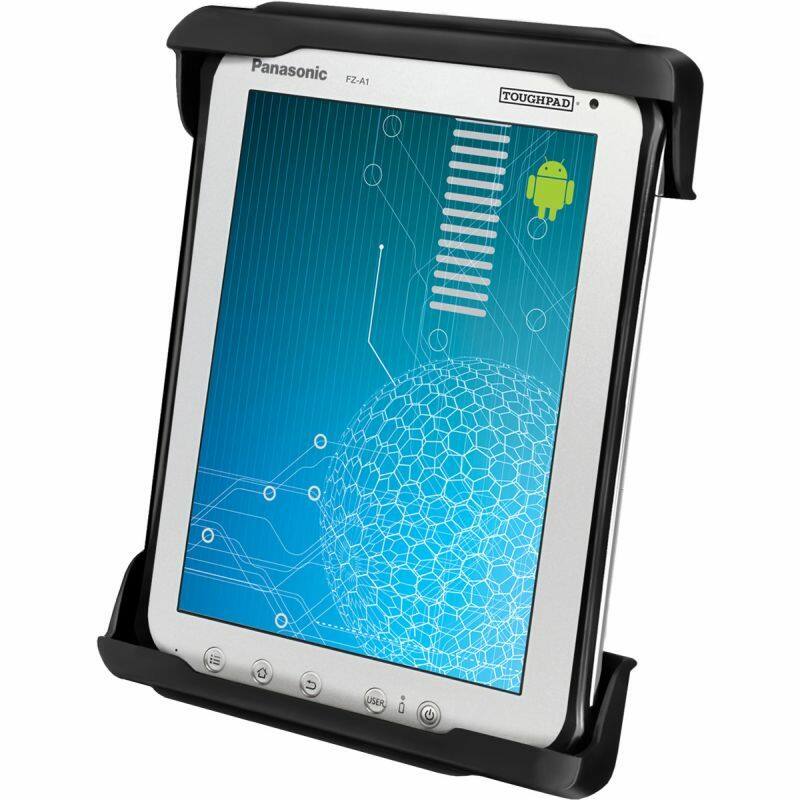

* Spring-loaded holder secures the Panasonic Toughpad FZ-A1 + More
* Interchangeable end cups allow you to modify the holder when upgrading devices
* Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

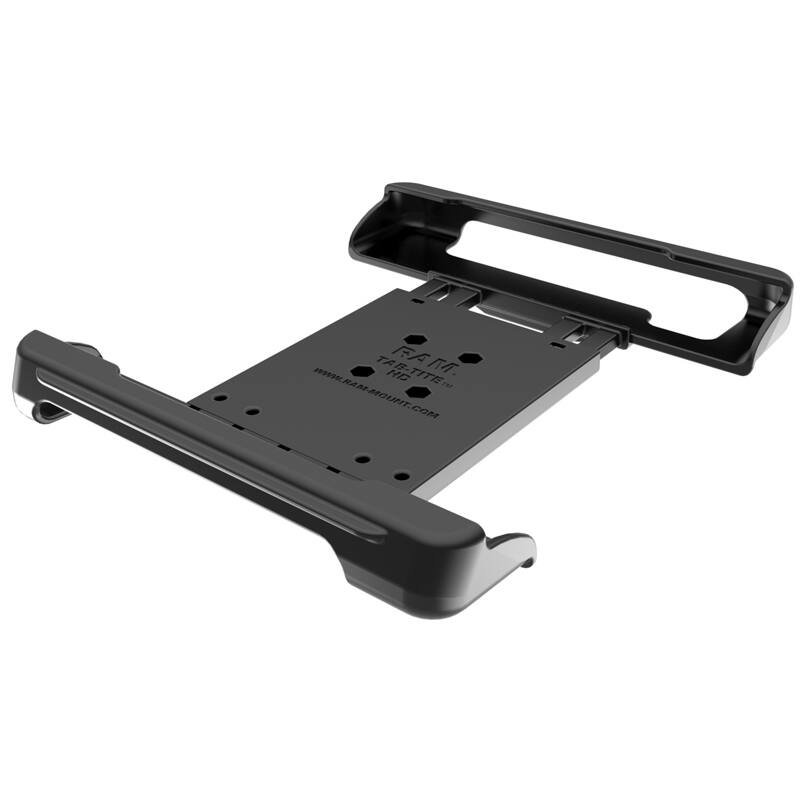

The spring loaded cradle is durable and allows for easy removal or insertion of your tablet. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, USB, power, and other ports, your tablet can be used just as it was intended. With a full complement of compatible mounts, you are sure to find the perfect solution for all your mobile needs. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

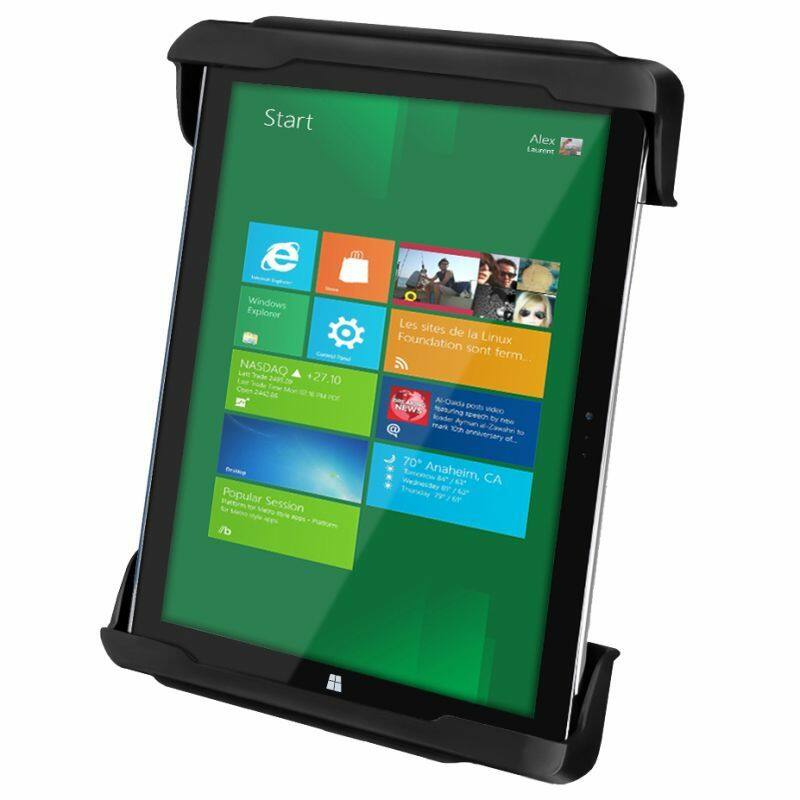

The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. Please see the compatible devices for known devices that fit in this cradle.
Cradle Dimensions:
H: 247mm - 305mm (9.75" - 12")
W: 162mm - 219mm (6.38" - 8.62")
D: 3.3mm - 25.4mm (0.13" - 1")
Compatible Devices:
Dell Latitude 5285
HP Pro X2 612
Panasonic Toughpad FZ-A1
Microsoft Surface 4 PRO in Incepto Case (Requires RAM-HOL-TAB-RISER2U when used with hand strap)

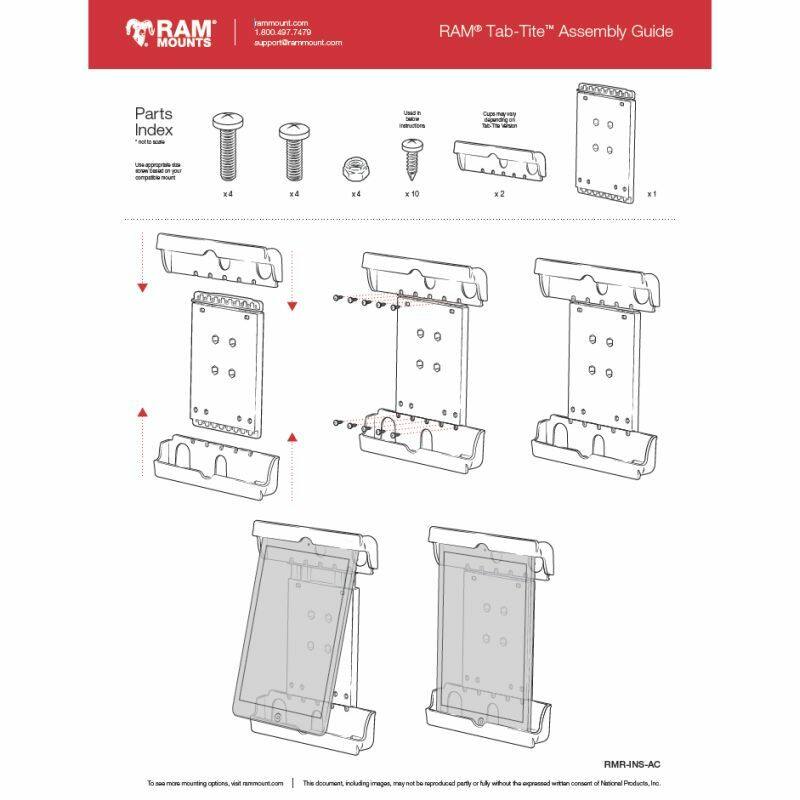

HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
Material:
High Strength Composite

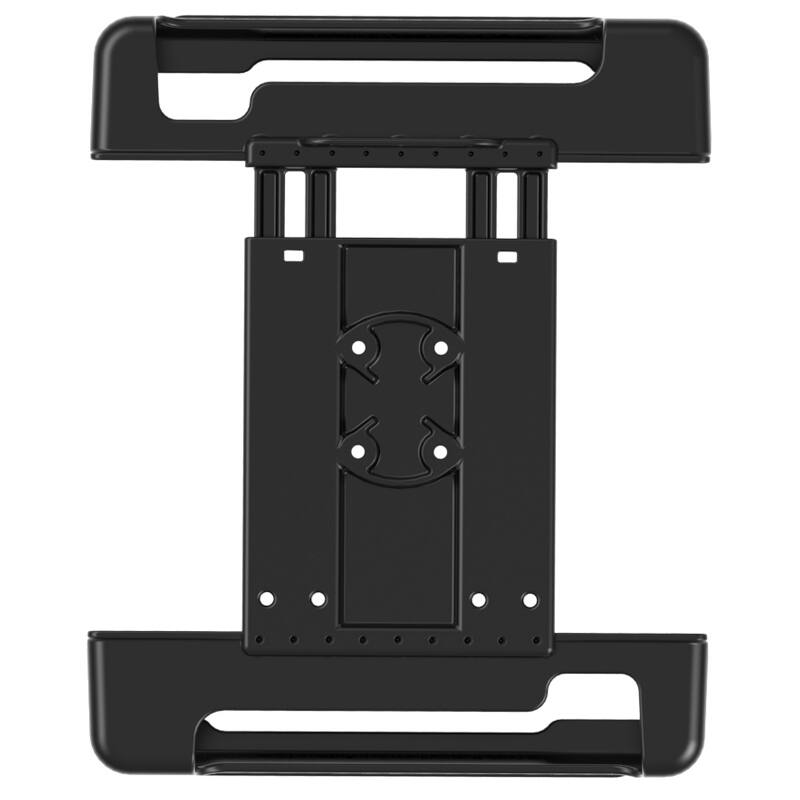

HOLE PATTERN
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
WEIGHT
254 grams (0.56 lbs.)
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
