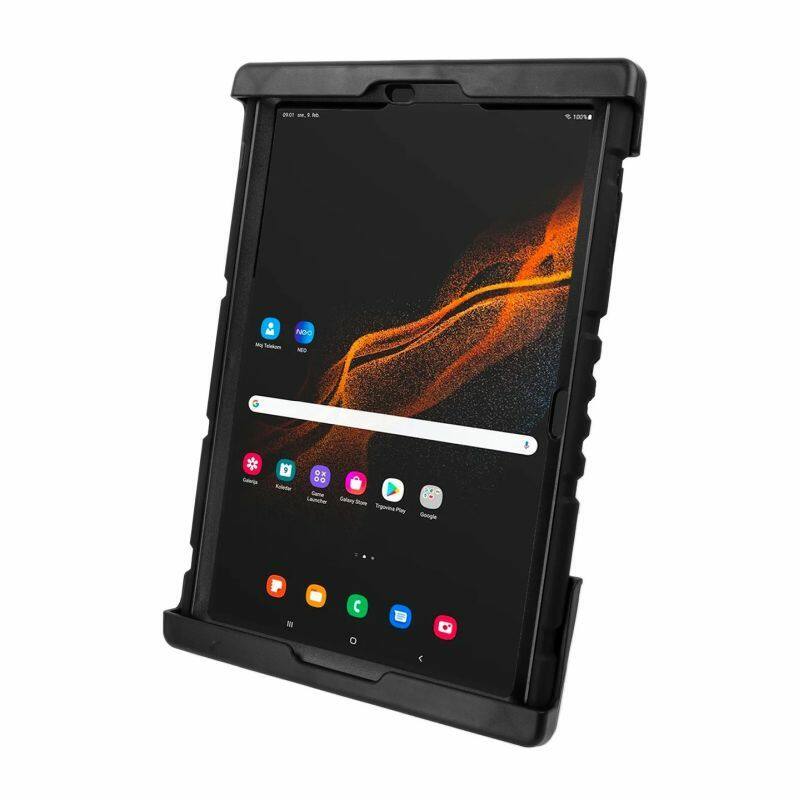

RAM-HOL-TAB36U RAM® Tab-Tite™ Tablet Holder for Samsung Tab S7+, S7 FE, S8+ & S9+ with Case
Features
* Spring-loaded holder secures the SSamsung Tab S7+, S7 FE, S8+ & S9+ with Case
* Interchangeable end cups allow you to modify the holder when upgrading devices
* Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

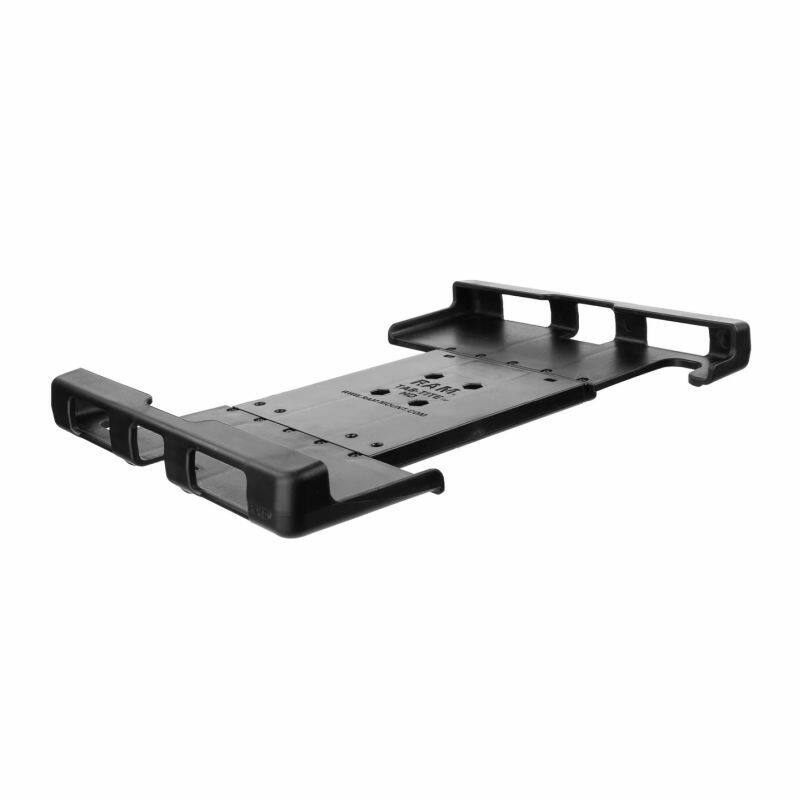

The RAM Tab-Tite spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab E 9.6. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions.
Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The Tab-Tite cradle is also compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
H: 292.1 to 355.6mm (11.5" - 14")
W: 206.4mm (8.125")
D: 20.1mm (.79")
Compatible Devices:
Samsung
Galaxy Tab S9 FE+ with Case
Galaxy Tab S9+ with Case
Galaxy Tab S8+ with Case
Galaxy Tab S7+ with Case
Galaxy Tab S7 FE with Case
Hardware included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
Materials
High strength composite
