RAM Tough-Track - End-Loading Composite 12" length

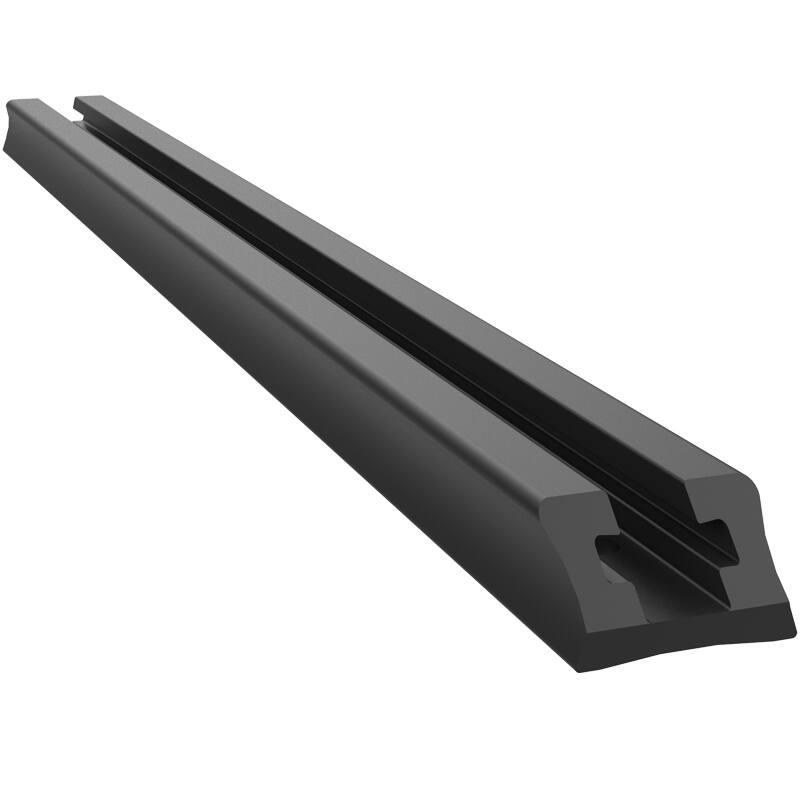

RAP-TRACK-DR-12U RAM® Tough-Track™ End-Loading Composite Track — 305mm (12")

The RAP-TRACK-DR-12U is a 305mm (12") extruded composite RAM® Tough-Track™ with a tapered end-loading profile, giving a cost-effective, stress-free way to slide track accessories on and off.

Key Features

• 305mm (12") of usable high-strength composite track
• Tapered end allows accessories to slide on and off without catching
• Sunken channel keeps the T-bolt from binding as it slides across the track

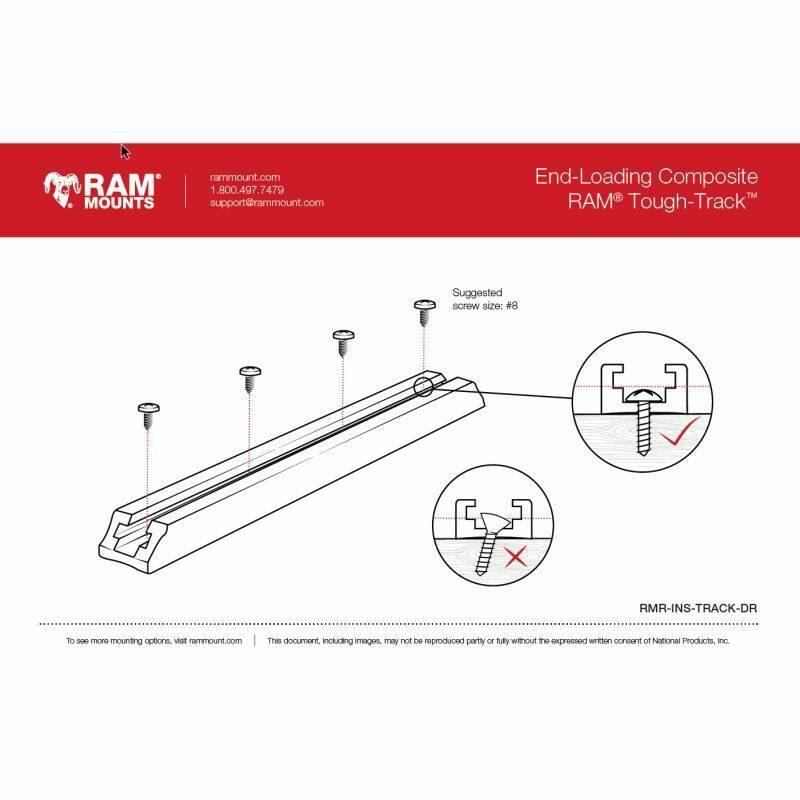

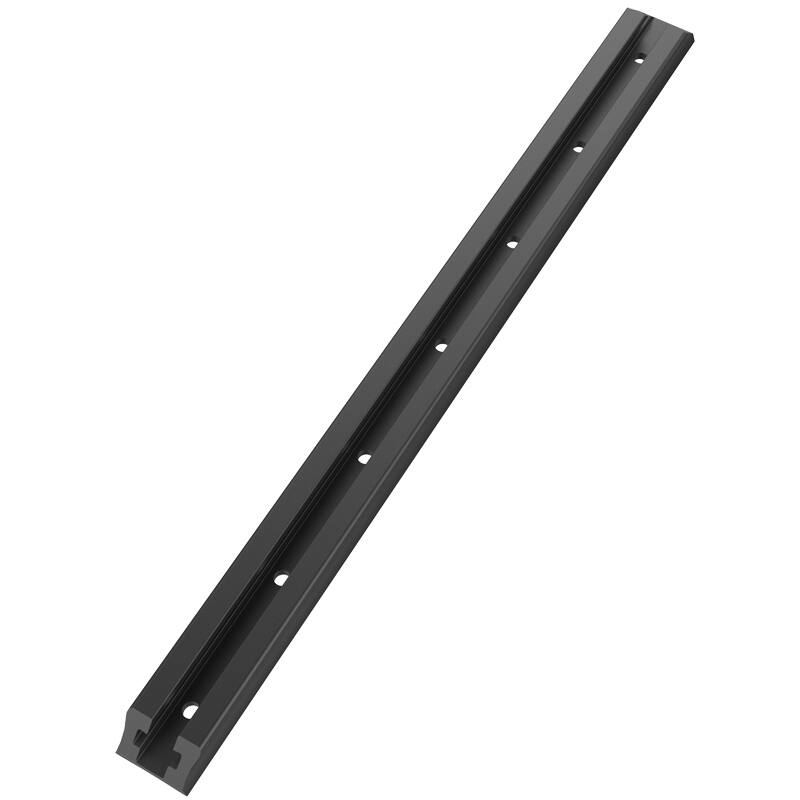

• Pre-drilled for #8 screws for easy installation (hardware not included)
• Backed by a lifetime warranty

Dimensions & Specifications

• Overall length: 305mm (12")
• Overall width: 23.1mm (0.91")
• Track thickness: 13.2mm (0.52")
• Material: high-strength composite
• Weight: 99.8g (0.22 lb)

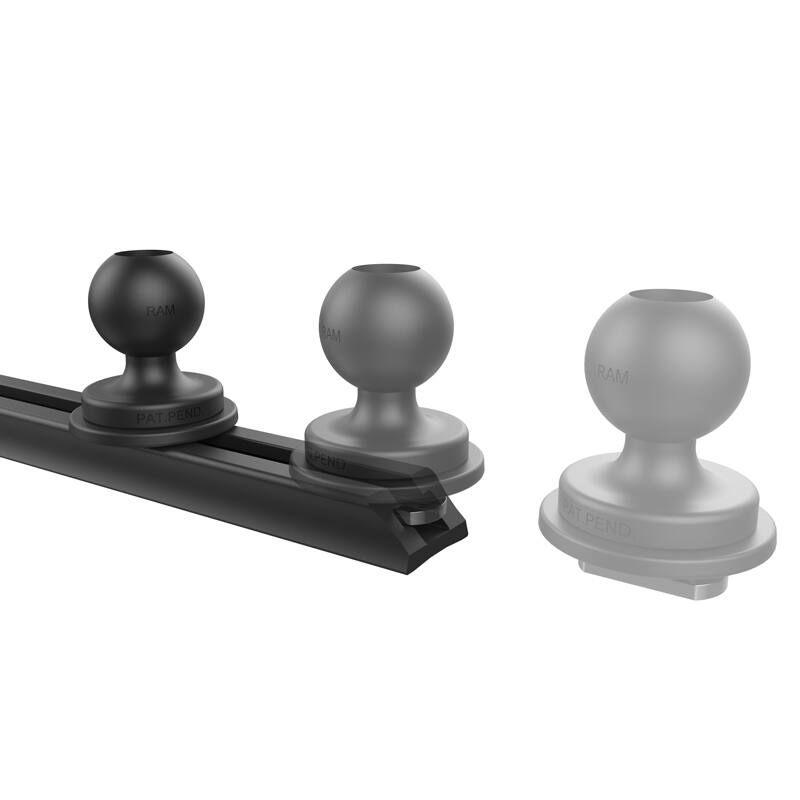

Compatible Track Balls

• RAP-B-354U-TRA1, 1" B-size composite Track Ball with T-bolt
• RAP-354U-TRA1, 1.5" C-size composite Track Ball with T-bolt
• RAM-B-463-TRA1U, 1" B-size aluminium Track Ball with T-bolt
• RAM-463-TRA1U, 1.5" C-size aluminium Track Ball with T-bolt

The composite (RAP) versions are lighter and cost less; the aluminium (RAM) versions are stiffer and better suited to rough or marine use. Track balls load in from the tapered end rather than dropping in from the top.
