RAM Tough-Track - Top-Loading Composite - Double U-Bolt Mount - For Rails/Tubes

RAP-TRACK-B12HU RAM® Tough-Track™ with Double U-Bolt Mount — for 1.75"–2" Rails

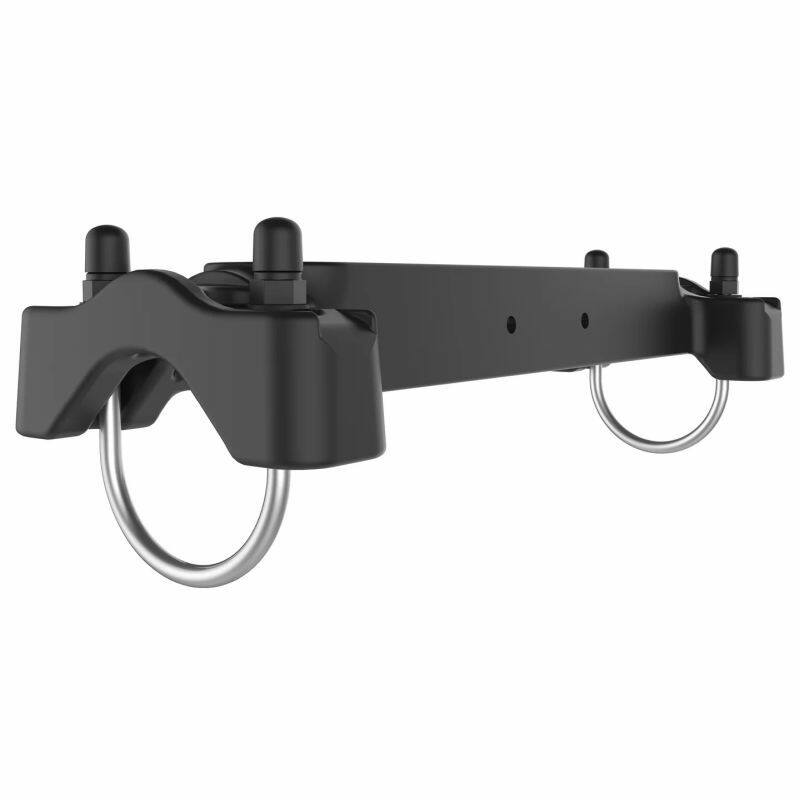

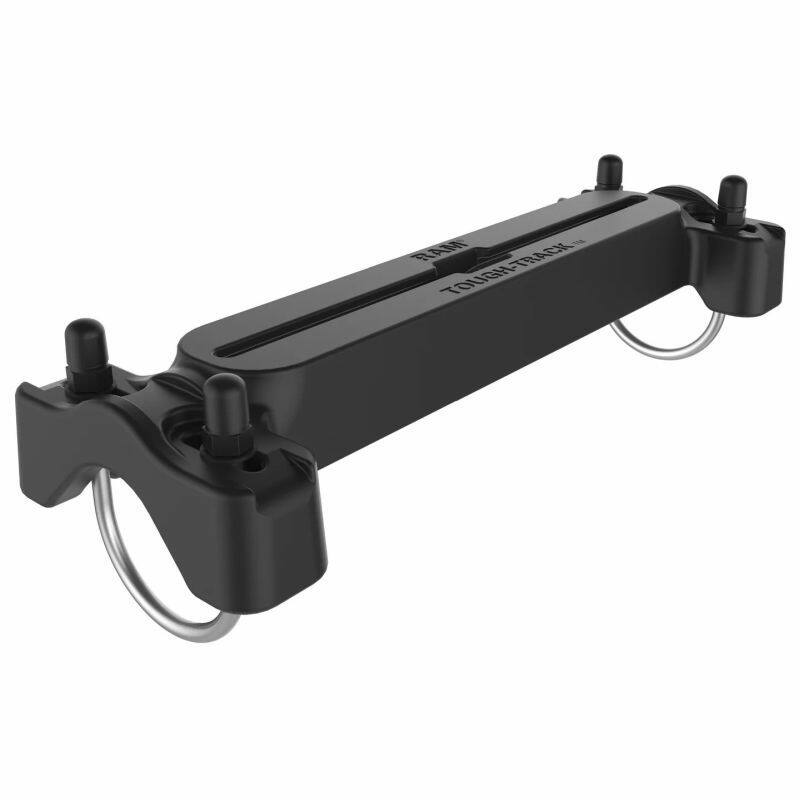

The RAP-TRACK-B12HU clamps a 229mm (9") RAM® Tough-Track™ to round rails, tubes, roll cages, or grab bars from 44.5mm to 50.8mm (1.75"–2") in diameter, creating a sliding mount point for B and C size RAM® track accessories.

Key Features

• 229mm (9") of usable high-strength composite track, 305mm (12") overall
• Double U-bolt hardware clamps to 44.5–50.8mm (1.75"–2") diameter rails, tubes, roll cages, and grab bars
• 2-hole AMPS pattern on the side accepts a RAM® diamond base for an additional mount point
• Compatible with B and C size RAM® track bases for action cameras, fishing rods, phone mounts, and tablet mounts
• Backed by a lifetime warranty

Works With

Fits round rails, tubes, roll cages, and grab bars from 44.5mm to 50.8mm (1.75"–2") diameter. Hardware for 2¼" or 2⅝" rails is available separately, and RAM® strap clamp mounts cover irregular-shaped rails.

Dimensions & Specifications

• Overall length: 305mm (12")
• Inside track length: 228.6mm (9")
• Clamp range: 44.5mm–50.8mm (1.75"–2" diameter)
• Material: high-strength composite
• Weight: 412g (0.91 lb)

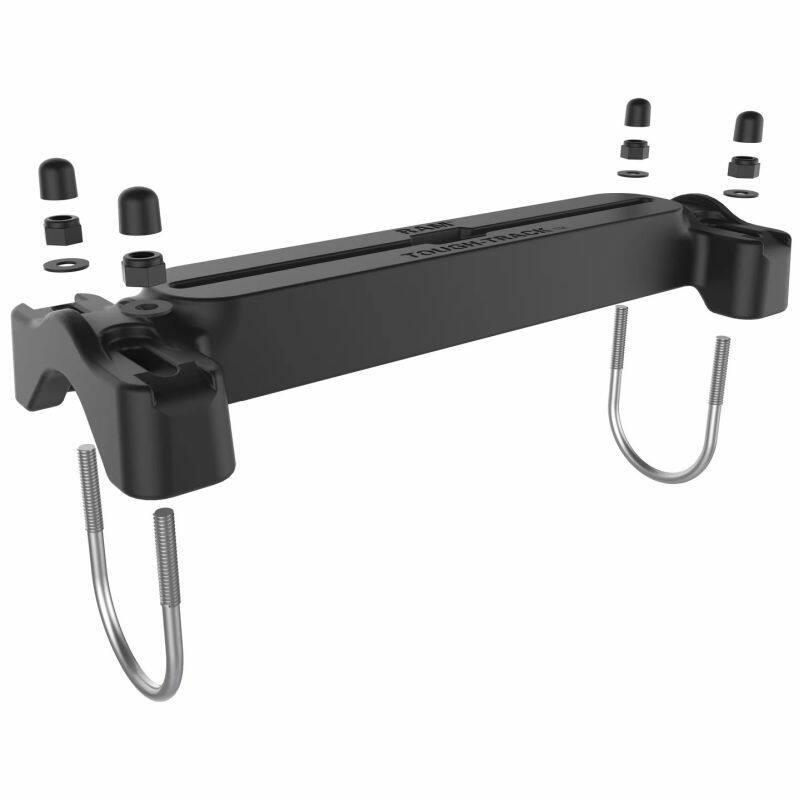

Hardware Included

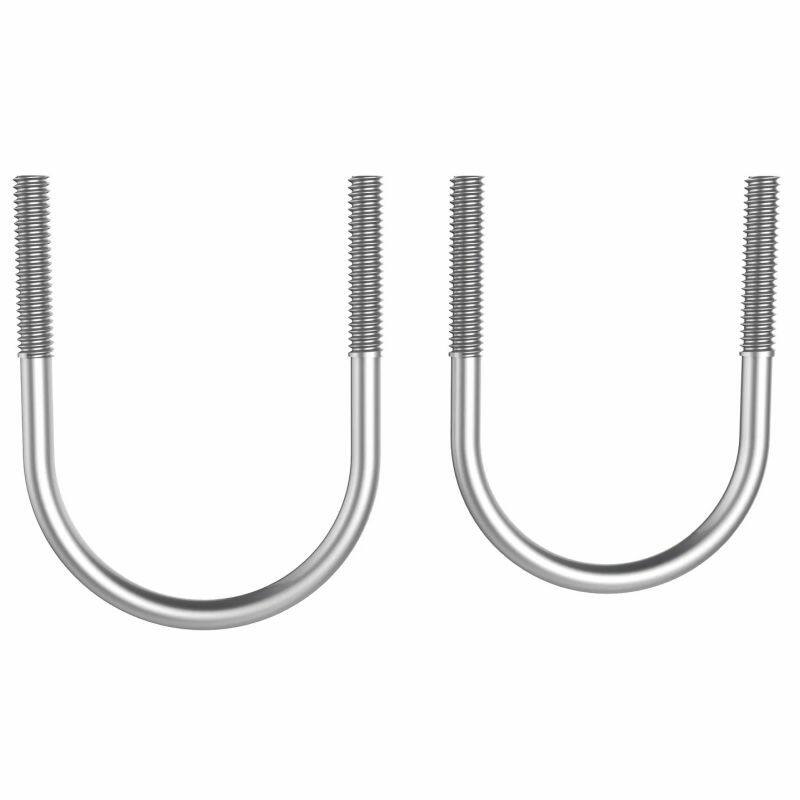

• 2x 1/4"-20 U-bolts sized for 1.75" rails
• 2x 1/4"-20 U-bolts sized for 1.75"–2" rails
• 4x #12 stainless steel flat washers
• 4x 1/4"-20 nylock nuts
• 4x rubber caps

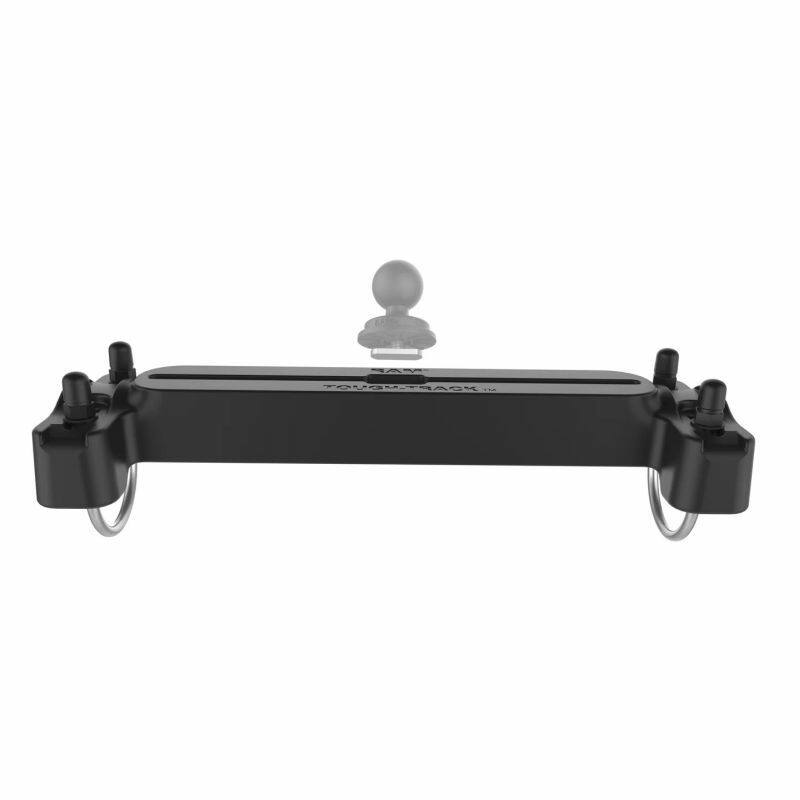

Compatible Track Balls

• RAP-B-354U-TRA1, 1" B-size composite Track Ball with T-bolt
• RAP-354U-TRA1, 1.5" C-size composite Track Ball with T-bolt
• RAM-B-463-TRA1U, 1" B-size aluminium Track Ball with T-bolt
• RAM-463-TRA1U, 1.5" C-size aluminium Track Ball with T-bolt

The composite (RAP) versions are lighter and cost less; the aluminium (RAM) versions are stiffer and better suited to rough or marine use.

FAQs

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

• RAM Tough-Track overview
