RAM-D-235U - U-Bolt Double Base 25–31mm - D Series (2.25" Ball)

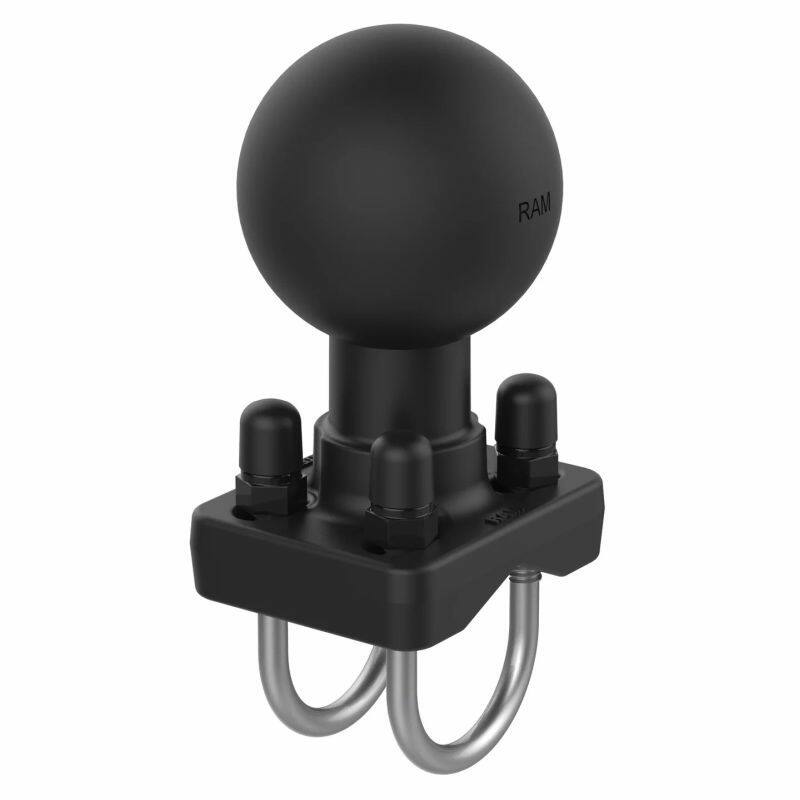

RAM-D-235U RAM® Double U-Bolt Ball Base for 25-31mm Rails

The RAM-D-235U is a double U-bolt base with two stainless steel U-bolts, fitted with a D size 2.25" rubber ball. It clamps round rails from 25.4mm to 31.75mm (1" to 1.25") in diameter and connects to any D size RAM® double socket arm.

Key Features

• Double U-bolt base fits round rails from 25.4mm to 31.75mm (1" to 1.25") in diameter
• D size 2.25" RAM® rubber ball connects to any D size RAM® double socket arm
• RAM® ball-and-socket technology for near-infinite adjustability
• Stainless steel U-bolts resist rust; rubber cover caps protect the exposed bolt ends
• Powder-coated marine-grade aluminium base
• Backed by a lifetime warranty

Dimensions & Specifications

• Clamp range: 25.4mm to 31.75mm (1" to 1.25") diameter
• Ball size: D Size, 2.25" rubber ball
• Material: powder-coated marine-grade aluminium and stainless steel
• Weight: 390 grams (0.86 lb)
• Weight capacity: 2.72kg (6 lb) standard use, 2.26kg (5 lb) heavy-duty use

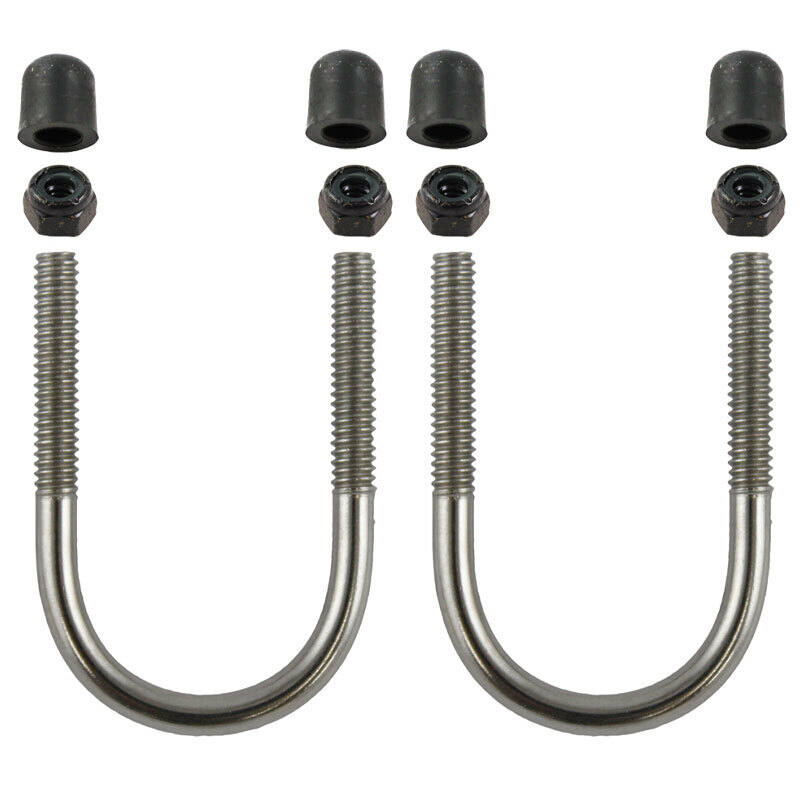

Hardware Included

• (2) 1/4"-20 U-bolts for 1"–1.25" rails
• (4) 1/4"-20 Nylock nuts
• (4) rubber caps

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.

Why are the U-bolts stainless steel?
Stainless resists rust over time. Black rubber cover caps go over the exposed U-bolt ends for a tidy finish and to protect against snagging.
