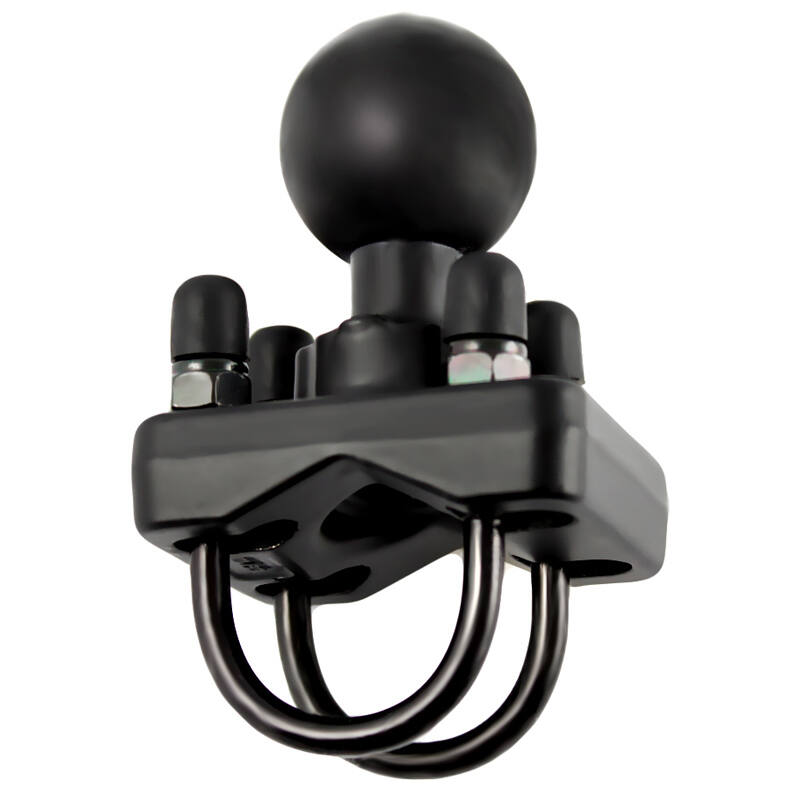

RAM-235U RAM® Double U-Bolt Ball Base for 25 to 32mm Rails
Features
* Stainless steel double U-bolt base accommodates rails from 25.4 to 31.75mm (1 to 1.25") in diameter
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm
* RAM® ball and socket technology allows for near-infinite adjustability
* Made of powder-coated marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-235U is a double u-bolt base with C-Sized 1.5" diameter ball and two stainless steel u-bolts. The double u-bolt base will accommodate rails from 25.4mm to 31.75mm (1 to 1.25") in diameter.
U-Bolt Dimensions:
25.4mm to 31.75mm (1 to 1.25") in diameter
Specs & Features
Material:
Powder Coated Marine Grade Aluminium
Stainless Steel
Ball Size:
1.5" (C size) Rubber Ball Size
Weight
245 grams (0.54 lbs)
Weight Capacity:
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
QUESTIONS & ANSWERS
Q: I can't install the nuts with my hands is that normal?

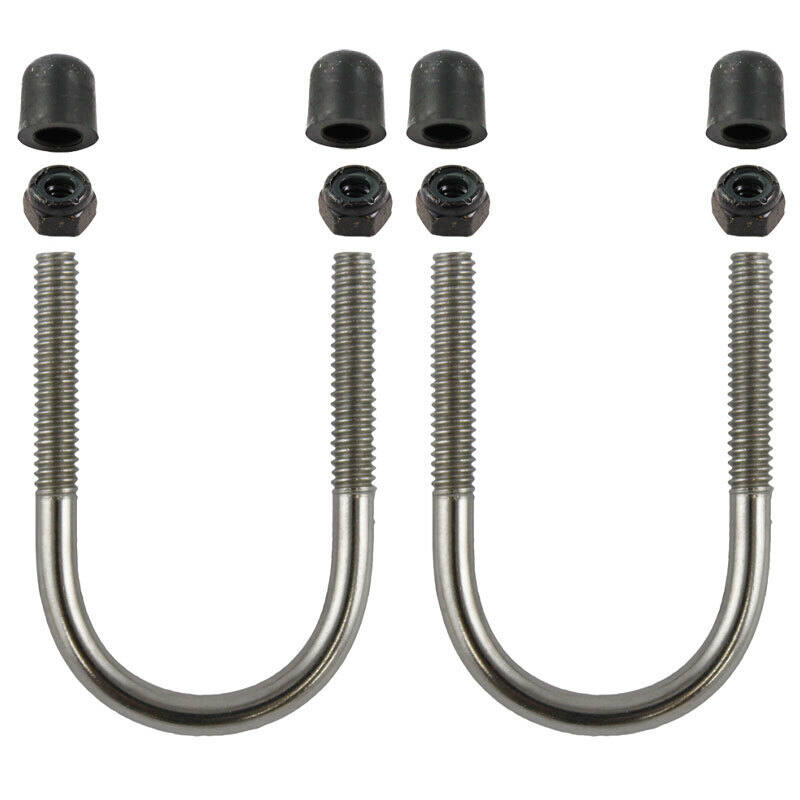

A: Yes, you will need a wrench to assemble this base. The nuts have a nylon lock ring that prevents the nuts from vibrating off. You will need a wrench to get the nuts to tighten past that lock ring.
Q: What are these measurements: 1. Left outside to right outside of two u-bolts 2. Base plate measurement?
A: The inner and outer distances of the u bolts used with the RAM-235U are 1.295" inner and 1.51" for the outer. The plate itself is 2.07" x 2.5"
