RAM-B-149ZU-C RAM® Handlebar U-Bolt Double Ball Mount - B Size Long
Features
* Diamond adaptor ball base contains 2 hole AMPs pattern for connecting to a wide variety of device holders
* Includes zinc-coated U-bolt base that accommodates rails from 12.7 to 31.8mm in diameter
* Short length B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

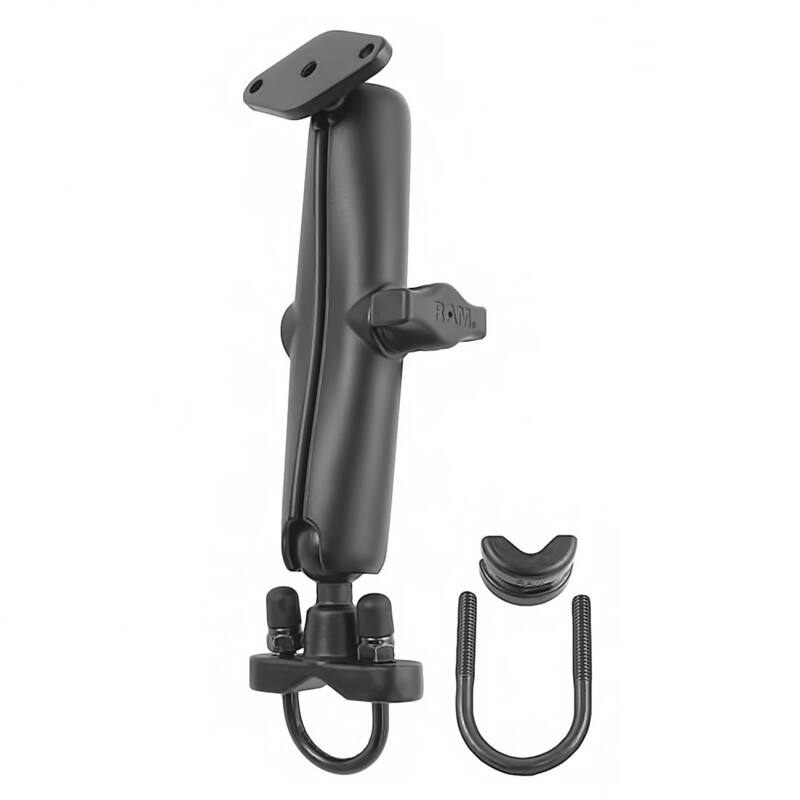

The RAM-B-149ZU-C consists of a zinc coated u-bolt base, long length double socket arm and diamond adapter base.
The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 1.27cm to 3.18cm (0.50" to 1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The long double socket arm has a socket at both ends that accommodates 1" ball fittings. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection for almost infinite adjustment and perfect viewing angles
Arm Dimensions:
Overall Length:
152 mm (6 inches)
Socket-To-Socket Length:
134 mm (5.25 inches)
U-Bolt Dimensions:
12.7 to 31.8mm (0.50" to 1.25")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
0.286kg (0.63 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-B-231ZU RAM RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U-C RAM DBL SOCKET ARM B BALL C LENGTH
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
Note: Longer and shorter versions of this mount are available - please enquire
