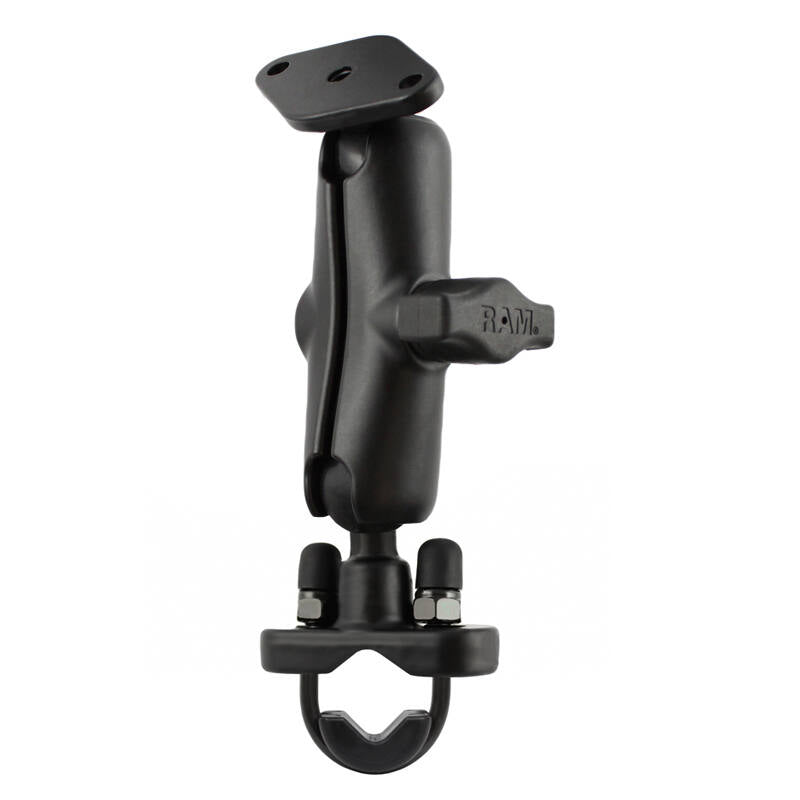

RAM-B-149ZU RAM® Handlebar U-Bolt Double Ball Mount
Features
- Includes zinc-coated U-bolt base that accommodates rails from 12.7mm to 31.8mm (.5" to 1.25") in diameter, medium length B size RAM® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders
- RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
Included in this package is hardware that will accommodate rails from 12.7mm to 31.8mm (0.50" to 1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 12.7mm (0.5”). The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Specs:
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
U-Bolt Dimensions:
12.7mm to 31.8mm (0.50" to 1.25")
Diamond Plate Hole Pattern
2-Hole AMPS:
48.5mm (1.912")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
0.286kg (0.63 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
