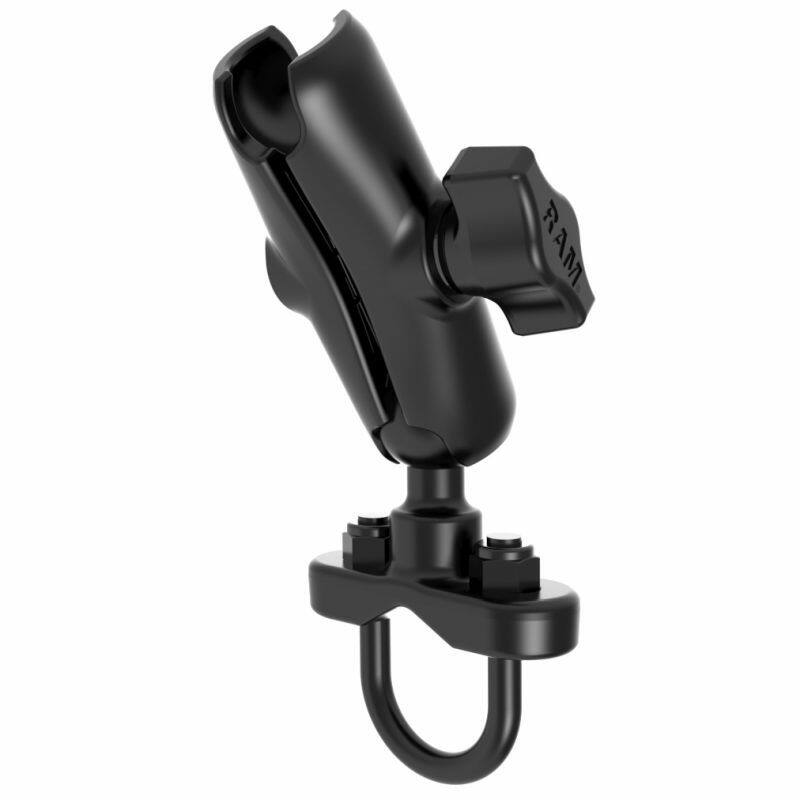

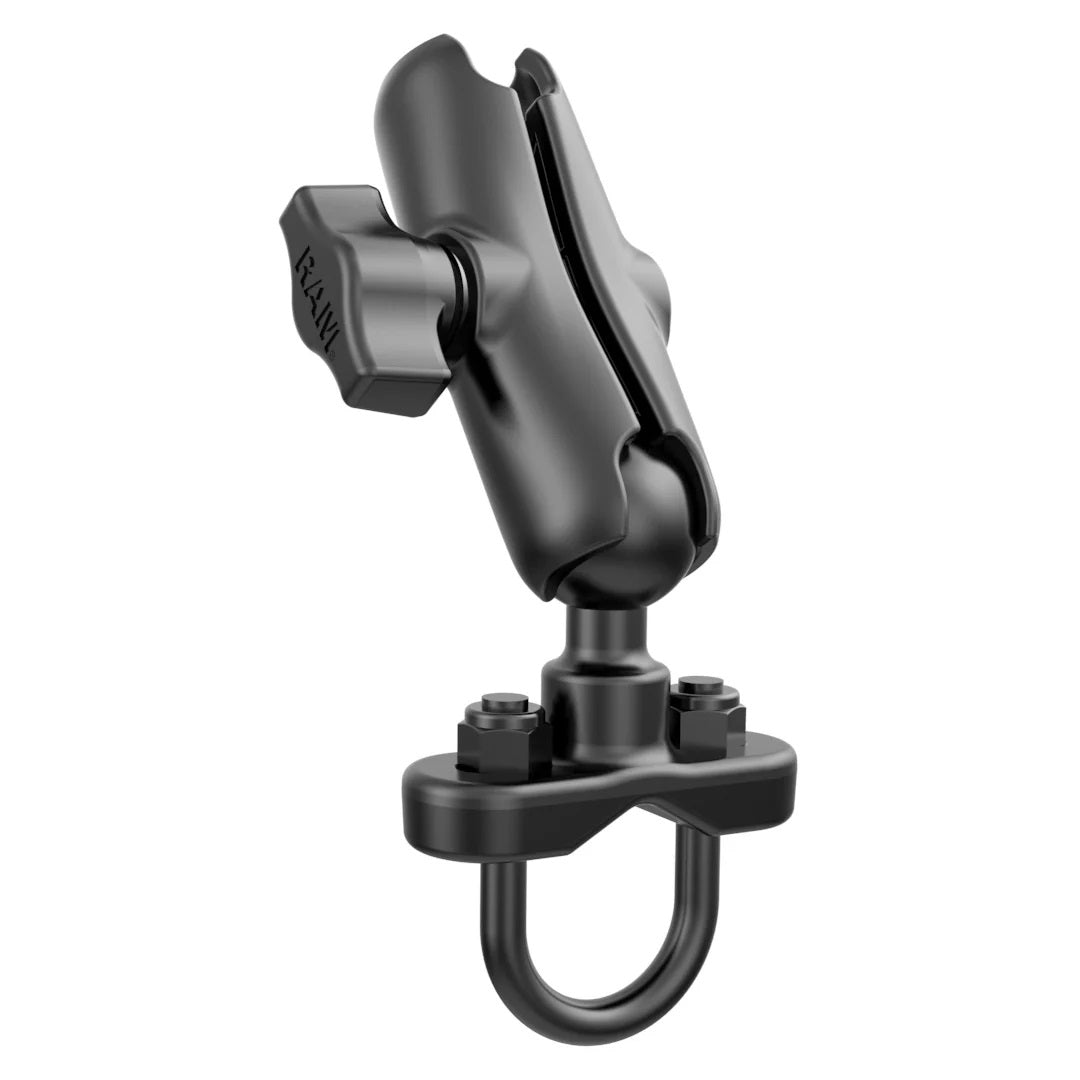

RAM-B-149Z-QU1U – RAM® U-Bolt Rail Base with Medium Double Socket Arm
The RAM-B-149Z-QU1U is the no-frills version of our U-bolt rail mount: a zinc-coated U-bolt base and a medium B-size double socket arm, ending in a 1" ball ready for any RAM B-size cradle. No diamond plate, just the base and arm, which makes it the most affordable way onto a bar for an X-Grip, GoPro adapter or device cradle. It clamps round rails from 12.7mm to 31.8mm (0.5" to 1.25").
Key Features
Zinc-coated steel U-bolt fits rails 12.7mm to 31.8mm (0.5" to 1.25"); composite adapter narrows to 12.7mm (0.5")
Medium B-size double socket arm with twin ball-and-socket joints for full adjustment
1" ball connects straight to any RAM B-size cradle

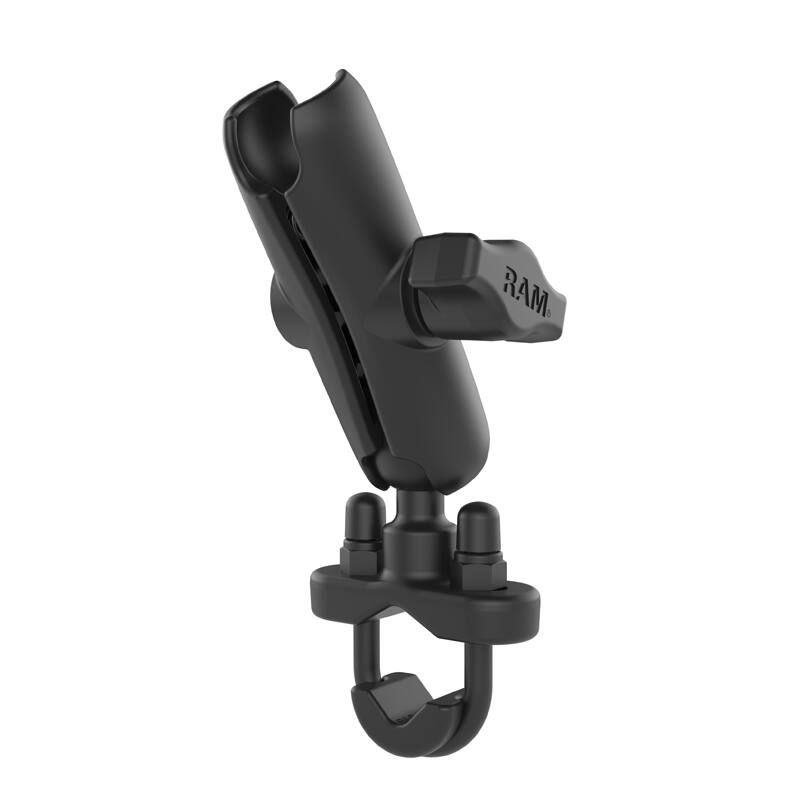

Includes both U-bolt sizes plus rubber end caps for exposed bolt ends

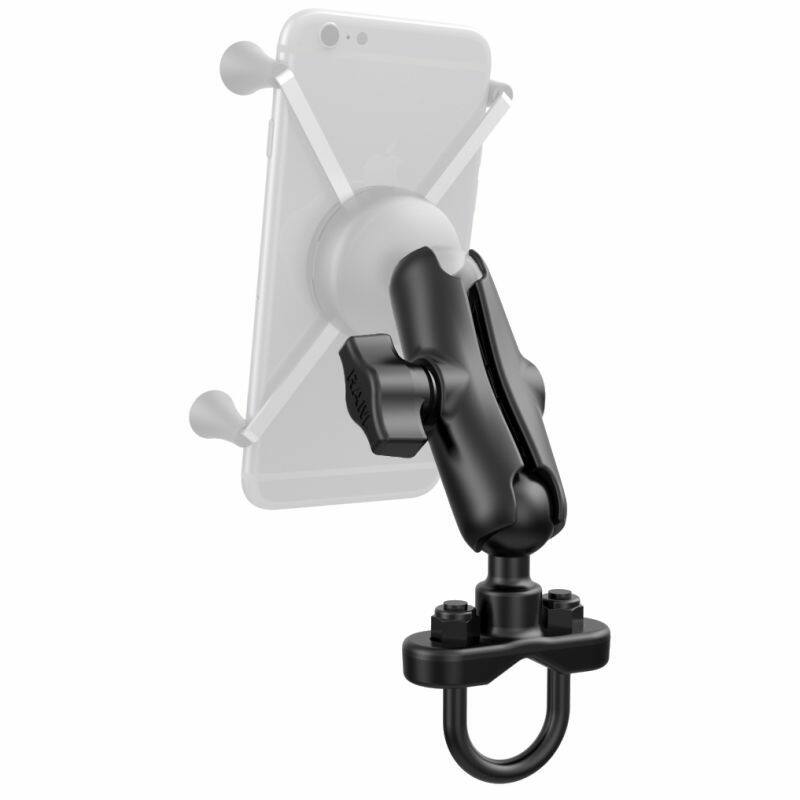

A universal mounting solution for any RAM B-size (1" ball) cradle. Add an X-Grip, Quick-Grip, a GoPro/action-camera adapter, or a device-specific holder. Want a diamond AMPS plate as well for bolt-on holders? See the RAM-B-149ZU diamond-plate version.
Dimensions & Specifications
U-bolt clamping range: 12.7mm to 31.8mm (0.5" to 1.25")
Arm overall length: 94mm (3.69")
Arm socket-to-socket: 76mm (3")
Ball size: 1" rubber ball, RAM B-size
Material: powder-coated marine-grade aluminium
Weight: 250g (0.55 lb)
Load rating: up to 907g (2 lb) standard use; 454g (1 lb) for heavy-duty or high-vibration use
What's Included
RAM-B-231ZU zinc-coated U-bolt rail base with 1" ball

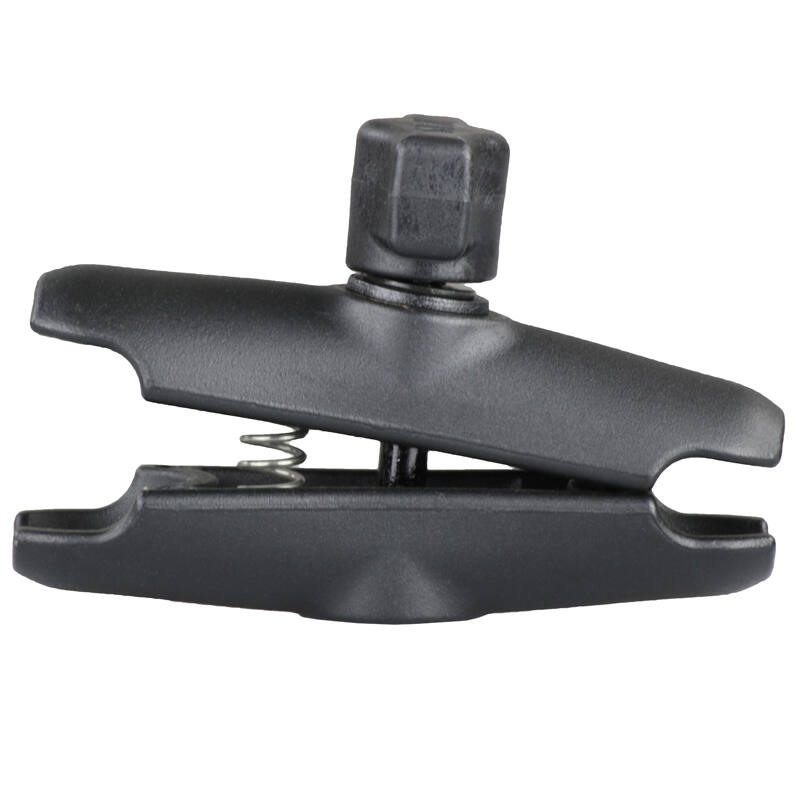

RAM-B-201U medium double socket arm
One 1/4"-20 U-bolt for 0.5"-1" rails and one for 1"-1.25" rails
Two 1/4"-20 nylock nuts, two rubber caps, one U-bolt spacer
FAQs
What's the difference from the RAM-B-149ZU? This one has no diamond plate. The arm ends in a bare 1" ball that plugs straight into a RAM cradle. If you need a flat AMPS plate to bolt a holder to, choose the RAM-B-149ZU instead.
How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
