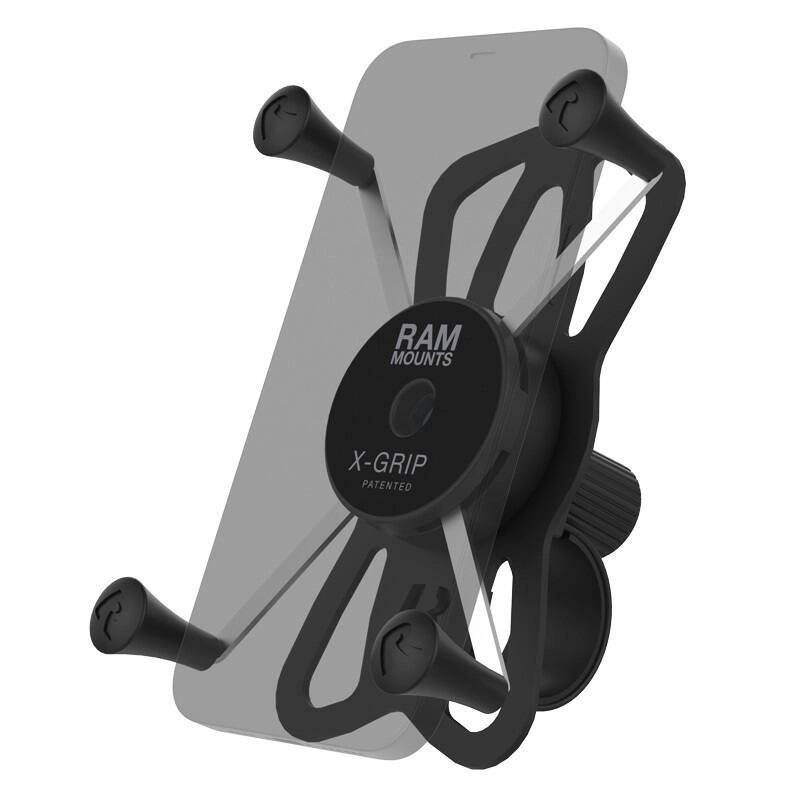

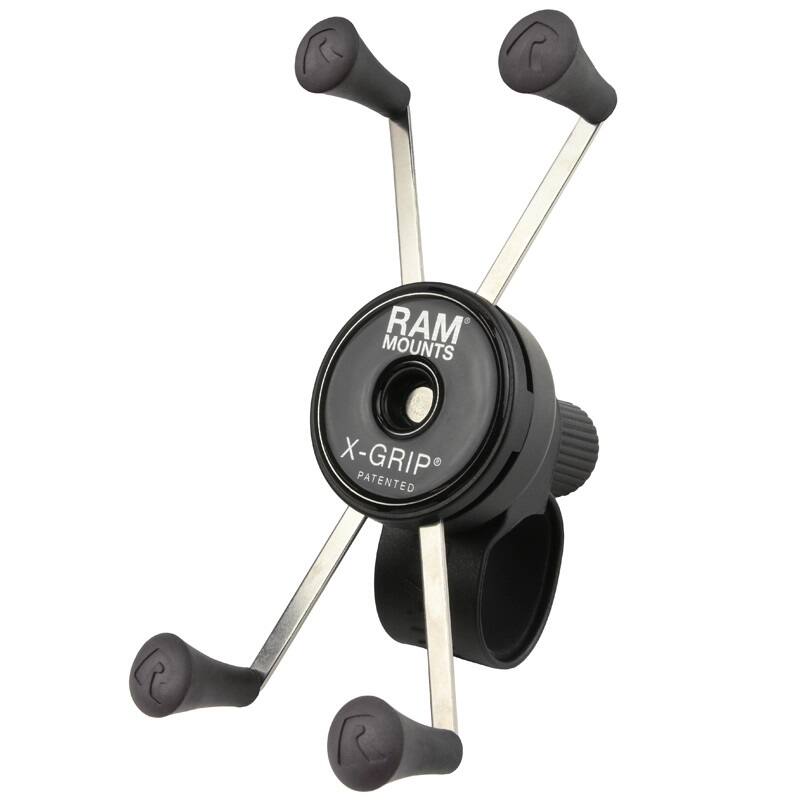

RAP-460-UN10U RAM® X-Grip® Large Phone Mount with Tough-Strap™ Handlebar Base
The RAP-460-UN10U pairs the RAM® X-Grip® cradle for large phones and phablets with the low-profile Tough-Strap™ handlebar base — a single-knob mount for mountain bikes, road bikes, and e-bikes.
Key Features
Tough-Strap™ base tightens with a single knob; two strap sizes cover handlebars 22-35mm
Uses the RAM® Pin-Lock™ system for a secure, low-profile fit

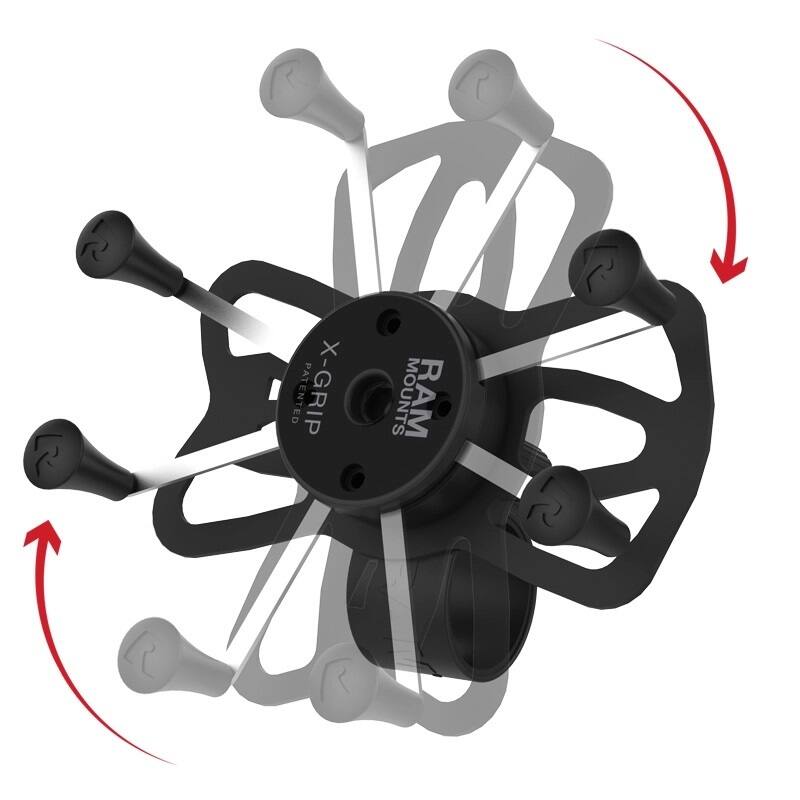

Spring-loaded 'X' design with rubber caps grips firmly without hiding the phone; optional tether included for rugged use
High-strength composite with stainless steel hardware
Backed by a lifetime warranty
Works With

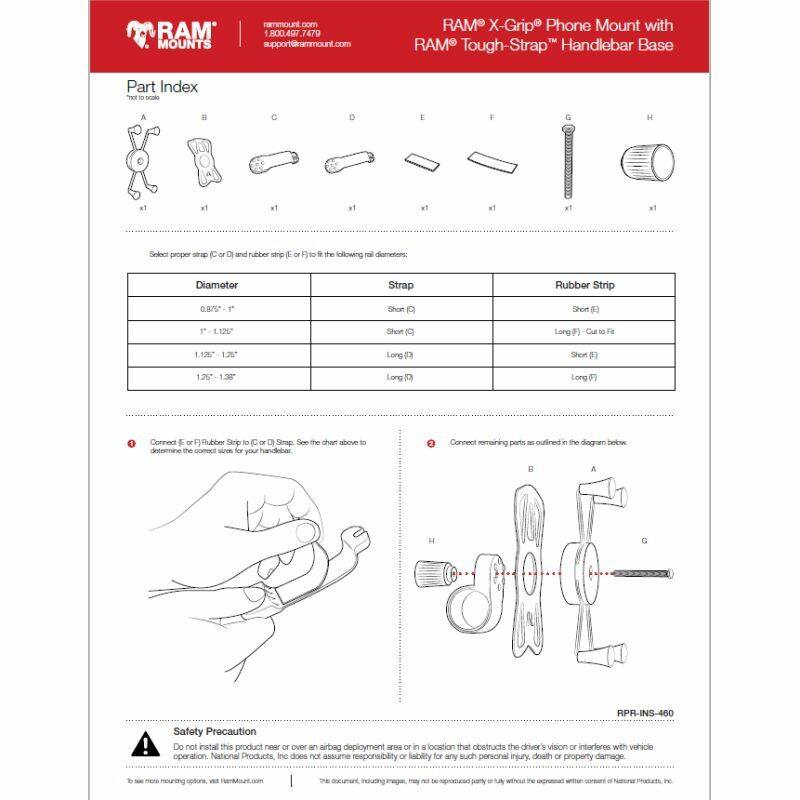

Handlebars 22.2mm to 35.05mm (0.875"-1.38") in diameter. The long strap covers 31.75-35mm, the short strap 22-25mm, and the included rubber strip trims the short strap down to fit 25-28.6mm for a custom fit.
Dimensions & Specifications

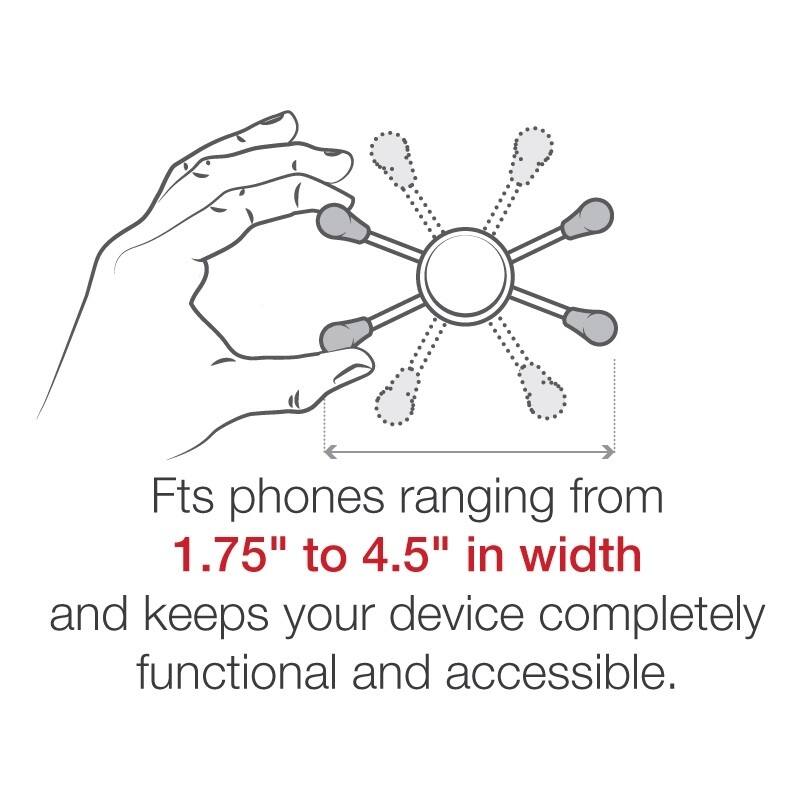

Cradle min width: 44.45mm (1.75"), min height at min width: 139.7mm (5.5")
Cradle max width: 114.3mm (4.5"), min height at max width: 82.55mm (3.25")
Max thickness: 22.2mm (0.875")
Clamp range: 22.2mm–35.05mm (0.875"–1.38")
Weight: 167g
Fits large phones and phablets (5.5" screen class) within the dimensions above — see the RAM-HOL-UN10BU listing for the full compatible device list.
FAQs
Will this fit my e-bike? Yes — the Tough-Strap™ is designed for mountain bikes, road bikes, and e-bikes alike, with two strap sizes to suit most handlebar diameters.
